Summit 24" Wide Dual Tap Panel Overlay Commercial Built-In ADA Kegerator SBC58BBIIFADA Review

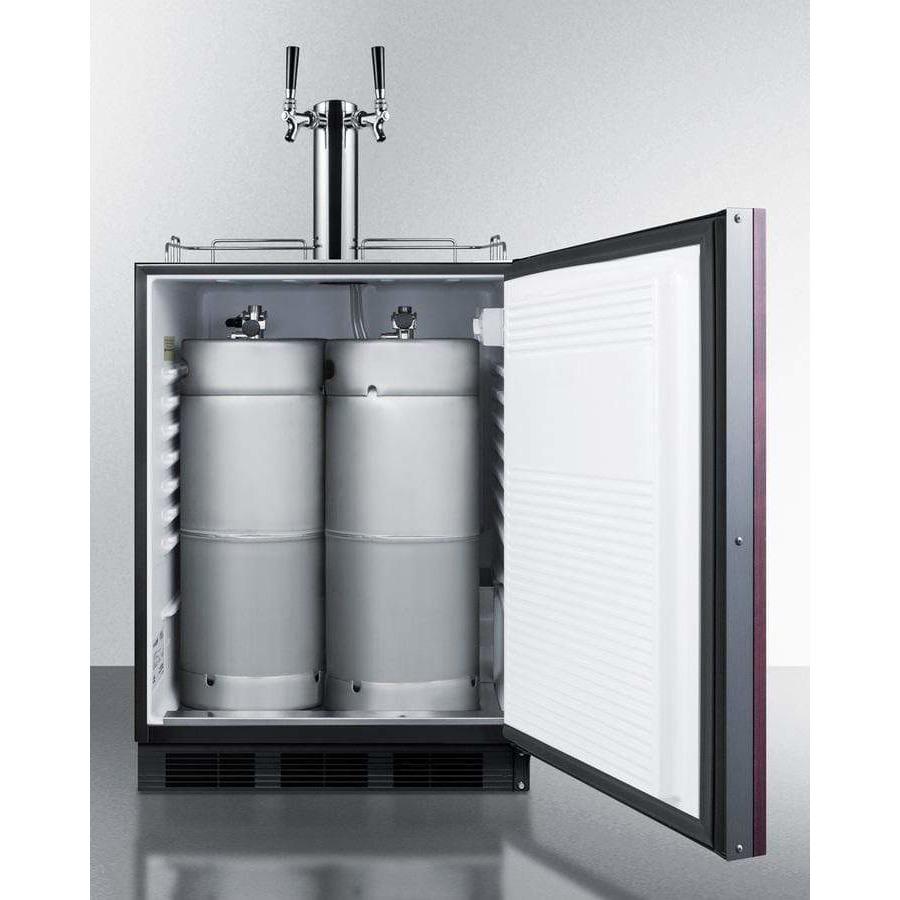

Summit Commercial brings unique appliance choices to ADA compliant settings with a new line of commercial beer dispensers made in Europe. Sized at 32 inches high, the SBC58BBIIFADA is designed to fit under lower ADA compliant counters. The front-breathing design allows built-in installation, while the fully finished black cabinet also enables freestanding use. This unit features an integrated stainless steel door frame designed to accept overlay panels, allowing you to create a custom look that blends into your cabinetry. We include a guard rail (ships uninstalled) and a removable two-piece stainless steel drip tray for cleaner service. The SBC58BBIIFADA ships with a complete Sankey American dual tap kit complete with a draft tower, regulator, 5 lb. CO2 tank, and all the equipment you need to serve beer on tap. Inside, the SBC58BBIIFADA is designed to hold two 1/6 (sixtel) kegs or one tall quarter keg (note: interior does not accommodate a standard half barrel). Automatic defrost ensures easy user maintenance, with a seamless interior for easier cleaning. The stainless steel floor offers added durability when loading kegs. This unit includes an interior light with an on/off rocker switch and a dial thermostat for easy and intuitive temperature management. A CO2 tank bracket is located inside, allowing you to keep the tank inside and save on exterior depth. The SBC58BBIIFADA is ETL-S listed to NSF-7 commercial standards. Additional ADA compliant kegerator choices are available with stainless steel or glass doors. Browse our complete line for more choices.
FEATURES
- ADA compliant height
- Sized at 32 inches high (32.25 to hinge cap) for installation under lower ADA compliant counters
- Commercially approved
- ETL-S listed to NSF-7 commercial standards and meets UL-471 for use in food service settings
- Built-in capable
- The front-breathing design allows fully recessed installation under counters
- Complete tap kit
- Includes a 5 lb. CO2 tank and regulator, dual tap draft arm, Sankey American tap, connection hardware, and cleaning kit
- Dual tap system
- Twin draft tower allows you to serve from two 1/6 (sixtel) sized kegs
- Panel-ready door
- Customize the front by mounting an overlay panel over the door; a seamless look can blend into other cabinetry with no exposed frame. Handle not included (panel size: 23 5/16" W x 28 1/4" H and at least 3/4" thick; maximum weight: 10 lbs.)
- Adjustable thermostat
- Interior dial thermostat ensures easy temperature management
- Automatic defrost
- The no-frost operation for minimum user maintenance
- User-reversible door
- Unit ships with a right-hand door swing. For a left-hand version, add option LHD upon order
- The stainless steel drip tray
- Removable two-piece drip tray included for added convenience
- Stainless steel guard rail
- Durable railing makes it easier to neaten service
- Interior light
- Turn the light on when you need it and off when you're done with a convenient rocker switch
- Interior CO2 holder
- The bracket is installed inside, allowing you to save on depth by keeping the tank behind your kegs
- Stainless steel floor cover
- Interior includes steel cover to protect the floor when loading kegs
- One-piece interior liner
- Easy clean-up with a seamless liner that won't hold a mess in hidden crevices
- Hidden evaporator
- Cold wall design with hidden evaporator and seamless interior
- Fully finished cabinet
- Allows the unit to be used freestanding
- 100% CFC free
- Environmentally friendly design without ozone-damaging chemicals
SPECIFICATIONS
| Overview |
| Height of Cabinet |
32.0" (81 cm) |
| Height to Hinge Cap |
32.25" (82 cm) |
| Width |
23.63" (60 cm) |
| Depth |
22.75" (58 cm) |
| Depth with door at 90° |
45.0" (114 cm) |
| Capacity |
5.5 cu.ft. (156 L) |
| Defrost Type |
Automatic |
| Door |
Panel-Ready |
| Cabinet |
Black |
| US Electrical Safety |
ETL |
| Canadian Electrical Safety |
ETL-C |
| Sanitation |
ETL-S |
| Amps |
1.3 |
| Voltage/Frequency |
115 V AC/60 Hz |
| Weight |
110.0 lbs. (50 kg) |
| Shipping Weight |
120.0 lbs. (54 kg) |
| Estimated Time to Ship |
3 to 5 days |
| Parts & Labor Warranty |
1 Year |
| Compressor Warranty |
5 Years |
| Kegerator |
| Door Swing |
RHD |
| Reversible |
Factory Reversible |
| Tap Kit |
Yes |
| Height with Tap |
47.5" (121 cm) |
| Number of Taps |
2 |
| Thermostat Type |
Dial |
| Interior Light |
Yes |
| Fan Type |
Exterior |
| Refrigerant |
R134a |
| Refrigerant Amount |
1.8 oz. |
| High Side PSI |
285.0 |
| Low Side PSI |
88.0 |
| Inter Height |
26.25" (67 cm) |
| Interior Width |
21.0" (53 cm) |
| Interior Depth |
17.75" (45 cm) |
| Compressor Step Height |
5.5" (14 cm) |
| Compressor Step Width |
21.0" (53 cm) |
| Compressor Step Depth |
5.5" (14 cm) |
| Temperature Range |
34º to 43ºF |
MANUALS
User Manual
