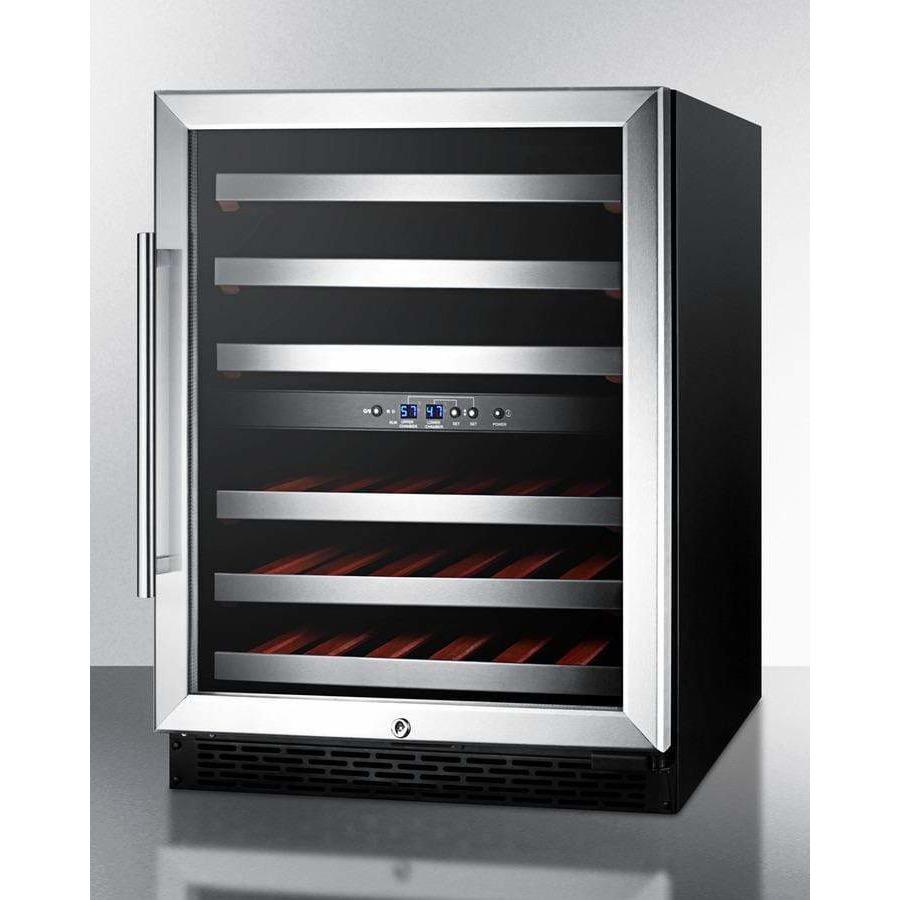

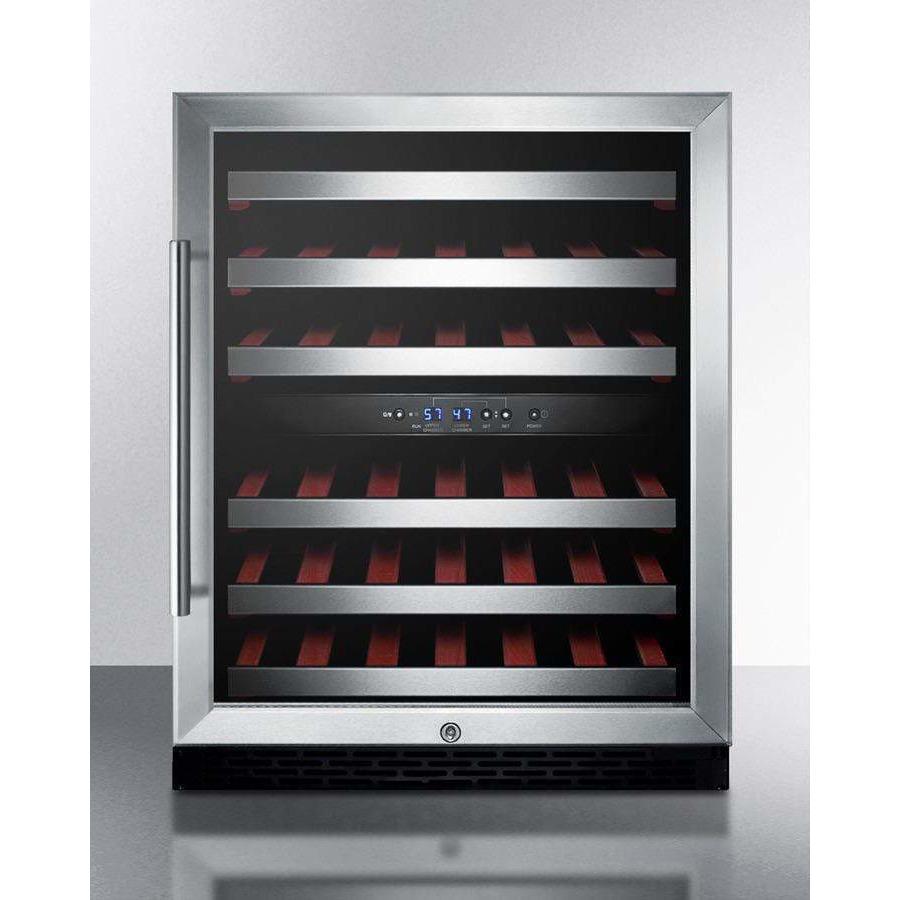

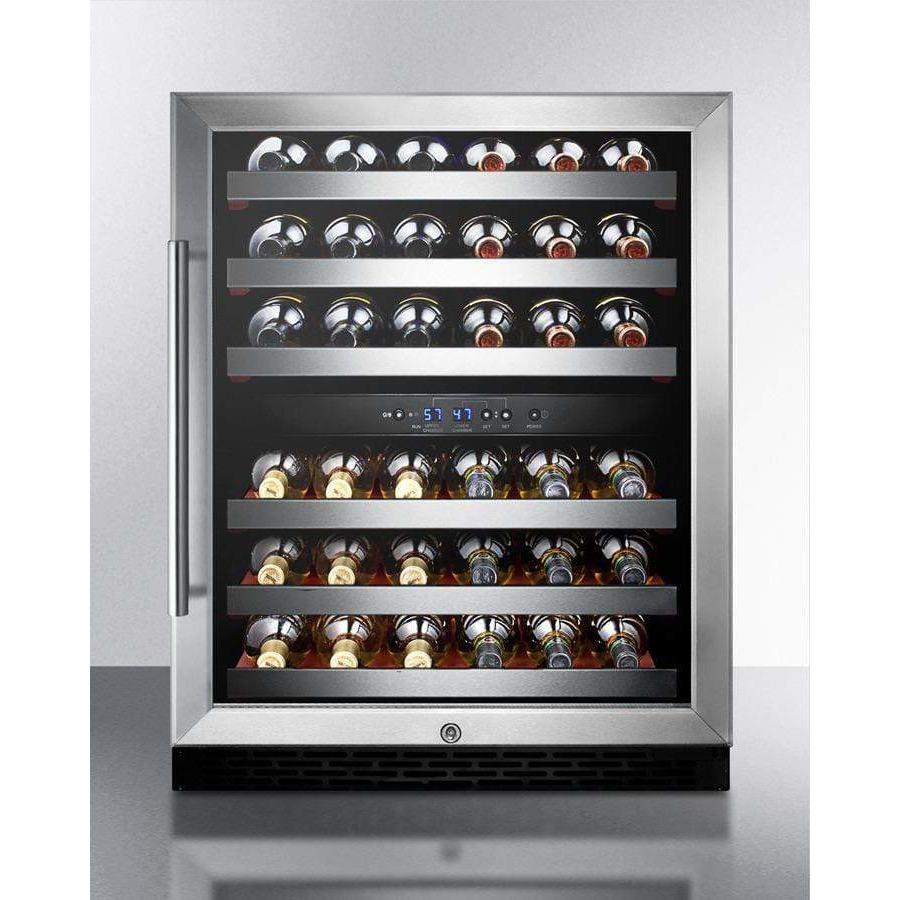

Summit 46 Bottle 24" Wide Built-In, ADA Compliant Wine Fridge SWC530BLBISTADA

• Built-in capable
• Make the best use of space by installing your appliance under the counter
• ADA Compliant
• 32" height fits under lower ADA compliant counters
• Fully finished black cabinet
• Allows the unit to be used freestanding

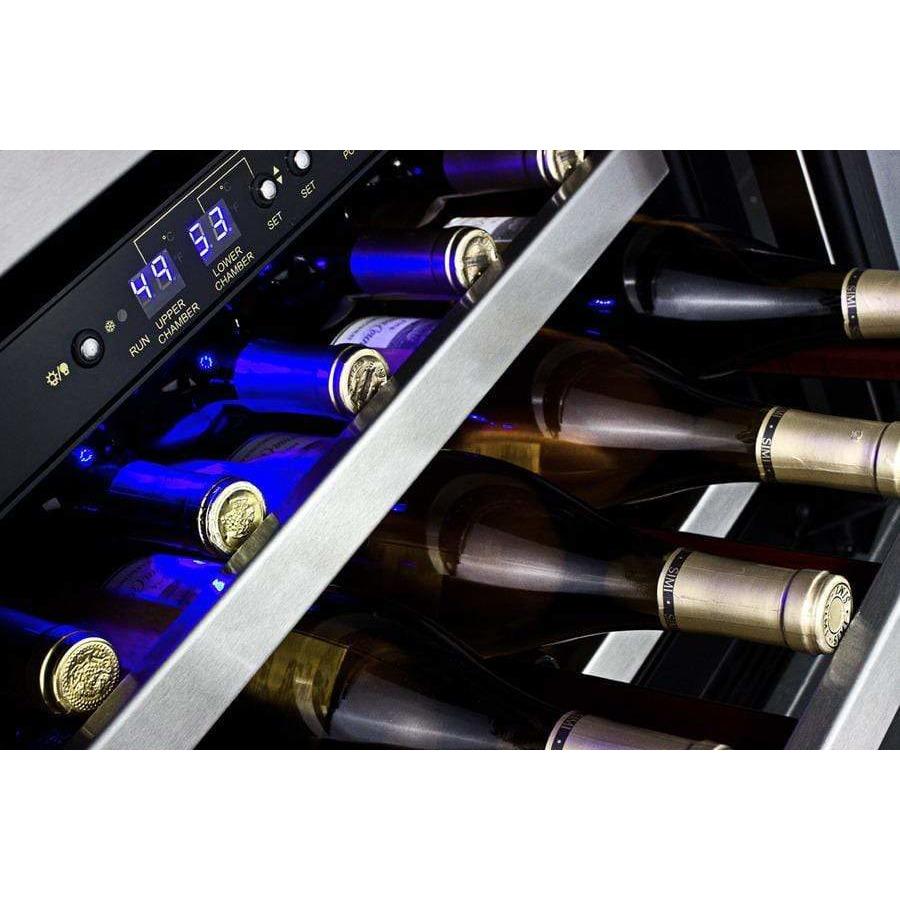

• Digital thermostats
• Set and adjust two temperature zones separately with easy-to-use digital controls and digital displays
• Two temperature zones
• Lower zone for reds has a temperature range of 10º C/50º F to 18º C/64º F; Upper zone stores whites and sparkling wine between 5º C/41º F to 10º C/50º F
• Automatic defrost
• Reduced maintenance with auto defrost system
• Slide-out wooden shelving
• Ideal for holding your bottles, with an elegant touch of stainless steel trim
• Versatile shelving

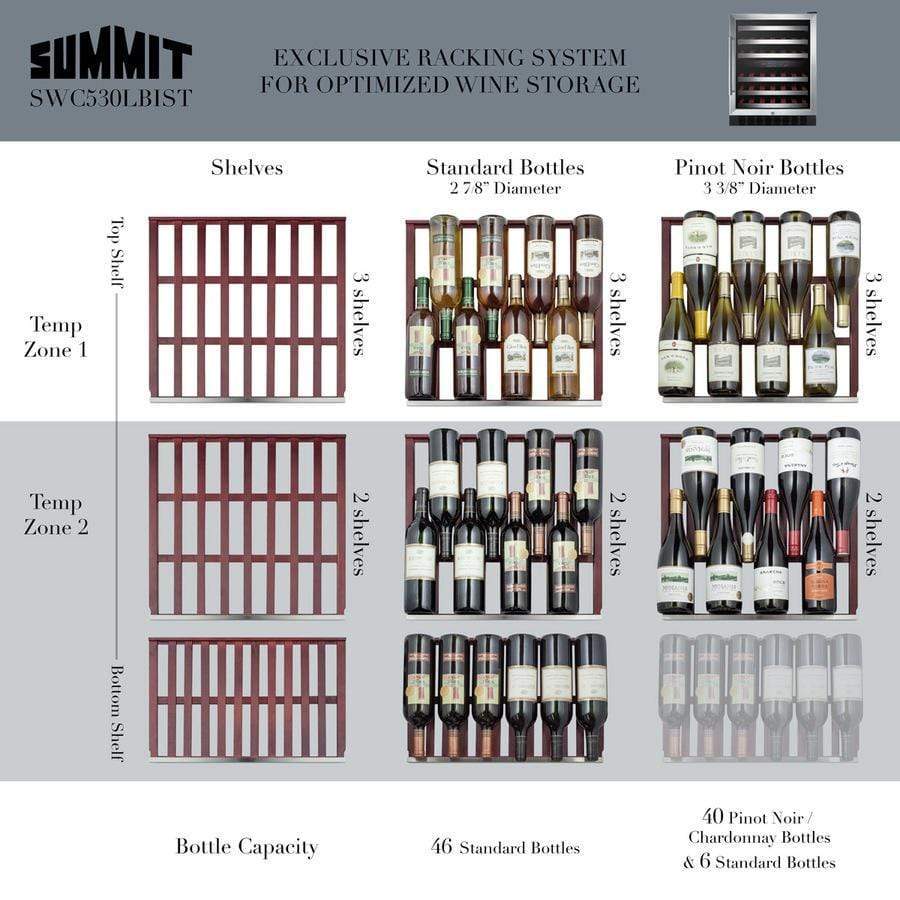

• Interior can store both standard Bordeaux bottles and wider Burgundy type for Pinot Noir and Chardonnay; see your Shelving Guide for details
• Stainless steel door frame
• Classic trim for a refined look
• Glass door
• Provides a full display of your collection
• Interior light
• Illuminate your collection in style
• Factory installed lock
• Keyed lock for secure interior
• Reversible door
• User reversible door swing
• 100% CFC Free
• Environmentally friendly design with no ozone-damaging chemicals

SPECIFICATIONS

Overview
Height of Cabinet	32.0" (81 cm)
Width	23.63" (60 cm)
Depth	23.38" (59 cm)
Depth with Handle	25.0" (64 cm)
Depth with door at 90°	45.5" (116 cm)
Bottles	46 bottles
Defrost Type	Automatic
Door	Glass
Cabinet	Black
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Amps	2.0
Voltage/Frequency	115 V AC/60 Hz
Weight	112.0 lbs. (51 kg)
Shipping Weight	117.0 lbs. (53 kg)
Estimated Time to Ship	2 to 4 days
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
Wine Cellar
Number of Zones	2
Door Swing	RHD
Reversible	Yes
Shelf Type	Wood
Shelf Qty	6
Thermostat Type	Digital
Interior Light	Yes
Fan Type	Interior and Exterior
Refrigerant Type	R600a
Refrigerant Amount	1.23 oz.
High Side PSI	150.0
Low Side PSI	50.0
Level Legs	2



MANUALS



BROCHURE
SWC530BLBISTADA.pdf





USE & CARE
SWC530BLBIST___SWC182Z_manual.pdf





SUPPORT
SWC530LBIST_Shelving_Guide.pdf
