Summit ADA Under Counter Commercial Ice Maker BIM100ADA

Summit ADA Under Counter Commercial Ice Maker BIM100ADA Overview

Looking for a reliable and efficient under-counter commercial ice maker? The Summit ADA Under Counter Commercial Ice Maker BIM100ADA is the perfect solution!

Summit Commercial brings powerful performance and user-friendly convenience in an under the counter design with the BIM100ADA commercially approved icemaker, specially designed to fit in ADA compliant settings.

Made for Summit in South Korea, the BIM100ADA is ETL-S listed to NSF-12 standards for use in commercial applications.This unit features a fully finished stainless steel cabinet and jet black front with a slide-up lid. It can be built-in under counters or used freestanding, with a front-breathing air-cooled system to prevent overheating. The BIM100 produces up to 100 lbs. of clear dice style ice cubes per day. The interior can store up to 27 lbs. to help meet the needs of high traffic commercial environments, with an automatic sensor to prevent overproduction.

This unit has a 30" high cabinet and ships two sets of leveling legs: adjustable .5" to 1.5" legs that raises the height up to 31.5" for use under lower ADA compliant counters, and a standard set of 4.5" high commercial legs for a more traditional 34.5" counter height. All controls are conveniently located in front, with a removable mesh filter to make it easy to remove dust buildup from affecting the condenser. We also include an ice scoop for serving convenience. The BIM100ADA is designed to operate quietly. It comes equipped with an internal wash setting for simple maintenance, and a 7.5" long power cord for flexible placement. This unit has a sealed back in stainless steel for added space savings and easier cleanup. It utilizes a gravity drain system and requires professional installation (drain size: 3/4"; water supply/inlet size: 3/8").

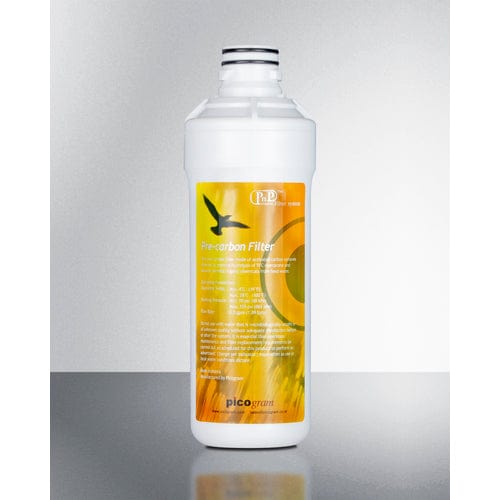

The BIM100ADA ships with an included water purification filter to ensure better tasting ice. This filter is required in order to operate the unit and will need to be replaced every six months (timing may vary based on the quality of your water). To order a replacement set, visit summitappliance.com/filter100.

With its high capacity output and slim-fitting design, the BIM100ADA is ideal for bars, restaurants, cafes, office spaces, and similar environments seeking a professional ADA height icemaker in a durable design.

Purchase the Summit ADA Under Counter Commercial Ice Maker BIM100ADA and take your ice production capabilities to the next level!

 Features

Features:

Commercially approved

• ETL-S listed to NSF-12 commercial standards

ADA compatible height

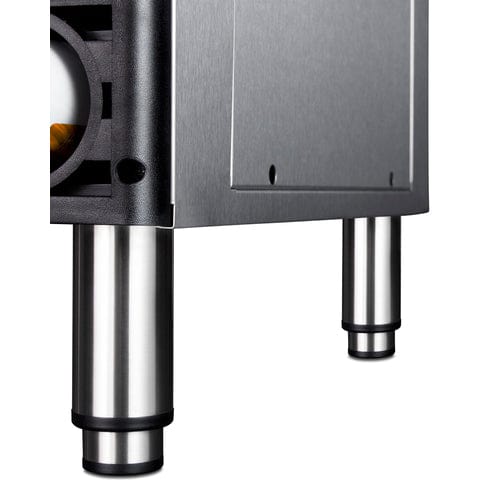

• Includes a set of 1 1/2" high leveling legs to bring the overall height up to 31 1/2", ideal for fitting under lower counters following ADA guidelines

Large production capacity

• Produces up to 100 lbs. of clear ice in a day cycle

Adjustable height

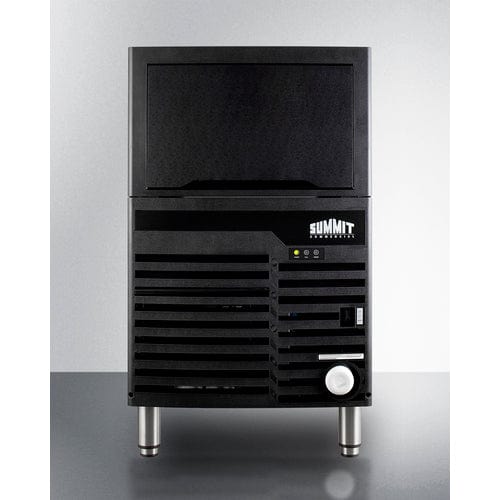

• 30" high cabinet to fit under lower counters, with four included 4.5" high commercial legs to raise the unit to standard counter height

Easy cleaning

• Included leg set allows you to clean the space below the icemaker

Built-in capable

• Front-breathing design allows this unit to be installed under counters

Quiet operation

• Efficient, low noise fan for a quiet performance

Clear ice production

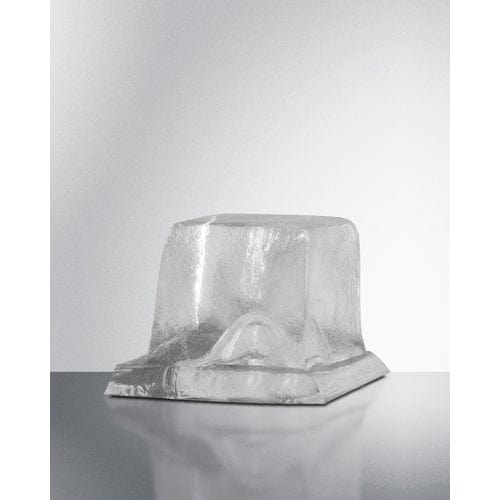

• Produces clear 1" x 1" dice cubes

Water purification filter

• Helps maintain great tasting ice. A purification filter is required for operation (1 is included with your initial purchase); To order replacement filters, visit summitappliance.com/filter100

Sliding door

• Top lid is on lift-up glides for easy access to the ice bin

Ice full sensor

• Automatic sensor alerts when bin is full and stops ice production to prevent overfill

Air filter

• Removable mesh filter located in the front of the icemaker makes it easy to keep the condenser clean

Wash function

• Auto clean mode allows you to periodically clean the system as needed with a neutral detergent

Generous storage

• Interior holds up to 27 lbs. of ice

Ice scoop

• Ice scoop included for added convenience

Sealed back

• Space-saving design with easier cleanability

Fully finished stainless steel cabinet

• Durable finish allows the unit to be used freestanding

7.5" long power cord

• Extra long pre-installed power cord allows more flexibility in placing the unit

Requires professional installation

• Gravity drain system

100% CFC Free

• Environmentally friendly design with no ozone-damaging chemicals

 Manuals

Manuals:

• User Manual for Summit ADA Under Counter Commercial Ice Maker BIM100ADA
• Product Brochure for Summit ADA Under Counter Commercial Ice Maker BIM100ADA
• Filter Instructions for Summit ADA Under Counter Commercial Ice Maker BIM100ADA
• Leg Instructions for Summit ADA Under Counter Commercial Ice Maker BIM100ADA

 Need assistance? Talk to an Expert at +1-888-407-7770 or email: support@winecoolersempire.com to get the best-suited Ice Maker for your needs.

Specifications

Specifications

• Height of Cabinet: 31.5" (80 cm)
• Width: 20.5" (52 cm)
• Depth: 22.25" (57 cm)
• Defrost Type: Automatic
• Door: Black
• Cabinet: Stainless Steel
• US Electrical Safety: ETL
• Canadian Electrical Safety: ETL-C
• Sanitation: ETL-S
• Amps: 3.75
• Voltage/Frequency: 115 V AC/60 Hz
• Weight: 110.0 lbs. (50 kg)
• Shipping Weight: 150.0 lbs. (68 kg)
• Parts & Labor Warranty: 1 Year
• Compressor Warranty: 5 Years
• UPC: 761101075709

Ice maker

• Door Swing: Lift-Up
• Height Adjustable: Yes
• Drain Required: Yes
• Daily Ice Production: 100.0 lbs. (45 kg)
• Ice Storage Capacity: 27.0 lbs. (12 kg)
• Ice Shape: Cube
• Size of Cube: 1" x 1"
• Number of Ice Cube Sizes: 1
• Fan Type: Exterior
• Refrigerant Type: R134a
• Refrigerant Amount: 8.5 oz.
• High Side PSI: 190.0
• Low Side PSI: 133.0
• Interior Height: 10.25" (26 cm)
• Interior Width: 18.0" (46 cm)
• Interior Depth: 17.0" (43 cm)
• Level Legs: 4
