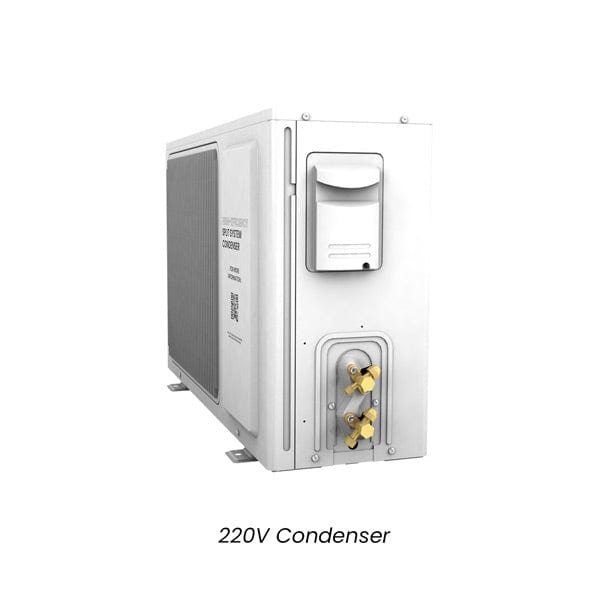

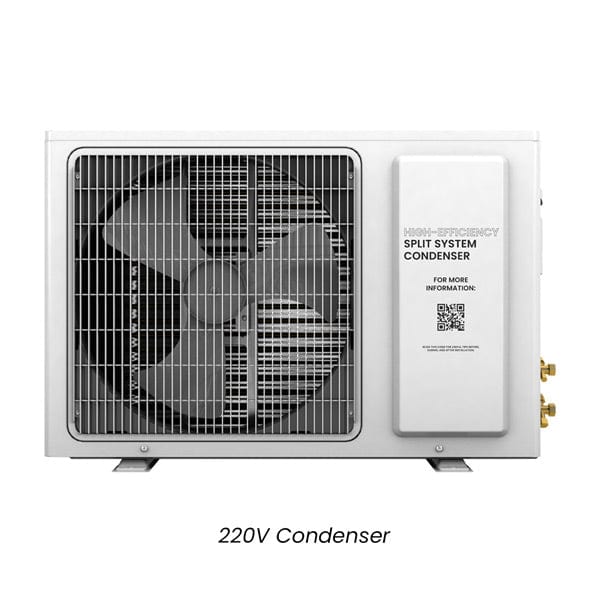

220V Condenser High-Efficiency
All New High-Efficiency 220V Condenser Whisperkool Wine Cellar Cooling Systems
WhisperKOOL is devoted to providing the most efficient, innovative split wine cellar cooling systems on the market. Whsiperkool offers new 220V High-Efficiency Condensers that outdo traditional 110V condensers in performance and efficiency with industry leading technology and multiple wine cellar cooling condensing unit sizes that make it perfect for nearly any application.
The 220V High-Efficiency Condensers offer a host of advantages over our traditional 110V condensers, including simplified installation, ultra-quiet operation, energy efficiency, & the ability to operate in extreme climates. For more information about our latest Split-System innovation.
Features:
- EFFICIENT CONDENSER COIL DESIGN:
- The system was designed utilizing oversized condenser coils, which allow the unit to operate efficiently in adverse high heat humidity environments.
- DESIGNED FOR EXTREME CLIMATES:
- Allows the system to adjust to ambient temperature conditions to maintain the ideal storage conditions for your fine wine in cold winter temperatures (as low as -20°F) and hot summer temperatures (up to 120 °F).
- ULTRA-QUIET SYSTEM OPERATION:
- The system utilizes large, low-speed fans to create sustainably quieter operation sound levels with reduced dBs between (48dB - 55dB) without decreasing the airflow volume or capacity output.
- NO LONGER A PUMP DOWN SYSTEM:
- The condenser is controlled by a direct communication line to the evaporator unit using standard thermostat cable. This communication line will be installed with the line set. This eliminates the solenoid at the Evaporator also eliminating the clicking sound from the solenoid in the Cellar. The design reduced the number of components that will simplify service and increase system longevity.
- SIMPLIFIED INSTALLATION
Easy access to controls & valves for simplified installation + smart communication cable from the evaporator to the condenser.
- ULTRA QUIET OPERATION
Utilizes large, low-speed fans to create substantially lower operation sound levels between (45dB-52dB).
- QR CODE
We’ve placed QR codes to directly lead you to all the vital information about installing and maintaining your system.
Benefits:
- 220 VOLT CONDENSERS:
- Compared to previous models, this 220V system is a significantly more energy- efficient system, utilizing 50% less energy to operate, saving energy costs.
- SIMPLIFIED SYSTEM INSTALLATION/MAINTENANCE:
- The electrical connections and valves are easy to access and hook up. (This new system differs from previous models as it requires a communication cable from the evaporator to the condenser). Also, while servicing or installing, manifolds can easily be attached without having to adjust the access valve to review pressure.
- ATTRACTIVE SYSTEM HOUSING:

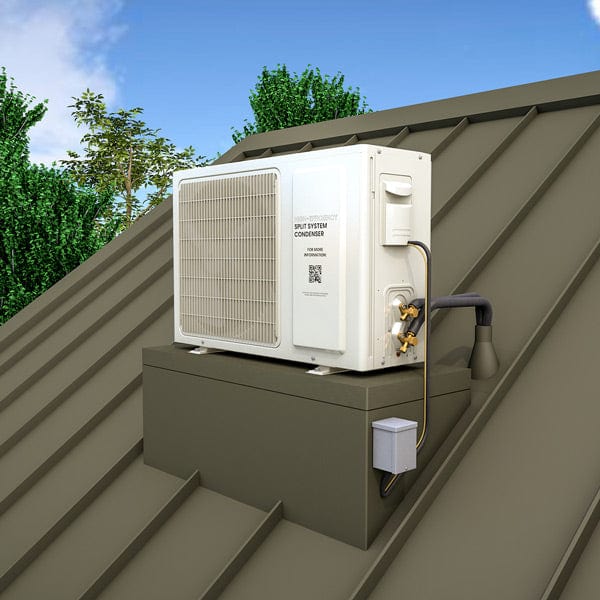

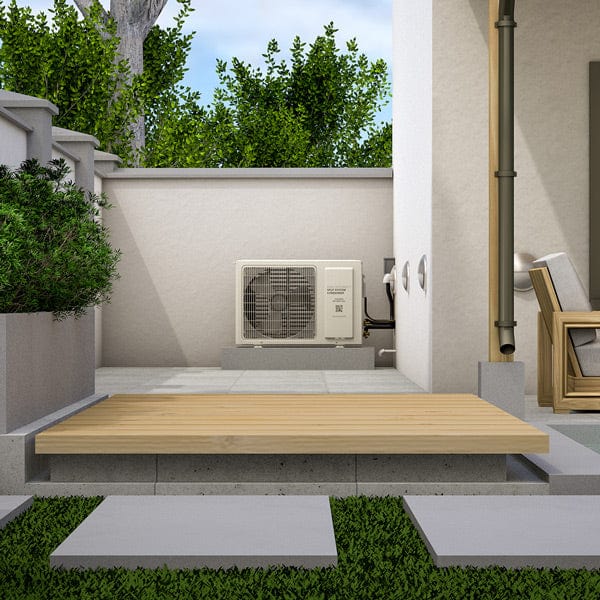

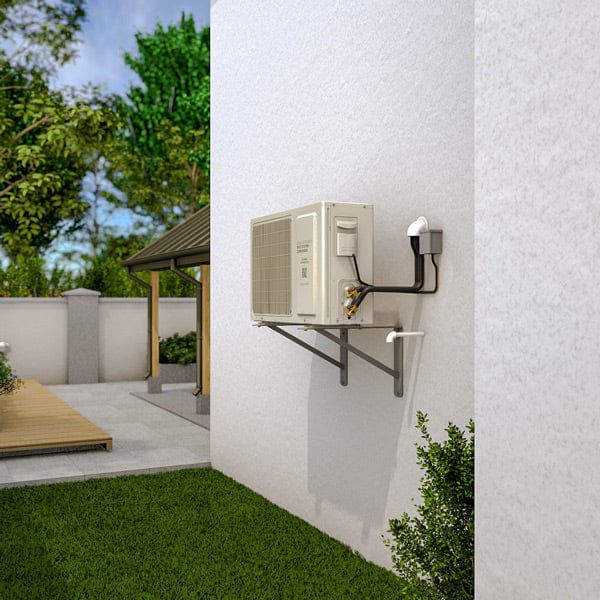

- The systems come complete with an attractive & durable exterior housing that can withstand adverse conditions, associated with outdoor environments.
Specifications:
- Line Set: Liquid line 1/4” OD; Suction line 1/2” OD (less than 50 ft.), 5/8” (greater than 50 ft.)
- Voltage Rating: 220V (15-amp dedicated circuit required)
- Dimensions: 31.18″L x 10.75″W x 21.18″H
- DBA: 45
- Temp. Data: Can maintain a 55°F cellar temperature with up to 120°F condenser air intake temperature.
GETTING TO KNOW OUR 220V HIGH-EFFICIENCY COOLING SYSTEMS
UPGRADED CONDENSER! 220V High-Efficiency
220V High-Efficiency Communication Cable
110V and 220V Differences
Installation Guide of 220V High-Efficiency Condenser
24V Thermostat Conversion Kit
Introducing our new 24-volt thermostat conversion kit for WhisperKOOL split systems!
Utilize industry-leading technology from major manufacturers to monitor the environment of your cellar. (See individual thermostat manufacturers’ websites for details.)
- Connect your thermostat to Wi‑Fi to control the temperature from your phone, tablet or laptop.
- Monitor run time and energy usage.
- Set alarm notifications.
- View your cellar conditions from your mobile device.
The use of the 24-volt thermostat conversion kit eliminates the thermostat normally included with the system and allows your contractor to select, purchase and install the thermostat technology of your choice, including but not limited to Nest, Ecobee, and Honeywell.
By selecting the 24V Thermostat Conversion Kit, you have acknowledged that the system will not be built with the standard WhisperKOOL control or liquid measuring bottle probe. You will have to source and purchase your own 24V thermostat to run the equipment.
- Not utilizing the thermostat from WhisperKOOL also eliminates the use of the bottle probe.
- WhisperKOOL does not provide smart thermostats. Those must be purchased separately.
- WhisperKOOL customer service staff do not provide technical support for customers’ selected thermostats.
