Wine Guardian Sentinel Series
Wine Guardian D025WC Ducted Water Cooled Wine Cooling Unit - 60 HZ

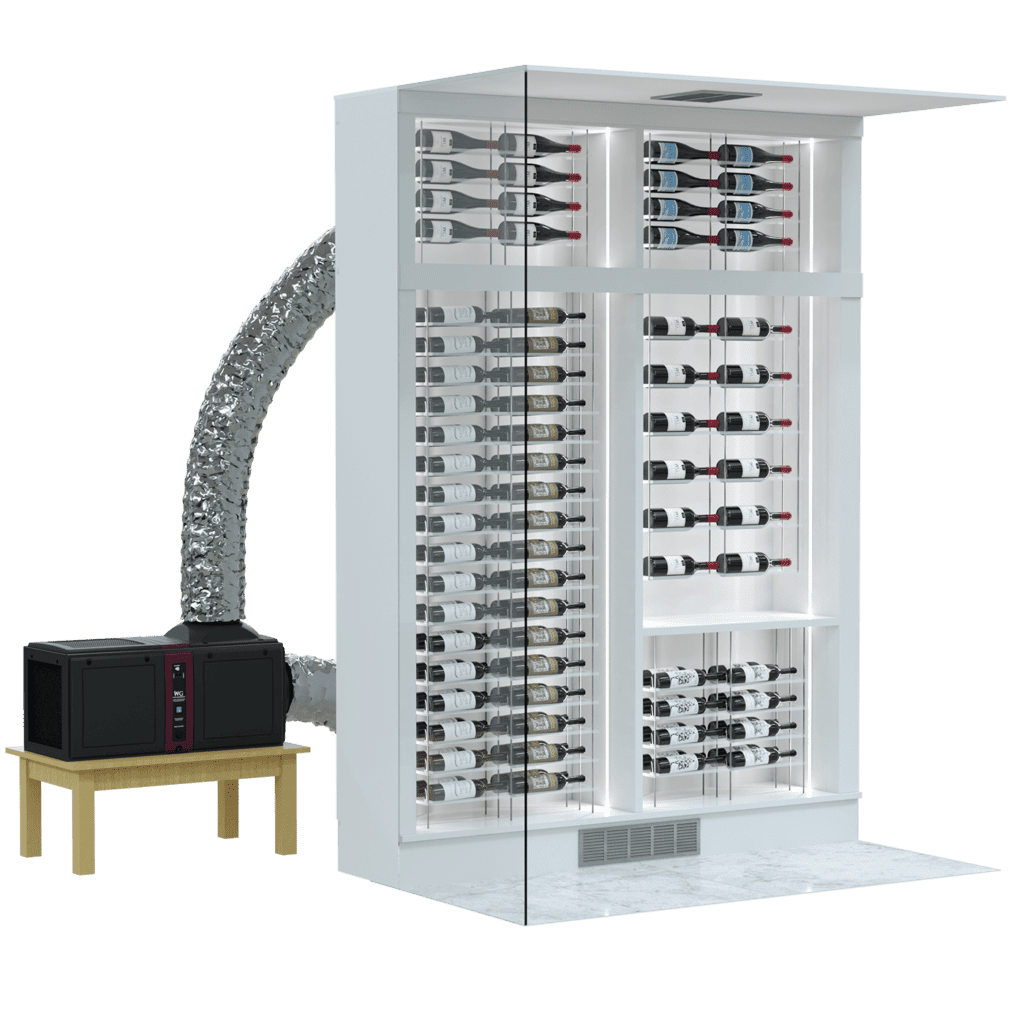

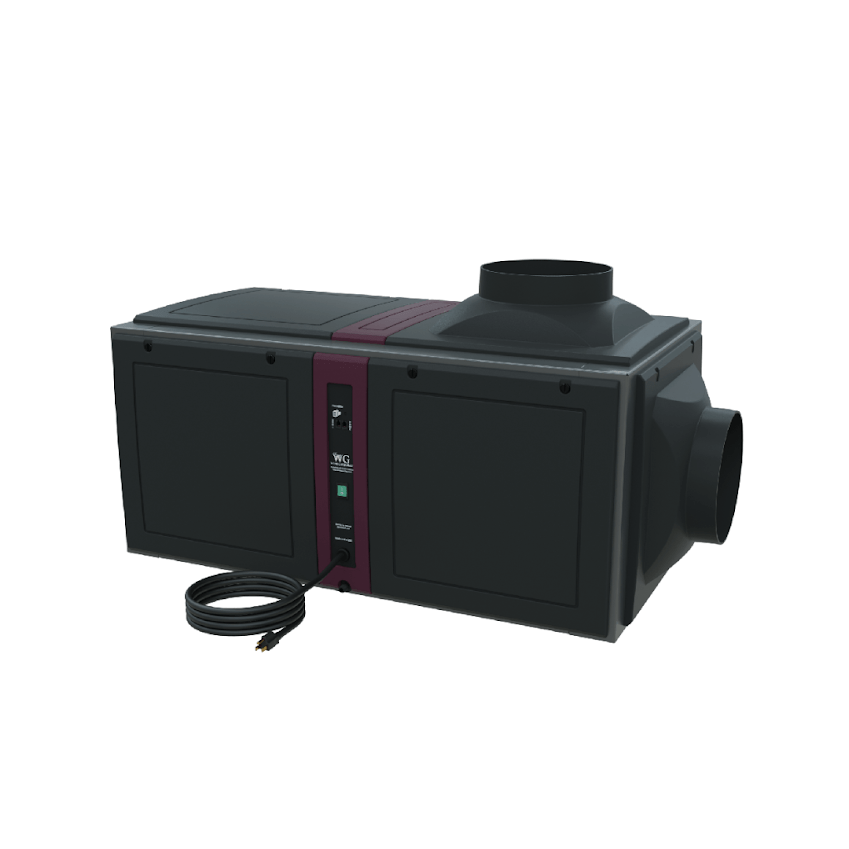

The Wine Guardian D025WC is a fully ducted, self-contained water-cooled wine cellar cooling unit designed for small residential and commercial wine cellars from 250 to 2,000 cubic feet.
Designed for 250–2,000 cu. ft. wine cellars
Water-cooled system for geothermal, cooling tower, lake water, and year-round water source applications
Fully ducted design keeps equipment out of sight
Self-contained system with evaporator, fans, compressor, condenser, and controls in one unit
Compatible with Wine Guardian humidification options
Contractor installation recommended
Quick Specifications
Model
D025WC
Line Frequency
60 Hz
Capacity
1,000–3,760 BTU/h
Unit Capacity
Up to 3,384 BTU/h
Cellar Volume
250–2,000 ft³
System Type
Fully Ducted, Self-Contained
Cooling Method
Water-Cooled
Electrical
115/1/60
Dimensions
33.45" L x 16.6" W x 15.56" H
Weight
78 lbs
Product Overview
The Wine Guardian D025WC Ducted Water Cooled Wine Cooling Unit - 60 HZ is a water-cooled ducted wine cellar cooling system for small residential and commercial wine cellars. It is designed for cellar volumes from 250 to 2,000 cubic feet and provides a maximum listed capacity of up to 3,384 BTU/h.
This model is a strong choice when a cellar is sized for a smaller cooling system but includes glass wine walls, additional internal heat sources, or project conditions that make traditional air-cooled heat exhaust difficult.
The D025WC operates on a 60Hz system, commonly used in most of North America, including the United States and Canada. Contractor installation is recommended.
Best For
Small wine cellars from 250 to 2,000 cubic feet
Residential wine rooms with concealed equipment requirements
Commercial wine cellars and restaurant wine storage rooms
Projects with geothermal sources, cooling towers, lake water, or year-round water access
Wine cellars where traditional heat exhaust is difficult
Cellars with glass wine walls or additional internal heat sources
Projects that need optional humidification or serving-temperature flexibility
Not Recommended For
Projects without a reliable year-round water source
These systems eliminate the need for heat exhaust and are available for self-contained ducted systems. Water-cooled systems work well for geothermal, cooling tower, and lake water applications. The D025WC can be configured from the factory with a water-cooled condensing coil and water-regulating valve.
Why Choose a Wine Guardian Ducted Cooling System?
Wine Guardian ducted wine cellar cooling systems are designed for flexible installation and consistent environmental control. They help create ideal conditions for residential, restaurant, and commercial wine cellars while keeping the cooling equipment outside the wine room.
Wine Guardian ducted systems include the evaporator, fans, compressor, condenser, and controls in one self-contained unit. A grille inside the cellar connects to the unit outside the wine cellar through insulated flexible ductwork. This design keeps the wine room cleaner, quieter, and more visually refined.
Water-cooled systems eliminate the need for heat exhaust, making them ideal for wine cellar projects with geothermal sources, cooling towers, lake water, or year-round water sources.
Made for Ducted Systems
Water-cooled features are available for self-contained ducted systems. This allows the system to deliver proper wine cellar temperature while remaining virtually invisible inside the cellar.
Installation Without the Hassle
Ducted wine cellar cooling units are designed for contractor-friendly installation. Contractors connect the ductwork, make the drain connection, and plug in the system without copper cutting.
Simple and Efficient
The D025WC includes an integral water-regulating valve, a main control board that can link to geothermal pumps, side water connection points, and operation with water temperatures from 45°F to 85°F.
Option Bundles
Water-cooled systems can be combined with Wine Guardian options and accessories for humidification, heating, and broader temperature control based on your wine storage needs.
Full Control in Any Room

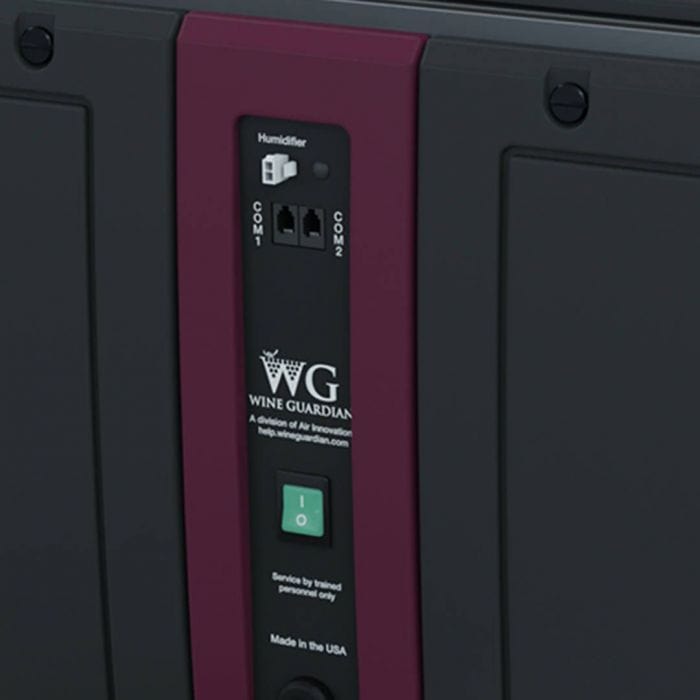

The remote interface controller lets you adjust temperature and check humidity levels. Wine Guardian Wireless2Base™ Technology allows convenient controller placement.
Serviceability Simplified
Wine Guardian self-contained wine room cooling units are designed for field service. Quarter-turn fasteners provide access for service work without sending the unit back to the factory.
Sentinel Series
Wine Guardian ducted systems are part of the Sentinel Series. This updated design uses a composite material built for strength, efficiency, and improved appearance.
Installation Requirements and Important Considerations
Contractor installation is recommended. The D025WC operates on a 60Hz system, which is commonly used in most of North America, including the USA and Canada.
Requirement
Details
Water Source
Reliable year-round water source required
Installation Type
Fully ducted application
Ductwork
Proper ductwork connection required
Drain
Drain connection required
Water Temperature
45°F (7°C) to 85°F (29°C)
Access
Water connection points are located on the side of the unit
Sizing Factors
Cellar volume, glass, insulation, lighting, and internal heat sources
To protect your wine collection, proper temperature control should be paired with appropriate humidity control. Learn more about wine cellar humidity.
All Wine Temperatures (AWT)
This bundle helps a Wine Guardian cooler control temperatures over a wider range for different wine cellar designs and small wine rooms that need cooling for serving temperatures.
Integrated Humidifier
The Wine Guardian Integrated Humidifier attaches directly to the Wine Guardian cooling system and uses the same power source and remote controller.
Freestanding Humidifier
The Wine Guardian Freestanding Humidifier is installed inside the wine cellar to maintain the humidity required for proper long-term storage.
Product Videos
Water Cooled Wine Cellar Cooling Unit Application
Wine Guardian Ducted Wine Conditioning Systems
Features and Benefits of Wine Guardian Ducted Wine Cooling Systems
Wine Guardian Sentinel Series Wine Cellar Cooling Units
Wine Guardian warrants, to the original buyer, its goods and all parts thereof to be free from defects in material and workmanship for a period of two years from the date of invoicing assuming normal use and service.
Wine Coolers Empire is a trusted dealer of premium wine cellar refrigeration units, commercial wine cellar cooling units, residential wine cellar coolers, and wine room humidifiers. More Wine Guardian reviews can be found on our Customer Reviews page.
For questions or concerns, visit our Contact Us page. For information on order processing, shipping options, and delivery times, visit our Shipping Policy.
Wine Coolers Empire Expert Recommendation
The Wine Guardian D025WC is recommended for small residential and commercial wine cellars from 250 to 2,000 cubic feet where a fully ducted, concealed cooling system is preferred and a reliable year-round water source is available.
This model is especially useful for projects with geothermal sources, cooling towers, lake water applications, glass wine walls, additional internal heat sources, or limited options for traditional heat exhaust.
Need Help Choosing the Right Wine Cooling System?
Wine Coolers Empire can help you select the best cooling system, humidity option, and cellar equipment for your wine room.
Talk to an expert at +1-888-407-7770 or email support@winecoolersempire.com to get the best-suited wine cooling system for your needs.
The D025WC is ideal for wine cellars up to 1,200 cubic feet, assuming the room is properly insulated and sealed.
Water-cooled systems remove heat using a water source instead of ambient air. This makes them ideal for mechanical rooms, high-rise buildings, or any space where exhausting hot air is not practical or allowed.
Yes. The unit is fully ducted, allowing conditioned air to be distributed and returned via ductwork. This enables the unit to be installed out of sight, delivering quiet performance inside the wine room.
The unit controls temperature and is compatible with Wine Guardian’s integrated humidifier (sold separately) for environments requiring precise humidity regulation.
Yes. It must be connected to a chilled water loop, cooling tower, or closed-loop water system capable of dissipating the system’s heat load.
Yes. Installation by a licensed HVAC technician is necessary to ensure proper setup of ducting, water lines, and electrical components. Professional installation is also required for warranty validation.
Wine Guardian includes a 2-year parts and labor warranty. The unit must be professionally installed and registered to receive full warranty coverage."]
