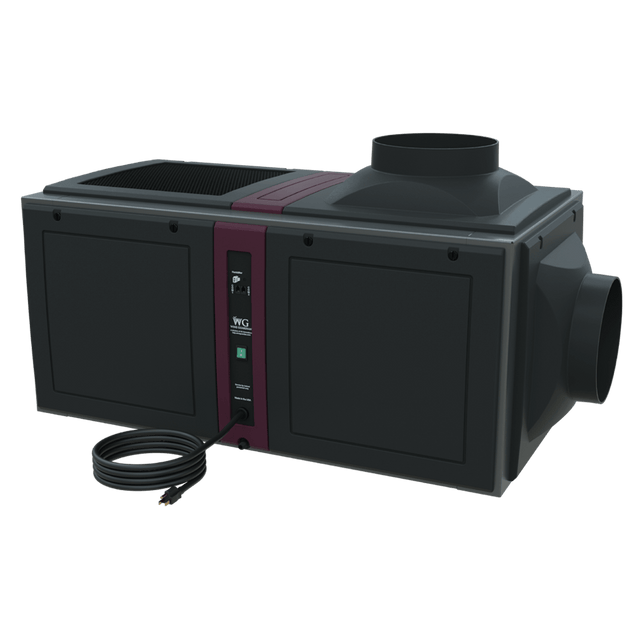

Wine Guardian D200WC Ducted Wine Cellar Cooling Unit Water Cooled - 60 HZ

Save 26%
Wine GuardianSKU: 99H0257-20

Cooling Options: Standard
Sale price$9,850.00 Regular price$13,297.50

Secure Payment

American Express Apple Pay Diners Club Discover Meta Pay Google Pay Mastercard Shop Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Wine Guardian D200WC Ducted Wine Cellar Cooling Unit Water Cooled - 60 HZ Review

Looking for an advanced and self-contained ducted cooling system? Wine Guardian D200WC Ducted Wine Cellar Cooling Unit Water Cooled - 60 HZ is a great choice!

NOTE: Contractor installation is recommended. The D200WC operates on a 60Hz system, which is commonly used in most of North America, including the USA and Canada. It has a unit capacity of up to 14,100 BTU/h.

The Wine Guardian D200WC Ducted Water Cooled Wine Cooling Unit - 60 HZ is a water-cooled ducted wine cellar cooling unit for large home wine cellars and commercial wine cellars with a volume ranging from 1,500 to 7,000 cubic feet. It's a fully-ducted, self-contained wine cooling unit with a maximum capacity of 8,000 – 14,100 BTU/h (1.85 Kilowatts). If the cellar has glass wine walls or additional internal heat sources, and you have a year-round water source, the D200WC Wine Guardian cooling unit is the best choice.

To keep your collection in good condition, you need to maintain the perfect wine cellar humidity. Temperature control won't be enough, so we suggest using a Wine Guardian Humidifier. The Integrated Humidifier can be attached to your D200WC wine cooler unit, or you can use the Wine Guardian Freestanding Humidifier if you prefer. Keep your wine cellar properly humidified and enjoy your wine to the fullest!

Other sizes: Wine Guardian D025WC for 250-2000 cu.ft, Wine Guardian D050WC for 650-3000 cu.ft, and Wine Guardian D088WC for 850-4500 cu.ft.

Available in standard air-cooled version: Wine Guardian D200 - Ducted Wine Cooling Unit - 60 HZ.

Available in 24-volt version: Wine Guardian DP200WC Ducted Wine Cooling Unit - 60 HZ.

Looking for more options to protect your wine collection?

The D200WC wine cooling unit can be configured with:

  • All Wine Temperatures (AWT): This bundle includes a heater to protect your cellar from low temperatures and extended controls to adjust your wine room or wine display to serve the wine at the right temperature.

What are Water-Cooled Cooling Systems?

Wine Guardian Water-Cooled Wine Cellar Cooling Systems are a great alternative to air-cooled models, especially if you have a year-round water source. These systems eliminate the need for heat exhaust and are exclusively available for self-contained ducted systems. They work well for geothermal, cooling tower, and lake water applications. The D200WC wine cooler unit can be configured with a water-cooled condensing coil and water-regulating valve from the factory.

Advantages of Wine Guardian Ducted Cooling Systems

Wine Guardian ducted wine cellar cooling systems are versatile and self-contained. They have been designed to be extremely flexible in terms of installation and design. Using advanced cooling technology, these systems can create the ideal environmental conditions for wine collections of any size and in any type of space — including residential, restaurant, or commercial wine cellars.

Wine Guardian ducted systems have everything needed in a single unit — evaporator, fans, compressor, condenser, and controls. A grille inside the cellar wall is connected to the self-contained unit outside of the wine cellar insulated flexible ductwork. They're one of the quietest wine cellar cooling units!

Need more options to choose from? Explore our Fully Ducted – Self Contained Wine Cooling Systems selection. You can also find more Wine Guardian Systems.

Upgrade your wine storage with modern wine racks from Ultra Wine Racks & Cellars, perfect for organizing and designing your wine cellar.

WHY BUY FROM US: Wine Coolers Empire is a trusted dealer of premium wine cellar refrigeration units, commercial wine cellar cooling units, residential wine cellar coolers, and wine room humidifiers. More Wine Guardian reviews can be found on our Customer Reviews page.

Contact us for any questions or concerns. For information on order processing, shipping options, and delivery times, please visit our Shipping Policy.

Buy Wine Guardian D200WC Ducted Water Cooled Wine Cooling Units - 60 HZ today and enjoy your wine to the fullest!




    Water-cooled systems eliminate the need for heat exhaust, making them ideal for wine cellar projects that have the following:
     > Geothermal sources
     > Cooling towers
     > Year-round water sources
    Water-Cooled System - Wine Guardian | Wine Coolers Empire - Trusted Dealer
    Only self-contained ducted systems have water-cooling features. These ducted systems give the perfect wine cellar temperature and are virtually invisible in your cellar. You can install them easily without cutting copper or having a licensed contractor on site.
    Wine Cellar - Wine Guardian | Wine Coolers Empire - Trusted Dealer

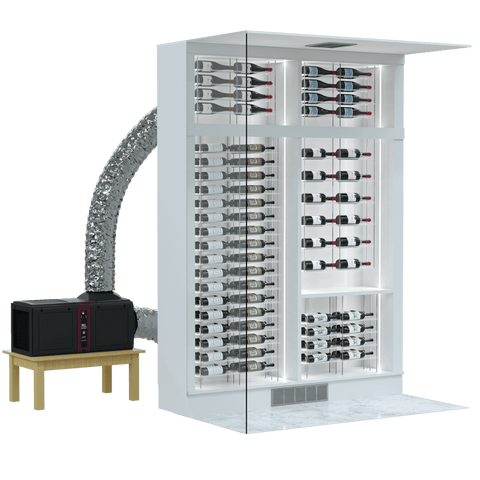

    Ducted wine cellar cooling units are made easy to install for contractors. All they need to do is connect the ductwork, make the drain connection, and plug it in – no copper cutting required, and no licensed contractor necessary on-site.

    If you need to install the wine cooling system against a wall or ceiling, that's easy too. You can configure the ducts in multiple ways without having to remove the fan motor or any other internal parts.
    Ducted Wine Cellar Cooling Units - Wine Guardian | Wine Coolers Empire - Trusted Dealer
    Wine Guardian systems are engineered with installers in mind. They created Water-cooled systems that are easy to install and maintain by incorporating the following features:
     > Integral water regulating valve to increase efficiency in operation.
     > A main control board that links to geothermal pumps for better control.
     > Water connection points located on the unit's side for easy access.
     > Can work with water temperatures ranging from 45°F (7°C) to 85°F (29°C).
    Simple and Efficient Wine Cooling System - Wine Guardian | Wine Coolers Empire - Trusted Dealer
    Do you have a special project that needs humidification or heat? Want to cool your cellar to the right serving temperature? Water-cooled systems can be combined with different options and accessories, so you can adjust the conditions in your wine storage to match your wine's requirements.
    Option Bundles - Wine Guardian | Wine Coolers Empire - Trusted Dealer
    The remote interface controller for the ducted system lets you adjust the temperature and check the humidity levels. The controller uses Wine Guardian's Wireless2Base™ Technology, which means you can place it anywhere that's convenient for you – in the cellar, kitchen, or living room. If you need to measure the temperature and humidity levels outside the cellar, you can connect an additional controller and remote sensors to get accurate readings. This makes it easy to keep an eye on your wine room's conditions from anywhere in your home.
    Controllers - Wine Guardian | Wine Coolers Empire - Trusted Dealer
    Wine Guardian self-contained wine room cooling units are designed to be simple for servicepersons to maintain. With easy quarter-turn fasteners, they can quickly access the ducted unit, make any necessary repairs, and move on to the next job. What's more, unlike other competitors, all Wine Guardian units can be fully serviced in the field, without needing to be sent back to the factory. This saves you time and money and ensures that your cooling system stays up and running smoothly.
    Service - Wine Guardian | Wine Coolers Empire - Trusted Dealer

    All ducted systems are now a part of the Wine Guardian Sentinel Series. This new series is an updated and improved design that features an all-new composite material that makes the system stronger, more efficient, and more beautiful than ever before.
    Sentinel Series - Wine Guardian | Wine Coolers Empire - Trusted Dealer





  • Model: D200WC
  • Line Frequency: 60 HZ
  • Capacity: 8000 – 15680 BTU
  • Volume: 1500 – 7000 ft³
  • Length: 41.5"
  • Width: 22.5"
  • Height: 19"
  • Weight: 206 lbs
  • Electrical: 208-230/1/60



  • Manufacturer's Warranty
  • Manufacturer's Warranty Wine Guardian

    Wine Guardian warrants, to the original buyer, its goods and all parts thereof to be free from defects in material and workmanship for a period of two (2) years from the date of invoicing assuming NORMAL USE AND SERVICE

    Need assistance? Talk to an Expert at +1-888-407-7770 or email: support@winecoolersempire.com to get the best-suited wine cooling system for your needs.



    Available Options

    You may upgrade the performance and durability of your wine cooling systems by adding Wine Guardian parts and accessories. The system is upgraded and protected by these add-ons.

    Cooling Options

    • Water-cooled with All Wine Temperatures (AWT)
      This bundle helps a Wine Guardian cooler control temperatures over a wider range for different wine cellar designs and small wine rooms that need cooling for serving temperatures. It covers temperatures from 45°F(7°C) to 64°F(18°C) and has an electric heater coil and controls that protect wine cellars from very low temperatures. It's ideal for places where the temperature drops below 50°F/10°C.

    Ducting Options

    • Duct Collar Return Inlet
      The Duct Collar Return Inlet pulls air from the wine room and returns it to the wine cellar air conditioning system.
      Duct Collar Return Inlet - Wine Guardian | Wine Coolers Empire - Trusted Dealer
    • Duct Collar Supply Outlet
      The Duct Collar Supply Outlet pushes conditioned air into the wine room from the wine cooling unit.
      Duct Collar Supply Outlet - Wine Guardian | Wine Coolers Empire - Trusted Dealer
    • Combo Duct Kit - Supply and Return
      This Combo Duct Collar Kit directs warm condenser air away from the wine cellar cooling unit. It contains 1 duct collar supply outlet, 1 duct collar return inlet, and a flex duct.
      Combo Duct Kit Supply, Return, and Flex Duct - Wine Guardian | Wine Coolers Empire - Trusted Dealer
    • Flexible Ductwork 12" Round
      This option comes with one box of 25ft (7.62m) and 12 inch (30.48cm) round insulated flexible ductwork for Sentinel Series systems D200, DP200, DS200, SP200.
      Flexible Ductwork - Wine Guardian | Wine Coolers Empire - Trusted Dealer

    Control Options

    • Remote Interface
      The Wine Guardian system can be controlled by the Wine Guardian Remote Interface Controller, which includes thermostat (humidistat) and monitor controls. This device can be placed either inside or outside the wine room with the use of a remote sensor.
      Wine Guardian Remote Interface - Wine Guardian | Wine Coolers Empire - Trusted Dealer
    • Remote Sensor
      The Wine Guardian Remote Sensor is used for standard Wine Guardian cooling units. It can detect the temperature and humidity in the wine cellar and is especially useful for large rooms, multiple rooms controlled by one Wine Guardian cooling system, or when averaging temperature and humidity across different areas of the cellar. Each sensor comes with 50 feet of cable.
      Wine Guardian Remote Sensor - Wine Guardian | Wine Coolers Empire - Trusted Dealer

    Humidifier Options

    • Integrated Humidifier (Attaches to Unit)
      Humidifiers help maintain the ideal wine storage conditions by adding moisture to the wine space. The Wine Guardian Integrated Humidifier directly attaches to the Wine Guardian cooling system, using the same power source and remote controller.
      Wine Guardian Integrated Humidifier | Wine Coolers Empire - Trusted Dealer

    • Standalone Humidifier (Wall Mount - Powered by Unit)
      This Wine Guardian Freestanding Humidifier includes a power-control cable to connect to the Wine Guardian cooling system. Includes wall-mount bracket for maximum placement flexibility. The humidifier can be operated using the existing Wine Guardian controller.
      Wine Guardian Freestanding Humidifier | Wine Coolers Empire - Trusted Dealer

    • Standalone Humidifier (Through the Wall Mount Bracket - Independent)
      This Wine Guardian Freestanding Humidifier includes a wall mount bracket, power cord, and a humidistat for use in cellars with no Wine Guardian cooling system. The humidifier can be operated using the existing Wine Guardian controller.
      Wine Guardian Freestanding Humidifier | Wine Coolers Empire - Trusted Dealer

    Warranty Options

    • Wine Guardian 3 Year Extended Compressor Warranty
      By choosing this option, the warranty period for the compressor, evaporator coil, and condenser coil (parts only) will be extended by three (3) years.
