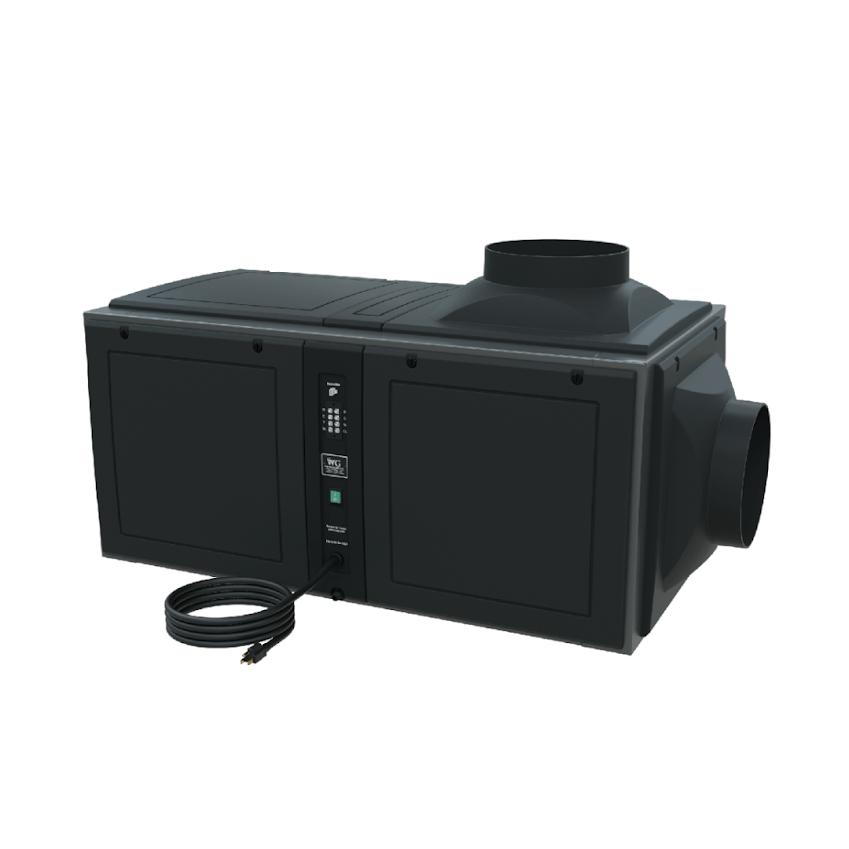

Wine Guardian Ducted Pro Water-Cooled Wine Cellar Cooling System
Wine Guardian DP200WC Ducted Pro Water-Cooled Sentinel Series Wine Cooling Unit - 60 Hz
The Wine Guardian DP200WC Ducted Pro Water-Cooled Wine Cooling Unit is a high-capacity, self-contained ducted wine cellar cooling system designed for large residential, commercial, restaurant, hospitality, and preservation environments. Built for wine cellars from 1,500 to 7,000 cubic feet, this 60 Hz Pro Sentinel Series system delivers up to 15,680 BTU/h of cooling capacity while using a water-cooled condensing system that eliminates the need for traditional heat exhaust.
Best for large wine cellars from 1,500-7,000 cu. ft.
Water-cooled design for geothermal, cooling tower, lake water, or year-round water source applications
Fully ducted installation keeps equipment hidden from the wine cellar
24-volt electronics for smart thermostat and building management compatibility
Optional electric heat and humidification accessories available
Important 60 Hz System Note: Wine Guardian Pro Systems use 24-volt electronics. The DP200WC operates on a 60 Hz system, commonly used in most of North America, including the USA and Canada. This model has a unit capacity of up to 15,680 BTU/h.
Quick Product Summary
Product
Wine Guardian DP200WC Ducted Pro Water-Cooled Sentinel Series
Cooling Type
Self-contained ducted, water-cooled wine cellar cooling system
Recommended Cellar Size
1,500-7,000 cu. ft.
Cooling Capacity
8,000-15,680 BTU/h
Electrical
208-230/1/60
Line Frequency
60 Hz
Dimensions
41.5" L x 22.5" W x 19" H
Weight
206 lbs
Best For
Large residential wine cellars
Luxury custom wine rooms
Restaurant wine storage spaces
Hospitality wine programs
Commercial preservation environments
Document preservation, instrument storage, and long-term food storage applications
Projects with geothermal, cooling tower, lake water, or year-round water access
Applications where heat exhaust is difficult or undesirable
Not Recommended For
Small wine cellars below 1,500 cu. ft.
Projects without access to an appropriate year-round water source
Non-ducted wine cellar installations
Budget-focused projects where a smaller model is sufficient
Installations requiring an air-cooled configuration instead of water-cooled operation
Overview: Wine Guardian DP200WC Ducted Pro Water-Cooled Wine Cooling Unit
The Wine Guardian DP200WC Ducted Pro Wine Cooling Unit - 60 Hz is a professional-grade solution for large wine cellars with volumes ranging from 1,500 to 7,000 cubic feet. It is designed for wine rooms that need powerful climate control, concealed ducted installation, and water-cooled operation.
Unlike standard air-cooled systems, the DP200WC uses a water-cooled condensing configuration. This makes it a strong choice for projects with geothermal sources, cooling towers, lake water, or other year-round water sources where conventional heat exhaust is not ideal.
This Pro Sentinel Series system includes advanced refrigeration controls, modern smart thermostat compatibility, additional duct collar connections at the condensing side for flexible ducting options, and an available electric heat option with a factory-mounted heater for added low-temperature protection.
The DP200WC can maintain temperatures between 52°F and 70°F and is suited for wine storage, document preservation, instrument storage, and long-term food storage. Its 24-volt electronics allow integration with smart home systems and commercial building management systems.
Why Choose the Wine Guardian DP200WC?
Choose the DP200WC when your wine cellar requires maximum-capacity ducted performance, quiet cellar-side operation, and a water-cooled design that avoids standard heat exhaust.
Large Cellar Capacity
Designed for cellars from 1,500 to 7,000 cu. ft., the DP200WC supports serious wine collections, large residential wine rooms, and commercial storage environments.
Water-Cooled Operation
The water-cooled configuration eliminates the need for traditional heat exhaust and works well with geothermal, cooling tower, lake water, and year-round water source applications.
Hidden Ducted Design
Fully ducted installation allows the cooling unit to be placed outside the wine cellar while conditioned air is delivered through ductwork.
Smart Control Compatibility
24-volt electronics allow compatibility with smart thermostats and commercial building management systems.
Optional Heat Protection
The optional electric heater helps protect wine cellars from extreme low-temperature conditions.
Humidity Support
Compatible Wine Guardian humidifier options help support proper long-term wine storage conditions.
What Are Water-Cooled Wine Cellar Cooling Systems?
Wine Guardian water-cooled wine cooling systems are designed for projects with a year-round water source. These systems remove heat through water instead of exhausting warm air into an adjacent room, making them ideal when standard air-cooled heat rejection is not practical.
Water-cooled Wine Guardian systems are available for self-contained ducted systems and are effective for geothermal, cooling tower, and lake water applications. The DP200WC can be configured with a factory-installed water-cooled condensing coil and water-regulating valve.
Water-Cooled System Advantages
Eliminates the need for heat exhaust into an adjacent space
Ideal for geothermal sources, cooling towers, lake water, and year-round water sources
Designed for self-contained ducted wine cellar cooling systems
Water connection points are located on the side of the unit for easier access
Integral water regulating valve supports efficient operation
Main control board can link to geothermal pumps for better control
Can work with water temperatures from 45°F to 85°F
Installation Requirements
The Wine Guardian DP200WC is made for ducted installation. Before ordering, confirm your cellar size, water source, ducting plan, electrical requirements, and drain connection.
Requirement
Details
Ductwork
Required for fully ducted supply and return air connection.
Water Source
Required for water-cooled operation. Suitable applications may include geothermal, cooling tower, lake water, or year-round water sources.
Drain Connection
Required as part of the ducted system installation.
Electrical
208-230/1/60 power supply required.
Cellar Construction
Best used with a properly insulated wine cellar with vapor barrier protection.
Professional Planning
Recommended for sizing, duct layout, humidification planning, water source compatibility, and accessory selection.
Model Comparison: Wine Guardian Ducted Pro Water-Cooled Systems
Available Cooling, Humidifier, and Warranty Options
You may upgrade the performance, protection, and cellar climate control capability of the Wine Guardian DP200WC with available Wine Guardian options and accessories.
Standard Configuration
The standard unit comes with low ambient protection, which helps protect against cold temperatures below 40°F / 5°C.
Standard With Electric Heater
The electric heater option protects wine cellars from extremely low temperatures by allowing activation between 2-6°F below the desired setpoint.
Integrated Humidifier
The Wine Guardian Integrated Humidifier attaches directly to the cooling system and uses the same power source and remote controller.
Freestanding Humidifier
The Wine Guardian Freestanding Humidifier is installed inside the wine cellar to maintain the ideal humidity level required for proper long-term wine storage.
Extended Warranty
The extended warranty option increases coverage for the compressor, evaporator coil, and condenser coil by three additional years for parts only.
Humidity Guidance for Long-Term Wine Storage
Temperature control alone is not enough for proper wine preservation. Maintaining proper wine cellar humidity helps protect corks, labels, and bottle condition.
Wine Guardian humidifiers are not mandatory for every installation, but they are strongly recommended for cellars where humidity control is needed. You can attach the Integrated Humidifier to the DP200WC or choose the Wine Guardian Freestanding Humidifier if you prefer a separate humidification system.
Product Feature Images
Water-Cooled System
Water-cooled systems eliminate the need for heat exhaust, making them ideal for geothermal sources, cooling towers, lake water, and year-round water sources.
Made for Ducted Systems
Only self-contained ducted systems have water-cooling features. These systems provide proper wine cellar temperature while remaining virtually invisible in the cellar.
Installation Without the Hassle
Ducted wine cellar cooling units are made for contractor-friendly installation. Installers connect the ductwork, make the drain connection, and connect power.
Simple and Efficient
Water-cooled systems include practical service and efficiency features such as an integral water regulating valve, geothermal pump control compatibility, and side-mounted water connection points.
Option Bundles
Water-cooled systems can be combined with available heat, humidification, and accessory options to match the needs of the wine storage environment.
Full Control in Any Room
The remote interface controller lets you adjust temperature and check humidity levels. Additional controllers and remote sensors may be used for more accurate monitoring.
Serviceability Simplified
Wine Guardian self-contained ducted systems are designed to be field-serviceable, with quarter-turn fasteners for easier access.
Sentinel Series
Wine Guardian ducted systems are part of the Sentinel Series, featuring an updated composite material designed for strength, efficiency, and appearance.
Manuals, Brochures, CAD Drawings, and Warranty Files
Wine Guardian warrants to the original buyer that its goods and all parts thereof are free from defects in material and workmanship for a period of two (2) years from the date of invoicing, assuming normal use and service.
Product Videos
Water Cooled Wine Cellar Cooling Unit Application
Wine Guardian Pro Systems
Wine Guardian Ducted Wine Conditioning Systems
Features and Benefits of Wine Guardian Ducted Wine Cooling Systems
Wine Guardian Sentinel Series Wine Cellar Cooling Units
Wine Guardian Sentinel Series | Izod Strength Test
Our wine cellar specialists recommend the Wine Guardian DP200WC for large wine cellars where a hidden ducted system and water-cooled heat rejection are preferred.
It is especially well suited for luxury residential cellars, restaurant wine programs, commercial wine rooms, and hospitality projects with access to a reliable year-round water source.
For smaller cellars, consider the DP25WC, DP50WC, or DP88WC models. For projects that do not have a water source, the air-cooled DP200 may be the better configuration.
Why Buy From Wine Coolers Empire?
Wine Coolers Empire is a trusted dealer of premium wine cellar refrigeration units, commercial wine cellar cooling systems, residential wine cellar coolers, wine room humidifiers, and wine cellar equipment.
Building or upgrading a wine cellar? Wine Coolers Empire can help you choose the right cooling system, humidification setup, wine racks, and storage layout for your project. Our free professional wine cellar design planning service is ideal for homeowners, designers, builders, restaurants, and hospitality projects.
Before purchasing the Wine Guardian DP200WC, contact our team to confirm cellar size, water-cooled suitability, ducting requirements, humidity needs, and accessory recommendations.
["What size wine cellar is the Wine Guardian DP200WC designed to cool?
The DP200WC is built to cool large wine cellars up to 4,300 cubic feet, depending on insulation, construction quality, and overall heat load.
What does \"water-cooled\" mean in this system?
Unlike air-cooled systems, this unit uses a water-cooled condenser, which relies on a water source (such as a closed-loop or cooling tower) to reject heat. This is ideal for installations where air-cooled ventilation is limited or undesirable.
Is this a ducted system?
Yes, the DP200WC is a fully ducted system, meaning supply and return air are routed through ductwork. This allows the evaporator to be installed out of sight, supporting quiet operation and clean cellar design.
Can this system be integrated into a larger HVAC or smart control system?
Yes, the DP200WC is designed for professional integration. It’s compatible with commercial-grade HVAC controls and offers BMS (Building Management System) connectivity, making it ideal for complex custom installations.
Is professional installation required for this system?
Absolutely. This system must be installed by a licensed HVAC technician familiar with water-cooled systems and ducted split installations. Proper setup is critical for safe operation and warranty coverage.
Is this unit suitable for commercial and residential applications?
Yes, the DP200WC is designed for both commercial and high-end residential applications. Its water-cooled configuration and ducted design make it highly versatile for large-scale projects.
What kind of warranty does Wine Guardian offer for the DP200WC?
Wine Guardian provides a 2-year parts and labor warranty. Extended service options may be available. Professional installation and product registration are required to validate coverage."]
