Wine Guardian Water-Cooled Ducted Pro Sentinel Series

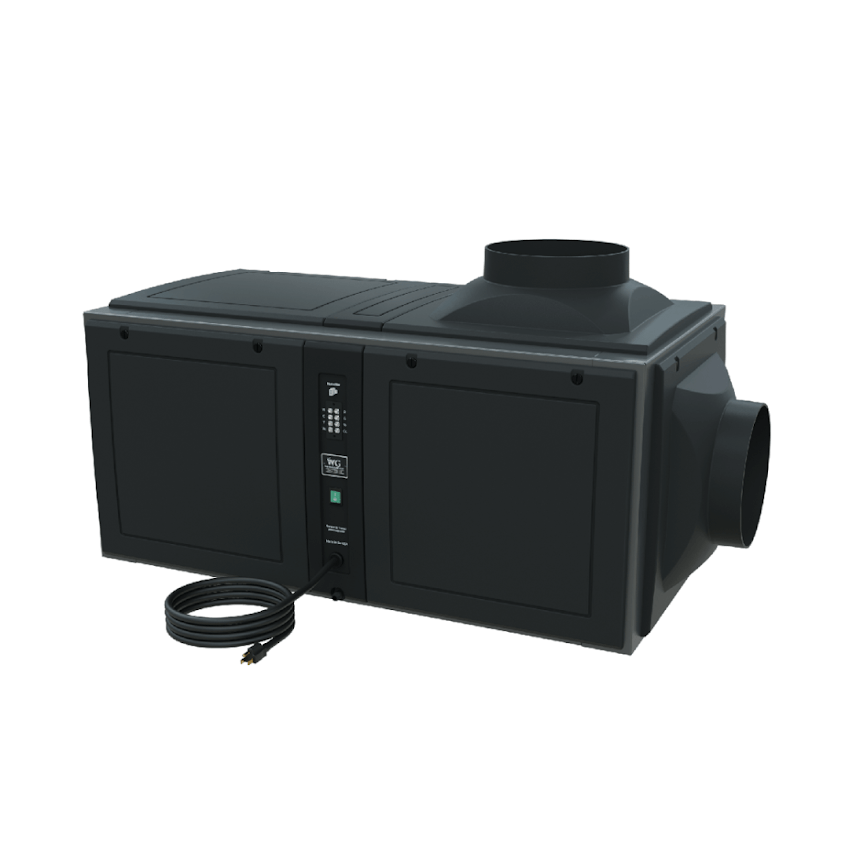

Wine Guardian DP25WC Ducted Pro Water-Cooled Wine Cellar Cooling System - 60 Hz
The Wine Guardian DP25WC is a fully ducted, water-cooled wine cellar cooling system designed for residential and commercial wine cellars from 250 to 2,000 cubic feet. With up to 3,760 BTU/H of cooling capacity, 24-volt controls, flexible ducting, and water-cooled heat rejection, this unit is ideal for wine cellar projects using geothermal systems, cooling towers, lake water, or another year-round water source.
Recommended for 250-2,000 cu.ft. wine cellars
Up to 3,760 BTU/H cooling capacity
Fully ducted hidden installation
Water-cooled condensing system
24-volt smart control integration
Optional electric heat and humidification
Water-Cooled Ducted Cooling for Small to Medium Wine Cellars
The Wine Guardian DP25WC Ducted Pro Water-Cooled Wine Cellar Cooling System is built for wine rooms where traditional air-cooled heat exhaust is not practical. Instead of rejecting heat into an adjacent room or outdoor condenser, the DP25WC uses a water-cooled condensing coil and factory-installed water-regulating valve to transfer heat through a year-round water source.
The fully ducted configuration allows the cooling unit to be installed outside the wine room while conditioned air is delivered through ductwork. This keeps the equipment visually hidden, helps reduce sound inside the cellar, and gives designers and builders more flexibility when planning premium wine storage spaces.
Quick Specifications
Specification
Wine Guardian DP25WC
Model
DP25WC
System Type
Fully ducted water-cooled wine cellar cooling system
Series
Wine Guardian Pro Sentinel Series
Line Frequency
60 Hz
Cooling Capacity
1,000-3,760 BTU/H
Recommended Cellar Volume
250-2,000 cu.ft.
Operating Temperature Range
52°F-70°F / 11°C-21°C
Electrical
115/1/60
Dimensions
33.45" L x 16.6" W x 15.56" H
Weight
80 lbs
Product Overview
The DP25WC is a strong choice for small home wine cellars, luxury residential projects, commercial wine rooms, restaurant wine storage, hospitality spaces, document preservation rooms, instrument storage, and long-term food storage applications.
The DP25WC also uses 24-volt electronics, allowing integration with modern smart thermostats, remote interface controllers, and commercial building management systems. It is part of Wine Guardian's Sentinel Series, which features an upgraded composite cabinet, improved durability, and enhanced serviceability.
Best For
Residential wine cellars from 250-2,000 cu.ft.
Commercial wine storage rooms
Restaurant and hospitality wine rooms
Luxury home projects requiring hidden cooling
Geothermal cooling applications
Cooling tower or lake water applications
Projects where heat exhaust is difficult
Builders, designers, and cellar planners needing ducted flexibility
Not Recommended For
Wine cellars without access to a reliable year-round water source
Projects requiring an air-cooled system instead of water-cooled heat rejection
Wine rooms larger than 2,000 cu.ft. without professional load calculation
Open-concept spaces that cannot be properly insulated or sealed
Projects where water supply, drainage, or flow requirements cannot be supported
Why Choose the Wine Guardian DP25WC?
Water-Cooled Performance
The DP25WC transfers heat through water, making it useful for geothermal sources, cooling towers, lake water, or other continuous water sources.
Hidden Ducted Installation
The unit can be placed outside the wine cellar while supply and return ducts move conditioned air into the room.
Smart Control Compatibility
The 24-volt platform works with advanced controls, remote interface controllers, and modern smart thermostat systems.
Sentinel Series Cabinet
The Sentinel Series cabinet uses advanced composite materials designed for strength, efficiency, and simplified service access.
Installation Requirements
Water Source Requirements
Requires a year-round water source
Suitable for geothermal, cooling tower, and lake water applications
Designed to work with water temperatures from 45°F to 85°F
Includes integral water-regulating valve for efficient operation
Ducting Requirements
Requires supply and return ductwork
Allows flexible duct collar configurations
Cooling unit can be installed out of sight from the cellar
Designed for contractors to connect ductwork without field refrigerant line cutting
Electrical Requirements
115/1/60 electrical configuration
24-volt electronics for control integration
Drainage Requirements
Condensate drain connection required
Drain planning should be included during cellar design
Planning note: Proper wine cellar cooling depends on insulation, vapor barrier quality, glass exposure, cellar volume, ambient conditions, duct layout, and door sealing. If you are unsure whether the DP25WC is correctly sized for your project, contact Wine Coolers Empire before ordering.
Key Features
Water-Cooled System
Water-cooled systems eliminate the need for heat exhaust, making them ideal for projects with geothermal sources, cooling towers, lake water, or a year-round water supply.
Made for Ducted Wine Cellars
The DP25WC is designed for self-contained ducted applications and allows the unit to remain outside the wine cellar.
Installation Without the Hassle
Contractors can connect ductwork, make the drain connection, and plug in the unit without cutting copper refrigerant lines on site.
Efficient Water Connections
The integral water-regulating valve, side-mounted water connection points, and control board compatibility help simplify installation.
Option Bundles
The DP25WC can be configured with heating, humidification, and warranty options depending on your cellar environment.
Full Control in Any Room
The remote interface controller uses Wine Guardian Wireless2Base™ Technology for convenient placement.
Serviceability Simplified
Quarter-turn fasteners provide easier access for service professionals and help reduce service disruption.
Sentinel Series Cabinet
The Sentinel Series uses an upgraded composite cabinet designed for improved strength, efficiency, durability, and appearance.
Advantages and Limitations
Advantages
Excellent for projects where heat exhaust is difficult
Supports geothermal, cooling tower, and lake water applications
Fully ducted installation keeps equipment hidden
Quiet cellar experience compared with visible through-wall equipment
24-volt controls support smart integration
Can support optional heating and humidification
Field-serviceable design helps reduce service disruption
Limitations
Requires reliable water source infrastructure
Requires duct planning and condensate drainage
Not ideal for projects that need a simple plug-in cooling unit
Professional planning is recommended for upper-capacity applications
Water conditions and flow must be suitable for the system
Available Cooling and Humidity Options
Standard Unit
The standard configuration includes low ambient protection, helping protect the system when temperatures fall below 40°F.
Standard with Electric Heater
The electric heater option helps protect wine cellars from extremely low temperatures by allowing activation between 2°F and 6°F below the desired setpoint.
Integrated Humidifier
The Wine Guardian Integrated Humidifier attaches directly to the cooling system and uses the same power source and remote controller.
Freestanding Humidifier
The Wine Guardian Freestanding Humidifier is installed inside the wine cellar and can be operated with the existing Wine Guardian controller.
Extended Warranty
The extended warranty option adds three years of parts-only coverage for the compressor, evaporator coil, and condenser coil.
For long-term wine preservation, temperature control should be paired with proper wine cellar humidity. Humidification is not mandatory for every project, but it is strongly recommended when cellar conditions are too dry for stable cork and label preservation.
Compare DP25WC with Other Wine Guardian Water-Cooled Models
Model
Recommended Cellar Size
Best Use Case
DP25WC
250-2,000 cu.ft.
Small to medium residential or commercial wine cellars
Manufacturer's Warranty: Wine Guardian warrants, to the original buyer, its goods and all parts thereof to be free from defects in material and workmanship for a period of two years from the date of invoicing, assuming normal use and service.
For order processing, shipping options, and delivery times, visit our Shipping Policy.
Expert Recommendation
The Wine Guardian DP25WC is best suited for small to medium wine cellars where a water-cooled system is preferred over air-cooled heat exhaust. It is especially useful for projects with geothermal infrastructure, cooling tower access, or design constraints that make traditional exhaust difficult.
For cellars near the upper end of the 2,000 cu.ft. range, Wine Coolers Empire recommends confirming the cooling load before purchase. Cellar volume alone is not always enough to size a cooling system accurately because glass exposure, insulation, vapor barrier quality, ambient temperature, ducting distance, and door sealing can significantly affect performance.
Need Help Choosing the Right Wine Cellar Cooling System?
Wine Coolers Empire provides complimentary wine cellar design assistance to help you select the right cooling system, confirm sizing, plan ducting, and match your equipment to your wine room layout.
Talk to an Expert: +1-888-407-7770 Email: support@winecoolersempire.com
["What size wine cellar is the DP25WC designed to cool?
The DP25WC is designed to cool wine cellars up to 1,100 cubic feet, depending on insulation quality and thermal load conditions.
What does it mean that this system is water-cooled?
Water-cooled systems use a water loop instead of air to remove heat from the condenser. This is ideal for buildings where ventilation is limited, or where installing an air exhaust system is not feasible.
Is the DP25WC a ducted split system?
Yes. This unit is fully ducted, allowing you to run supply and return air through ductwork. It can be installed outside the wine cellar for silent operation and complete visual concealment.
Can the DP25WC be used in commercial applications?
Absolutely. The DP25WC is suitable for commercial and residential use, including wine displays in restaurants, retail shops, and hotels, as well as premium home cellars.
Is professional installation required?
Yes. Installation must be performed by a licensed HVAC technician. Water-cooled systems require specialized setup and handling, and proper installation is required for warranty validation.
Can this system be integrated with a smart building system?
Yes. The Wine Guardian Pro Series supports Building Management System (BMS) integration, allowing for remote monitoring and control in smart homes or commercial facilities.
What warranty does Wine Guardian offer with the DP25WC?
Wine Guardian includes a 2-year parts and labor warranty, with extended coverage options available. Warranty activation requires professional installation and product registration."]
