Wine Guardian Sentinel Series Water-Cooled Ducted Wine Cellar Cooling System

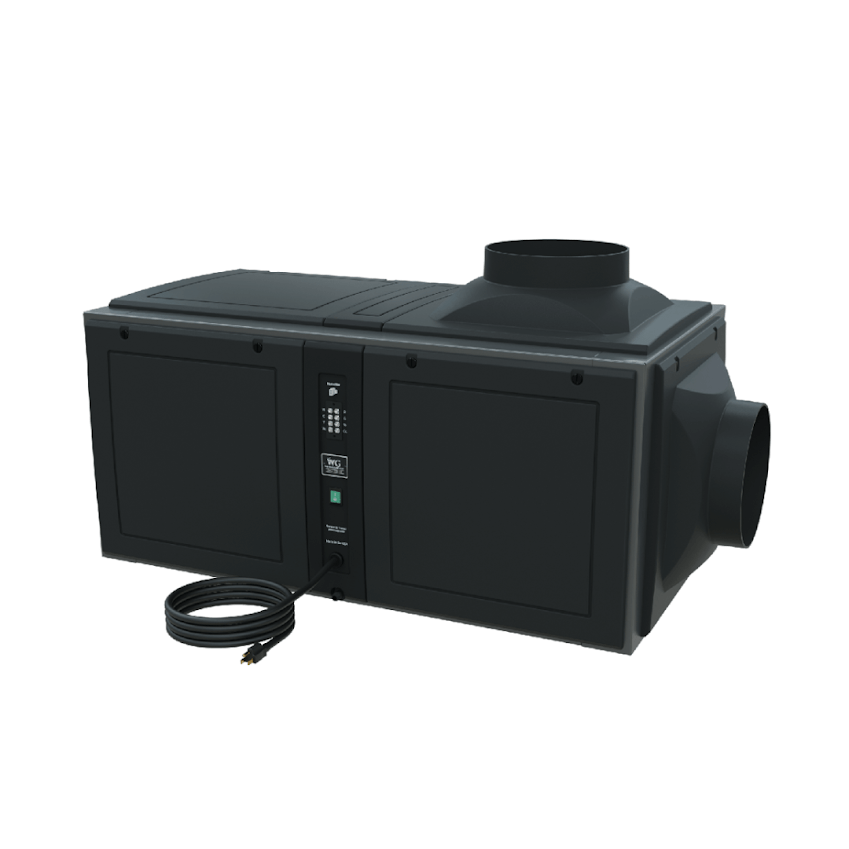

Wine Guardian DP88WC Ducted Pro Water-Cooled Wine Cellar Cooling System – 60 Hz
The Wine Guardian DP88WC Ducted Pro Water-Cooled Wine Cellar Cooling System is a professional-grade, fully ducted wine cellar cooling unit designed for medium to large wine cellars from approximately 850 to 4,500 cubic feet. With a cooling capacity of 5,000 to 9,600 BTU/h, this Sentinel Series system is built for luxury residential wine rooms, restaurant wine cellars, hospitality wine storage, and commercial preservation environments.
Designed for wine cellars from 850 to 4,500 cu. ft.
Water-cooled system for projects with year-round water availability
Fully ducted installation keeps equipment out of sight
24-volt electronics for smart thermostat and building system integration
Optional electric heater and humidifier accessories available
Part of the Wine Guardian Sentinel Series
Water-Cooled Ducted Cooling for Large Wine Cellars
As a water-cooled ducted wine cooling system, the DP88WC is ideal for projects with a dependable year-round water source, geothermal system, lake water application, or cooling tower. It allows the cooling equipment to remain hidden outside the wine cellar while conditioned air is delivered through ductwork for a clean, quiet, and professional wine cellar design.
This system is designed for wine storage, document preservation, instrument storage, and long-term specialty storage applications where consistent environmental control is required.
Best For
Luxury residential wine cellars
Restaurant wine rooms
Hotels and hospitality venues
Commercial wine storage environments
Custom builders and designers requiring hidden equipment
Projects with geothermal, lake water, cooling tower, or year-round water access
Not Recommended For
Small wine cabinets or compact rooms under 850 cu. ft.
Projects without an available water source
Through-the-wall installation requirements
Applications requiring a remote condenser split system
Spaces where ductwork cannot be installed
Quick Specifications
Model
DP88WC
Series
Wine Guardian Sentinel Series
Cooling Type
Water-cooled
Installation Type
Fully ducted self-contained
Cellar Volume Range
850 – 4,500 cu. ft.
Cooling Capacity
5,000 – 9,600 BTU/h
Line Frequency
60 Hz
Electrical
208-230V / 1 Phase / 60 Hz
Length
41.5"
Width
22.5"
Height
19"
Weight
125 lbs
Electronics
24-volt controls
Important: Wine Guardian Pro Systems use 24-volt electronics. The DP88WC operates on a 60 Hz system, commonly used in most of North America, including the USA and Canada.
Product Overview
The Wine Guardian DP88WC Ducted Pro Water-Cooled Wine Cellar Cooling Unit is engineered for wine cellars that require strong cooling performance, quiet operation, and flexible concealed installation. It is especially well-suited for medium to large wine cellars where the cooling equipment should not be visible inside the finished wine room.
The DP88WC can maintain temperatures between 52°F and 70°F and is built with advanced refrigeration controls for dependable wine cellar climate management.
For wine cellar design planning, sizing, humidity control, and cooling system selection, Wine Coolers Empire recommends confirming the cellar’s size, insulation, vapor barrier, door quality, glass exposure, ducting path, and water source before choosing a final system.
Why Choose the Wine Guardian DP88WC?
Water-Cooled Performance
The DP88WC uses a water-cooled condensing system, making it ideal for geothermal sources, cooling towers, lake water systems, or reliable year-round water sources.
Hidden Ducted Installation
Conditioned air is supplied through ductwork while the main cooling equipment remains outside the finished wine cellar.
Large Cellar Capacity
With a cellar volume range of 850 to 4,500 cubic feet and capacity up to 9,600 BTU/h, the DP88WC suits large residential and commercial spaces.
Smart Control Compatible
24-volt electronics allow integration with modern smart thermostats, smart home systems, and commercial building management systems.
Flexible Ducting Options
Additional duct collar connections at the condensing section provide more ducting flexibility for complex installations.
Optional Heat and Humidity
Optional electric heat and humidifier accessories support more demanding cellar environments.
Can work with water temperatures from 45°F to 85°F
Ducting Requirements
Requires supply and return ductwork
Ducting should be properly insulated
Airflow paths must be planned correctly
Equipment should remain accessible for service
Drain connection is required
Electrical Requirements
208-230V / 1 Phase / 60 Hz electrical service
24-volt control electronics
Compatible with modern smart thermostats
Can integrate with building management systems
Project Planning Requirements
Confirm cellar cubic footage
Confirm insulation and vapor barrier quality
Confirm glass exposure and heat load
Confirm door seal quality
Confirm duct route and service access
Professional sizing is recommended: Large wine cellars, commercial wine rooms, and water-cooled applications should be evaluated before equipment is selected. Contact Wine Coolers Empire for free wine cellar cooling system sizing assistance.
When the DP88WC Is Not the Best Choice
Choose a smaller system if your cellar is below 850 cubic feet.
Choose an air-cooled or split system if no water source is available.
Choose a through-the-wall unit if ductwork is not possible.
Choose a remote condenser system if the project requires separate evaporator and condenser placement.
Choose a different configuration if service access around the unit cannot be maintained.
Wine Guardian water-cooled wine cooling systems are designed for projects where a dependable water source is available. Instead of relying on traditional heat exhaust, these systems use a water-cooled condensing coil and water-regulating valve that can be factory-installed.
Best Water-Cooled Applications
Geothermal water sources
Cooling tower applications
Lake water applications
Projects without conventional heat exhaust
Self-contained ducted Wine Guardian systems
Water-Cooled System Image
Ducted System Advantages
Wine Guardian ducted systems are self-contained and designed for installation flexibility. The evaporator, fans, compressor, condenser, and controls are housed in one unit, while conditioned air is delivered to the wine cellar through ductwork.
This makes ducted cooling especially useful for projects where the equipment should remain hidden and the wine cellar interior should maintain a refined architectural finish.
Concealed cooling equipment
Flexible ducting configurations
Quiet operation inside the wine cellar
Suitable for residential and commercial wine rooms
Water-cooling is available on self-contained ducted Wine Guardian systems and helps keep equipment virtually invisible inside the finished cellar.
Contractor-Friendly Installation
Contractors connect ductwork, drain connection, and power. Ducts can be configured in multiple ways without removing internal parts.
Efficient Water Connections
Includes an integral water regulating valve, side water connection points, and controls that can link to geothermal pumps.
Option Bundles
Can be paired with optional humidification, heat, and warranty upgrades to match cellar requirements.
Full Control in Any Room
The remote interface controller allows temperature adjustment and humidity monitoring with flexible placement.
Serviceability Simplified
Quarter-turn fasteners allow service professionals to access the unit quickly, reducing downtime.
Sentinel Series Construction
Updated composite material design intended to improve strength, efficiency, durability, and appearance.
Available Cooling Options
Standard Configuration
The standard unit includes low ambient protection, which helps protect the system against cold temperatures that fall below 40°F.
Standard with Electric Heater
The optional electric heater helps protect wine cellars from extremely low temperatures. Activation can be set between 2°F and 6°F below the desired temperature setpoint.
Proper wine cellar humidity is important for protecting corks, labels, and long-term wine quality. Temperature control alone may not be enough in dry environments.
Integrated Humidifier
The Wine Guardian Integrated Humidifier attaches directly to the Wine Guardian cooling system and uses the same power source and remote controller.
Freestanding Humidifier
The Wine Guardian Freestanding Humidifier is installed inside the wine cellar and can be operated using the existing Wine Guardian controller.
The optional extended warranty extends the warranty period for the compressor, evaporator coil, and condenser coil by three years for parts only.
Manufacturer Warranty: Wine Guardian warrants to the original buyer that its goods and all parts thereof are free from defects in material and workmanship for a period of two years from the date of invoicing, assuming normal use and service.
Wine Coolers Empire Recommendation: The Wine Guardian DP88WC is best suited for medium-to-large residential and commercial wine cellars that require a concealed ducted installation and have access to a dependable water source. It is especially strong for luxury homes, restaurant wine rooms, hotels, and preservation spaces where visible equipment inside the cellar is not desired.
If your cellar is smaller than 850 cubic feet, does not have a water source, or cannot support ductwork, a different Wine Guardian model or cooling system configuration may be a better fit.
Why Buy From Wine Coolers Empire?
Wine Coolers Empire is a trusted dealer of premium wine cellar refrigeration units, commercial wine cellar cooling units, residential wine cellar coolers, wine room humidifiers, and wine cellar accessories.
For order processing, shipping options, and delivery times, visit our Shipping Policy.
Have questions? Contact us through our Contact Us page.
Free Wine Cellar Design and Cooling System Sizing Assistance
Not sure if the Wine Guardian DP88WC is the right cooling system for your wine cellar? Wine Coolers Empire provides free professional wine cellar design planning and product selection support.
Wine cellar cooling system sizing
Wine cellar layout planning
Wine rack recommendations
Ducted system selection
Humidifier and accessory recommendations
Builder, designer, and hospitality project support
Talk to an expert: +1-888-407-7770 Email: support@winecoolersempire.com
Buy the Wine Guardian DP88WC Ducted Pro Water-Cooled Wine Cellar Cooling System – 60 Hz today and protect your wine collection with professional-grade climate control.
["What size wine cellar can the Wine Guardian DP88WC cool?
The DP88WC is designed to cool wine cellars up to 3,460 cubic feet, depending on the insulation, construction, and overall thermal load.
What is a water-cooled wine cellar system?
A water-cooled system uses water instead of air to remove heat from the condenser. This is especially useful in buildings with limited ventilation, or where quiet, efficient cooling is needed without exhausting hot air into a mechanical room or outdoors.
Is this system fully ducted?
Yes. The DP88WC is a fully ducted system, which means the supply and return air can be routed through ductwork for quiet operation and a clean, equipment-free cellar appearance.
Is the DP88WC suitable for commercial use?
Absolutely. It’s built to meet the demands of commercial wine storage, while also fitting seamlessly into high-end residential projects. It's ideal for restaurants, wine shops, hotels, and private collectors.
Does this system require professional installation?
Yes. A licensed HVAC technician must install the system, especially given its water-cooled condenser and ducted configuration. Professional installation is required to validate the warranty.
Can the DP88WC integrate with building HVAC systems?
Yes. The DP88WC is designed to interface with building management systems (BMS), allowing for centralized monitoring and control. It’s a great choice for engineered spaces with advanced HVAC requirements.
What warranty is included with this system?
Wine Guardian offers a 2-year warranty on parts and labor, with options for extended coverage. The warranty is only valid when installed by a certified HVAC professional and registered with the manufacturer."]
