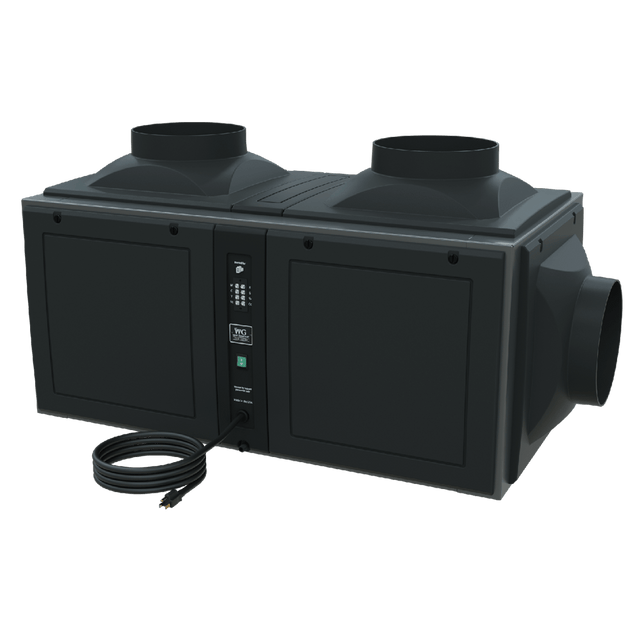

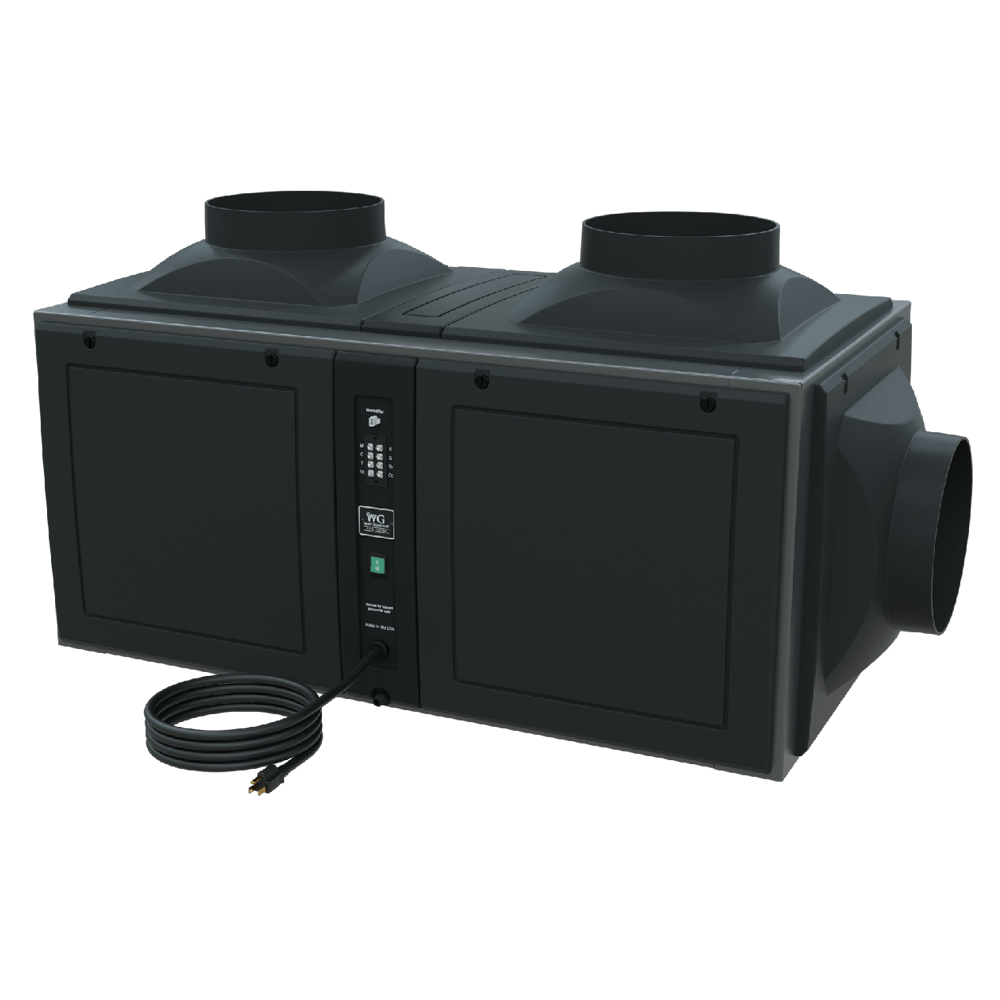

Wine Guardian DP88 Ducted Commercial and Residential HVAC 60 HZ - Base Model
is backordered and will ship as soon as it is back in stock.
FAST, FREE SHIPPING
Get your online orders fast at your door with free shipping.
TAX FREE
No Sales Tax (Excludes Nevada) on most orders.
SECURED PAYMENTS
Giving you peace of mind with every purchase.
TOP-NOTCH SUPPORT
Excellence meets care, Ready to help you!
Wine Guardian Pro Ducted Wine Cellar Cooling System
Wine Guardian DP88 Ducted Pro Commercial and Residential HVAC Wine Cooling System - 60 Hz
The Wine Guardian DP88 Ducted Pro Wine Cellar Cooling System is a fully ducted, self-contained wine cellar cooling system designed for medium to large residential and commercial wine cellars from 850 to 4,500 cubic feet. With a cooling capacity range of 5,000 to 9,600 BTU/h, 24-volt controls, smart thermostat compatibility, and remote installation flexibility, the DP88 is ideal for luxury wine rooms, restaurants, hospitality spaces, commercial wine storage, builders, designers, and serious collectors who need quiet, powerful, professional-grade wine cellar climate control.
Designed for wine cellars from 850 to 4,500 cu. ft.
Cooling capacity range of 5,000 to 9,600 BTU/h
Fully ducted installation keeps equipment outside the wine room
60 Hz system for most North American applications
24-volt electronics for smart thermostat and building control compatibility
Optional electric heat, humidification, extended warranty, and remote control accessories
Important DP88 System Note: Wine Guardian Pro Systems use 24-volt electronics. The DP88 operates on a 60 Hz electrical system, commonly used in most of North America, including the United States and Canada. This model provides up to 9,600 BTU/h of cooling capacity.
Wine Guardian DP88 Overview
The Wine Guardian DP88 Ducted Pro Commercial and Residential HVAC Wine Cooling System is built for wine cellars where quiet operation, strong cooling capacity, remote equipment placement, and stable wine storage conditions are priorities. Because the DP88 is a fully ducted system, the main cooling unit can be installed outside the wine cellar while conditioned air is delivered through ductwork. This helps preserve the visual design of the wine room while reducing equipment noise inside the cellar.
The DP88 is suitable for medium to large private wine cellars, commercial storage rooms, restaurant wine programs, hospitality venues, and premium home projects. It can maintain controlled environments between 52°F and 70°F, making it appropriate for long-term wine storage and other temperature-sensitive applications.
In addition to wine storage, this system may be used for document preservation, server room air conditioning, art storage, instrument storage, and long-term food storage when the application requires controlled temperature conditions within the unit’s operating range.
Quick Specifications
Model
DP88
System Type
Fully ducted self-contained wine cellar cooling system
Series
Wine Guardian Pro Ducted Sentinel Series
Line Frequency
60 Hz
Cooling Capacity
5,000 – 9,600 BTU/h
Recommended Cellar Volume
850 – 4,500 cu. ft.
Temperature Range
52°F – 70°F
Electrical
115/1/60
Length
41.5"
Width
22.5"
Height
19"
Weight
125 lbs
Controls
24-volt electronics
Installation Style
Remote ducted installation outside the wine cellar
Best For
Medium to large residential wine cellars
Luxury home wine rooms where visible equipment should be minimized
Commercial wine storage rooms
Restaurant wine cellars and hospitality wine programs
Builders and designers specifying ducted wine cooling systems
Collectors who want quiet remote-mounted cooling performance
Projects requiring smart thermostat or building management integration
Not Recommended For
Small wine cabinets or compact wine refrigerators
Very small wine rooms where a lower-capacity system would be more appropriate
Oversized or poorly insulated spaces without proper load calculation
Projects without ducting access
Rooms without proper insulation, vapor barrier, drainage, and ventilation planning
Installations where remote unit placement is not possible
Key Features of the Wine Guardian DP88
Fully Ducted Installation
The DP88 is installed outside the wine cellar and connected through ductwork. This keeps bulky cooling equipment out of the wine room and helps maintain a cleaner, quieter, more refined cellar design.
5,000 – 9,600 BTU/h Cooling Capacity
The DP88 is designed for medium to large wine cellars from 850 to 4,500 cubic feet, making it suitable for premium residential and commercial wine storage projects.
24-Volt Smart Control Platform
The 24-volt electronics platform allows the DP88 to work with modern smart thermostats, compatible remote sensors, and commercial building management systems.
Quiet Wine Room Performance
Because the cooling unit is positioned outside the wine cellar, the DP88 helps reduce operating noise inside the wine room compared with systems installed directly in the cellar.
Advanced Refrigeration Controls
The DP88 uses advanced refrigeration controls to help maintain stable wine storage conditions and protect valuable wine collections from temperature fluctuations.
Low Ambient Protection
The standard unit includes low ambient protection, helping protect the system when surrounding temperatures fall below 40°F.
Optional Electric Heat
The electric heater option helps protect wine cellars from extremely low temperatures by allowing activation between 2°F and 6°F below the desired temperature setpoint.
Optional Humidification
The DP88 can be paired with Wine Guardian humidification options to help maintain proper wine cellar humidity.
Flexible Ducting Options
Additional duct collar connections on the condensing side provide more ducting options for complex residential and commercial wine cellar layouts.
Sentinel Series Construction
The Sentinel Series design uses an updated composite material intended to make the system stronger, more efficient, and more refined than previous versions.
Field-Serviceable Design
Wine Guardian ducted systems are designed for field service access, allowing service professionals to inspect, maintain, and repair the system without returning the unit to the factory.
Commercial and Residential Use
The DP88 is suitable for residential collectors, restaurants, hospitality venues, commercial wine storage rooms, and design-build wine cellar projects.
Advantages and Limitations
Advantages
Limitations
Discreet installation keeps the cooling system outside the wine cellar
Requires ductwork planning and proper airflow design
Strong performance for wine cellars up to 4,500 cu. ft.
Requires a drain connection for condensate management
Suitable for residential and commercial wine cellar projects
Requires proper cellar insulation and vapor barrier
Quiet operation inside the wine room
May be oversized for smaller wine rooms
Compatible with optional humidification accessories
Professional sizing review is recommended before purchase
Works with 24-volt smart controls and building management systems
Not intended to replace a complete wine cellar construction plan
Installation Requirements
The Wine Guardian DP88 is a professional ducted wine cellar cooling system. Correct performance depends on proper cellar construction, ducting layout, drainage, power, and environmental planning. Before selecting this model, the wine cellar should be reviewed for size, insulation quality, ambient conditions, heat load, humidity needs, and available installation space.
Proper Wine Cellar Construction
The wine cellar should be insulated, sealed, and constructed with a vapor barrier to help maintain stable temperature and humidity conditions.
Ductwork Access
The DP88 requires ductwork between the cooling unit and the wine cellar. Duct size, length, routing, and air distribution should be planned before installation.
Drain Connection
A drain connection is required to manage condensate produced during operation.
Electrical Requirements
This model uses a 115/1/60 electrical configuration and is intended for 60 Hz North American applications.
Remote Equipment Placement
The main cooling unit should be installed in an appropriate adjacent space, mechanical area, or other planned location outside the wine cellar.
Humidity Planning
For long-term wine storage, humidity should be evaluated. Wine Guardian integrated or freestanding humidifiers may be added when needed.
Installation guidance: For best results, confirm cellar volume, ducting layout, insulation quality, vapor barrier, drain routing, electrical requirements, and humidity needs before ordering. Need assistance? Talk to a Wine Coolers Empire expert at +1-888-407-7770 or email support@winecoolersempire.com.
Wine Guardian DP88 Applications
Residential wine cellars
Luxury home wine rooms
Commercial wine storage rooms
Restaurant wine rooms
Hospitality wine displays
Document preservation
Art storage
Instrument storage
Long-term food storage
Server room air conditioning applications
Wine Guardian Pro Ducted Model Comparison
Compare the DP88 with other Wine Guardian Pro Ducted models to determine the best fit for your cellar size.
The standard DP88 includes low ambient protection, which helps protect the unit when surrounding temperatures fall below 40°F.
Standard With Electric Heater
The electric heater option helps protect wine cellars from extremely low temperatures. This add-on can be set to activate between 2°F and 6°F below the desired temperature setpoint.
Manufacturer's Warranty: Wine Guardian warrants, to the original buyer, its goods and all parts thereof to be free from defects in material and workmanship for a period of two (2) years from the date of invoicing assuming normal use and service.
Product Videos
Wine Guardian Pro Systems
Wine Guardian Ducted Wine Conditioning Systems
Features and Benefits of Wine Guardian Ducted Wine Cooling Systems
Wine Guardian Sentinel Series Wine Cellar Cooling Units
Wine Guardian Sentinel Series | Izod Strength Test
The Wine Guardian DP88 Ducted Pro Wine Cellar Cooling System is best suited for medium to large residential and commercial wine cellars where quiet performance, hidden installation, and strong cooling capacity are required.
It is especially appropriate for luxury homes, restaurants, hospitality venues, builders, designers, and serious collectors who need a professional ducted cooling system for wine cellars up to 4,500 cubic feet.
Before ordering, Wine Coolers Empire recommends confirming cellar size, insulation, vapor barrier, ducting layout, drainage, humidity requirements, and ambient conditions to ensure the DP88 is the correct model for your project.
Why Buy From Wine Coolers Empire?
Wine Coolers Empire is a trusted dealer of premium wine cellar refrigeration units, commercial wine cellar cooling units, residential wine cellar coolers, wine room humidifiers, and wine cellar accessories. You can read more Wine Guardian reviews on our Customer Reviews page.
For order processing, shipping options, and delivery information, please visit our Shipping Policy. For questions or support, visit our Contact Us page.
Need Help Choosing the Right Wine Cellar Cooling System?
Wine Coolers Empire offers expert product guidance to help you choose the best cooling system for your wine cellar. Our team can help review cellar size, cooling load, ducting requirements, humidity needs, installation fit, and compatible Wine Guardian options.
Talk to an Expert: +1-888-407-7770 Email: support@winecoolersempire.com
The Wine Guardian DP88 is a ducted commercial and residential HVAC cooling system designed to provide precise temperature control for medium to large wine cellars and similar storage environments. It delivers cooling through ductwork, keeping equipment out of sight and minimizing noise inside the cellar.
What size wine cellar can the DP88 support?
This unit is suitable for wine cellars with volumes ranging approximately from 850 to 4,500 cubic feet, making it ideal for many residential and commercial applications.
What cooling capacity does the DP88 offer?
The DP88 operates on a 60 Hz system and provides a cooling capacity of up to 9,600 BTU/h, which is appropriate for controlling temperature in larger cellar spaces.
What power and electrical requirements does this unit have?
It uses 115/1/60 (115 V, single phase, 60 Hz) electrical supply with modern refrigeration controls that can be integrated with smart thermostats or building systems.
Does the DP88 include heating or humidity control?
While the standard unit focuses on cooling, there are options available, such as a factory-mounted electric heater for low-ambient protection and recommendations for humidifiers to maintain ideal cellar humidity levels.
Can this unit be used for other applications besides wine cellars?
Yes. In addition to wine storage, the DP88’s climate control performance is suitable for document preservation, server rooms, art storage, instrument storage, and long-term food storage, offering versatile environmental conditioning.
How is the DP88 installed and where is the cooling unit placed?
The cooling unit is installed outside the wine cellar, delivering conditioned air through ductwork into the cellar. This setup keeps noise and equipment visible elsewhere, creating a quieter, unobtrusive wine storage area. "]
