Wine Guardian Ducted Pro Commercial & Residential HVAC System

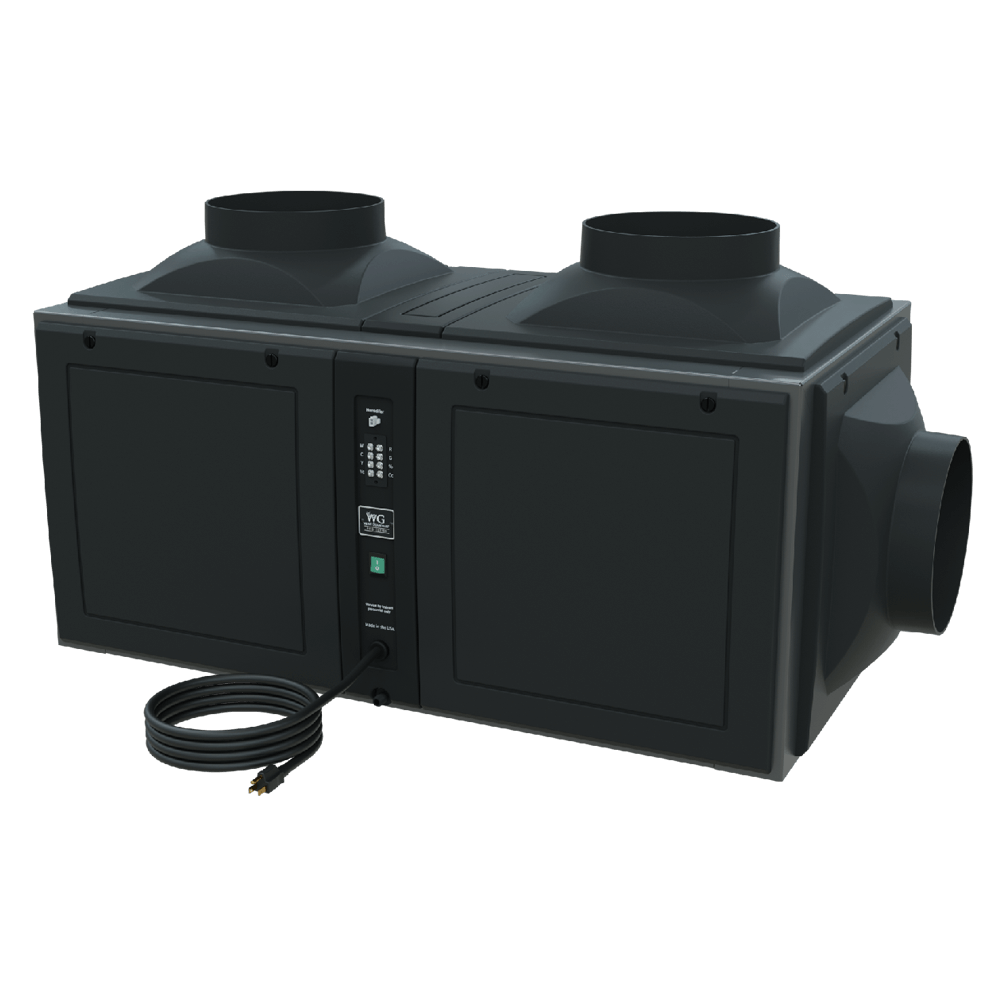

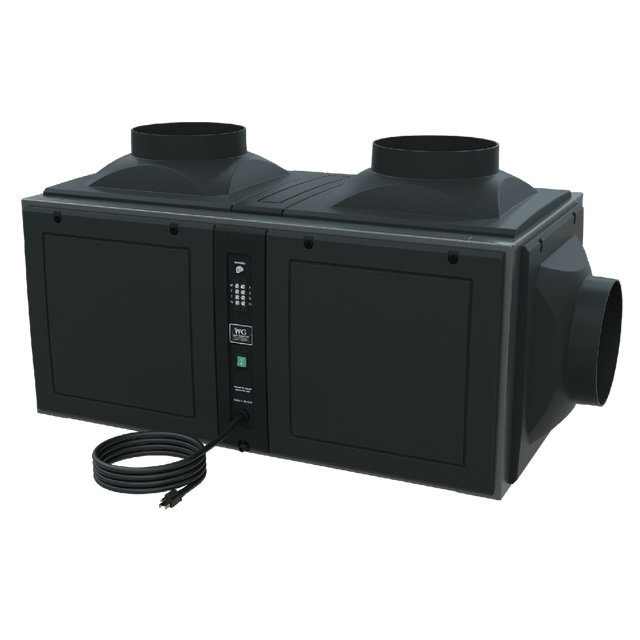

Wine Guardian DP200 Ducted Pro Commercial and Residential HVAC - 60 Hz
The Wine Guardian DP200 Ducted Pro is a high-capacity fully ducted wine cellar cooling system designed for large residential and commercial storage environments from 1,500 to 7,000 cubic feet. With a cooling capacity range of 8,000 to 15,680 BTU/h, the DP200 is built for large wine cellars, restaurant wine rooms, hospitality wine programs, archival storage, art preservation, server rooms, instrument storage, and other low-temperature applications that require precise environmental control.
Designed for large spaces from 1,500–7,000 cu.ft.
Cooling capacity from 8,000–15,680 BTU/h
Fully ducted self-contained system for remote equipment placement
60 Hz model for most North American applications, including the USA and Canada
24-volt electronics for smart thermostat and building management integration
Optional electric heater and Wine Guardian humidifier compatibility
High-Capacity Ducted Cooling for Large Wine Cellars
The Wine Guardian DP200 Ducted Pro is designed for larger wine storage projects that require more capacity than standard residential cooling systems. It is especially useful when the cooling equipment needs to be placed outside the wine room to reduce visible equipment, operational sound, and service disruption inside the cellar.
This system can maintain storage temperatures between 52–70°F / 11–21°C, making it suitable for wine storage and other temperature-sensitive applications. Its advanced refrigeration controls, additional duct collar connections, and 24-volt electronics make it appropriate for both luxury homes and commercial environments.
Quick Product Summary
Product
Wine Guardian DP200 Ducted Pro Commercial and Residential HVAC - 60 Hz
System Type
Fully ducted self-contained wine cellar cooling system
Best For
Large residential wine cellars, restaurant wine rooms, hospitality wine programs, and specialty climate-controlled storage
Cellar Size Range
1,500–7,000 cu.ft.
Cooling Capacity
8,000–15,680 BTU/h
Electrical
208-230V / 1 Phase / 60Hz
Controls
24-volt electronics with smart thermostat compatibility
Temperature Range
52–70°F / 11–21°C
Best For
Large residential wine cellars
Luxury custom wine cellar projects
Restaurant wine storage rooms
Hospitality wine programs
Commercial wine storage applications
Art, document, instrument, and archival storage
Projects where cooling equipment should be located outside the cellar
Not Recommended For
Small wine cabinets or compact wine rooms
Cellars below the recommended size range
Through-the-wall installations
Non-insulated rooms
Spaces without a vapor barrier
Projects without ducting access
Applications requiring outdoor installation without proper protection
Important 60 Hz System Note: Wine Guardian Pro Systems use 24-volt electronics. The DP200 operates on a 60 Hz system, commonly used in most of North America, including the USA and Canada. This model has a unit capacity of up to 15,680 BTU/h.
WCE Expert Recommendation
Wine Coolers Empire typically recommends the Wine Guardian DP200 for large residential or commercial wine cellars where capacity, installation flexibility, and quiet cellar operation are priorities. Because cooling performance depends on cellar size, insulation, vapor barrier quality, duct layout, ambient conditions, and heat load, we recommend confirming system sizing before purchase.
Flexible ducting options support custom construction requirements.
HVAC Installation Expert
Excellent
Designed for ducted layouts, service access, and system integration.
Weekend Wine Explorer
Limited Fit
Usually oversized for smaller beginner wine collections or compact spaces.
Why Choose the Wine Guardian DP200 Ducted Pro?
High-Capacity Cooling
The DP200 supports large wine cellars and storage spaces from 1,500 to 7,000 cubic feet, with cooling capacity from 8,000 to 15,680 BTU/h.
Fully Ducted Installation
The ducted design allows the cooling unit to be installed outside the cellar, helping reduce visible equipment and operational sound inside the wine room.
Smart Control Compatibility
24-volt electronics allow integration with compatible smart thermostats and modern commercial building management systems.
Flexible Ducting Options
Additional duct collar connections at the condensing side provide more ducting configuration options for complex installations.
Optional Electric Heat
The available factory-mounted electric heater helps protect cellars exposed to low ambient temperatures.
Service-Friendly Design
The unit is designed for field serviceability, helping simplify maintenance and reduce unnecessary downtime.
Installation Requirements
Proper installation is critical for the DP200 to perform as intended. A wine cellar cooling system is only one part of the total cellar environment. Insulation, vapor barrier quality, duct design, ambient conditions, and electrical planning all affect system performance.
Required Project Conditions
Properly insulated wine cellar or storage room
Correct vapor barrier construction
Proper ductwork design and routing
Dedicated electrical service
Drain connection
Adequate mechanical room or equipment space ventilation
Service access for future maintenance
Professional Planning Recommended
Because the DP200 is designed for large spaces and higher-capacity applications, Wine Coolers Empire recommends professional sizing review before purchase. Our team can help evaluate cellar volume, use case, cooling expectations, and product fit.
Advantages and Limitations
Advantages
High-capacity performance for large cellars
Ducted design keeps equipment outside the cellar
Suitable for residential and commercial projects
Compatible with modern control systems
Supports optional humidification
Optional electric heater available
Strong fit for luxury and professional wine storage applications
Limitations
Requires ductwork planning
Not ideal for small cellars
Requires proper insulation and vapor barrier construction
Requires electrical and drain planning
May be oversized for smaller residential wine rooms
System performance depends on correct installation conditions
The DP200 is designed primarily for large wine cellar cooling, but it may also be used for other low-temperature storage environments when the application requirements are appropriate.
The standard unit includes low ambient protection, helping protect the system when temperatures fall below 5°C / 40°F.
Standard with Electric Heater
The optional electric heater helps protect wine cellars exposed to extremely low temperatures. Activation can be set between 2–6°F below the desired temperature setpoint.
Temperature control alone is not always enough for long-term wine storage. Proper humidity helps protect cork integrity and overall wine preservation. Learn more in our guide to wine cellar humidity.
Integrated Humidifier
The Wine Guardian Integrated Humidifier attaches directly to the DP200 cooling system and uses the same power source and remote controller.
Freestanding Humidifier
The Wine Guardian Freestanding Humidifier is installed inside the wine cellar and can be operated using the existing Wine Guardian controller.
Wine Guardian Ducted System Advantages
Wine Guardian ducted systems are self-contained cooling systems designed for flexible installation in residential, restaurant, and commercial wine cellars. The evaporator, fans, compressor, condenser, and controls are contained in one unit, while ductwork delivers conditioned air to the cellar.
Because the equipment can be positioned outside the cellar, ducted systems are a strong choice when buyers want a cleaner cellar appearance and quieter wine room experience.
Technical Specifications
Specification
Value
Model
DP200
Line Frequency
60 Hz
Capacity
8,000–15,680 BTU/h
Recommended Volume
1,500–7,000 ft³
Length
50"
Width
22.5"
Height
19"
Weight
206 lbs
Electrical
208-230 / 1 / 60
Warranty Information
Wine Guardian warrants, to the original buyer, its goods and all parts thereof to be free from defects in material and workmanship for a period of two (2) years from the date of invoicing assuming normal use and service.
Extended Warranty Option
The optional extended warranty extends coverage for the compressor, evaporator coil, and condenser coil by three additional years for parts only.
Wine Coolers Empire is a trusted dealer of premium wine cellar refrigeration units, commercial wine cellar cooling units, residential wine cellar coolers, wine room humidifiers, and wine cellar storage products. You can read customer feedback on our Customer Reviews page.
For questions, product selection help, or order support, contact us. For order processing, shipping options, and delivery details, visit our Shipping Policy.
Need Help Sizing the DP200 for Your Wine Cellar?
The Wine Guardian DP200 is a powerful cooling system for large wine storage environments, but correct sizing depends on more than cubic footage. Insulation, glass exposure, ceiling height, ducting layout, room location, ambient temperature, and collection goals all affect system selection.
Wine Coolers Empire offers free professional wine cellar design planning and product-focused cooling recommendations to help you choose the right system before purchase.
["What size wine cellar is the DP200 designed to cool?
The DP200 is engineered to cool wine cellars up to 4,300 cubic feet, depending on insulation, vapor barrier, and ambient heat load conditions.
What is the difference between the DP200 and the DP200WC?
The DP200 is air-cooled, meaning it exhausts heat into the surrounding air, while the DP200WC is water-cooled and requires a water source to reject heat. The air-cooled version is generally easier to install and maintain in traditional settings.
Is this a ducted split system?
Yes, the DP200 is a fully ducted system, allowing both the supply and return air to be routed via ductwork. This provides quiet operation and allows the unit to be hidden from view, preserving the cellar’s design.
Can this system be used in commercial applications?
Absolutely. The DP200 is built for both commercial and residential use, making it suitable for wine shops, restaurants, hotels, and other professional settings.
Is professional installation required?
Yes. A licensed HVAC technician must install this unit to ensure proper operation, especially regarding ductwork layout and electrical requirements. Professional installation is also required for warranty activation.
Can the DP200 be integrated with smart controls or building management systems?
Yes. The Pro Series is designed for BMS (Building Management System) integration and advanced control setups, allowing for centralized climate management in large projects.
What warranty is included with the DP200?
Wine Guardian provides a 2-year parts and labor warranty, with extended warranty options available. Product registration and professional installation are required to validate the warranty."]
