Wine Guardian D200 - Ducted Wine Cooling Unit - 60 HZ - Base Model
is backordered and will ship as soon as it is back in stock.
Call Us At (800) 407-7770 Or Chat Now To UNLOCK THE BEST PRICE AVAILABLE!
Options:
*All Wine Temperatures Bundle
For extended wine-cellar temperature ranges. Allows a Wine Guardian unit to control to an extended temperature range from 45°F(7° C) to 64°F(18° C), perfect for single to multiple cabinet applications and small wine rooms in which serving-temperature cooling is preferred.
**Extreme Climate Protection Bundle
For Self-Contained Ducted systems: Contains an integral compressor crankcase heater and controls to protect the system against low temperatures (required when inlet air to the condenser coil is below 40°F/5°C). The bundle also contains an integral high capacity condenser fan and coil for operation at elevated ambient temperatures. This bundle should be considered when inlet air to the condenser coil is above 100°F/38°C (condenser air inlet cannot exceed 120°F/49°C).
For Ducted Split systems: Unit protection in extreme climate conditions (on the condenser section only). It is required for continuous operation in climates that fall below 20°F. Enables the system to operate in temperatures as low as -20°F.
***Ultimate Bundle
Contains all the features in the All Wine Temperatures Bundle and the Extreme Climate Protection Bundle.

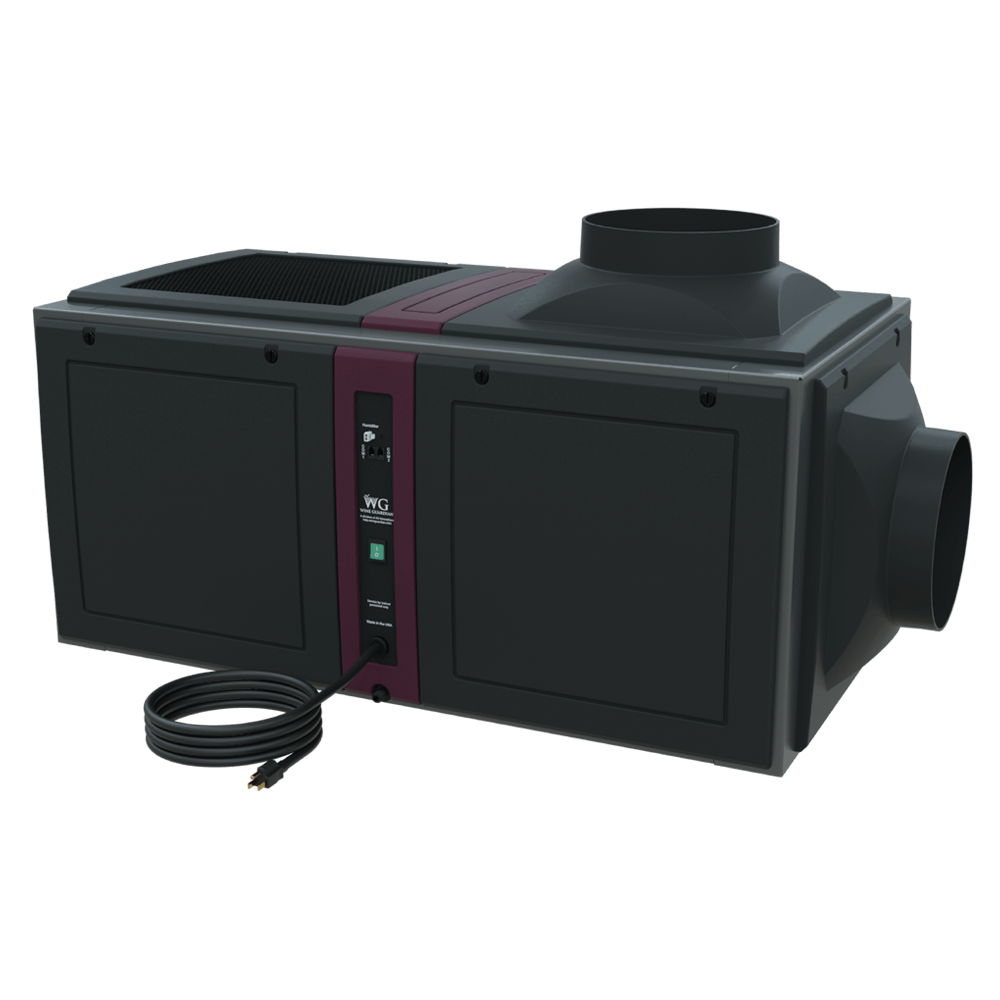

The Wine Guardian D200 is a high-capacity, fully ducted, self-contained wine cellar cooling system designed for large residential wine cellars, commercial wine rooms, restaurants, hospitality venues, and serious wine collections requiring quiet, flexible, out-of-cellar installation.
Designed for wine rooms from approximately 1,500 to 7,000 cubic feet
Cooling capacity range of 8,000 to 15,680 BTU/h

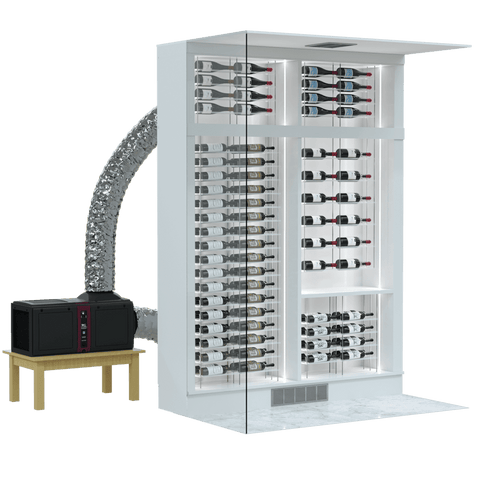

Fully ducted design keeps equipment outside the finished wine cellar
Important Installation Note: Contractor installation is recommended for the Wine Guardian D200. Proper cellar insulation, vapor barrier, duct sizing, electrical service, condensate management, and condenser air handling are essential for reliable performance. If you are unsure whether this system is correctly sized for your cellar, contact Wine Coolers Empire before purchasing.
Quick Specification Summary
Specification
Wine Guardian D200 Details
Model
Wine Guardian D200
System Type
Fully ducted, self-contained wine cellar cooling system
Line Frequency
60 Hz
Cooling Capacity
8,000 - 15,680 BTU/h
Recommended Cellar Volume
Approximately 1,500 - 7,000 cubic feet
Electrical
208-230V / 1 phase / 60 Hz
Dimensions
41.5" L x 22.5" W x 19" H
Weight
206 lbs
Installation
Contractor installation recommended
Best For
Large residential wine cellars
Commercial wine rooms
Restaurant and hospitality wine storage
Luxury homes where equipment should be hidden
Projects requiring quieter ducted airflow
Wine rooms between approximately 1,500 and 7,000 cubic feet
Not Recommended For
Small wine cabinets or compact wine closets
Cellars below the recommended sizing range
DIY installations without contractor support
Projects without duct routing access
Applications requiring a through-the-wall unit
Spaces without proper insulation, vapor barrier, or sealed construction
Is the Wine Guardian D200 Right for Your Wine Cellar?
The Wine Guardian D200 is best suited for larger wine cellars where the cooling equipment should remain hidden outside the wine room. Because it is a ducted, self-contained system, the D200 allows conditioned air to be delivered into the cellar through ductwork while the main mechanical equipment is installed in a nearby mechanical room, utility area, basement, garage, or other suitable service location.
This makes the D200 a strong choice for collectors, designers, builders, restaurants, and hospitality spaces that need reliable wine storage conditions without placing visible equipment inside the finished wine room.
Product Overview
The Wine Guardian D200 Ducted Wine Cellar Cooling Unit - 60 Hz is engineered for large wine storage environments that require stable temperature control, flexible installation, and reduced equipment visibility inside the wine room. Unlike through-the-wall systems that mount directly in the cellar wall, the D200 uses ductwork to move conditioned air into and out of the cellar while the mechanical unit remains outside the finished wine space.
This design is especially useful for luxury residential wine cellars, restaurant wine rooms, hospitality venues, and custom cellar builds where appearance, quieter operation, and service access matter. The D200 includes the core mechanical components in one self-contained package, including evaporator, fans, compressor, condenser, and controls.
For long-term wine storage, temperature control should be paired with proper humidity management. The Wine Guardian D200 can be paired with compatible Wine Guardian humidification options, including an integrated humidifier or freestanding humidifier, depending on the needs of the cellar.
Why Choose a Ducted Wine Cellar Cooling System?
A ducted wine cooling system is ideal when the design goal is to keep mechanical equipment outside the cellar while still delivering consistent, controlled airflow into the wine storage space. This helps preserve the appearance of the wine room, reduces visible equipment, and can support quieter operation compared with systems installed directly in the cellar wall.
Wine Guardian ducted systems are commonly used in high-end residential cellars, commercial wine rooms, hospitality projects, and other applications where cooling performance and design flexibility are both important.
Key Features
Fully Ducted Installation
The D200 allows the main cooling unit to be installed outside the wine cellar while conditioned air is supplied through ductwork. This keeps the wine room visually clean and helps reduce equipment noise inside the cellar.
High-Capacity Cooling
With a cooling capacity range of 8,000 to 15,680 BTU/h, the D200 is designed for larger wine storage spaces that exceed the needs of smaller residential cooling units.
Self-Contained System
The D200 includes the evaporator, condenser, compressor, fans, and controls in one self-contained system, simplifying system layout compared with split configurations.
Remote Interface Control
Wine Guardian ducted systems support remote interface control, allowing temperature and humidity monitoring from a convenient location depending on system configuration.
Humidity Compatibility
The D200 can be paired with compatible Wine Guardian humidification options to help maintain proper long-term wine storage conditions.
Service-Friendly Access
Wine Guardian ducted systems are designed with serviceability in mind, allowing qualified technicians to access key components for maintenance and field service.
Advantages and Limitations
Advantages
Keeps cooling equipment outside the finished wine cellar
Supports quieter cellar environments
Strong option for large residential and commercial wine rooms
Flexible ducting configurations for custom layouts
Compatible with Wine Guardian humidification accessories
Designed for service access and long-term maintainability
Limitations
Requires ductwork and proper system planning
Not suitable for small wine cabinets or undersized spaces
Professional installation is recommended
Requires appropriate condenser air intake and exhaust conditions
May require optional accessories for extreme climate conditions
Installation Requirements
The Wine Guardian D200 should be installed as part of a properly designed wine cellar environment. The wine room should be insulated, sealed, and protected with an appropriate vapor barrier. Proper duct routing, electrical service, drainage, and condenser air handling are required for reliable performance.
Contractor installation recommended
Wine cellar must be properly insulated and sealed
Correct vapor barrier construction is required
Ductwork must be sized and routed correctly
Condensate drainage must be planned
Electrical service must match the system requirements
Condenser intake and exhaust air must remain within acceptable operating conditions
Need Help Confirming the Correct Size?
Wine cellar cooling performance depends on more than cubic footage. Glass exposure, insulation, ceiling height, door type, ambient conditions, bottle load, and cellar location can all affect cooling requirements. Wine Coolers Empire offers free product-focused wine cellar design assistance to help determine whether the D200 is the correct system for your project.
The Wine Guardian D200 can be configured with optional accessories and protection bundles depending on the design of your wine cellar and the surrounding ambient conditions.
All Wine Temperatures Bundle
The All Wine Temperatures bundle helps support a wider operating range for wine rooms that may require serving-temperature flexibility. It includes a factory-mounted heater and extended controls.
Climate Protection Bundle
The Climate Protection option helps protect the system in low or elevated ambient conditions. It is recommended when condenser intake air may fall below 40°F or rise above 100°F, up to the stated operating limits.
Ultimate Bundle
The Ultimate Bundle combines the All Wine Temperatures and Climate Protection features for projects that need broader temperature flexibility and additional environmental protection.
Integrated Humidifier
The Wine Guardian Integrated Humidifier attaches directly to the cooling system and uses the system controls to help maintain proper humidity in the wine cellar.
Freestanding Humidifier
The Wine Guardian Freestanding Humidifier is installed inside the wine cellar and helps maintain humidity independently from the main cooling unit location.
Why Humidity Matters in a Wine Cellar
Wine storage requires more than temperature control. Proper humidity helps reduce cork drying, wine evaporation, and label damage. For many long-term storage environments, pairing the D200 with a compatible Wine Guardian humidifier may help maintain better wine cellar conditions.
The D200 is capable of cooling wine cellars up to 6,000 cubic feet, depending on insulation, glass exposure, and overall heat load.
Yes. It is a fully ducted, self-contained cooling system. This means the unit can be placed in a remote location and connected via ductwork to deliver supply and return air — resulting in minimal noise and a clean interior look.
The D200 is air-cooled, venting heat into the surrounding air, while the D200WC is water-cooled, which requires a water source for heat removal. Choose based on whether the installation site allows air exhaust or requires water-based heat exchange.
Temperature control is built in, and the system is compatible with Wine Guardian’s integrated humidifier if precise humidity control is needed for long-term wine storage.
No. Because the unit is ducted and installed remotely, noise inside the wine cellar is minimal or virtually silent, making it ideal for display or tasting room environments.
Yes. Installation by a licensed HVAC technician is essential for correct ducting, airflow setup, and system calibration — and is also required for warranty activation.
Wine Guardian offers a 2-year parts and labor warranty. This warranty is valid only with professional installation and product registration."]
