Ceiling-Mounted Ductless Split Wine Cellar Cooling System
WhisperKOOL Mini Ceiling Mount Ductless Split System
The WhisperKOOL Mini Ceiling Mount Ductless Split System is a compact, ceiling-mounted wine cellar cooling system designed for smaller, fully insulated wine cellars up to approximately 500 cubic feet. It preserves wall space for wine racking while delivering efficient ductless split cooling for residential cellar projects.
Important: A qualified HVAC-R technician is required for installation. Failure to follow this requirement may void the WhisperKOOL warranty.
Availability Notice: WhisperKOOL previously announced the phase-out of certain 9000 and 12000 110V condensers. Confirm the exact voltage and condenser configuration before ordering.
Product Overview
The WhisperKOOL Mini Ceiling Mount Ductless Split System is developed for small wine cellars where space is limited and wall-mounted equipment would interfere with wine racking, cabinetry, or finished cellar design. The evaporator mounts at the ceiling, draws warmer air from the upper part of the cellar, cools it, and distributes conditioned air throughout the room.
This system does not require ducting. The split configuration allows the condenser to be installed away from the cellar while the evaporator remains inside the wine room. This makes the Mini Ceiling Mount a strong option for homeowners, designers, and builders who want a cleaner cellar appearance and more usable racking space.
Quick Specifications
Brand
WhisperKOOL
Product Type
Ceiling-mounted ductless split wine cellar cooling system
Approximate Cellar Size
Up to 500 cubic feet when fully insulated
BTU/h Range
Approx. 2,084–3,288 BTU/h
Evaporator Dimensions
25.05 in. L x 11.34 in. W x 11.17 in. H
Condenser Dimensions
13.97 in. L x 15.85 in. W x 9.86 in. H
Noise Level
Approx. 51 dBA
Fan Speeds
2-speed fan switch: medium and high
Drain Line
1/4 in. ID clear plastic tubing required; not provided
Warranty
Limited 2-year parts and labor warranty
Best For / Not Recommended For
Best For
Small wine cellars up to approximately 500 cubic feet
Fully insulated and sealed residential wine rooms
Cellars where wall space should be reserved for wine racks
Projects where ducting is not practical or desired
Homeowners who want a cleaner, ceiling-mounted cooling solution
Custom wine cellar designs requiring a remote condenser
Not Recommended For
Wine cellars larger than approximately 500 cubic feet
Open wine displays that are not enclosed or sealed
Rooms without proper insulation or vapor barrier protection
DIY installations without a qualified HVAC-R technician
Commercial projects with heavy traffic unless professionally sized
Projects where lowest installation cost is the main priority
Key Features

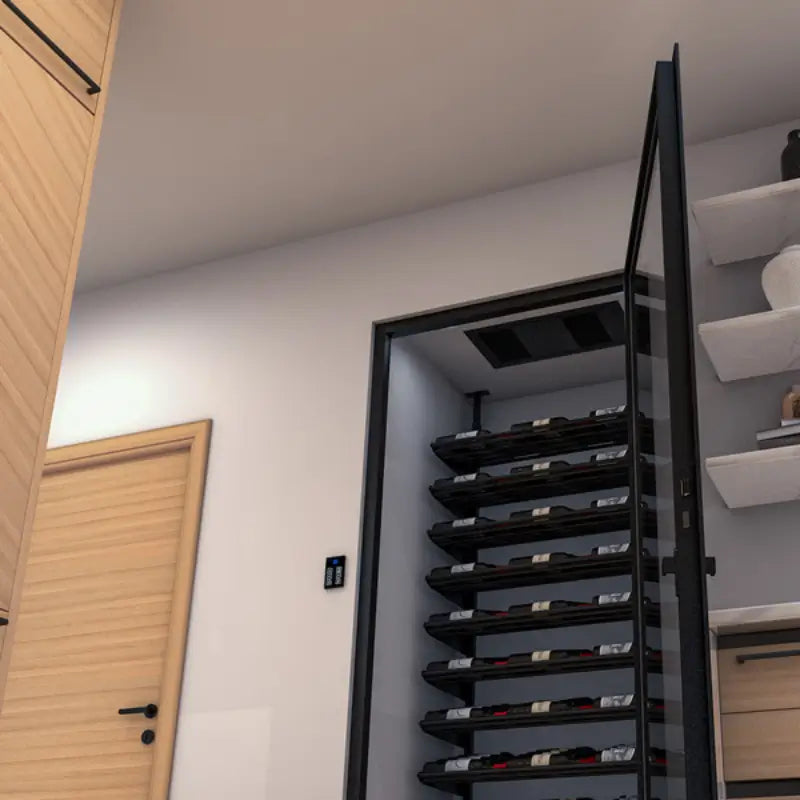

Ceiling-Mounted Design
The evaporator mounts in the ceiling to help preserve valuable wall space for wine racking, displays, or cabinetry.
Ductless Split Cooling
The system does not require ducting. The evaporator cools the cellar while the condenser can be located remotely.

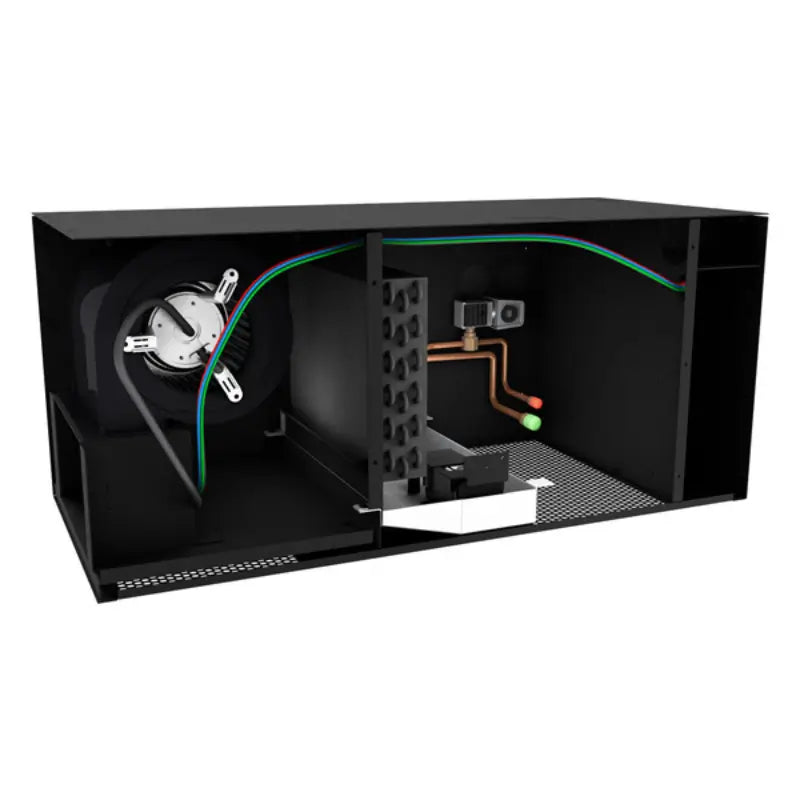

Centrifugal Blower
The upgraded blower supports strong airflow, even air distribution, and quieter operation.
2-Speed Fan Switch
The medium and high fan settings provide flexibility based on cooling demand and cellar conditions.

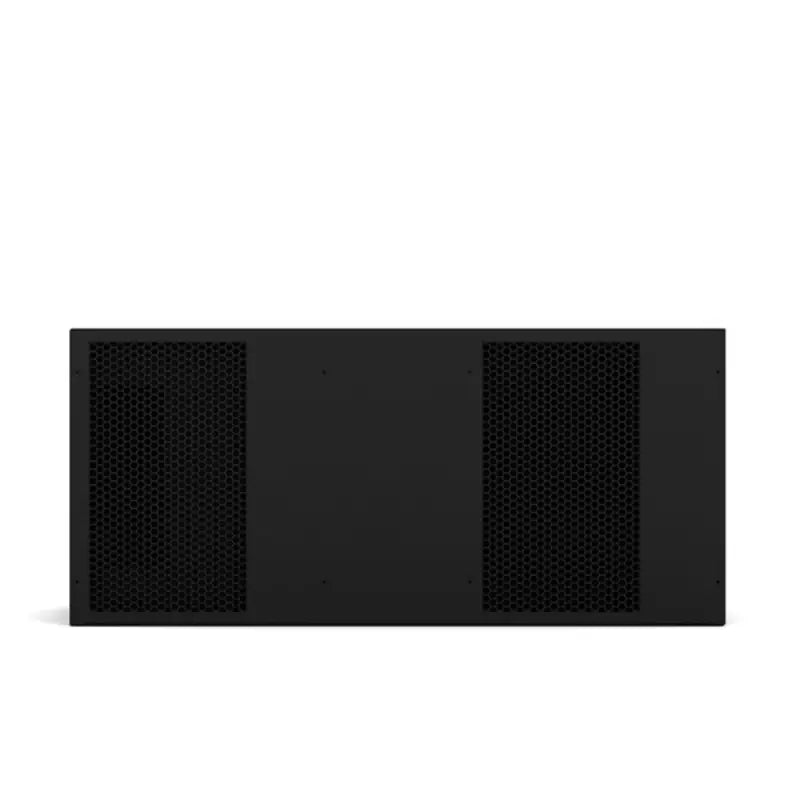

Hex Mesh Grille
The updated grille design directs air downward into the cellar and replaces the previous louver-style design.
Air Filter Protection
The air filter helps protect coils from debris during installation, startup, and cellar construction work.
Flare Fittings
Flare fittings simplify line-set connection and help reduce installation time by eliminating brazing at the fittings.
KDT Digital Touch Display
The KDT display can be installed up to 50 feet away and includes Advanced System Protection alerts.
Liquid Bottle Probe
The bottle probe measures liquid temperature for a more accurate reflection of wine temperature than air temperature alone.
Updated Model Size: The current Mini Ceiling Mount unit is approximately 3 inches longer than the previous generation. Confirm ceiling clearance and installation space before ordering.
Advantages and Limitations
Advantages
Limitations
Preserves wall space for wine racking
Requires HVAC-R installation
No ducting required
Not suitable for DIY installation
Remote condenser helps reduce heat inside the cellar
Requires proper line-set routing
Good fit for compact residential cellars
Not for poorly insulated or open spaces
Integrated air filter helps protect the coils
Capacity depends on cellar construction and ambient conditions
Optional 24V thermostat conversion available
Smart thermostat is not included or supported by WhisperKOOL
Installation Requirements
The WhisperKOOL Mini Ceiling Mount Ductless Split System must be installed by a qualified HVAC-R technician. Proper installation affects cooling performance, warranty eligibility, system reliability, and cellar temperature stability.
Installer
Qualified HVAC-R technician required
Cellar Condition
Fully insulated and sealed wine cellar required
Vapor Barrier
Recommended for proper wine cellar moisture control
Evaporator Location
Ceiling-mounted inside the wine cellar
Condenser Location
Remote location selected according to site conditions and manufacturer requirements
Drain Line
1/4 in. ID clear plastic tubing required; not provided
Maintenance Access
Electrical components, condensate pump, and fan should remain serviceable
The WhisperKOOL Mini Ceiling Mount is rated for approximately 500 cubic feet when the wine cellar is fully insulated. The listed BTU/h range is an estimate, not a guarantee. Real-world cooling demand may increase when the cellar includes glass, stone, concrete, exterior walls, high ambient temperatures, frequent door openings, or insufficient vapor barrier protection.
Expert Sizing Warning: Choosing an undersized cooling system can cause continuous operation, poor temperature stability, excessive wear, and premature system failure. Request expert sizing support before ordering if your cellar has unusual materials, glass exposure, or warm surrounding conditions.

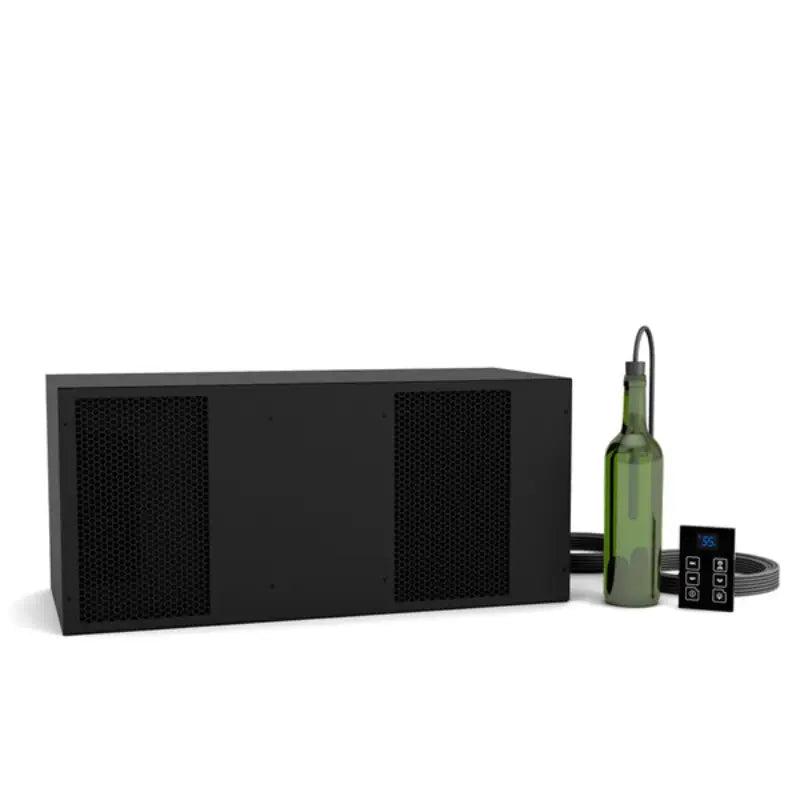

What’s Included
Ceiling-Mounted Evaporator
Installed inside the wine cellar to cool and circulate cellar air.

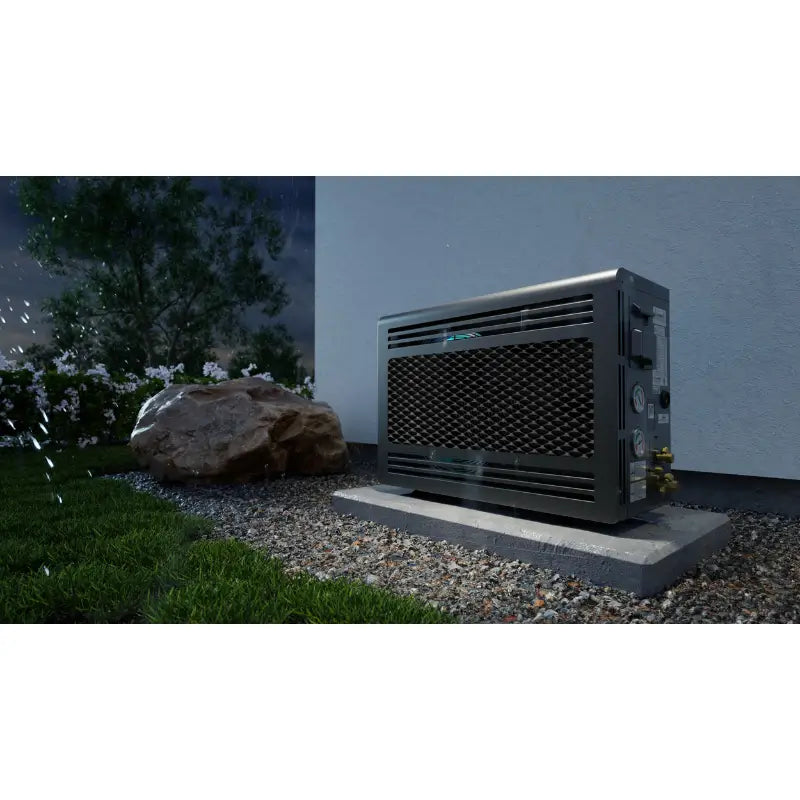

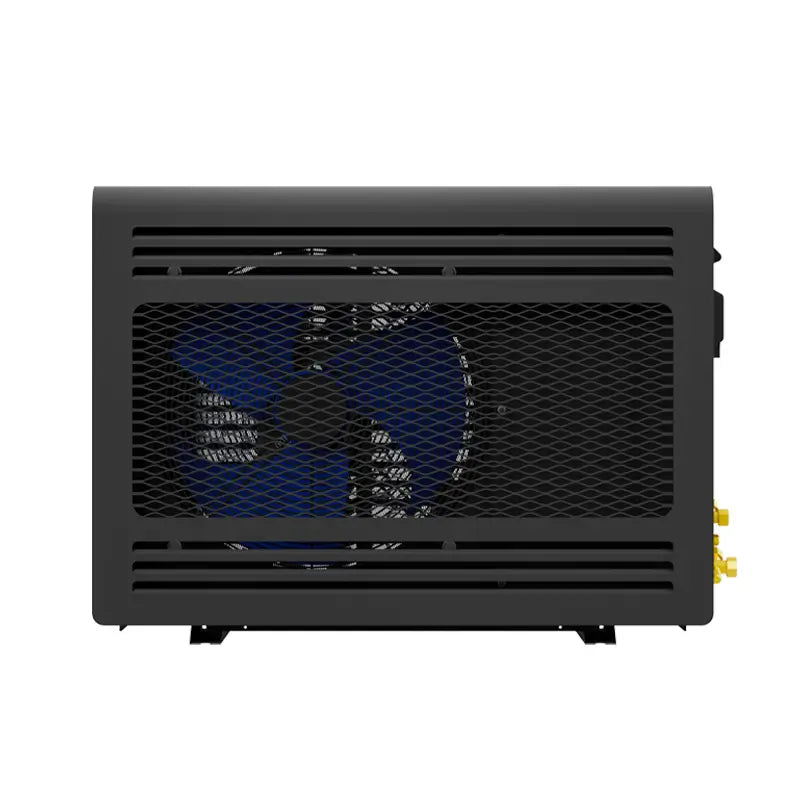

Remote Condenser
Installed outside the cellar according to project and manufacturer requirements.
KDT Digital Touch Display
Remote display can be mounted up to 50 feet away from the unit.
Liquid Bottle Probe
Measures wine-temperature conditions more accurately than ambient air alone.
Condensate Pump System
Helps remove excess condensation from the cooling system.
Cold Weather Start Kit
Supports startup and operation in colder ambient conditions when applicable.
The optional 24V Thermostat Conversion Kit allows compatible WhisperKOOL split systems to use a field-supplied 24V smart thermostat.
Connect a compatible thermostat to Wi-Fi
Control cellar temperature from a phone, tablet, or laptop
Monitor run time and energy usage when supported by the thermostat
Set alarm notifications when supported by the thermostat
Important 24V Notice: WhisperKOOL does not provide smart thermostats. If the 24V Thermostat Conversion Kit is selected, the system will not include the standard WhisperKOOL control or liquid-measuring bottle probe. A compatible 24V smart thermostat must be purchased separately. WhisperKOOL customer support does not provide support for third-party smart thermostat issues.
Optional Accessories

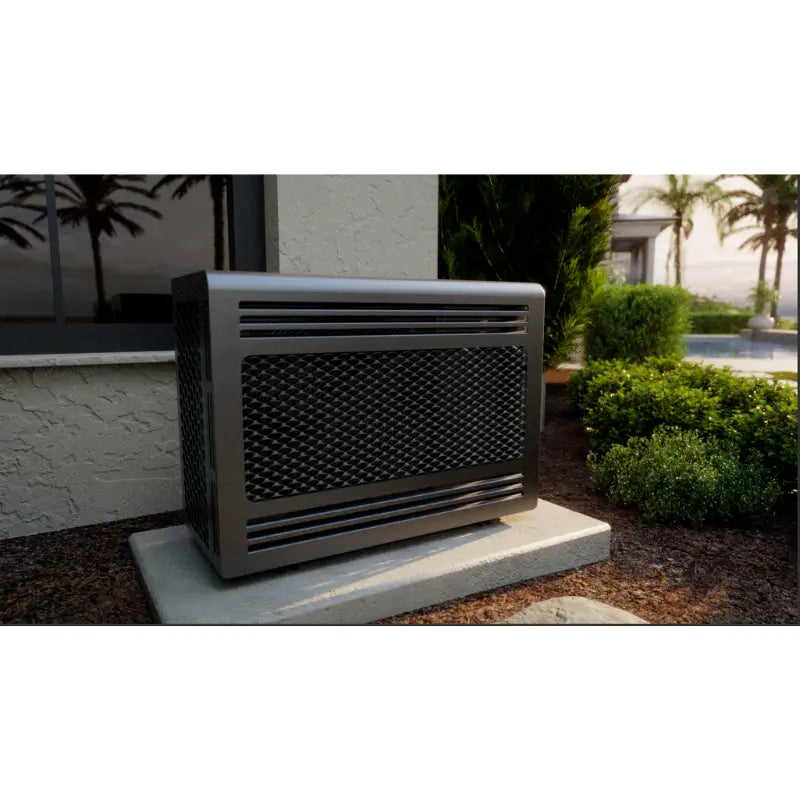

Exterior Protective Housing
The Exterior Protective Housing helps protect the condenser from weather and outdoor elements when the condenser is installed outside.
Galvanized steel base and embossed steel cabinet
20-gauge construction
Hinged access for easier service
Rain trough under hinge
Fasteners provided by WhisperKOOL
Dimensions: 20 in. W x 20 in. H x 27 in. D
Condenser Coil Coating
The Condenser Coil Coating helps protect the condenser coil from salt air exposure. It is recommended for coastal, beach, and salt-air environments where corrosion risk is higher.
The WhisperKOOL Mini Ceiling Mount Ductless Split System is best suited for homeowners, designers, and builders working on small enclosed wine cellars where wall space is limited and a clean ceiling-mounted cooling solution is preferred.
This model is a better fit when the cellar is properly insulated, the project has access to a qualified HVAC-R technician, and the buyer wants a refined alternative to a through-the-wall system. It is not the right choice for oversized rooms, open wine displays, uninsulated spaces, or projects where simple DIY installation is required.
Why Buy from Wine Coolers Empire?
Wine Coolers Empire specializes in wine cellar cooling systems, wine refrigeration equipment, wine racks, and product-focused cellar design support. Our team helps homeowners, designers, builders, and hospitality professionals select properly sized wine storage equipment.
Specialty dealer for wine cellar cooling systems and wine storage equipment
Free professional wine cellar design planning support
Product guidance for residential and commercial wine cellar projects
Support before and after purchase
Read customer feedback on our Customer Reviews page. For order processing, shipping options, and delivery details, visit our Shipping Policy.
Need Help Sizing This Cooling System?
Choosing the right wine cellar cooling unit depends on cellar size, insulation, vapor barrier quality, glass exposure, ambient temperature, and installation conditions. Get expert guidance before ordering.
It is engineered for small wine cellars up to 500 cu.ft., especially where wall and floor space are limited. Its ceiling-mount design frees space for racking while providing efficient, even air distribution.
Yes. A licensed HVAC-R technician is required. Failure to use a qualified installer will void the WhisperKOOL warranty.
No. This model is a ductless split system and does not require any ductwork, simplifying installation in compact spaces.
Warm air naturally rises. The system draws in this warmer ceiling air, cools it, and disperses it evenly throughout the cellar for more efficient climate control.
The new model is three inches longer to support upgraded components, including an improved blower system, better airflow, and more accessible servicing.
WhisperKOOL upgraded to an AFL centrifugal blower for stronger airflow, quieter operation, and better air distribution.
It allows you to choose between medium and high airflow, helping you tailor BTU output and manage humidity levels more precisely.
The new hex mesh grille directs air downward into the cellar and includes an air filter to prevent debris from entering the coils during installation and startup.
Yes. It includes a pump system to automatically remove excess condensation from the cooling process.
Yes. The display can be installed up to 50 feet away, offering flexible placement and easy access for monitoring and adjustments.
The bottle probe measures liquid temperature rather than air temperature, providing a more precise reading of actual wine storage conditions.
The system includes a standard control, and you may opt for the 24V thermostat conversion kit to use smart thermostats like Nest, Honeywell, or Ecobee.
No. Customers must supply their own 24V smart thermostat, and WhisperKOOL does not offer support for third-party thermostat issues.
It can, but cellars with poor insulation or heat-generating materials may require a higher-capacity cooling system. Undersizing may lead to premature failure.
Approximately 500 cu.ft., assuming full insulation and ideal construction materials.
Yes. A limited 2-year parts and labor warranty is included with all split systems.
Only the condenser may be placed outdoors, and WhisperKOOL recommends using the optional Exterior Protective Housing for weather protection.
Yes. For coastal or salt-air environments, the optional condenser coil coating protects the unit against corrosion and helps extend its lifespan.
Routine tasks include cleaning the air filter, checking the drain line, and ensuring airflow pathways remain clear. Professional servicing is recommended annually."]
