Our specialists review your room layout, insulation, and heat load to recommend the correct cooling system for stable temperature and reliable climate control.
WhisperKOOL Ceiling Mount 4000 Ductless Split System - 110V
is backordered and will ship as soon as it is back in stock.
In Stock & Ready to Ship
Estimated Delivery in 3-7 business days
WhisperKOOL Ceiling Mount Series
WhisperKOOL Ceiling Mount 4000 Ductless Split Wine Cellar Cooling System
Ductless split wine cellar cooling for properly insulated wine cellars up to approximately 1,000 cubic feet. Its flush ceiling-mounted evaporator provides discreet cooling while the remote condenser helps reduce noise inside the cellar.
Designed for wine cellars up to approximately 1,000 cu. ft.
Flush ceiling-mounted evaporator for a clean built-in appearance
Ductless split-system design with remote condenser placement
Includes KDT digital touch display and bottle probe
Optional 24V thermostat conversion kit available
Qualified HVAC-R installation required
Important Installation Notice: A qualified HVAC-R technician is required for installation. Failure to follow this requirement may void the manufacturer warranty.
Quick Answer Summary
Product Type
Ductless split wine cellar cooling system
Mounting Style
Flush ceiling mount
Recommended Cellar Size
Up to approximately 1,000 cu. ft.
BTU/h
4,000 BTU/h
Estimated BTU/h Range
4,000-6,087 BTU/h
Evaporator Dimensions
35.75" L x 14.5" W x 12.75" H
Condenser Dimensions
16.08" L x 16.23" W x 12.61" H
Drain Line
1/4" ID clear plastic tubing, not provided
Control
KDT Digital Touch Display
Warranty
Limited 2-year product warranty, parts and labor
Product Overview

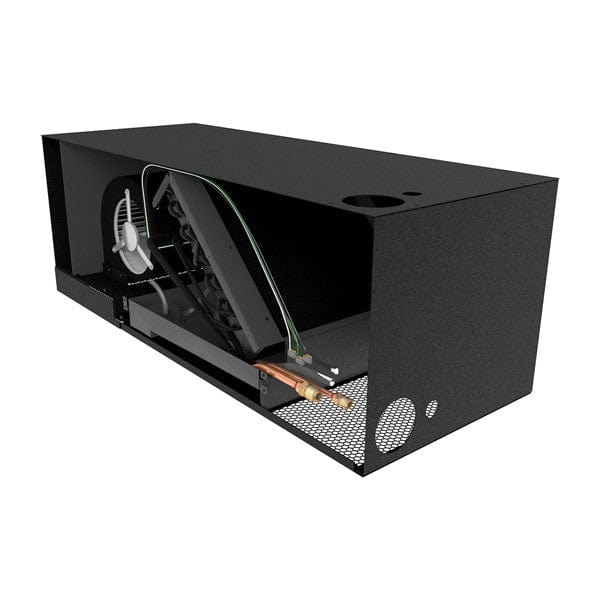

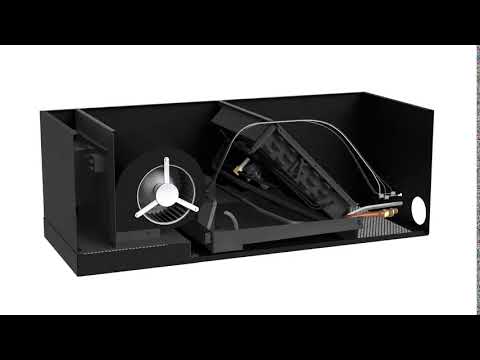

The WhisperKOOL Ceiling Mount 4000 Ductless Split System is built for collectors who want reliable wine cellar cooling without a visible wall-mounted unit. The evaporator mounts flush into the ceiling, draws warm air upward, and circulates cooled air throughout the cellar.

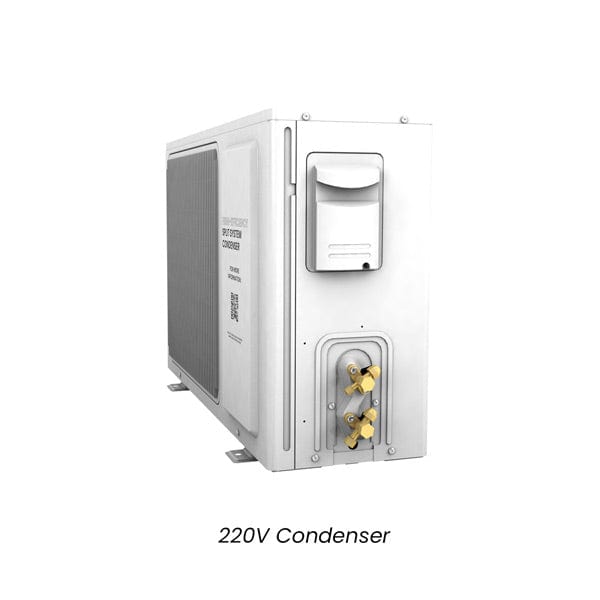

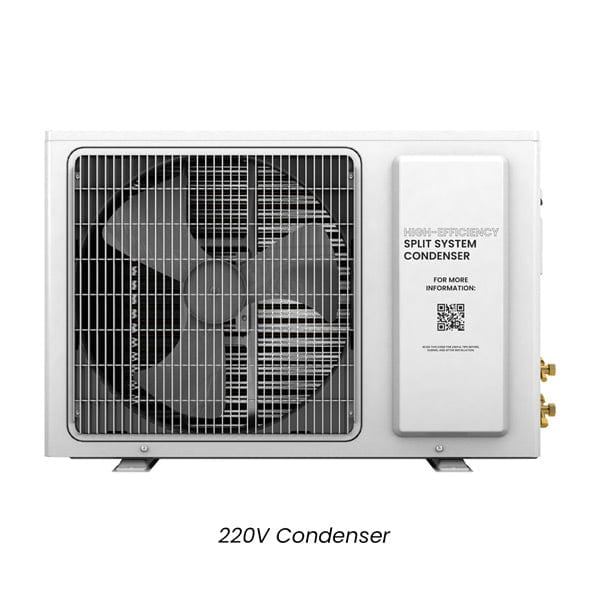

Because this is a split system, the condenser is installed remotely from the wine room. This helps reduce mechanical noise inside the cellar and supports a more refined wine room design.
Updated design details include bottom-mounted wiring and line-set access, flare fittings that eliminate on-site brazing, e-coated Duramax coils, a redesigned hex mesh grille, and a startup air filter for added system protection.
Collectors who want discreet ceiling-mounted cooling
Properly insulated and sealed cellars up to approximately 1,000 cu. ft.
Projects where the condenser can be installed remotely
New construction or planned cellar remodels
Not Recommended For
DIY installations
Uninsulated rooms or spaces without a vapor barrier
Cellars larger than 1,000 cu. ft. without professional sizing review
Temporary wine storage areas
Projects without ceiling access for installation and service
Applications where a self-contained plug-and-play unit is preferred
Free Wine Cellar Design Assistance
Wine Coolers Empire can help confirm cellar size, insulation, vapor barrier quality, ceiling access, condenser placement, and system fit before purchase.

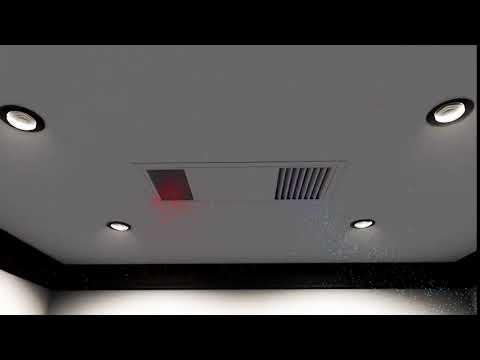

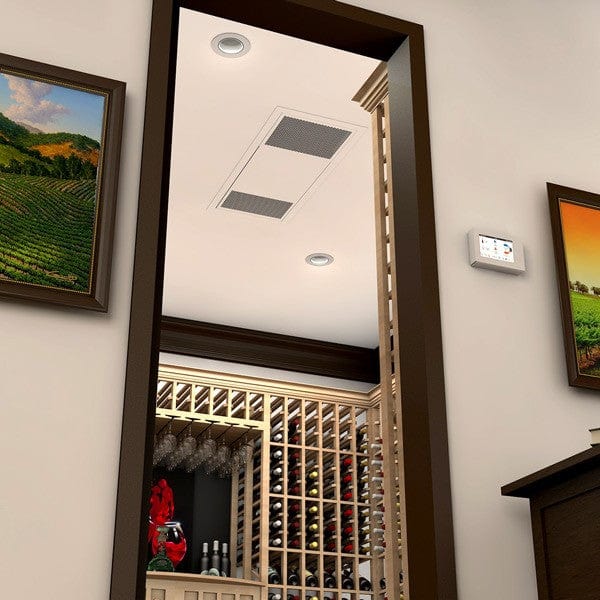

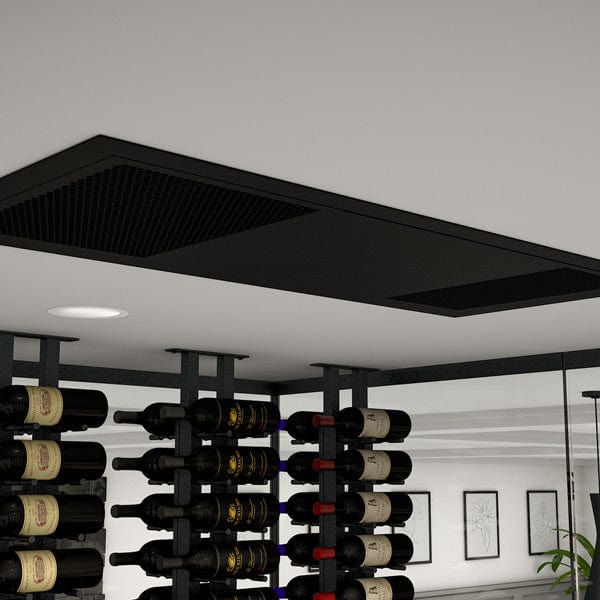

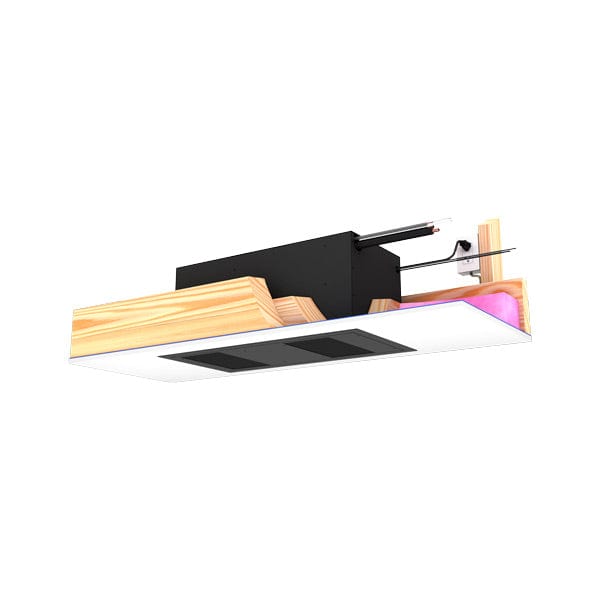

The evaporator is designed to mount flush with drywall or sheetrock and fit between ceiling joists for a clean integrated appearance.
Ductless Split Performance

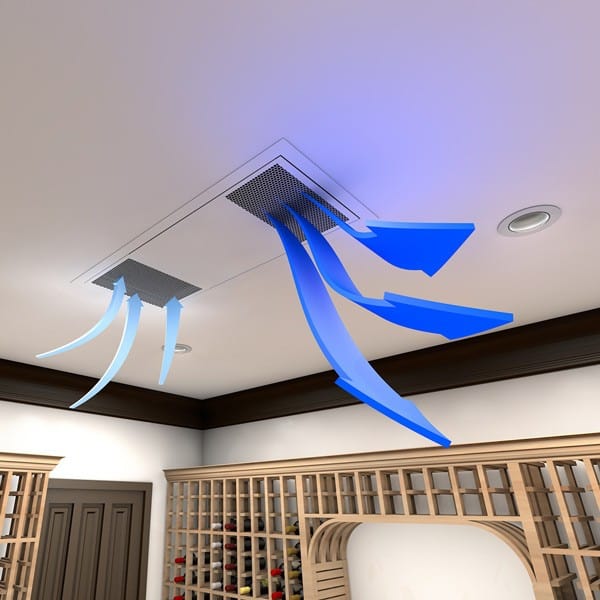

The split design separates the evaporator from the condenser, moving heat and mechanical noise away from the wine cellar.
KDT Digital Touch Display
The KDT Digital Touch Display can be installed up to 50 feet away from the unit and includes Advanced System Protection alerts.

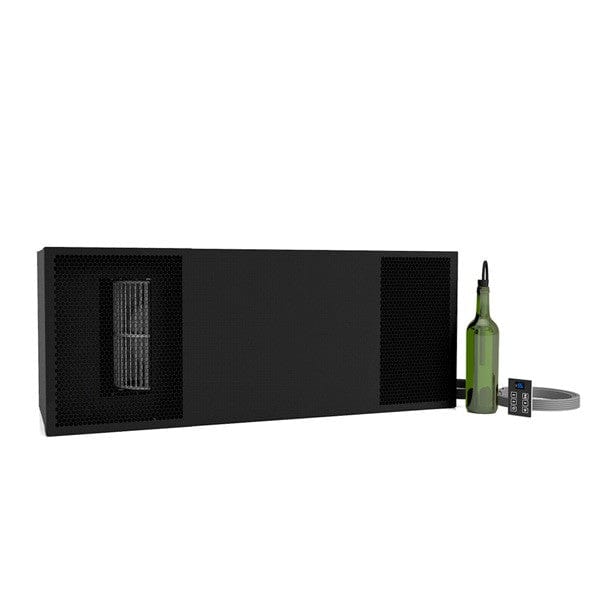

Liquid Temperature Bottle Probe
The included bottle probe measures liquid temperature for a more accurate reflection of wine temperature than ambient air alone.

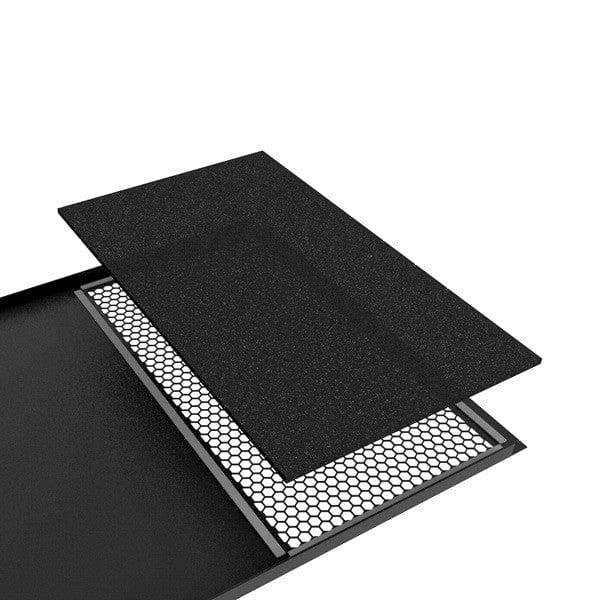

Startup Air Filter
The startup air filter helps protect the unit from debris during installation, cellar construction, and rack installation.
Optional 24V Thermostat Conversion
The optional conversion kit allows the system to work with compatible 24V smart thermostats for Wi-Fi control and monitoring.
Feature Images
Touch Display
The KDT Digital Touch Display provides remote system control and monitoring.
Bottle Probe
The liquid temperature bottle probe helps monitor the temperature of the wine itself.
Air Filter
The startup air filter helps protect the unit from construction and installation debris.
Advantages and Limitations
Advantages
Limitations
Nearly invisible ceiling-mounted installation
Requires professional HVAC-R installation
Remote condenser helps reduce cellar noise
Requires refrigerant line-set routing
Strong fit for luxury cellar designs
Requires ceiling access and proper framing
Liquid temperature monitoring improves wine protection
Not suitable for poorly insulated rooms
Optional smart thermostat compatibility
Smart thermostat support is not provided by WhisperKOOL
Installation Requirements
Warranty Requirement: This system must be installed by a qualified HVAC-R technician. Improper installation can void the warranty and may cause performance problems.
Required Installation Considerations

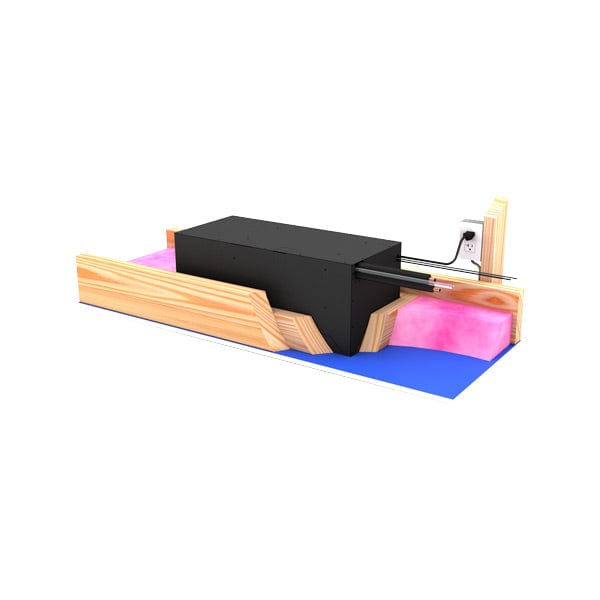

Ceiling framing and joist spacing must support the ceiling-mounted evaporator.
The wine cellar must be fully insulated and sealed.
A proper vapor barrier is required for stable cellar performance.
Refrigerant line-set routing is required between the evaporator and condenser.
Electrical wiring must be completed by a qualified professional.
Condensate drainage must be planned before installation.
Condenser placement must allow proper ventilation and service access.
Drain Line Requirement
The WhisperKOOL Ceiling Mount 4000 requires a 1/4" ID clear plastic drain line. Drain tubing is not provided.
Confirm drain routing before installation so condensate can be managed properly and service access remains available.
BTU/h and Sizing Notes
The WhisperKOOL Ceiling Mount 4000 has an estimated cooling range of 4,000-6,087 BTU/h. This value is an estimate and not a guarantee for every 1,000 cubic foot wine cellar.
Actual cooling requirements depend on cellar construction, insulation, vapor barrier quality, glass exposure, ambient temperature, door type, and other design variables. Cellars with glass, stone, concrete, poor insulation, or high ambient heat may require a larger system.
Choosing an undersized unit can result in excessive runtime, unstable temperature, and premature equipment failure. Request a sizing review before purchase if the cellar has high-load materials or unusual ambient conditions.
The optional 24V Thermostat Conversion Kit allows compatible third-party smart thermostats to monitor and control the wine cellar environment.
Connect compatible thermostats to Wi-Fi
Control temperature from a phone, tablet, or laptop
Monitor runtime and energy usage
Set alarm notifications
View cellar conditions remotely
Please Note: WhisperKOOL does not provide smart thermostats. If the 24V Thermostat Conversion Kit is selected, the system will not be built with the standard WhisperKOOL control or liquid measuring bottle probe. A compatible 24V smart thermostat must be purchased separately. WhisperKOOL support does not provide troubleshooting for third-party smart thermostat issues.
Optional WhisperKOOL Accessories
WhisperKOOL accessories can help protect and customize your wine cellar cooling system. View more options here: WhisperKOOL Parts and Accessories.
Exterior Protective Housing for Split Systems
Exterior Protective Housing helps protect the condenser from weather and outdoor environmental exposure.
Galvanized steel base and embossed 20 GA steel cabinet
Hinged access for easier servicing
Rain trough under hinge helps catch moisture
Fasteners provided by WhisperKOOL
Dimensions: 20" W x 20" H x 27" D

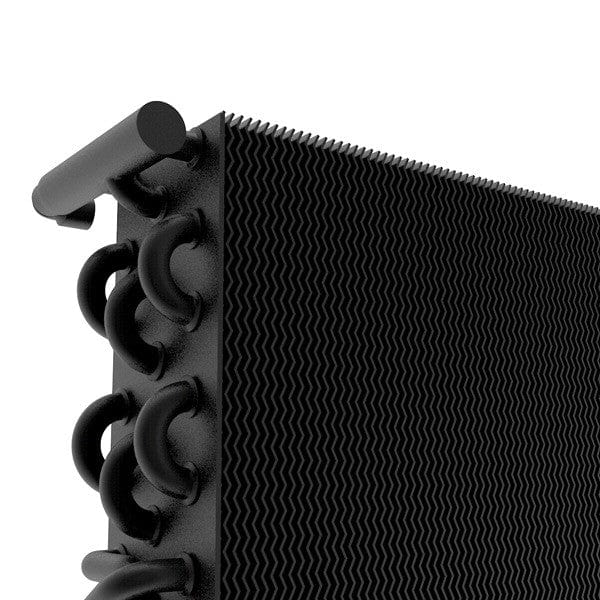

Condenser Coil Coating
Condenser coil coating helps protect the condenser coil from salt-air corrosion. It is recommended for coastal, beach, or high-corrosion environments.
24V Thermostat Conversion Kit
This optional upgrade allows integration with compatible 24V smart thermostats for remote monitoring and control.
Related Wine Cellar Cooling Systems and Collections
Wine Coolers Empire is a trusted dealer of specialty wine cellar air conditioners, commercial wine cellar refrigeration units, and residential wine cellar cooling systems.
We recommend the WhisperKOOL Ceiling Mount 4000 for homeowners and collectors building a premium wine cellar where discreet cooling, quiet operation, and clean design are priorities. It is especially well suited for custom cellars up to approximately 1,000 cubic feet when the room is properly insulated, sealed, and prepared with a vapor barrier.
If your cellar includes large glass panels, concrete, stone, exterior walls, or high ambient heat exposure, we recommend confirming the cooling load before purchase.
Get Free Wine Cellar Design Assistance
Not sure if the WhisperKOOL Ceiling Mount 4000 is the correct size for your wine cellar? Our team can help review your project and recommend the right cooling system, wine rack layout, and cellar design approach.
Sizing Disclaimer: Cooling capacity estimates assume a properly insulated and sealed cellar with an appropriate vapor barrier. Actual requirements may vary based on construction materials, glass exposure, ambient temperature, insulation quality, ceiling height, door type, and other site-specific conditions.
📚 Frequently Asked Questions (FAQs)
This unit is designed to cool wine cellars up to 1,000 cubic feet, assuming ideal conditions like proper insulation, sealed doors, and vapor barriers.
Unlike traditional wall-mounted systems, this unit is flush-mounted in the ceiling, offering a clean and modern appearance. As a ductless split system, it separates the evaporator and condenser, minimizing noise in the cellar.
Yes, the unit must be installed by a licensed HVAC professional. This ensures proper refrigerant handling and system performance, and is also necessary to validate the warranty.
Yes, it can be installed outdoors when used with the optional exterior housing. Make sure the location is well-ventilated and shielded from extreme weather for best performance.
Yes, it's exceptionally quiet. Since the condenser is located outside the cellar and the evaporator is ceiling-mounted, this system offers nearly silent operation inside the wine room.
The system includes the KDT Plus digital controller, allowing you to monitor and manage temperature and humidity, receive alerts, and access system diagnostics.
The unit comes with a 2-year parts and labor warranty and a 5-year compressor warranty. Both require professional installation and product registration to be valid."]
FAST, FREE SHIPPING
Get your online orders fast at your door with free shipping.
This is really amazing. It keeps my wines cool and I just found out that my son also spends some time inside my cellar when its hot outside
L
Leon
Great product
I had a hard time getting this installed but luckily we figured it out. Thank you
WhisperKOOL
WhisperKOOL Ceiling Mount 4000 Ductless Split System
Regular price$8,295.00
Unit price
WhisperKOOL Ceiling Mount Series
WhisperKOOL Ceiling Mount 4000 Ductless Split Wine Cellar Cooling System
Ductless split wine cellar cooling for properly insulated wine cellars up to approximately 1,000 cubic feet. Its flush ceiling-mounted evaporator provides discreet cooling while the remote condenser helps reduce noise inside the cellar.
Designed for wine cellars up to approximately 1,000 cu. ft.
Flush ceiling-mounted evaporator for a clean built-in appearance
Ductless split-system design with remote condenser placement
Includes KDT digital touch display and bottle probe
Optional 24V thermostat conversion kit available
Qualified HVAC-R installation required
Important Installation Notice: A qualified HVAC-R technician is required for installation. Failure to follow this requirement may void the manufacturer warranty.
Quick Answer Summary
Product Type
Ductless split wine cellar cooling system
Mounting Style
Flush ceiling mount
Recommended Cellar Size
Up to approximately 1,000 cu. ft.
BTU/h
4,000 BTU/h
Estimated BTU/h Range
4,000-6,087 BTU/h
Evaporator Dimensions
35.75" L x 14.5" W x 12.75" H
Condenser Dimensions
16.08" L x 16.23" W x 12.61" H
Drain Line
1/4" ID clear plastic tubing, not provided
Control
KDT Digital Touch Display
Warranty
Limited 2-year product warranty, parts and labor
Product Overview
The WhisperKOOL Ceiling Mount 4000 Ductless Split System is built for collectors who want reliable wine cellar cooling without a visible wall-mounted unit. The evaporator mounts flush into the ceiling, draws warm air upward, and circulates cooled air throughout the cellar.
Because this is a split system, the condenser is installed remotely from the wine room. This helps reduce mechanical noise inside the cellar and supports a more refined wine room design.
Updated design details include bottom-mounted wiring and line-set access, flare fittings that eliminate on-site brazing, e-coated Duramax coils, a redesigned hex mesh grille, and a startup air filter for added system protection.
Collectors who want discreet ceiling-mounted cooling
Properly insulated and sealed cellars up to approximately 1,000 cu. ft.
Projects where the condenser can be installed remotely
New construction or planned cellar remodels
Not Recommended For
DIY installations
Uninsulated rooms or spaces without a vapor barrier
Cellars larger than 1,000 cu. ft. without professional sizing review
Temporary wine storage areas
Projects without ceiling access for installation and service
Applications where a self-contained plug-and-play unit is preferred
Free Wine Cellar Design Assistance
Wine Coolers Empire can help confirm cellar size, insulation, vapor barrier quality, ceiling access, condenser placement, and system fit before purchase.
The evaporator is designed to mount flush with drywall or sheetrock and fit between ceiling joists for a clean integrated appearance.
Ductless Split Performance
The split design separates the evaporator from the condenser, moving heat and mechanical noise away from the wine cellar.
KDT Digital Touch Display
The KDT Digital Touch Display can be installed up to 50 feet away from the unit and includes Advanced System Protection alerts.
Liquid Temperature Bottle Probe
The included bottle probe measures liquid temperature for a more accurate reflection of wine temperature than ambient air alone.
Startup Air Filter
The startup air filter helps protect the unit from debris during installation, cellar construction, and rack installation.
Optional 24V Thermostat Conversion
The optional conversion kit allows the system to work with compatible 24V smart thermostats for Wi-Fi control and monitoring.
Feature Images
Touch Display
The KDT Digital Touch Display provides remote system control and monitoring.
Bottle Probe
The liquid temperature bottle probe helps monitor the temperature of the wine itself.
Air Filter
The startup air filter helps protect the unit from construction and installation debris.
Advantages and Limitations
Advantages
Limitations
Nearly invisible ceiling-mounted installation
Requires professional HVAC-R installation
Remote condenser helps reduce cellar noise
Requires refrigerant line-set routing
Strong fit for luxury cellar designs
Requires ceiling access and proper framing
Liquid temperature monitoring improves wine protection
Not suitable for poorly insulated rooms
Optional smart thermostat compatibility
Smart thermostat support is not provided by WhisperKOOL
Installation Requirements
Warranty Requirement: This system must be installed by a qualified HVAC-R technician. Improper installation can void the warranty and may cause performance problems.
Required Installation Considerations
Ceiling framing and joist spacing must support the ceiling-mounted evaporator.
The wine cellar must be fully insulated and sealed.
A proper vapor barrier is required for stable cellar performance.
Refrigerant line-set routing is required between the evaporator and condenser.
Electrical wiring must be completed by a qualified professional.
Condensate drainage must be planned before installation.
Condenser placement must allow proper ventilation and service access.
Drain Line Requirement
The WhisperKOOL Ceiling Mount 4000 requires a 1/4" ID clear plastic drain line. Drain tubing is not provided.
Confirm drain routing before installation so condensate can be managed properly and service access remains available.
BTU/h and Sizing Notes
The WhisperKOOL Ceiling Mount 4000 has an estimated cooling range of 4,000-6,087 BTU/h. This value is an estimate and not a guarantee for every 1,000 cubic foot wine cellar.
Actual cooling requirements depend on cellar construction, insulation, vapor barrier quality, glass exposure, ambient temperature, door type, and other design variables. Cellars with glass, stone, concrete, poor insulation, or high ambient heat may require a larger system.
Choosing an undersized unit can result in excessive runtime, unstable temperature, and premature equipment failure. Request a sizing review before purchase if the cellar has high-load materials or unusual ambient conditions.
The optional 24V Thermostat Conversion Kit allows compatible third-party smart thermostats to monitor and control the wine cellar environment.
Connect compatible thermostats to Wi-Fi
Control temperature from a phone, tablet, or laptop
Monitor runtime and energy usage
Set alarm notifications
View cellar conditions remotely
Please Note: WhisperKOOL does not provide smart thermostats. If the 24V Thermostat Conversion Kit is selected, the system will not be built with the standard WhisperKOOL control or liquid measuring bottle probe. A compatible 24V smart thermostat must be purchased separately. WhisperKOOL support does not provide troubleshooting for third-party smart thermostat issues.
Optional WhisperKOOL Accessories
WhisperKOOL accessories can help protect and customize your wine cellar cooling system. View more options here: WhisperKOOL Parts and Accessories.
Exterior Protective Housing for Split Systems
Exterior Protective Housing helps protect the condenser from weather and outdoor environmental exposure.
Galvanized steel base and embossed 20 GA steel cabinet
Hinged access for easier servicing
Rain trough under hinge helps catch moisture
Fasteners provided by WhisperKOOL
Dimensions: 20" W x 20" H x 27" D
Condenser Coil Coating
Condenser coil coating helps protect the condenser coil from salt-air corrosion. It is recommended for coastal, beach, or high-corrosion environments.
24V Thermostat Conversion Kit
This optional upgrade allows integration with compatible 24V smart thermostats for remote monitoring and control.
Related Wine Cellar Cooling Systems and Collections
Wine Coolers Empire is a trusted dealer of specialty wine cellar air conditioners, commercial wine cellar refrigeration units, and residential wine cellar cooling systems.

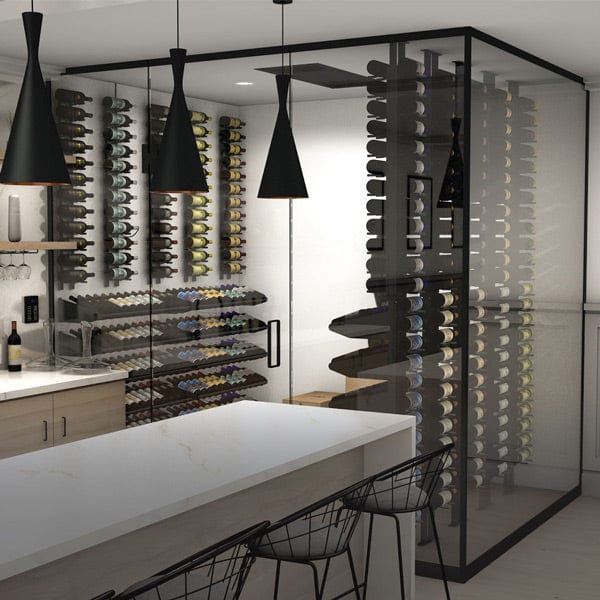

We recommend the WhisperKOOL Ceiling Mount 4000 for homeowners and collectors building a premium wine cellar where discreet cooling, quiet operation, and clean design are priorities. It is especially well suited for custom cellars up to approximately 1,000 cubic feet when the room is properly insulated, sealed, and prepared with a vapor barrier.
If your cellar includes large glass panels, concrete, stone, exterior walls, or high ambient heat exposure, we recommend confirming the cooling load before purchase.
Get Free Wine Cellar Design Assistance
Not sure if the WhisperKOOL Ceiling Mount 4000 is the correct size for your wine cellar? Our team can help review your project and recommend the right cooling system, wine rack layout, and cellar design approach.
Sizing Disclaimer: Cooling capacity estimates assume a properly insulated and sealed cellar with an appropriate vapor barrier. Actual requirements may vary based on construction materials, glass exposure, ambient temperature, insulation quality, ceiling height, door type, and other site-specific conditions.
