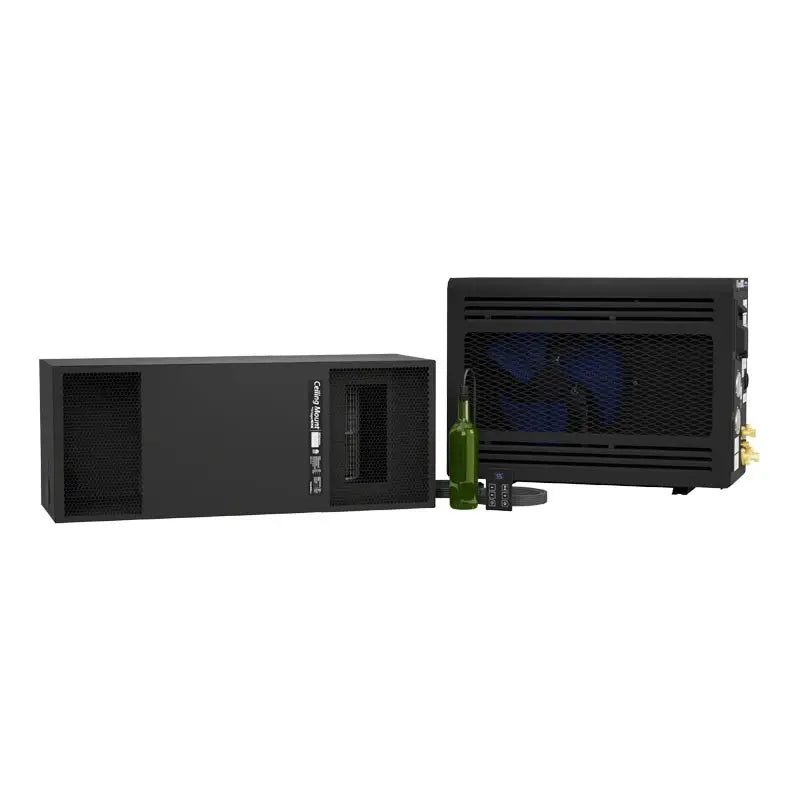

WhisperKOOL Ceiling Mount 4000 Ductless Split System 220V High Efficiency

Features:

• TOUCH DISPLAY
  The KDT Digital Touch Display can be installed up to 50 ft. away from the unit. The KDT is equipped with Advanced System Protection that has alarms to alert you if certain parameters are not met.

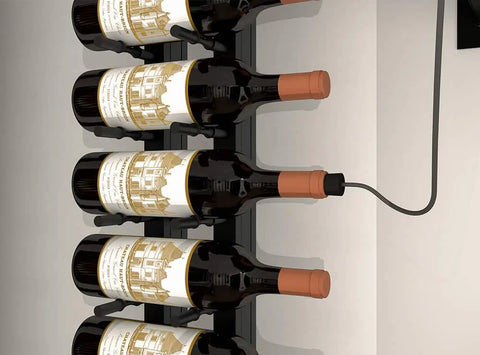

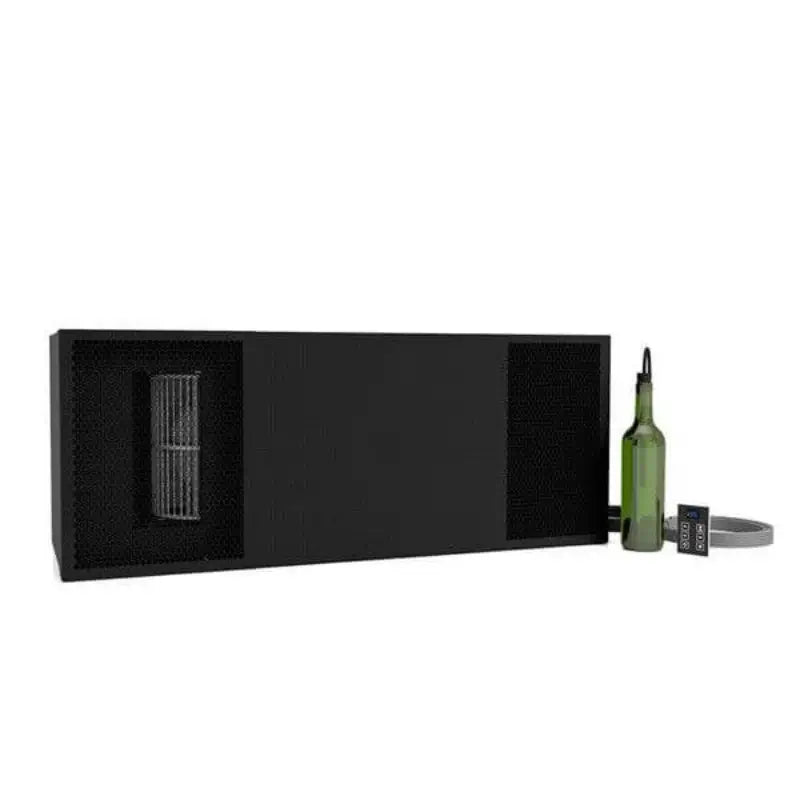

• BOTTLE PROBE
  The unit accurately measures the temperature of wine in the cellar using a liquid temperature measuring probe. Measuring the temperature of a liquid is a more direct and accurate reflection of the temperature of the wines stored in the cellar than measuring the ambient cellar air.

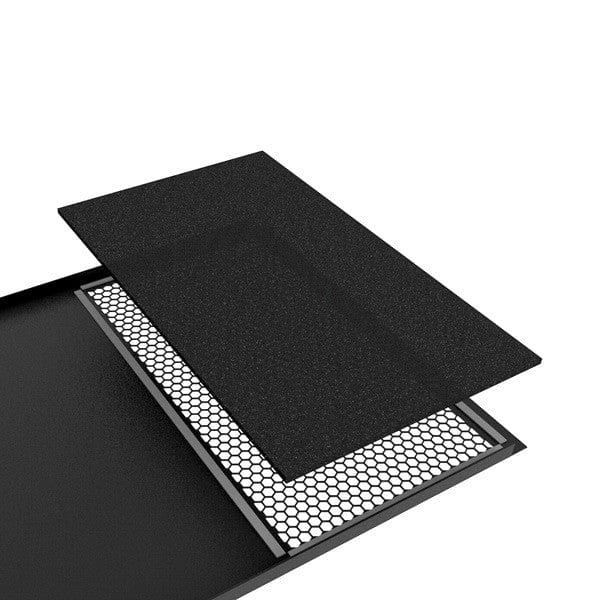

• AIR FILTER
  WhisperKOOL air filter has been added to protect the unit from the intake of potentially harmful debris during the initial start-up or installation of wine racks.


Manuals:

High-Efficiency Owner Manual

Please click below to read and download the owner manual for this cooling system.

• Owner Manual  for WhisperKOOL Ceiling Mount 4000 Ductless Split System 220V High Efficiency

• H.E. Owner Manual for WhisperKOOL Ceiling Mount 4000 Ductless Split System 220V High Efficiency
• Addendum for WhisperKOOL Ceiling Mount 4000 Ductless Split System 220V High Efficiency

Please click below to view all product specifications for WhisperKOOL Ceiling Mount 4000 Split Ductless Wine Cellar Cooling Units - 220V H.E.

• 220V High Efficiency Product Sheets for WhisperKOOL Ceiling Mount 4000 Ductless Split System 220V High Efficiency

New 24-volt thermostat conversion kit for WhisperKOOL split systems

• 24V Thermostat Conversion Kit for WhisperKOOL Ceiling Mount 4000 Ductless Split System 220V High Efficiency

Product Warranty for WhisperKOOL Split System Units

A limited 2-year product warranty is offered with all WhisperKOOL split systems.

• High Efficiency 220 Warranty Registration for WhisperKOOL Ceiling Mount 4000 Ductless Split System 220V High Efficiency

Is this a right-sized unit for your wine cellar? Talk to an Expert at +1-888-407-7770 or email: support@winecoolersempire.com to ensure that this cooling system is best suited for your needs.

BTU/h

4000 – 6087

The BTU/h value range shown here is an estimate and not a guarantee. There may be instances where a cellar design requires a larger unit due to variables not included in the calculation. These variables can be building materials (such as glass, stone, concrete, etc.) that do not provide enough insulation to maintain the ideal wine cellar environment.

We recommend purchasing a unit with a higher capacity to compensate for these unforeseen variables. Choosing an undersized unit may result in premature failure and may not be able to achieve your desired wine cellar temperature.

Specifications:

• Cellar Size: Approx. 1000 cu. ft. when cellar is fully insulated and sealed with a proper vapor barrier
• Dimensions: Evaporator: 35.75”L x 14.5”W x 12.75”H | Condenser: 16.08”L x 16.23”W x 12.61″H
• Drain Line: 1/4″ ID clear plastic tubing (not provided)
• BTU/h: 4000 - 6087
• WhisperKOOL Warranty: Limited 2-year product warranty is offered with all split systems.

• Bottom View

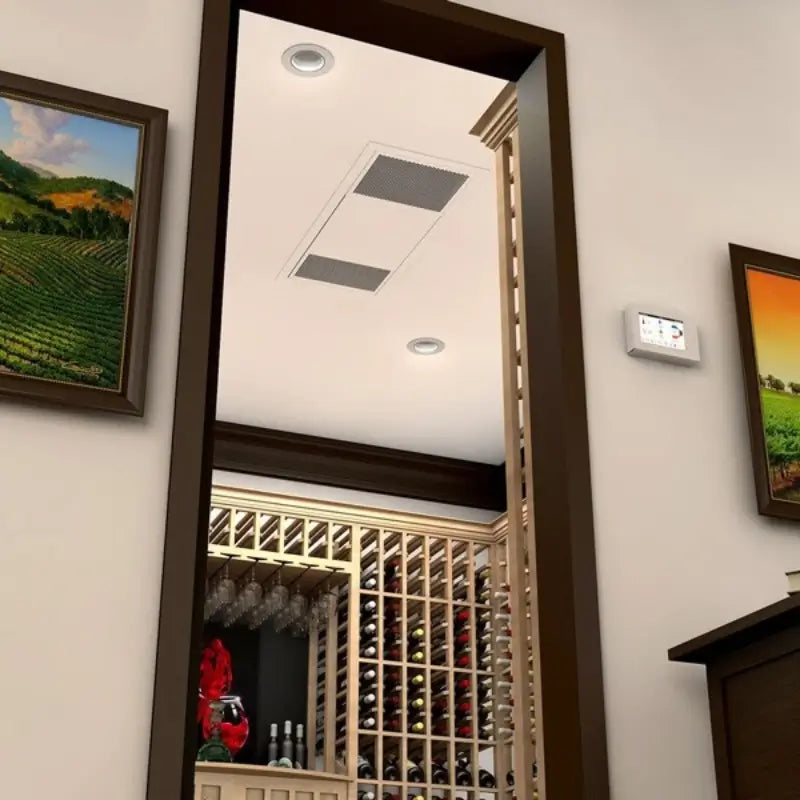

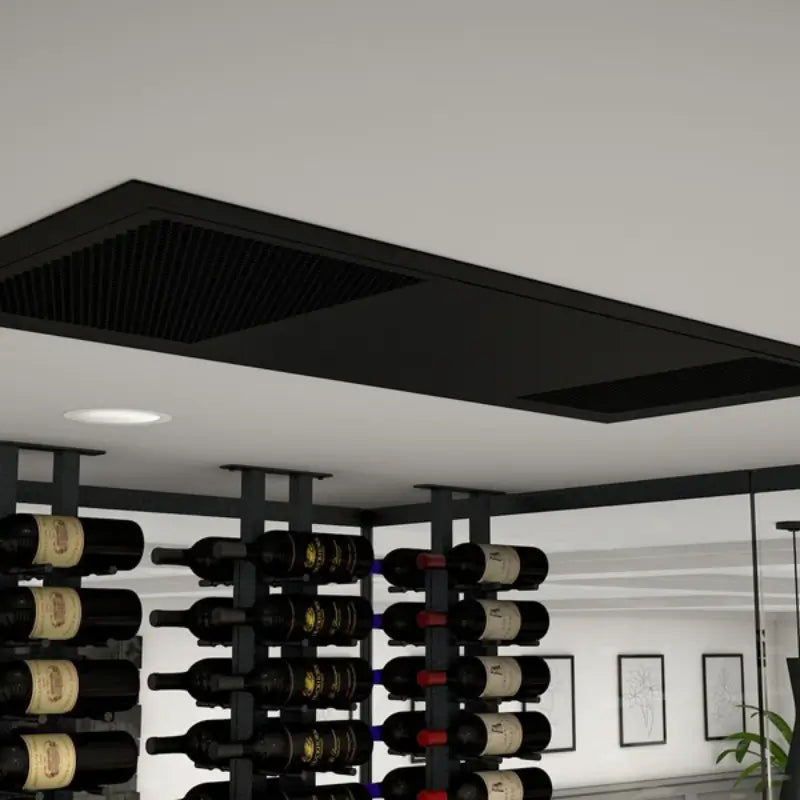

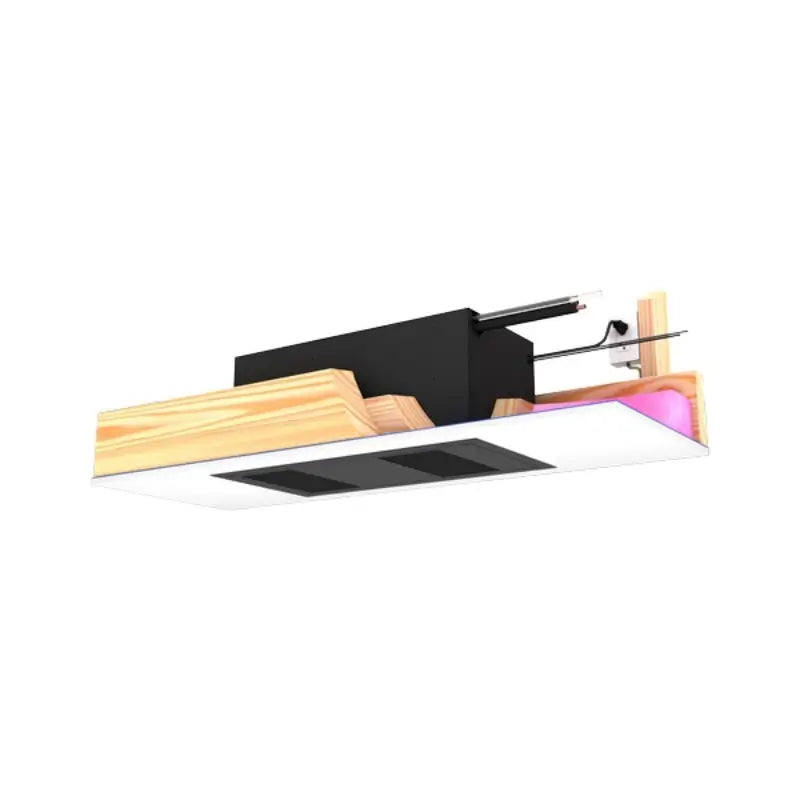

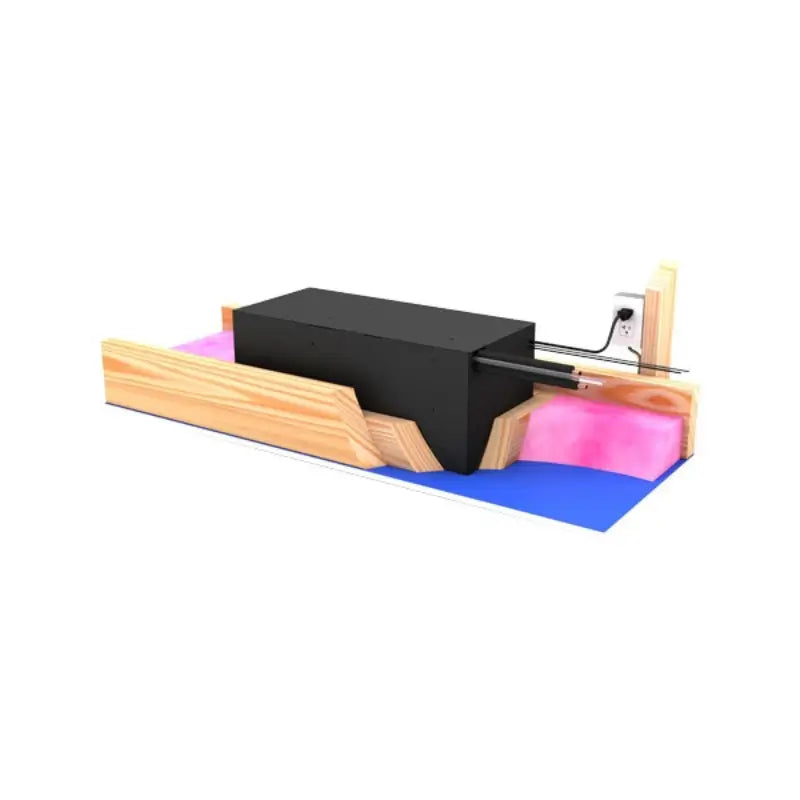

  The signature WhisperKOOL Ceiling Mount was created to be mounted flush to the drywall or sheet rock and fitted between the ceiling joists.

• Top View

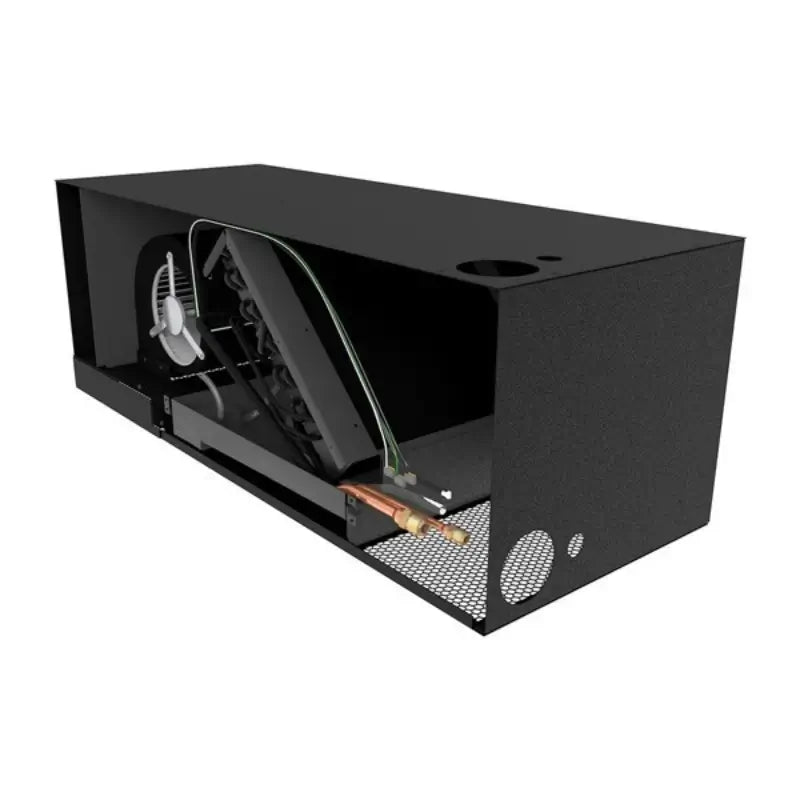

  The unit's top or side can be used for running electrical wiring, bottle probe wiring, and line set wiring.


Please click below to view all product specifications for the WhisperKOOL Ceiling Mount 4000/8000 cooling systems.

• 220V High Efficiency Product Sheets for WhisperKOOL Ceiling Mount 4000 Ductless Split System 220V High Efficiency

24V THERMOSTAT CONVERSION KIT (OPTIONAL)

Introducing our new 24-volt thermostat conversion kit for WhisperKOOL split systems! Utilize industry-leading technology from major manufacturers to monitor the environment of your cellar.

• Connect your thermostat to Wi‑Fi to control the temperature from your phone, tablet, or laptop.
• Monitor run time and energy usage.
• Set alarm notifications.
• View your cellar conditions from your mobile device.

*PLEASE NOTE: WhisperKOOL does not provide smart thermostats. If you choose the 24V Thermostat Conversion Kit, you acknowledged that the system will not be built with the standard WhisperKOOL control or liquid measuring bottle probe. You will need to purchase your own 24V smart thermostat to operate the equipment. The WhisperKOOL Customer Satisfaction Team will not provide support for issues related to smart thermostats.

For more information, check out 24V Thermostat Conversion Kit.

WhisperKOOL Accessories (Optional)

You may add WhisperKOOL replacement parts and accessories to enhance the performance and longevity of your wine cooling systems. These add-ons include items that upgrade and protect the system. Check out the other WhisperKOOL Parts & Accessories.

Exterior Protective Housing for WhisperKOOL Split Systems

The Exterior Protective Housing protects the condenser part of WhisperKOOL split systems from the weather and elements when installed outdoors. Exterior Condenser Housing is used with all WhisperKOOL Ducted Split Systems and WhisperKOOL Ductless Split Systems.

• Galvanized steel base and steel cabinet embossed — 20 GA, hinged access for easier servicing
• Easily assembled in the shop or on the job
• Rain Trough under hinge to catch moisture that might seep through the hinge
• WhisperKOOL® provides fasteners
• Dimensions (W x H x D): 20” x 20” x 27”

Condenser Coil Coating

The Condenser Coil Coating is a protective coating applied to a WhisperKOOL wine cellar cooling system's condenser coil to protect it from salt air. This coating helps to extend the lifespan of the cooling unit, especially in areas near the coast or beach where salt air can be a problem.

Welcome to our Special Section,

Here we've gathered all of the related articles in the hopes of assisting you in knowing the PERFECT MATCH for your Wine Cellar.

Here are Top-Rated Articles:

• 10 Best Wine Cellar Cooling Units

• How to Build a Wine Cellar: Step-by-Step Guide

• Ductless vs Ducted Wine Cellar Cooling Units

• WhisperKOOL vs other wine cellar cooling systems


We understand that buying this unit is a significant investment, so we make sure you'll get the right unit for your wine room.

We have our Professional Team that is ready to assist you!

 Furthermore, because YOUR SATISFACTION IS OUR TOP PRIORITY we offer ✨SURPRISING DISCOUNTS✨ that cannot be found anywhere else!

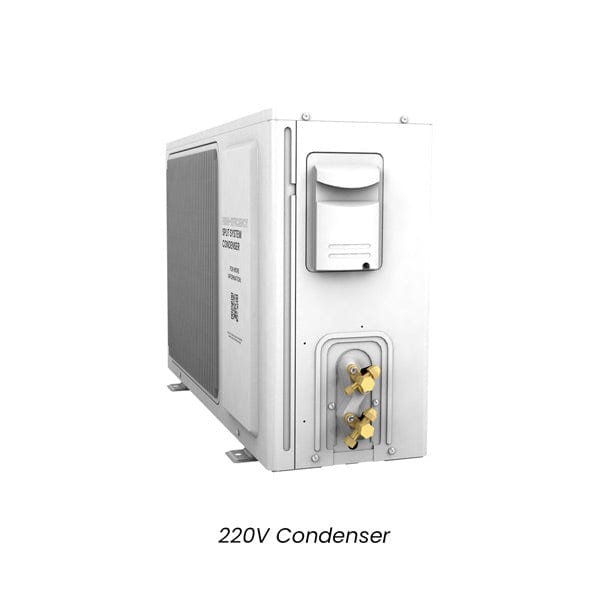

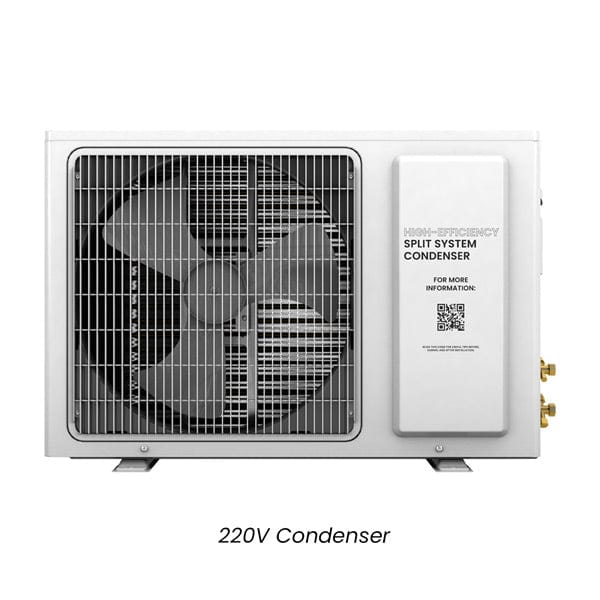

All New High-Efficiency 220V Condenser Whisperkool Wine Cellar Cooling Systems

WhisperKOOL is devoted to providing the most efficient, innovative split wine cellar cooling systems on the market. Whsiperkool offers new 220V High-Efficiency Condensers that outdo traditional 110V condensers in performance and efficiency with industry leading technology and multiple wine cellar cooling condensing unit sizes that make it perfect for nearly any application.

The 220V High-Efficiency Condensers offer a host of advantages over our traditional 110V condensers, including simplified installation, ultra-quiet operation, energy efficiency, & the ability to operate in extreme climates. For more information about our latest Split-System innovation.

Features:

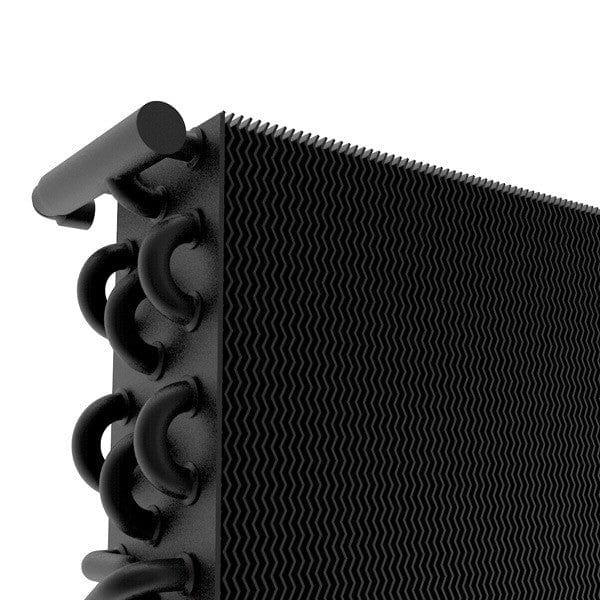

• EFFICIENT CONDENSER COIL DESIGN:
  • The system was designed utilizing oversized condenser coils, which allow the unit to operate efficiently in adverse high heat humidity environments.
• DESIGNED FOR EXTREME CLIMATES:
  • Allows the system to adjust to ambient temperature conditions to maintain the ideal storage conditions for your fine wine in cold winter temperatures (as low as -20°F) and hot summer temperatures (up to 120 °F).
• ULTRA-QUIET SYSTEM OPERATION:
  • The system utilizes large, low-speed fans to create sustainably quieter operation sound levels with reduced dBs between (48dB - 55dB) without decreasing the airflow volume or capacity output.
• NO LONGER A PUMP DOWN SYSTEM:
  • The condenser is controlled by a direct communication line to the evaporator unit using standard thermostat cable. This communication line will be installed with the line set. This eliminates the solenoid at the Evaporator also eliminating the clicking sound from the solenoid in the Cellar. The design reduced the number of components that will simplify service and increase system longevity.

• SIMPLIFIED INSTALLATION
  Easy access to controls & valves for simplified installation + smart communication cable from the evaporator to the condenser.

• ULTRA QUIET OPERATION
  Utilizes large, low-speed fans to create substantially lower operation sound levels between (45dB-52dB).

• QR CODE
  We’ve placed QR codes to directly lead you to all the vital information about installing and maintaining your system.

Benefits:

• 220 VOLT CONDENSERS:
  • Compared to previous models, this 220V system is a significantly more energy- efficient system, utilizing 50% less energy to operate, saving energy costs.
• SIMPLIFIED SYSTEM INSTALLATION/MAINTENANCE:
  • The electrical connections and valves are easy to access and hook up. (This new system differs from previous models as it requires a communication cable from the evaporator to the condenser). Also, while servicing or installing, manifolds can easily be attached without having to adjust the access valve to review pressure.
• ATTRACTIVE SYSTEM HOUSING:

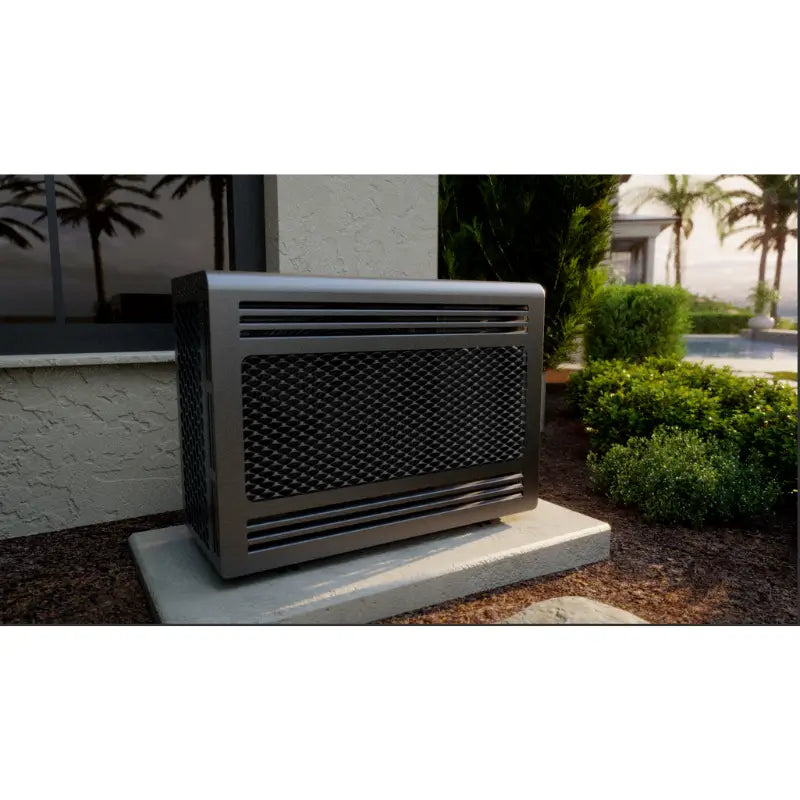

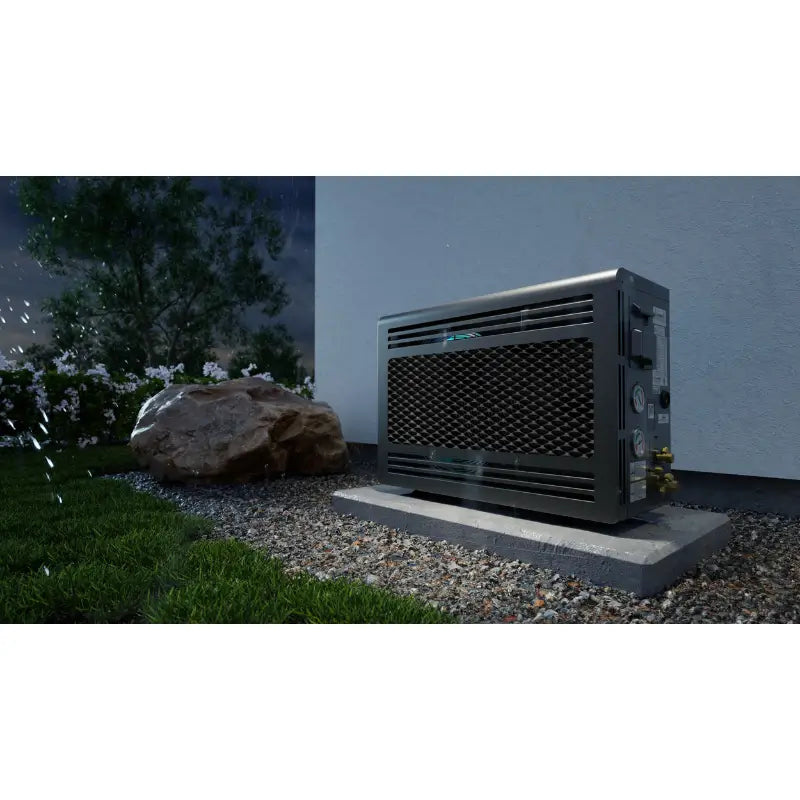

  • The systems come complete with an attractive & durable exterior housing that can withstand adverse conditions, associated with outdoor environments.

Specifications:

• Line Set: Liquid line 1/4” OD; Suction line 1/2” OD (less than 50 ft.), 5/8” (greater than 50 ft.)
• Voltage Rating: 220V (15-amp dedicated circuit required)
• Dimensions: 31.18″L x 10.75″W x 21.18″H
• DBA: 45
• Temp. Data: Can maintain a 55°F cellar temperature with up to 120°F condenser air intake temperature.


  GETTING TO KNOW OUR 220V HIGH-EFFICIENCY COOLING SYSTEMS
