WhisperKOOL Mini Ceiling Mount Ductless Split System Review
NOTE: A qualified HVAC-R technician is required for the installation of your WhisperKOOL Mini Ceiling Mount Split System. Failure to adhere to this requirement will void the warranty.
PLEASE NOTE: We will be phasing out the 9000 and 12000 110V condensers on 10/01/2023 or sooner. We will continue to support controllers through the two-year warranty period. All other replacement part requests will be directed to Copeland.

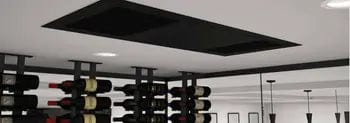

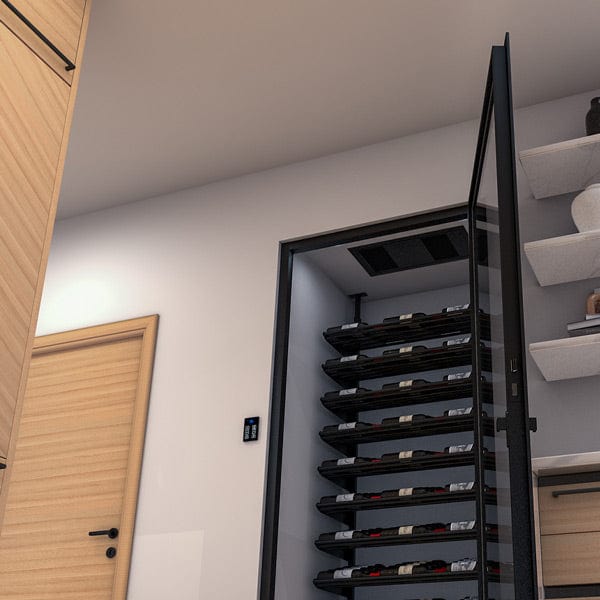

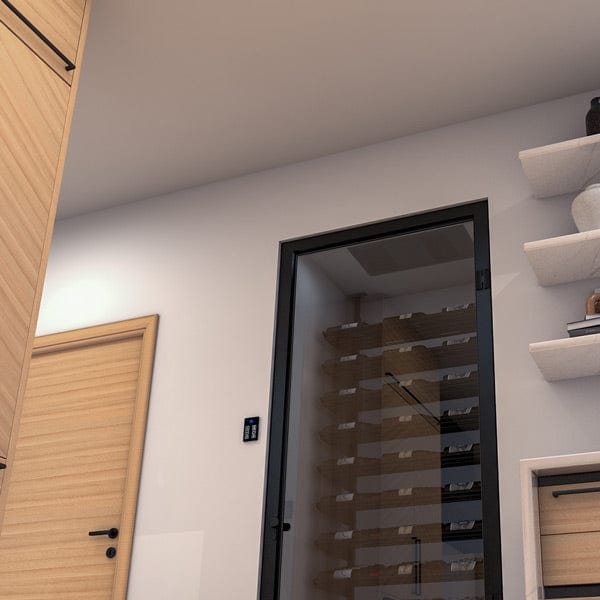

The WhisperKOOL Ceiling Mount Mini Split System is developed specifically for use in smaller cellars where space is limited. Don’t let a cooling unit limit you!
The WhisperKOOL Mini Ceiling Mount Split System is designed to ensure that the unit does not take up too much space, allowing more room for wine racking. It offers exceptional efficiency by drawing in the warmer air that accumulates at the ceiling, cooling it and dispersing it throughout the environment.
The system is equipped with a 2-speed fan switch that allows you to adjust the air flow according to your needs. It also features a hex mesh grille with an air filter to ensure that the air is clean and fresh. The flare fittings make installation easy, and the system comes with both standard and 24V thermostat options. Additionally, the system includes a pump system to remove excess condensation and a cold weather start kit. WhisperKOOL mini ceiling mount cooling units do not require ducting.

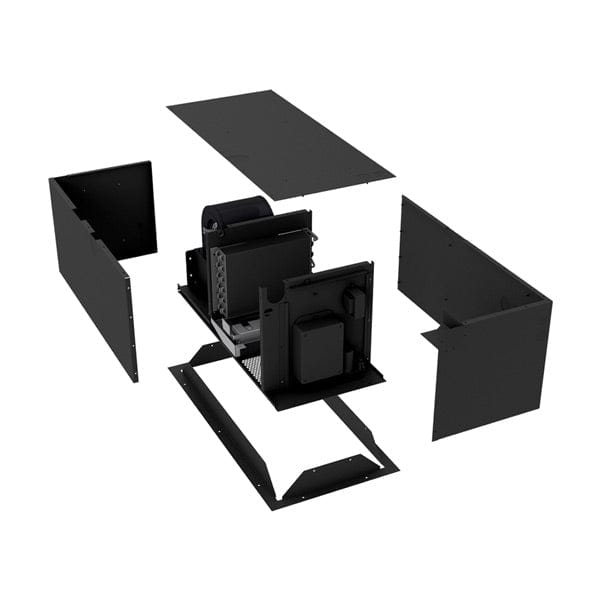

THE NEW MODEL IS 3 INCHES LONGER THAN THE PREVIOUS ONE: WhisperKOOL Mini Ceiling Mount wine cellar cooler is three inches longer than previous WhisperKOOL Mini Split Ceiling Mount generations. This update was made to accommodate the upgraded system.
WhisperKOOL Reviews: WhisperKOOL Ceiling Mount Series
Let's hear from Audie Burgan, our customer from Clovis, CA, giving his testimonial about the new WhisperKOOL Ceiling Mount cooling system he installed for his wine cellar.
WHY BUY FROM US: Wine Coolers Empire is a trusted dealer of specialty wine cellar air conditioners, commercial wine cellar refrigeration units, and residential wine cellar coolers. More WhisperKOOL wine cellar cooling unit reviews can be found on our Customer Reviews page.
Contact us for any questions or concerns. For information on order processing, shipping options, and delivery times, please visit our Shipping Policy.
Buy the WhisperKOOL Mini Ceiling Mount Ductless Split System today and enjoy your amazing wines at their best temperature!
Features
Features:
OPTIMIZED PERFORMANCE

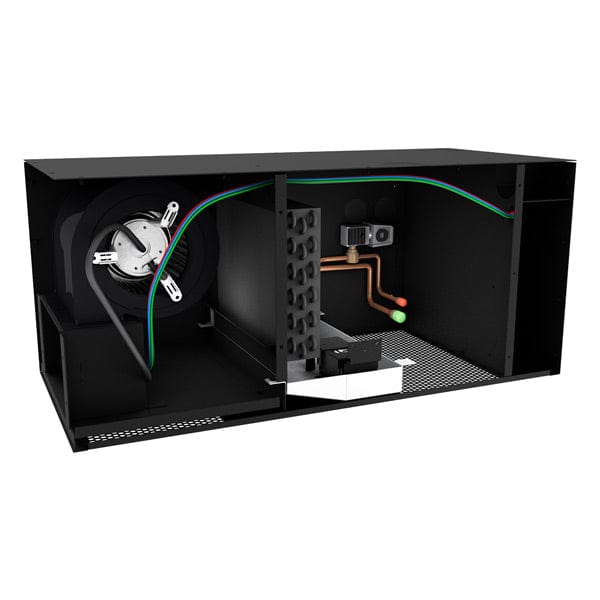

Centrifugal Blower: WhisperKOOL switched from a Panasonic blower to an AFL blower in order to improve the fan system for robust airflow, even distribution, and quieter operation.
2 Speed Fan Switch: The unit is now equipped with a 2-speed fan switch for more flexibility (medium or high setting) and the option to select the required BTU.
For Your Information: (1) The lower fan speed will remove less moisture from the air than the higher fan speed. (2) The dBA reading is 51.

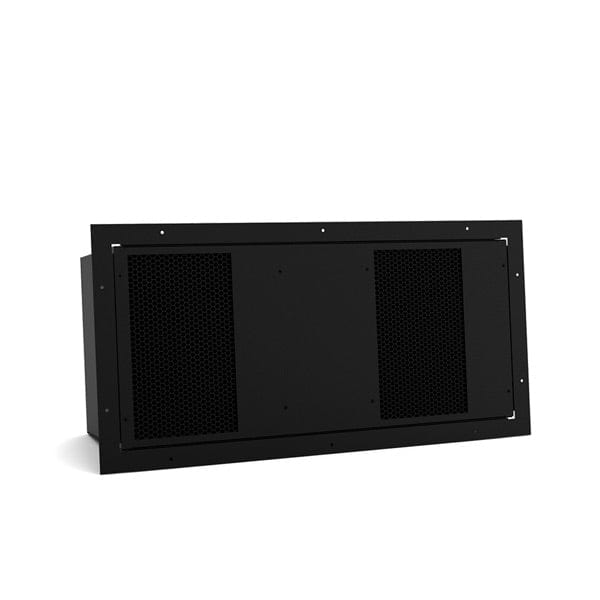

Hex Mesh Grille Design: The unit will no longer use louvers but instead will have a hex mesh grille, designed to direct air down into the cellar.
ACCESSIBILITY
Flare Fittings:The line set is equipped with flare fittings, which eliminates the need for brazing and significantly reduces installation time.
Electrical: The condensate pump electrical components and the centrifugal fan are easier to access for maintenance purposes.
Centrifugal Blower:Easier access to centrifugal fan for system maintenance.
Debris Intake at Installation: WhisperKOOL Air Filter located behind the hex mesh grille to prevent debris from entering the coils during the initial start-up.
TOUCH DISPLAY The KDT Digital Touch Display can be installed up to 50 ft. away from the unit. The KDT is equipped with Advanced System Protection that has alarms to alert you if certain parameters are not met.

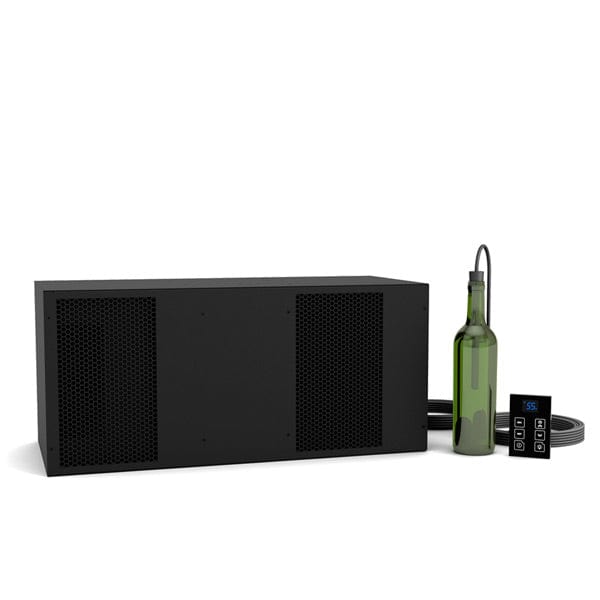

BOTTLE PROBE The unit accurately measures the temperature of wine in the cellar using a liquid temperature measuring probe. Measuring the temperature of a liquid is a more direct and accurate reflection of the temperature of the wines stored in the cellar than measuring the ambient cellar air.
AIR FILTER WhisperKOOL air filter has been added to protect the unit from the intake of potentially harmful debris during the initial start-up or installation of wine racks.
Specifications
Specifications:
Cellar Size: Approx 500 cu.ft when the cellar is fully insulated

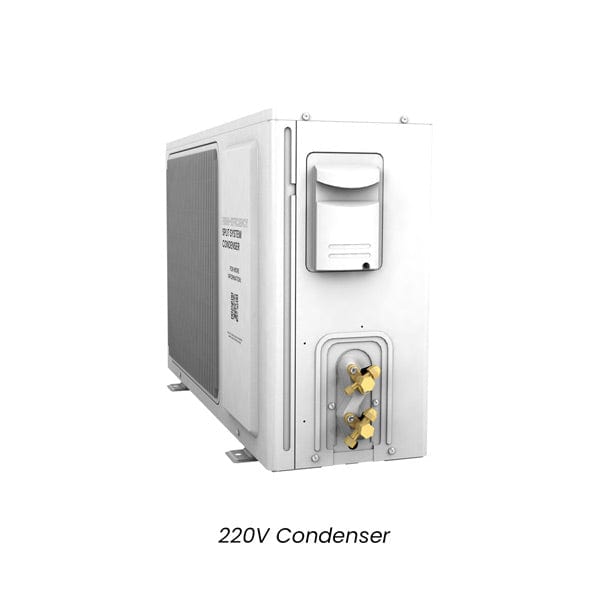

Dimensions: Evaporator: 25.05” L x 11.34” W x 11.17” H • Condenser: 13.97”L x 15.85”W x 9.86”H
Drain Line: 1/4″ ID clear plastic tubing (not provided)
WhisperKOOL Warranty: Limited 2-year product warranty is offered with all split systems.

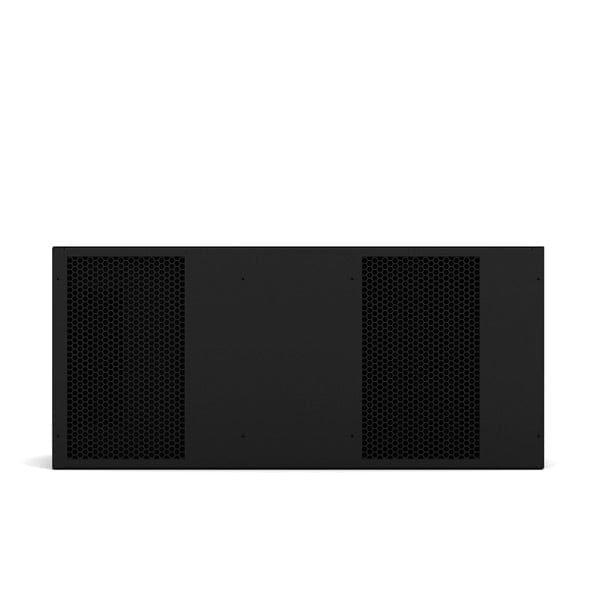

Bottom View The signature WhisperKOOL Ceiling Mount was created to be mounted flush to the drywall or sheet rock and fitted between the ceiling joists.

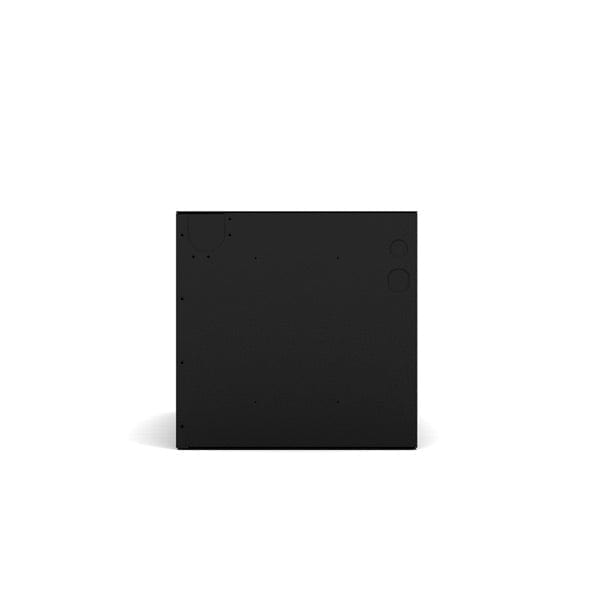

Top View The unit's top or side can be used for running electrical wiring, bottle probe wiring, and line set wiring.
Please click below for the full specification of the WhisperKOOL Ceiling Mount Series.
Is this a right-sized unit for your wine cellar? Talk to an Expert at +1-888-407-7770 or email: support@winecoolersempire.comto ensure that this cooling system is best suited for your needs.
BTU/h
BTU/h
2084 - 3288
The BTU/h value range shown here is an estimate and not a guarantee. There may be instances where a cellar design requires a larger unit due to variables not included in the calculation. These variables can be building materials (such as glass, stone, concrete, etc.) that do not provide enough insulation to maintain the ideal wine cellar environment.
We recommend purchasing a unit with a higher capacity to compensate for these unforeseen variables. Choosing an undersized unit may result in premature failure and may not be able to achieve your desired wine cellar temperature.
Manuals
Manuals:
Please click below to read and download the owner manual for this cooling system.
Introducing our new 24-volt thermostat conversion kit for WhisperKOOL split systems! Utilize industry-leading technology from major manufacturers to monitor the environment of your cellar.
Connect your thermostat to Wi‑Fi to control the temperature from your phone, tablet, or laptop.
Monitor run time and energy usage.
Set alarm notifications.
View your cellar conditions from your mobile device.
*PLEASE NOTE:WhisperKOOL does not provide smart thermostats. If you choose the 24V Thermostat Conversion Kit, you acknowledged that the system will not be built with the standard WhisperKOOL control or liquid measuring bottle probe. You will need to purchase your own 24V smart thermostat to operate the equipment. The WhisperKOOL Customer Satisfaction Team will not provide support for issues related to smart thermostats.
You may add WhisperKOOL replacement parts and accessories to enhance the performance and longevity of your wine cooling systems. These add-ons include items that upgrade and protect the system. Check out the other WhisperKOOL Parts & Accessories.
Exterior Protective Housing for WhisperKOOL Split Systems

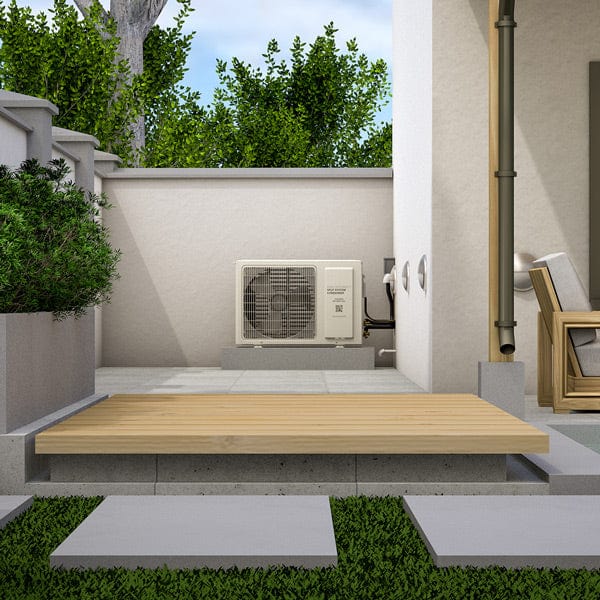

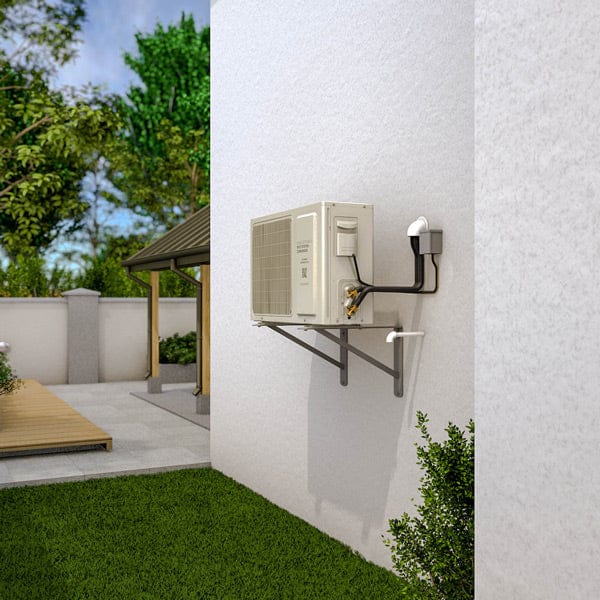

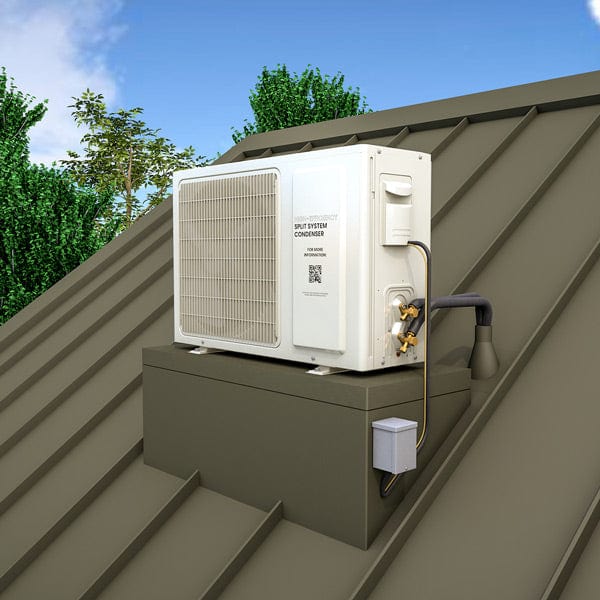

The Exterior Protective Housing protects the condenser part of WhisperKOOL split systems from the weather and elements when installed outdoors. Exterior Condenser Housing is used with all WhisperKOOL Ducted Split Systems and WhisperKOOL Ductless Split Systems.
Galvanized steel base and steel cabinet embossed — 20 GA, hinged access for easier servicing
Easily assembled in the shop or on the job
Rain Trough under hinge to catch moisture that might seep through the hinge
WhisperKOOL® provides fasteners
Dimensions (W x H x D): 20” x 20” x 27”
Condenser Coil Coating
The Condenser Coil Coating is a protective coating applied to a WhisperKOOL wine cellar cooling system's condenser coil to protect it from salt air. This coating helps to extend the lifespan of the cooling unit, especially in areas near the coast or beach where salt air can be a problem.
