WhisperKOOL® Exterior Housing for Split Systems

Our exterior condenser housing protects the condenser portion of the split system from the elements when installed outdoors. Exterior Condenser Housing is used with the Platinum Mini Split, Ductless Platinum Split, and Ducted Platinum Split cooling units.

• Galvanized steel base and steel cabinet embossed — 20 GA, hinged access for easier servicing
• Easily assembled in the shop or on the job
• Rain Trough under hinge to catch moisture that might seep through the hinge
• WhisperKOOL® provides fasteners
• Dimensions (W x H x D): 20” x 20” x 27”

WhisperKOOL® Extreme Ducting Plenum

Sizes available for the 3500ti, 5000ti, and 8000ti. This plenum allows either side of the unit to be ducted. Duct the cold air through a vent into the cellar, duct the hot exhaust air out of the home. This plenum allows for total installation flexibility.

• Ducting plenum for the evaporator and condenser of the Extreme ti
• Duct the evaporator or condenser side of the unit to ­fit your installation needs
• Small is compatible with Extreme 3500ti and 5000ti
• Large is compatible with Extreme 8000ti
• WhisperKOOL® provides fasteners

WhisperKOOL® Extreme Exterior Grille

The Exterior Grille protects the exhaust side of the system from the weather elements when installed through an exterior wall.

• Protects your Extreme ti through-the-wall unit from the elements of weather
• Small is compatible with 3500ti and 5000ti
• Large is compatible with 8000ti
• WhisperKOOL® provides ½” pan-head screws

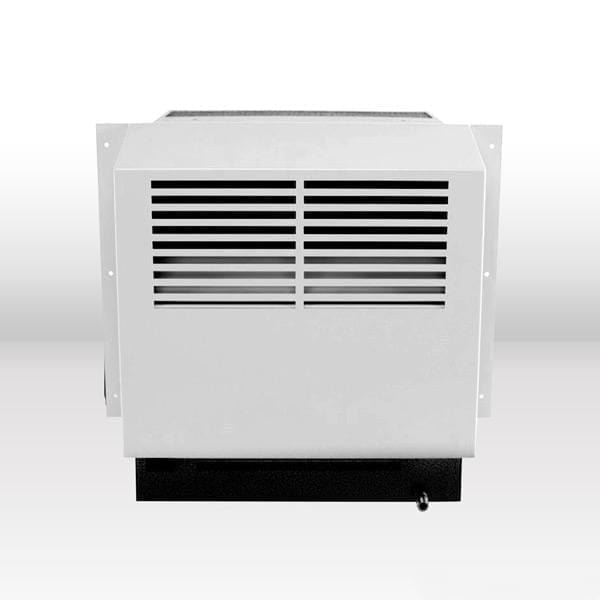

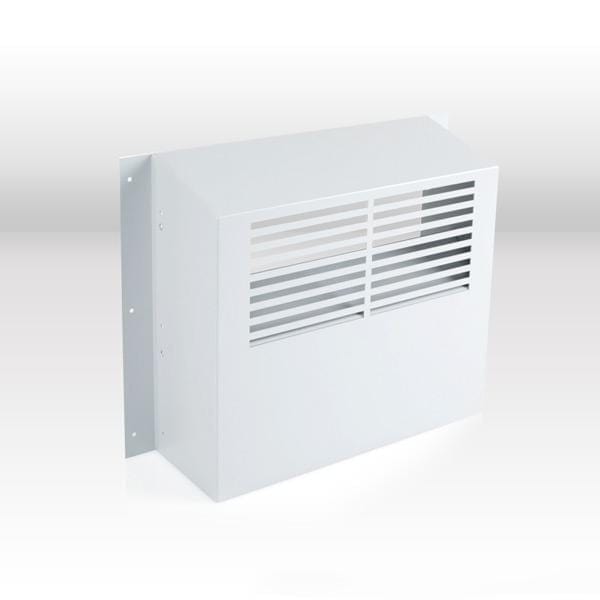

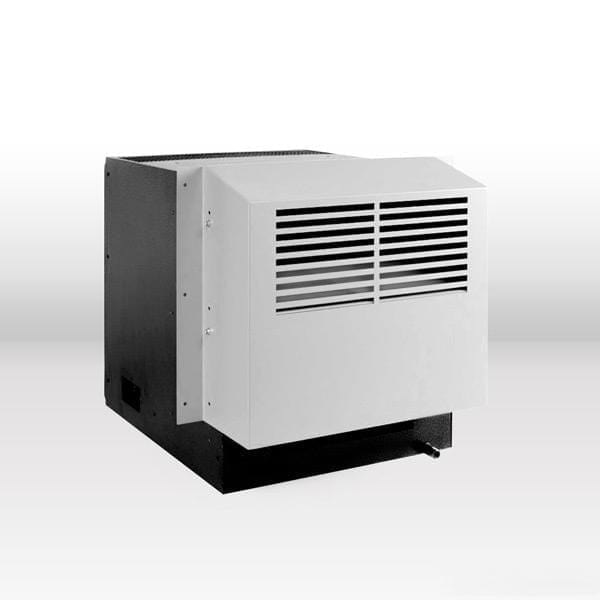

WhisperKOOL® SC Exterior Grille

The Exterior Grille protects the exhaust side of the system from the weather elements when installed through an exterior wall.

• Protects your SC through-the-wall unit from the elements of weather
• Small is compatible with 2000i, 3000i, and 4000i
• Large is compatible with 6000i and 8000i
• WhisperKOOL® provides ½” pan-head screws

WhisperKOOL® SC Ducting Kit

This kit allows the warm exhaust air to be ducted to another area. Ideal if the room adjacent to your cellar is not ideal for warm air to be exhausted into. The kit includes the Thermostat Controller, which will turn on and push warm exhaust air away from the ducting (not included). The in-line fan can be set to automatically turn on at varying temperatures in order to conserve the most electricity.

• Small is compatible with 2000i, 3000i, and 4000i
• Large is compatible with 6000i and 8000i
• ONLY the exhaust side of the SC can be ducted
• WhisperKOOL® does not provide ducting

Small Duct works on the SC 2000i/3000i/4000i and XLT 1600/3000/4200. Kit includes:

• Duct Plenum
• Transition with integrated heat sensor
• 8″ In-line fan
• 8″ Adjustable Elbow

Large Duct works on the SC 6000i/8000i and XLT 6000/8000. Kit includes:

• Duct Plenum
• Transition with integrated heat sensor
• 8″ In-line fan with transitions to 8″
• 8″ Adjustable Elbow

Call Us (888) 407-7770, or Chat With Us To LOCK THE LOWEST PRICE Online and Get Additional Exclusive Offers on Already Discounted Products!

We work very hard to ensure that we offer the absolute best prices online. We work with our suppliers to ensure that they set minimum advertised pricing guidelines for all of our competitors. This means that everyone else selling the same product online is supposed to be selling it at the same price. If you find another online store that offers a lower price then us within 30 days of your purchase date, please let us know, and we will contact the brand to ensure they are not breaking the minimum advertised price policy. If you qualify for a refund, you will be refunded the difference in price to your credit card.

We want you to feel confident that you are getting the absolute best price for the product you are ordering. If you find that our website has a lower price for the same item you have ordered within 30 days of your purchase date will refund the difference as well.

To request your partial refund, just email us a link to the product on our website and our competitor's website, within 30 days from the date of your order, and we will process the credit accordingly.

Our 100% Price Guarantee has some limitations:

• You must purchase the item from our website before requesting your Price Match Guarantee

• Promotions such as rebates and "buy one, get one free" offers are not eligible

• The item must be in stock on the competitor's website

• The competitor must be an online store; they may not have a retail location

• The website cannot be a discounter or auction website (i.e., eBay, Overstock, Walmart, Amazon, etc..)

• The competitor must be an Authorized Retailer of the product in question

• The Price Match Guarantee includes the item price and the shipping charges; it excludes sales tax

If you want to check if we can price match a product before you place your order, please contact us.

WhisperKOOL’s devotion to providing the most innovative & efficient split wine cellar cooling systems on the market has led them to implement their new 220V High-Efficiency Condensers. The H.E. 220V Condenser offers a host of advantages over traditional 110V condensers.With industry-leading technology and multiple condensing unit sizes, the H.E. 220V Condenser is the perfect choice for nearly any split system application.

Features:

• EFFICIENT CONDENSER COIL DESIGN:
  • The system was designed utilizing oversized condenser coils, which allow the unit to operate efficiently in adverse high heat humidity environments.
• DESIGNED FOR EXTREME CLIMATES:
  • Allows the system to adjust to ambient temperature conditions to maintain the ideal storage conditions for your fine wine in cold winter temperatures (as low as -20°F) and hot summer temperatures (up to 120 °F).
• ULTRA-QUIET SYSTEM OPERATION:
  • The system utilizes large, low-speed fans to create sustainably quieter operation sound levels with reduced dBs between (48dB - 55dB) without decreasing the airflow volume or capacity output.
• NO LONGER A PUMP DOWN SYSTEM:
  • The condenser is controlled by a direct communication line to the evaporator unit using standard thermostat cable. This communication line will be installed with the line set. This eliminates the solenoid at the Evaporator also eliminating the clicking sound from the solenoid in the Cellar. The design reduced the number of components that will simplify service and increase system longevity.
• QR CODE FOR INSTALL & MAINTENANCE:
  • For simpler and faster system installs & maintenance, we’ve placed QR codes to directly lead you to all the vital information a technician will need when installing or maintaining your system.

Benefits:

• 220 VOLT CONDENSERS:
  • Compared to previous models, this 220V system is a significantly more energy- efficient system, utilizing 50% less energy to operate, saving energy costs.
• SIMPLIFIED SYSTEM INSTALLATION/MAINTENANCE:
  • The electrical connections and valves are easy to access and hook up. (This new system differs from previous models as it requires a communication cable from the evaporator to the condenser). Also, while servicing or installing, manifolds can easily be attached without having to adjust the access valve to review pressure.
• ATTRACTIVE SYSTEM HOUSING:
  • The systems come complete with an attractive & durable exterior housing that can withstand adverse conditions, associated with outdoor environments.
• MULTIPLE 220V H.E. CONDENSER SIZES:
  • The H.E. 220V Condenser will be available in 5 different sizes, including: Mini, 4000, 8000, 9000, 12000 series units.

Platinum Split with 220V High Efficiency Condender Owner Manual

Ceiling Mount 800 with 220V High Efficiency Condenser Owner Manual

Mini Ceiling Mount with 220V HE Condenser Owner Manual

Mini Split with 200V HE Condenser Owner Manual
