WhisperKOOL

U-WKSC3000-115-PRO

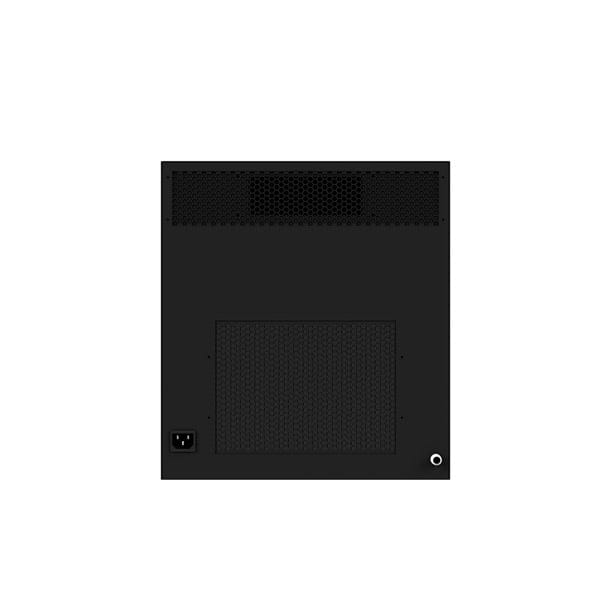

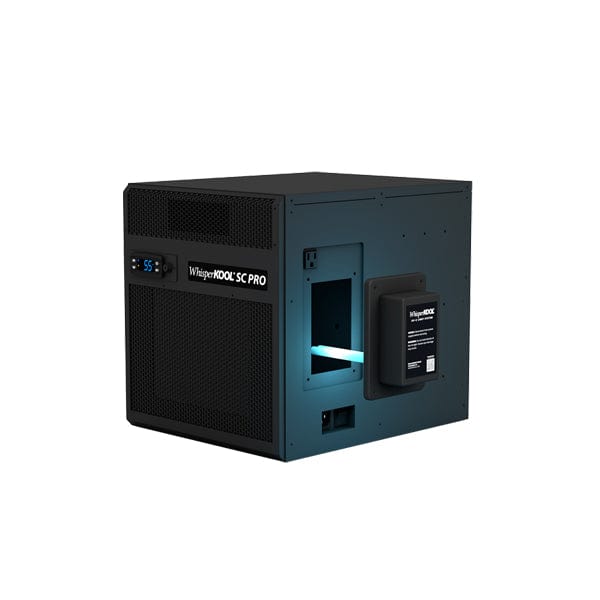

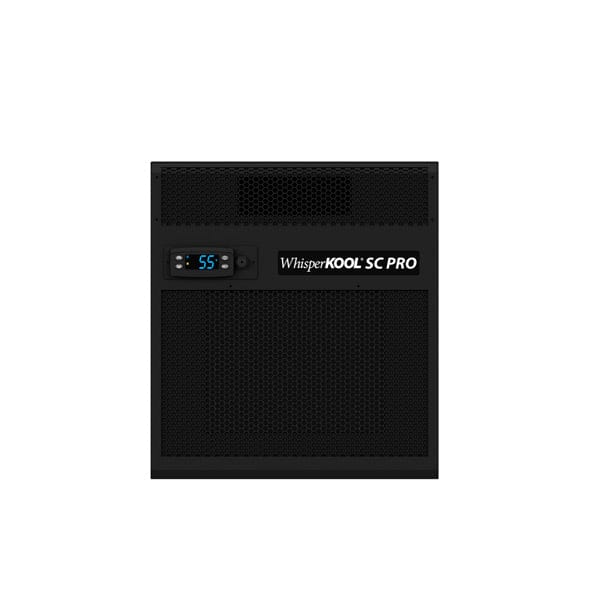

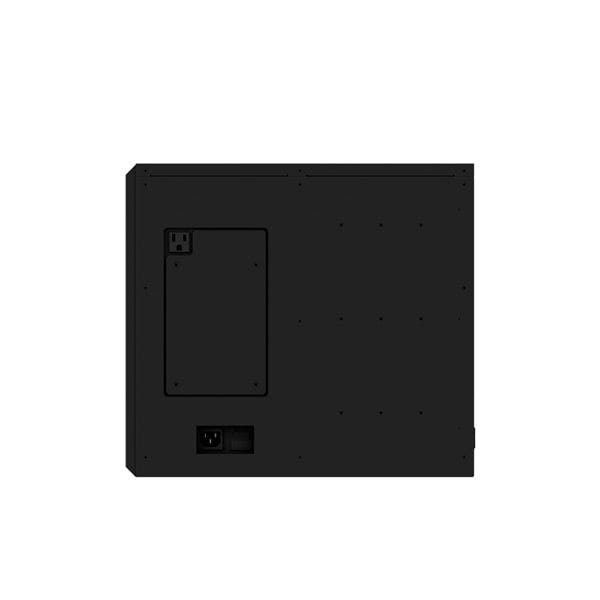

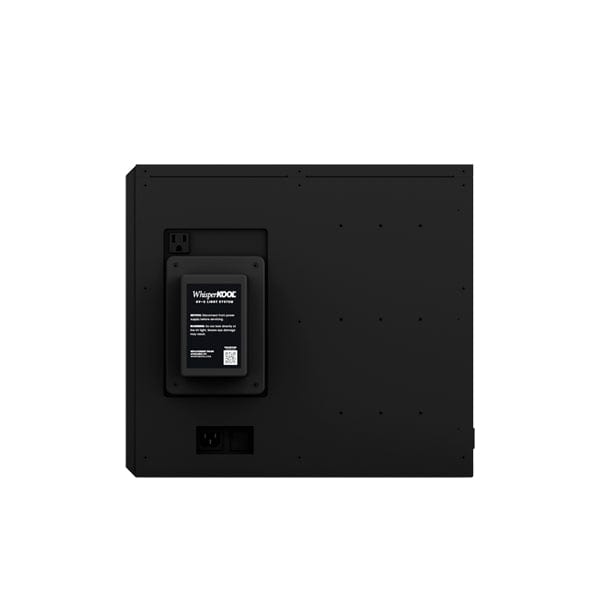

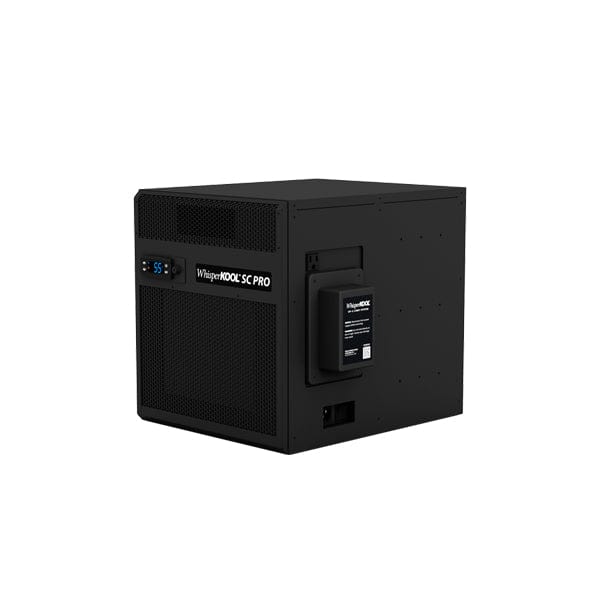

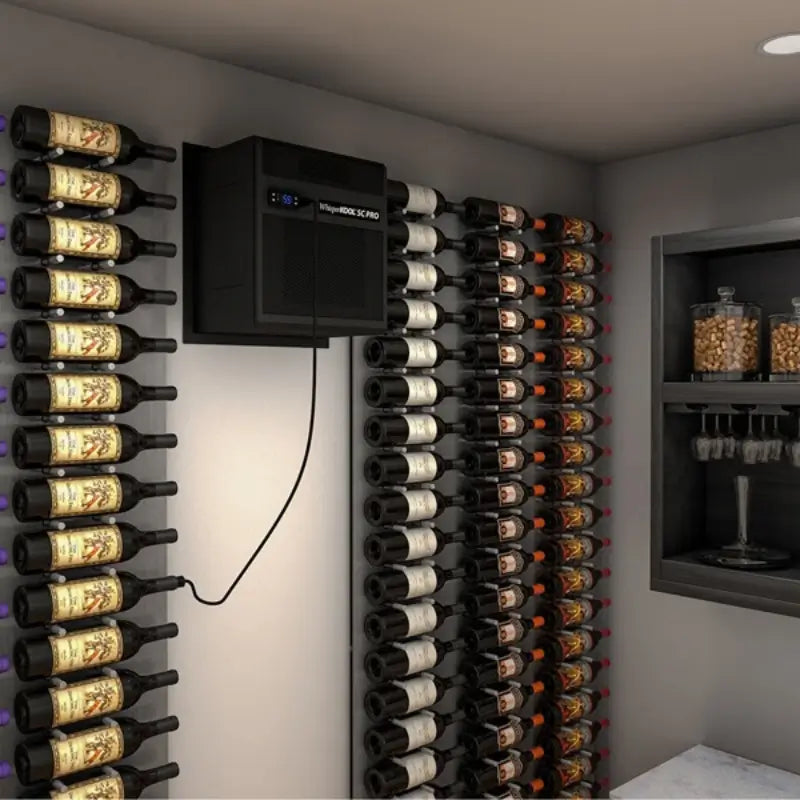

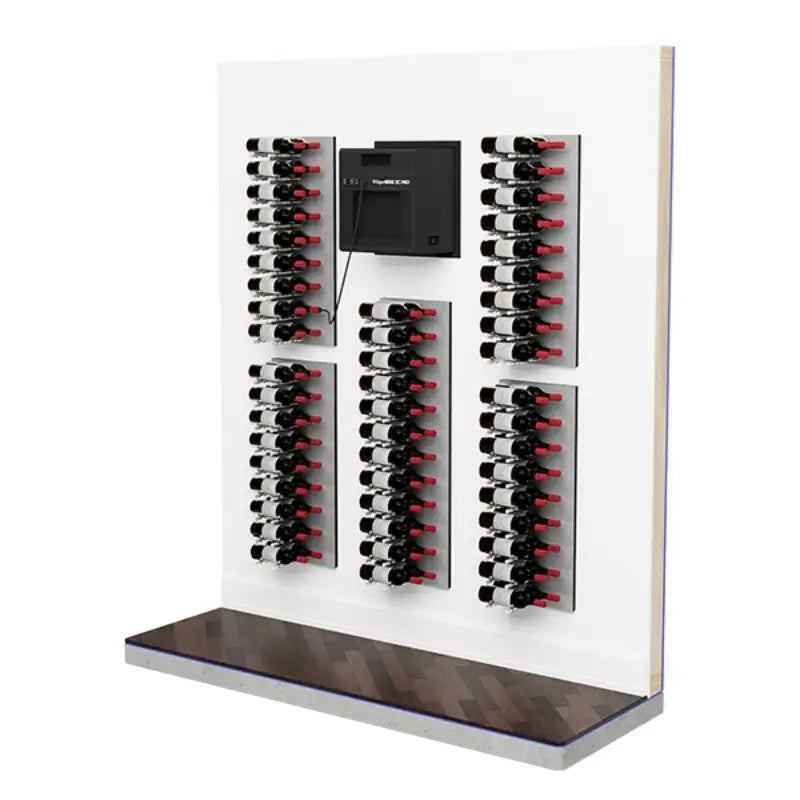

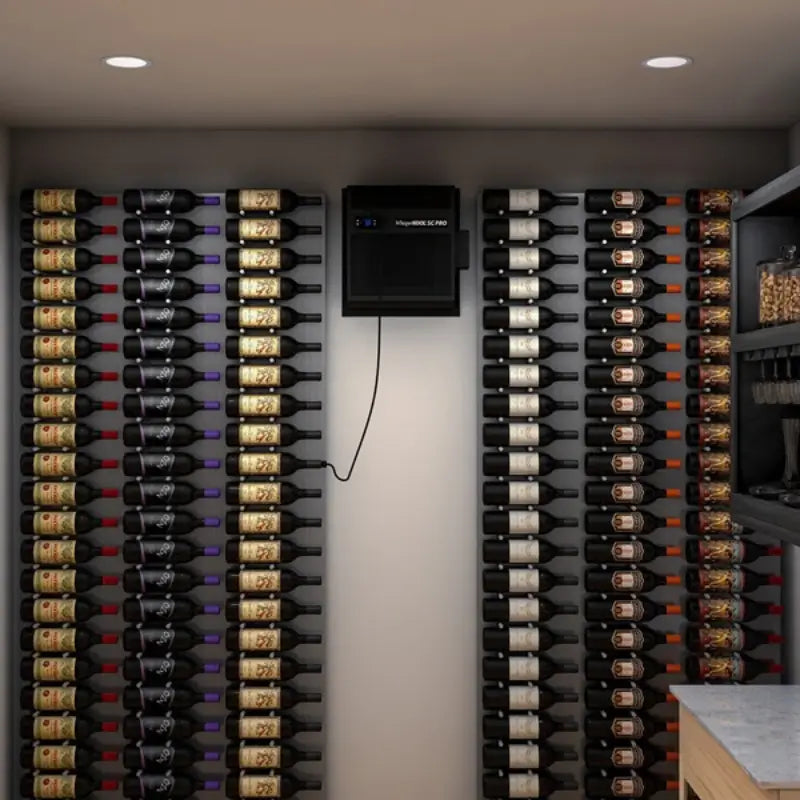

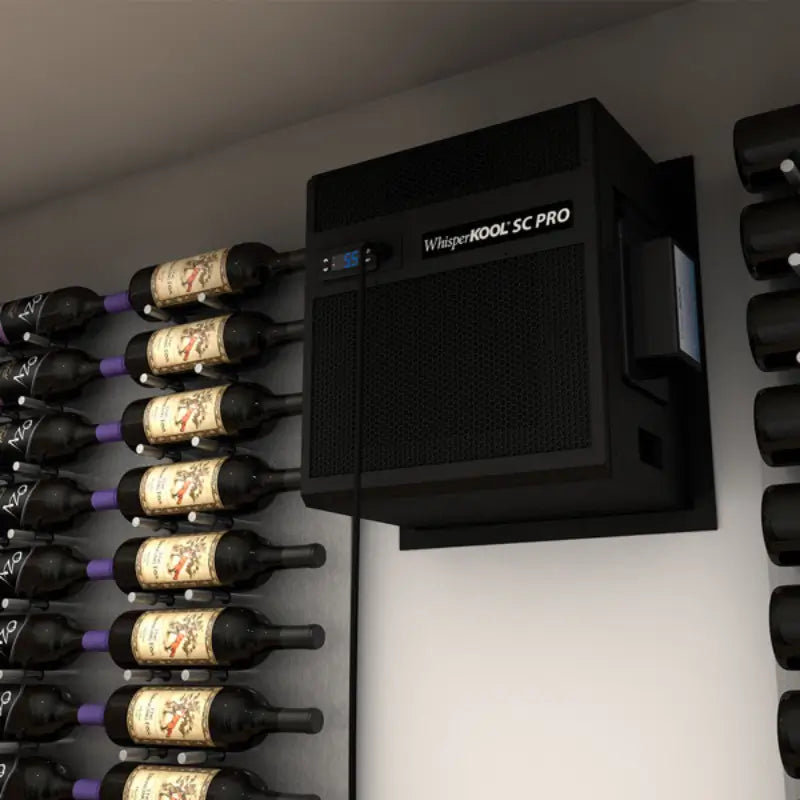

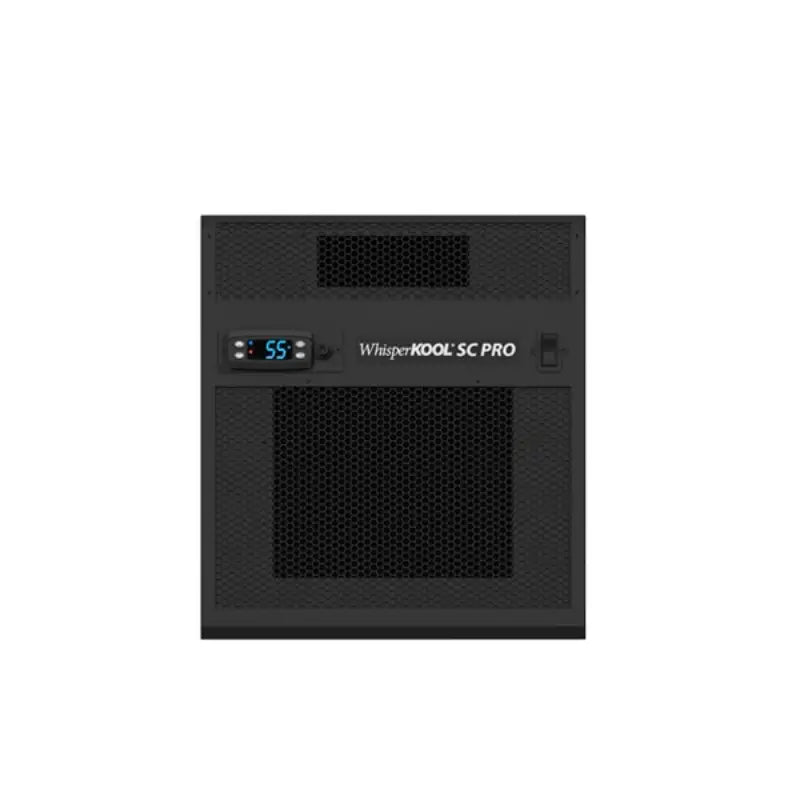

WhisperKOOL SC PRO 3000 Wine Cellar Unit

Exterior Grill/Housing
SM Ducting Kit

WhisperKOOL SC PRO 3000 Wine Cellar Unit is a is a direct replacement for SC 3000i and its predecessor, one of the most well-known cellar cooling units, the XLT 3000‎.

When the wine cellar is fully insulated and sealed with a proper vapor barrier (each wine cellar is unique and has specific cooling requirements; heat load calculations should always be performed prior to selecting a cooling unit), the WhisperKOOL SC PRO 3000 Wine Cellar Unit can accommodate approximately 650 cu.ft. cellar size.

Do you have a different size wine cellar? Or just want to check your options? Check out other WhisperKOOL SC PRO Cooling Units now! You can also browse our other Self-Contained Cooling Units.

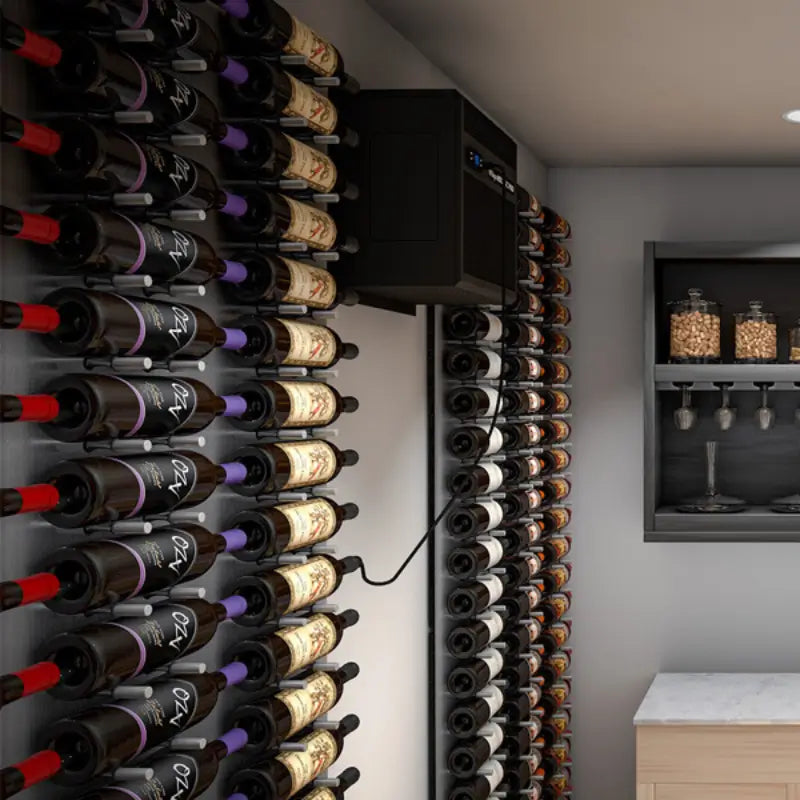

Self-contained wine cooling systems are the most economical and easiest to install. They are designed to mount between the studs of an existing wall and do not require a licensed HVACR technician for installation. One end of the system blows cool air into the cellar and the other end absorbs heat from the cellar and exhausts the heat into an area adjacent to the cellar.

The SC PRO Series is a direct replacement for the SC Series, and its predecessor, one of the most well-known cellar cooling units, the XLT.

The WhisperKOOL SC PRO 3000 Wine Cellar Unit embodies the latest and greatest system design technologies in all-new housing design. Developed upon feedback directly from customers and installers, the unit incorporates a variety of high-end components at an affordable price point. By combining powerful airflow with quiet operation technology, the SC PRO Series is unrivaled when it comes to efficiently cool small to mid-sized wine cellars.

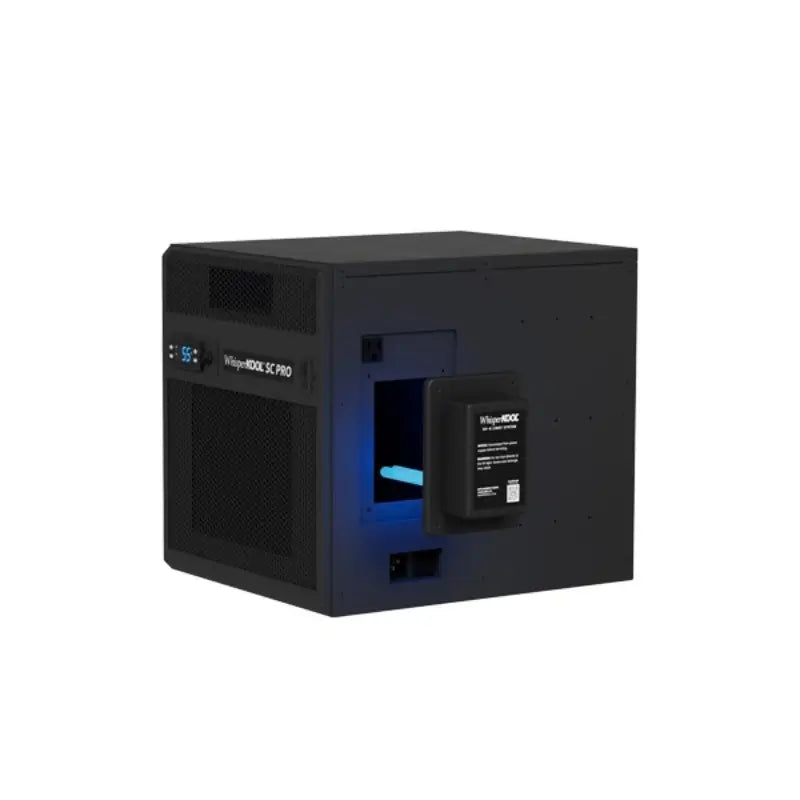

What separates the original SC Series from the SC PRO Series? The WhisperKOOL SC PRO 3000 Wine Cellar Unit comes complete with a new, blower fan system that optimizes performance while operating at a significantly lower noise level. It also reintroduces a condensate management system, which effectively evaporates up to 3oz. of water an hour. This management system renders the drain line as an additional safeguard rather than a definite need.

Features:

Manuals:

Specifications:

Model: SC PRO 3000
Cellar Size:
Approx. 650 cu.ft. when wine cellar is fully insulated and sealed with a proper vapor barrier
BTU/h (85°F condenser air intake temperature: 2049
Dimensions (L x W x H):
17.5" x 14.25" x 15.75"
Refrigerant: R-134a
HP: 1/6
Voltage Rating: 115V (20-amp dedicated circuit required); 230V (subject to availability)
Weight: 65 lbs
Amps: 2.9 (running amps)
Drain Line: 1/2" ID clear plastic tubing (NOT PROVIDED)
Installation: Through-the-wall, partially ducted
Thermostat:

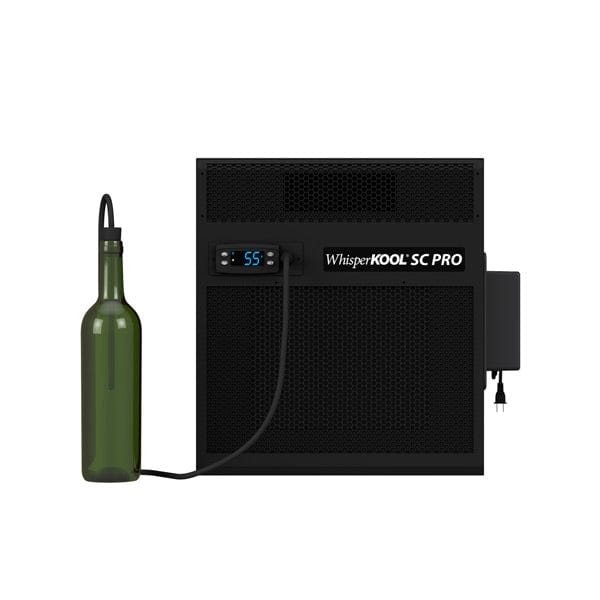

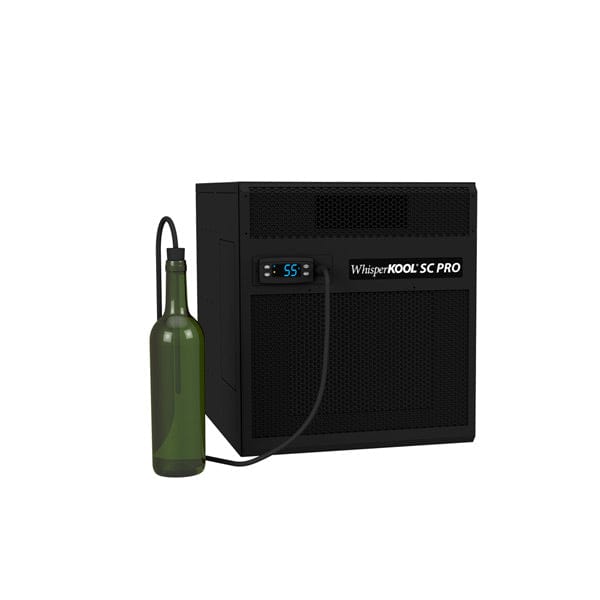

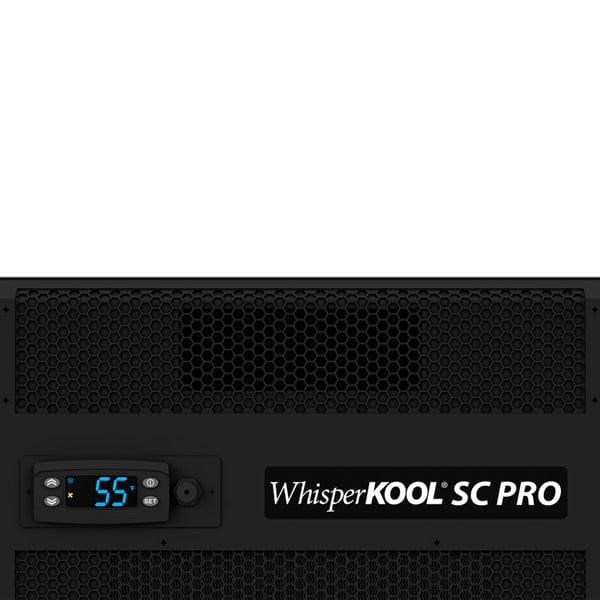

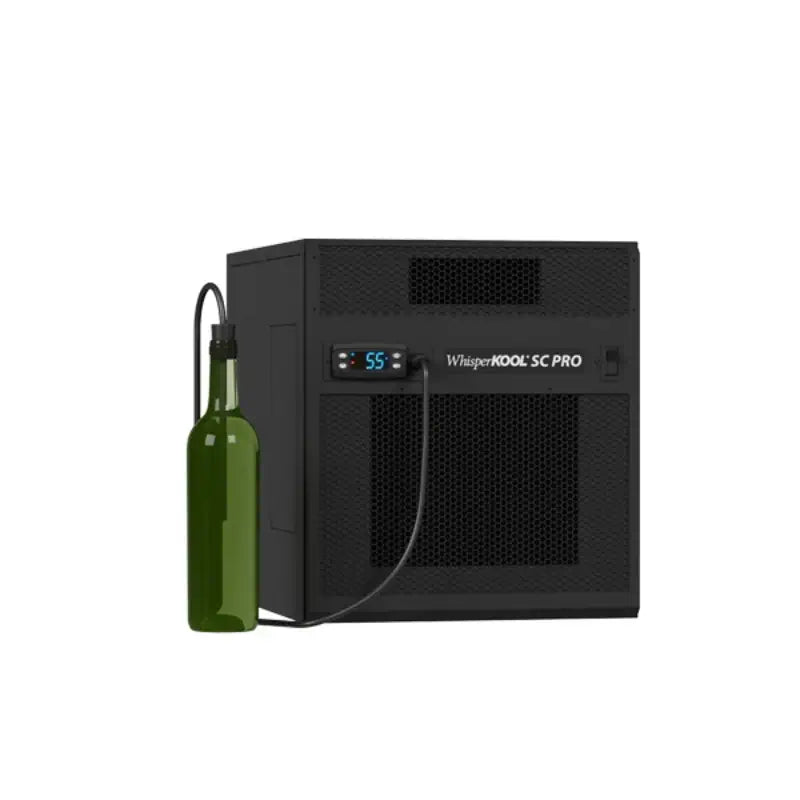

Advanced digital controller, liquid-temperature-measuring bottle probe (retractable cable)
Temp. Delta: Can maintain a 55°F cellar temperature with up to 85°F condenser air intake temperature
Ducting Options:
Exhaust air can be ducted using the OPTIONAL ducting kit
Warranty:
Two-year limited warranty (parts and labor) / Five-year limited warranty (compressor)

WhisperKOOL Self-Contained SC PRO Cooling Units Specifications

WhisperKOOL SC PRO 3000 Wine Cellar Unit Specifications

Buy the WhisperKOOL SC PRO 3000 Wine Cellar Unit today and enjoy your amazing wines at its best temperature!

WhisperKOOL® Exterior Housing for Split Systems

  • Galvanized steel base and steel cabinet embossed — 20 GA, hinged access for easier servicing
  • Easily assembled in the shop or on the job
  • Rain Trough under hinge to catch moisture that might seep through the hinge
  • WhisperKOOL® provides fasteners
  • 20” W x 20” H x 27”D



Our exterior condenser housing protects the condenser portion of the split system from the elements when installed outdoors. Exterior Condenser Housing is used with the Platinum Mini Split, Ductless Platinum Split, and Ducted Platinum Split cooling units.



WhisperKOOL® Extreme Ducting Plenum

  • Ducting plenum for the evaporator and condenser of the Extreme ti
  • Duct the evaporator or condenser side of the unit to ­fit your installation needs
  • Small is compatible with Extreme 3500ti and 5000ti
  • Large is compatible with Extreme 8000ti
  • WhisperKOOL® provides fasteners



Sizes available for the 3500ti, 5000ti, and 8000ti. This plenum allows either side of the unit to be ducted. Duct the cold air through a vent into the cellar, duct the hot exhaust air out of the home. This plenum allows for total installation flexibility.



WhisperKOOL® Extreme Exterior Grille

  • Protects your Extreme ti through-the-wall unit from the elements of weather
  • Small is compatible with 3500ti and 5000ti
  • Large is compatible with 8000ti
  • WhisperKOOL® provides ½” pan-head screws



The Exterior Grille protects the exhaust side of the system from the weather elements when installed through an exterior wall.



WhisperKOOL® SC Exterior Grille

  • Protects your SC through-the-wall unit from the elements of weather
  • Small is compatible with 2000i, 3000i, and 4000i
  • Large is compatible with 6000i and 8000i
  • WhisperKOOL® provides ½” pan-head screws



The Exterior Grille protects the exhaust side of the system from the weather elements when installed through an exterior wall.



WhisperKOOL® SC Ducting Kit

  • Small is compatible with 2000i, 3000i, and 4000i

  • Large is compatible with 6000i and 8000i

  • ONLY the exhaust side of the SC can be ducted

  • WhisperKOOL® does not provide ducting



This kit allows the warm exhaust air to be ducted to another area. Ideal if the room adjacent to your cellar is not ideal for warm air to be exhausted into. The kit includes the Thermostat Controller, which will turn on and push warm exhaust air away from the ducting (not included). The in-line fan can be set to automatically turn on at varying temperatures in order to conserve the most electricity.



Small Duct works on the SC 2000i/3000i/4000i and XLT 1600/3000/4200. Kit includes:



  • Duct Plenum
  • Transition with integrated heat sensor
  • 8″ In-line fan
  • 8″ Adjustable Elbow



Large Duct works on the SC 6000i/8000i and XLT 6000/8000. Kit includes:



  • Duct Plenum
  • Transition with integrated heat sensor
  • 8″ In-line fan with transitions to 8″
  • 8″ Adjustable Elbow
