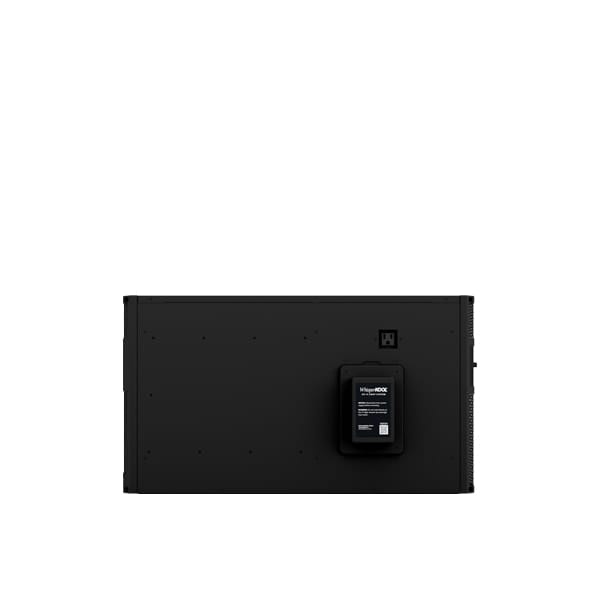

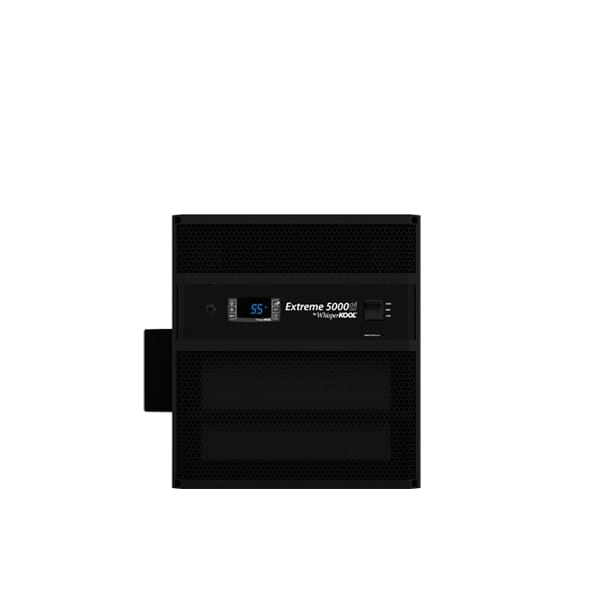

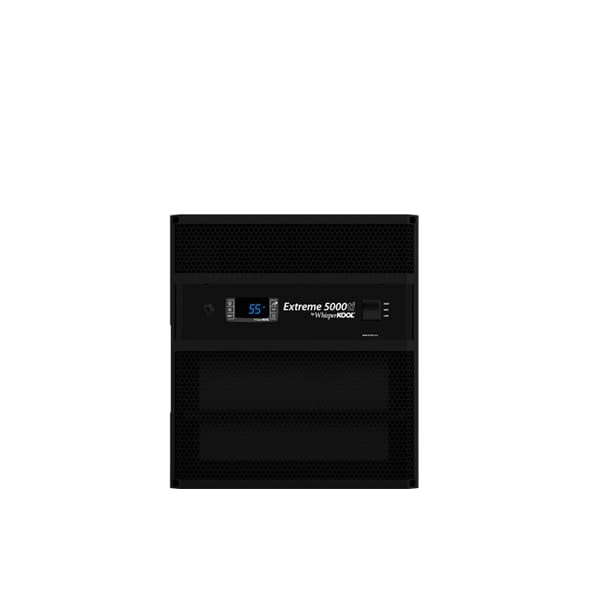

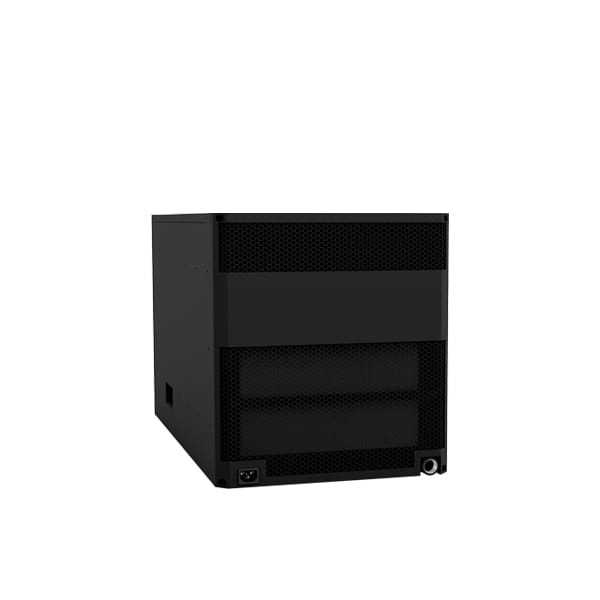

WhisperKOOL Extreme 5000ti Self-Contained Cooling Unit

CONDENSER COIL COATING
CONDENSER DUCTING KIT
EXTERIOR GRILL

WhisperKOOL Extreme 5000ti Self-Contained Cooling Unit Review

When the wine cellar is fully insulated and sealed with a proper vapor barrier (each wine cellar is unique and has specific cooling requirements; heat load calculations should always be performed prior to selecting a cooling unit), the WhisperKOOL Extreme 5000ti Self-Contained Cooling Unit can accommodate approximately 1250 cu.ft. cellar size.

Do you have a different size wine cellar? Or just want to check your options? Check out other WhisperKOOL Self-Contained Extreme ti Cooling Units now! You can also browse our other Self-Contained Cooling Units.

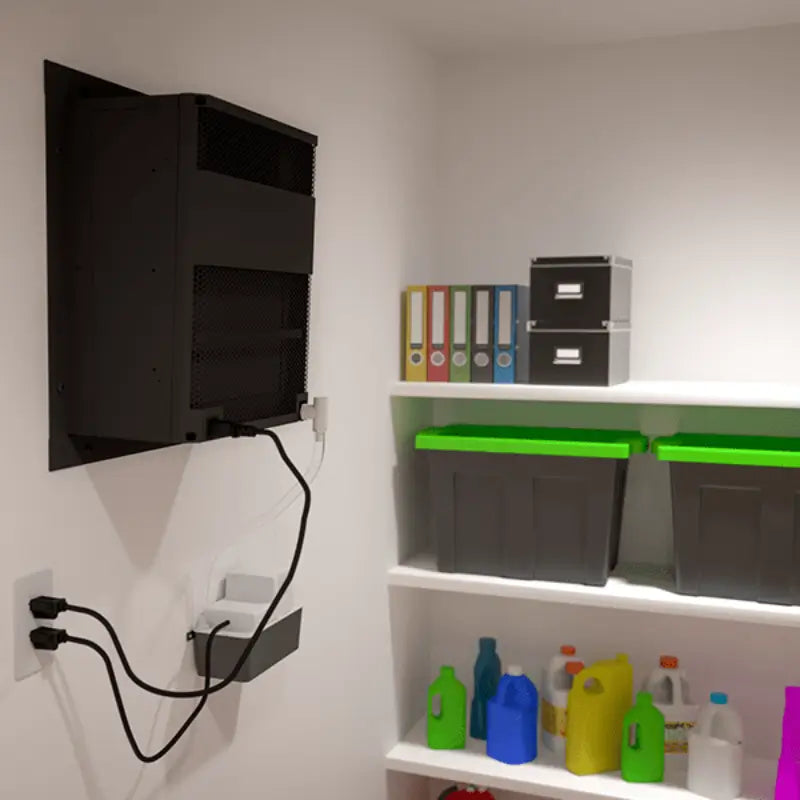

Self-contained wine cooling systems are the most economical and easiest to install. They are designed to mount between the studs of an existing wall and do not require a licensed HVACR technician for installation. One end of the system blows cool air into the cellar and the other end absorbs heat from the cellar and exhausts the heat into an area adjacent to the cellar.

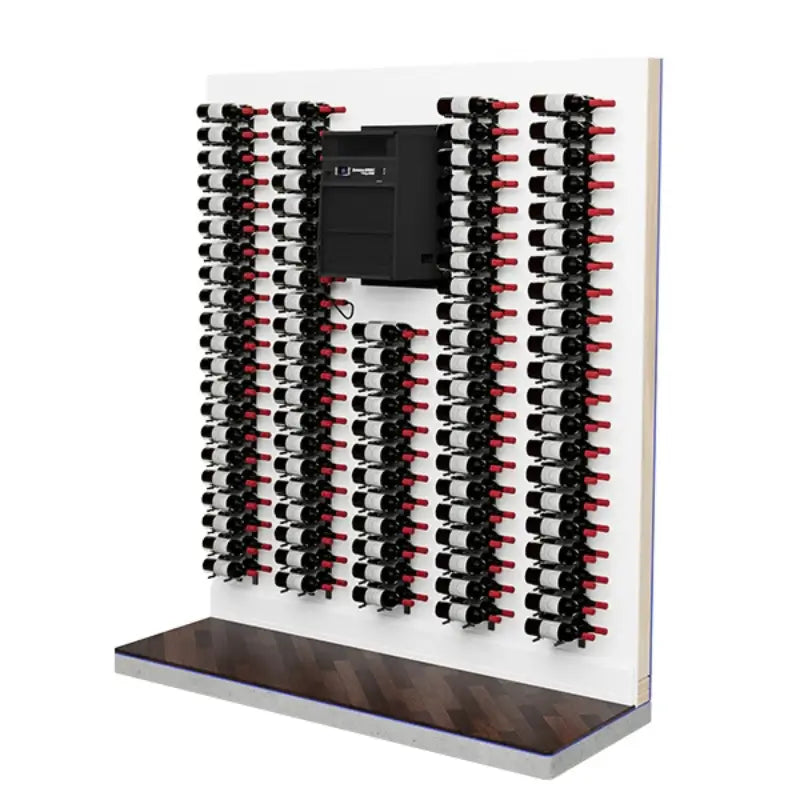

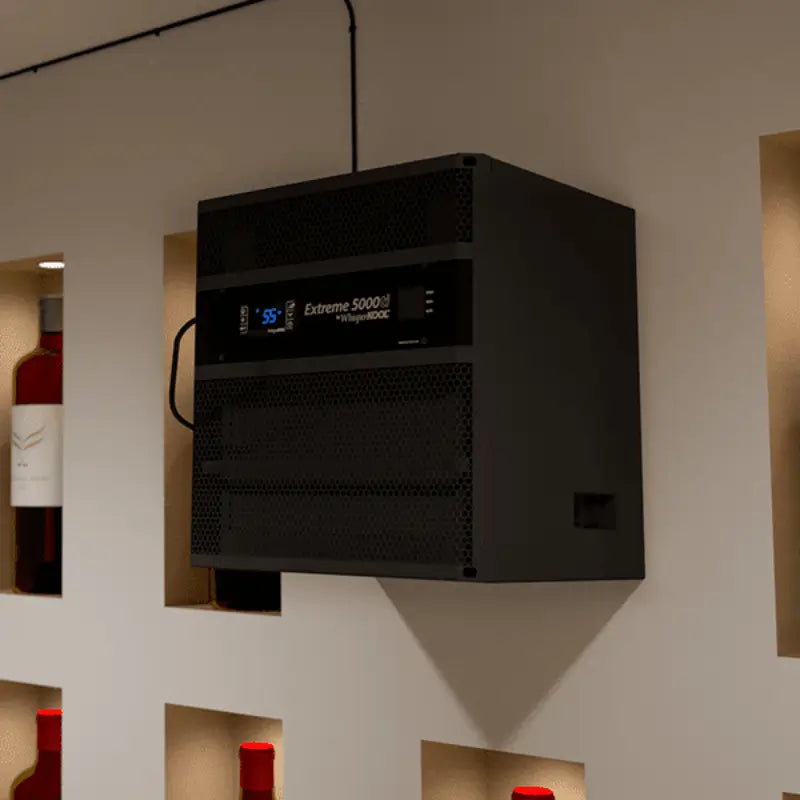

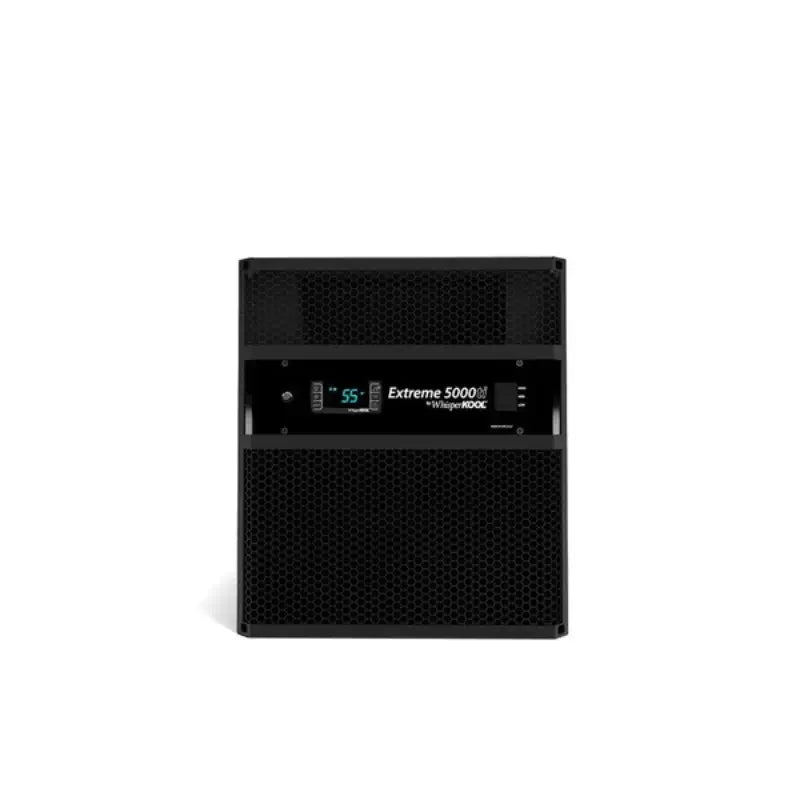

The WhisperKOOL Extreme 5000ti Self-Contained Cooling Unit functions in the same way as the tiR and is intended for through-the-wall installation. The difference between the ti and tiR is that the controller and display will be located on the front face of the unit. In order to monitor your cellar conditions, you will need to physically enter your cellar.

The Extreme 3500ti, 5000ti, and 8000ti introduce the variable-speed fans to WhisperKOOL’s most advanced and powerful self-contained cooling system. Utilizing these fans, this high-capacity unit can maintain optimal cellar conditions. The Extreme is designed to fit between standard wall studs for a simple “through-the-wall” installation with minimal modification to an existing wall structure. Extremes can also be mounted through an exterior wall and can operate in a 110°F exhaust environment. The system is designed for powerful operation, efficiency, high reliability, and longevity with excellent performance in a wide range of working environments.

Features:

  • Excels in hotter climates where outside temperatures can be over 110°F.
  • Tolerates cold climates where winter temperatures prevent other units from operating effectively
  • Applicable in limited spaces where ventilation is a problem
  • Through-the-wall application
  • Variable-speed fans
  • Fully ductable
  • Simple installation (between wall studs)
  • Reliable starting and running performance, even under the most extreme outdoor conditions
  • Fits neatly between wall studs for quick and simple installation
  • 55°F temperature differential

    Manuals:

    Specifications:

    Model: Extreme 5000ti
    Cellar Size:
    Approx. 1250 cu.ft. when wine cellar is fully insulated and sealed with a proper vapor barrier
    BTU/h (85°F condenser air intake temperature: 4126
    Dimensions (L x W x H):
    28" x 14.25" x 15.75"
    Refrigerant: R-134a
    HP: 1.62
    Refrigeration Tons: 0.34
    Voltage Rating: 115V (20-amp dedicated circuit required); 230V (subject to availability)
    Weight: 115 lbs
    Amps: 9 (running amps)
    Drain Line: 1/2" ID clear plastic tubing (NOT PROVIDED)
    Installation: Through the wall
    Thermostat:

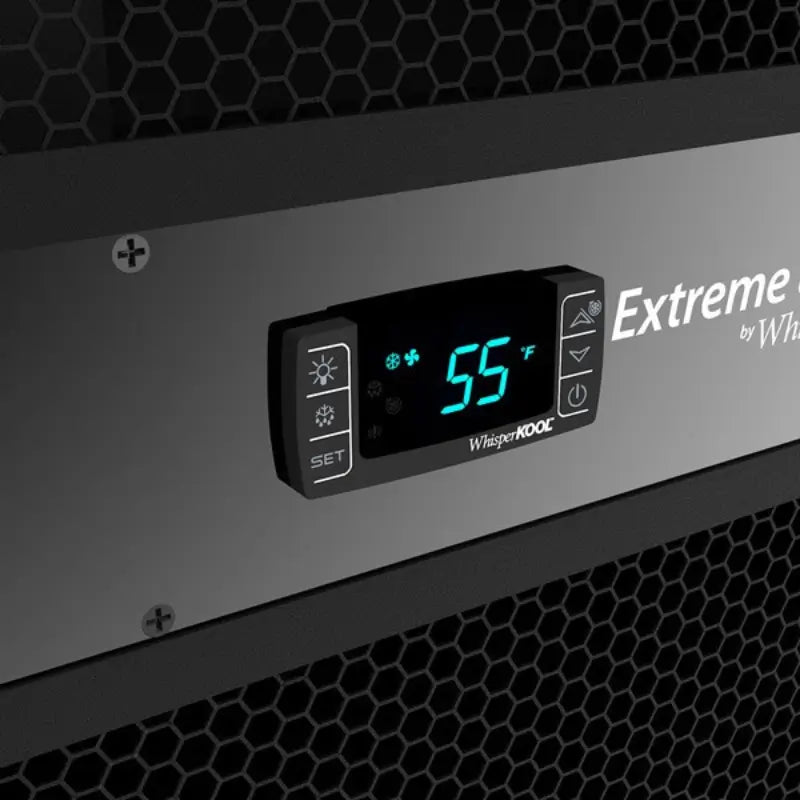

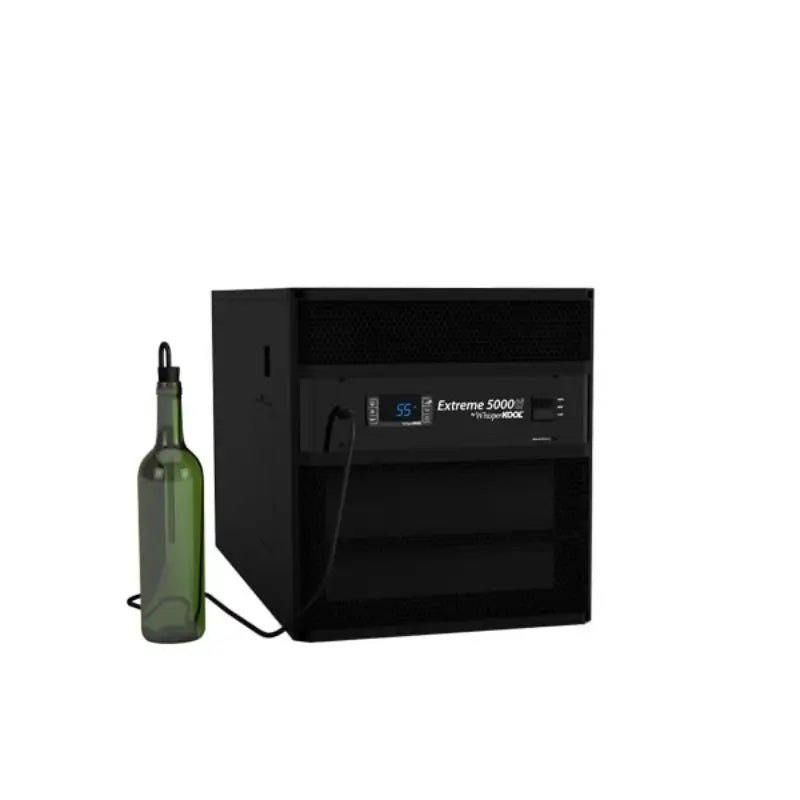

    Advanced digital controller, liquid-temperature-measuring bottle probe (retractable cable)
    Temp. Delta: Can maintain a 55°F cellar temperature with up to 110°F condenser air intake temperature
    Outside Venting: Can be done if the outside temperature does not exceed 110°F; external grille is highly recommended
    Ducting Options:
    Condensing side can be ducted
    Warranty:
    Two-year limited warranty (parts and labor) / Five-year limited warranty (compressor)

    WhisperKOOL Self-Contained Extreme ti Cooling Units Specifications

    WhisperKOOL Extreme 5000ti Self-Contained Cooling Unit Specifications



    Buy the WhisperKOOL Extreme 5000ti Self-Contained Cooling Unit today and enjoy your amazing wines at its best temperature!

    WhisperKOOL® Exterior Housing for Split Systems

    • Galvanized steel base and steel cabinet embossed — 20 GA, hinged access for easier servicing
    • Easily assembled in the shop or on the job
    • Rain Trough under hinge to catch moisture that might seep through the hinge
    • WhisperKOOL® provides fasteners
    • 20” W x 20” H x 27”D



    Our exterior condenser housing protects the condenser portion of the split system from the elements when installed outdoors. Exterior Condenser Housing is used with the Platinum Mini Split, Ductless Platinum Split, and Ducted Platinum Split cooling units.



    WhisperKOOL® Extreme Ducting Plenum

    • Ducting plenum for the evaporator and condenser of the Extreme ti
    • Duct the evaporator or condenser side of the unit to ­fit your installation needs
    • Small is compatible with Extreme 3500ti and 5000ti
    • Large is compatible with Extreme 8000ti
    • WhisperKOOL® provides fasteners



    Sizes available for the 3500ti, 5000ti, and 8000ti. This plenum allows either side of the unit to be ducted. Duct the cold air through a vent into the cellar, duct the hot exhaust air out of the home. This plenum allows for total installation flexibility.



    WhisperKOOL® Extreme Exterior Grille

    • Protects your Extreme ti through-the-wall unit from the elements of weather
    • Small is compatible with 3500ti and 5000ti
    • Large is compatible with 8000ti
    • WhisperKOOL® provides ½” pan-head screws



    The Exterior Grille protects the exhaust side of the system from the weather elements when installed through an exterior wall.



    WhisperKOOL® SC Exterior Grille

    • Protects your SC through-the-wall unit from the elements of weather
    • Small is compatible with 2000i, 3000i, and 4000i
    • Large is compatible with 6000i and 8000i
    • WhisperKOOL® provides ½” pan-head screws



    The Exterior Grille protects the exhaust side of the system from the weather elements when installed through an exterior wall.



    WhisperKOOL® SC Ducting Kit

    • Small is compatible with 2000i, 3000i, and 4000i

    • Large is compatible with 6000i and 8000i

    • ONLY the exhaust side of the SC can be ducted

    • WhisperKOOL® does not provide ducting



    This kit allows the warm exhaust air to be ducted to another area. Ideal if the room adjacent to your cellar is not ideal for warm air to be exhausted into. The kit includes the Thermostat Controller, which will turn on and push warm exhaust air away from the ducting (not included). The in-line fan can be set to automatically turn on at varying temperatures in order to conserve the most electricity.



    Small Duct works on the SC 2000i/3000i/4000i and XLT 1600/3000/4200. Kit includes:



    • Duct Plenum
    • Transition with integrated heat sensor
    • 8″ In-line fan
    • 8″ Adjustable Elbow



    Large Duct works on the SC 6000i/8000i and XLT 6000/8000. Kit includes:



    • Duct Plenum
    • Transition with integrated heat sensor
    • 8″ In-line fan with transitions to 8″
    • 8″ Adjustable Elbow
