WhisperKOOL Quantum SS12000 Ducted Split System 220V High Efficiency Wine Coolers Empire

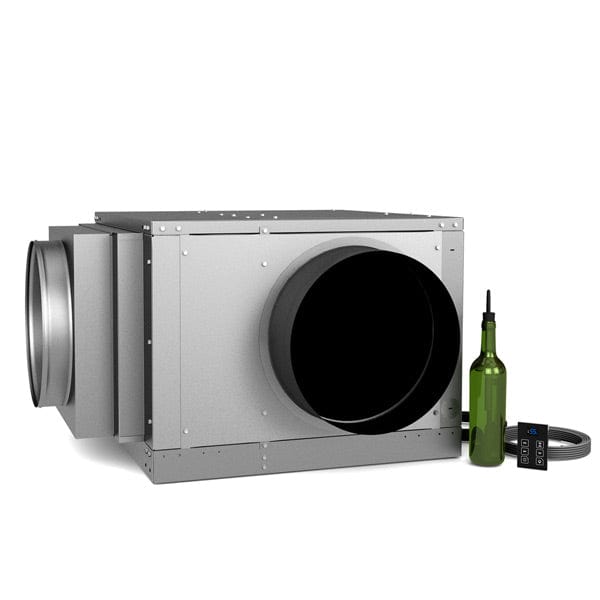

WhisperKOOL Quantum SS12000 Ducted Split System 220V High Efficiency

by WhisperKOOL
SKU S-WKQS12000-220-FD

✅ No Sales Tax (Except NV)

Save 21%
$12,791.00
$10,138.00
checked
FREE SHIPPING - Limited Time ONLY
SAVE UP TO $350 ON SHIPPING CHARGES

💵 We Will Beat Any Online Competitor's Prices! Call (888) 407-7770 Or Chat With Us to get the lowest price!

Notify me when back in stock

WhisperKOOL Quantum SS12000 Ducted Split System 220V High Efficiency Review

Looking for the best way to keep your large wine cellar at the perfect temperature? The WhisperKOOL Quantum SS12000 Ducted Split System 220V High Efficiency is an excellent solution!

NOTE: A qualified HVAC-R technician is required for the installation of your WhisperKOOL Quantum SS12000 Ducted Split System 220V. Failure to adhere to this requirement will void the warranty.

PLEASE NOTE: We will be phasing out the 9000 and 12000 110V condensers on 10/01/2023 or sooner. We will continue to support controllers through the two-year warranty period. All other replacement part requests will be directed to Copeland.

The Quantum Series of WhisperKOOL Wine Cellar Cooling Systems are specifically engineered to handle larger wine cellars and challenging cooling requirements. The WhisperKOOL Quantum SS12000 Ducted Split Wine Cellar Cooling System with 220V High Efficiency Condenser is one of the highest-capacity wine cellar coolers that feature multiple ducting options for easy installation and accessibility.

With interchangeable evaporator airflow panels, a pump system to remove excess condensation, and both standard and 24V thermostat options, this unit can be customized to fit your specific needs. The coils are also coated with electro-fin to protect against corrosion and outgassing which commonly occurs in cellars. And for added convenience, the condensing unit can be placed outdoors with the purchase of exterior housing. The wine cooler unit’s air handler can be ducted up to 25 feet for a quiet wine cellar environment.

The Quantum SS12000 Wine Room Cooler 220V is built to operate in ambient temperatures as low as -15 degrees and is made with professional-grade components for durability and efficiency, keeping your wine collection at the perfect temperature.

Available in WhisperKOOL Quantum SS12000 220V Copeland Condenser for 4000 cu.ft wine cellar.

Other Sizes: WhisperKOOL Quantum SS9000 220V High-Efficiency Condenser for 3000 cu.ft wine cellar.

See all our Ducted Split Wine Cooling Units for more options or browse through our collection of WhisperKOOL Wine Cooling Units.

Match your cooling system with unique and modern wine racks for Ultra Wine Racks & Cellars!

WHY BUY FROM US: Wine Coolers Empire is a trusted dealer of specialty wine cellar air conditioners, commercial wine cellar refrigeration units, and residential wine cellar coolers. More WhisperKOOL wine cellar cooling unit reviews can be found on our Customer Reviews page.

Contact us for any questions or concerns. For information on order processing, shipping options, and delivery times, please visit our Shipping Policy.

Buy the WhisperKOOL Quantum SS12000 Ducted Split System 220V High Efficiency today and enjoy your amazing wines at their best temperature!



Features:

  • TOUCH DISPLAY
    The KDT Digital Touch Display can be placed as far as 50 feet from the unit and features Advanced System Protection including alarm notifications for when certain conditions are not met.
    Touch Display - WhisperKOOL | Wine Coolers Empire - Trusted Dealer

  • BOTTLE PROBE
    WhisperKOOL cooling units precisely measure the temperature of the wine in the cellar with the WhisperKOOL Bottle Probe. This liquid temperature measuring probe gives a more accurate reading of the temperature of the wines stored in the cellar as compared to measuring the air temperature.
    Bottle Probe - WhisperKOOL | Wine Coolers Empire - Trusted Dealer

  • LOW NOISE LEVELS

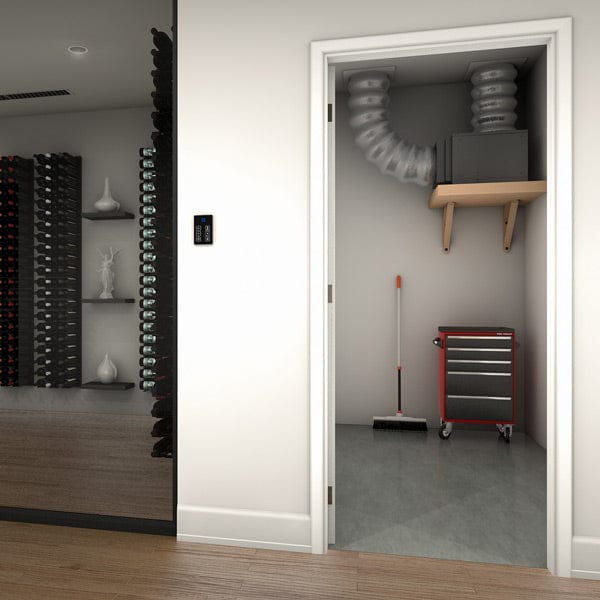

    The Quantum wine cooling systems are fully ducted. WhisperKOOL Fully Ducted Systems give you endless ducting options, keeping the unit out of sight and significantly reducing noise in the wine cellar.
    Low Noise Level - WhisperKOOL | Wine Coolers Empire - Trusted Dealer

  • HIGH-EFFICIENCY CONDENSER
    The 220V system is highly energy-efficient, it uses 50% less energy to operate, resulting in lower energy costs. Additionally, it can adapt to changing temperature conditions and maintain ideal wine storage conditions in extreme temperatures, as low as -20°F (cold winter temperatures) and as high as 120°F (hot summer temperatures.)
    220V High Efficiency Condenser - WhisperKOOL | Wine Coolers Empire - Trusted Dealer



Manuals:

Is this a right-sized unit for your wine cellar? Talk to an Expert at +1-888-407-7770 or email: support@winecoolersempire.com to ensure that this cooling system is best suited for your needs.



BTU/h

12,530 – 13,844

The BTU/h value range shown here is an estimate and not a guarantee. There may be instances where a cellar design requires a larger unit due to variables not included in the calculation. These variables can be building materials (such as glass, stone, concrete, etc.) that do not provide enough insulation to maintain the ideal wine cellar environment.

We recommend purchasing a unit with a higher capacity to compensate for these unforeseen variables. Choosing an undersized unit may result in premature failure and may not be able to achieve your desired wine cellar temperature.



Specifications:

  • Cellar Size: Approx. 4000 cu. ft. when cellar is fully insulated and sealed with a proper vapor barrier
  • Dimensions: Evaporator: 29.5”L x 30.9”W x 19.8”H | Condenser: 24”L x 19.4”W x 16.1”H
  • Drain Line: 3/4” ID CPVC
  • BTU/h: 12,530 - 13,844
  • WhisperKOOL Warranty: Limited 2-year product warranty is offered with all split systems.

Please click below for the full specification of the WhisperKOOL Quantum Series.



24V THERMOSTAT CONVERSION KIT (OPTIONAL)

 

Introducing our new 24-volt thermostat conversion kit for WhisperKOOL split systems! Utilize industry-leading technology from major manufacturers to monitor the environment of your cellar.

  • Connect your thermostat to Wi‑Fi to control the temperature from your phone, tablet, or laptop.
  • Monitor run time and energy usage.
  • Set alarm notifications.
  • View your cellar conditions from your mobile device.

*PLEASE NOTE: WhisperKOOL does not provide smart thermostats. If you choose the 24V Thermostat Conversion Kit, you acknowledged that the system will not be built with the standard WhisperKOOL control or liquid measuring bottle probe. You will need to purchase your own 24V smart thermostat to operate the equipment. The WhisperKOOL Customer Satisfaction Team will not provide support for issues related to smart thermostats.

For more information, check out 24V Thermostat Conversion Kit.



WhisperKOOL Accessories (Optional)

You may add WhisperKOOL replacement parts and accessories to enhance the performance and longevity of your wine cooling systems. These add-ons include items that upgrade and protect the system. Check out the other WhisperKOOL Parts & Accessories.

Exterior Protective Housing for WhisperKOOL Split Systems

Exterior Protective Housing for WhisperKOOL Split Systems | Wine Coolers Empire - Trusted Dealer

The Exterior Protective Housing protects the condenser part of WhisperKOOL split systems from the weather and elements when installed outdoors. Exterior Condenser Housing is used with all WhisperKOOL Ducted Split Systems and WhisperKOOL Ductless Split Systems.

  • Galvanized steel base and steel cabinet embossed — 20 GA, hinged access for easier servicing
  • Easily assembled in the shop or on the job
  • Rain Trough under hinge to catch moisture that might seep through the hinge
  • WhisperKOOL® provides fasteners
  • Dimensions (W x H x D): 20” x 20” x 27”

Condenser Coil Coating

The Condenser Coil Coating is a protective coating applied to a WhisperKOOL wine cellar cooling system's condenser coil to protect it from salt air. This coating helps to extend the lifespan of the cooling unit, especially in areas near the coast or beach where salt air can be a problem.



Welcome to our Special Section,

Here we've gathered all of the related articles in the hopes of assisting you in knowing the PERFECT MATCH for your Wine Cellar.

Here are Top-Rated Articles:

We understand that buying this unit is a significant investment, so we make sure you'll get the right unit for your wine room.

We have our Professional Team that is ready to assist you!

Contact Us - Wine Coolers Empire

 Furthermore, because YOUR SATISFACTION IS OUR TOP PRIORITY we offer ✨SURPRISING DISCOUNTS✨ that cannot be found anywhere else!

All New High-Efficiency 220V Condenser Whisperkool Wine Cellar Cooling Systems

WhisperKOOL is devoted to providing the most efficient, innovative split wine cellar cooling systems on the market. Whsiperkool offers new 220V High-Efficiency Condensers that outdo traditional 110V condensers in performance and efficiency with industry leading technology and multiple wine cellar cooling condensing unit sizes that make it perfect for nearly any application.

ALL NEW High Efficiency 220V

The 220V High-Efficiency Condensers offer a host of advantages over our traditional 110V condensers, including simplified installation, ultra-quiet operation, energy efficiency, & the ability to operate in extreme climates. For more information about our latest Split-System innovation.

Features:

  • EFFICIENT CONDENSER COIL DESIGN:
    • The system was designed utilizing oversized condenser coils, which allow the unit to operate efficiently in adverse high heat humidity environments.
  • DESIGNED FOR EXTREME CLIMATES:
    • Allows the system to adjust to ambient temperature conditions to maintain the ideal storage conditions for your fine wine in cold winter temperatures (as low as -20°F) and hot summer temperatures (up to 120 °F).
  • ULTRA-QUIET SYSTEM OPERATION:
    • The system utilizes large, low-speed fans to create sustainably quieter operation sound levels with reduced dBs between (48dB - 55dB) without decreasing the airflow volume or capacity output.
  • NO LONGER A PUMP DOWN SYSTEM:
    • The condenser is controlled by a direct communication line to the evaporator unit using standard thermostat cable. This communication line will be installed with the line set. This eliminates the solenoid at the Evaporator also eliminating the clicking sound from the solenoid in the Cellar. The design reduced the number of components that will simplify service and increase system longevity.
  • SIMPLIFIED INSTALLATION
    Easy access to controls & valves for simplified installation + smart communication cable from the evaporator to the condenser.

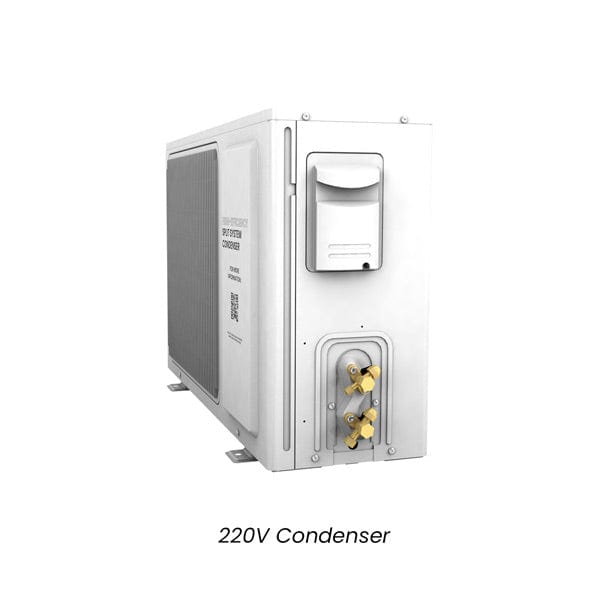

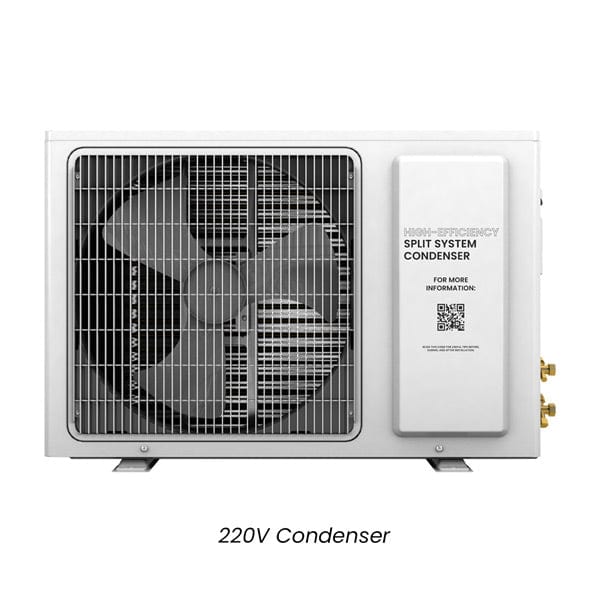

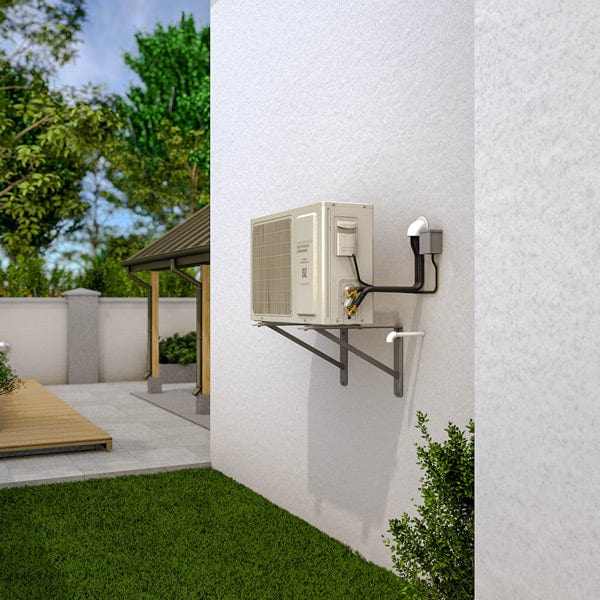

          220V High-Efficiency Condenser

  • ULTRA QUIET OPERATION
    Utilizes large, low-speed fans to create substantially lower operation sound levels between (45dB-52dB).

          Ultra Quiet Operation 220V High-Efficiency Condenser

  • QR CODE
    We’ve placed QR codes to directly lead you to all the vital information about installing and maintaining your system.

         220V High-Efficiency Condenser

Benefits:

  • 220 VOLT CONDENSERS:
    • Compared to previous models, this 220V system is a significantly more energy- efficient system, utilizing 50% less energy to operate, saving energy costs.
  • SIMPLIFIED SYSTEM INSTALLATION/MAINTENANCE:
    • The electrical connections and valves are easy to access and hook up. (This new system differs from previous models as it requires a communication cable from the evaporator to the condenser). Also, while servicing or installing, manifolds can easily be attached without having to adjust the access valve to review pressure.
  • ATTRACTIVE SYSTEM HOUSING:
    • The systems come complete with an attractive & durable exterior housing that can withstand adverse conditions, associated with outdoor environments.

Specifications:

  • Line Set: Liquid line 1/4” OD; Suction line 1/2” OD (less than 50 ft.), 5/8” (greater than 50 ft.)
  • Voltage Rating: 220V (15-amp dedicated circuit required)
  • Dimensions: 31.18″L x 10.75″W x 21.18″H
  • DBA: 45
  • Temp. Data: Can maintain a 55°F cellar temperature with up to 120°F condenser air intake temperature.

  GETTING TO KNOW OUR 220V HIGH-EFFICIENCY COOLING SYSTEMS

UPGRADED CONDENSER! 220V High-Efficiency

220V High-Efficiency Communication Cable

  110V and 220V Differences

Installation Guide of 220V High-Efficiency Condenser
