WhisperKOOL

S-WKQS12000-000-2

WhisperKOOL Quantum SS12000 Ducted Split System

EXTERIOR HOUSING
24V THERMOSTAT CONVERSION KIT:
CONDENSER COIL COATING

WhisperKOOL Quantum SS12000 Ducted Split System Review

When the wine cellar is fully insulated and sealed with a proper vapor barrier (each wine cellar is unique and has specific cooling requirements; heat load calculations should always be performed prior to selecting a cooling unit), the WhisperKOOL Quantum SS12000 Ducted Split System can accommodate approximately 4000 cu.ft. cellar size.

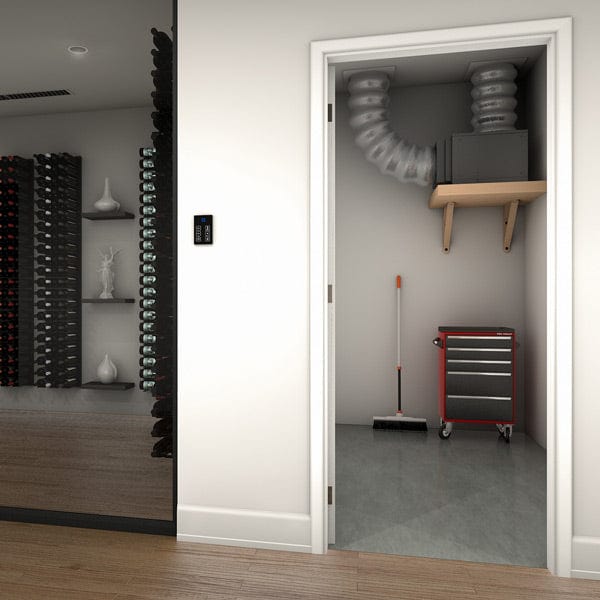

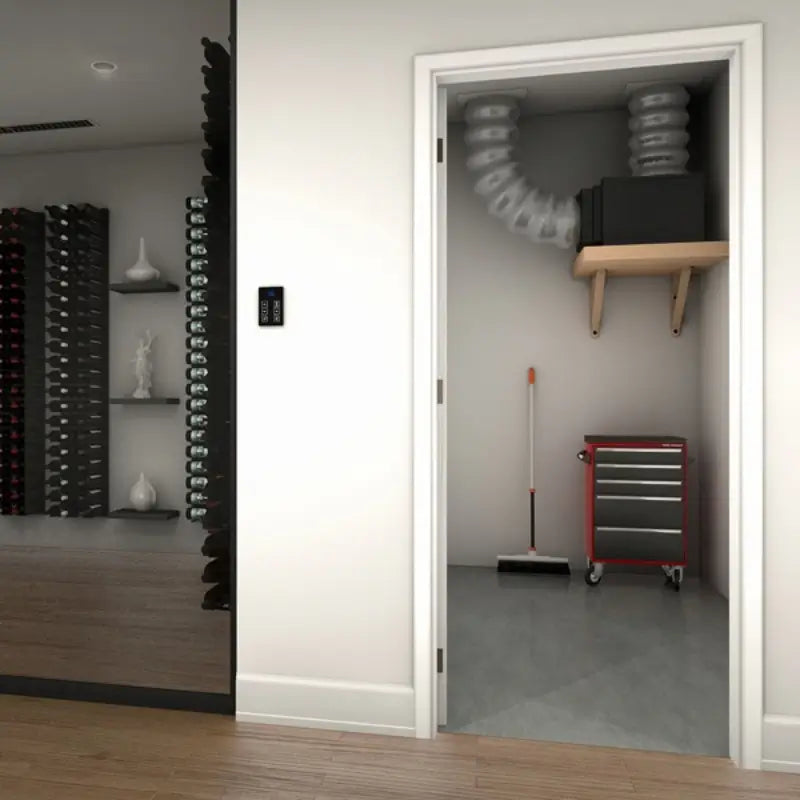

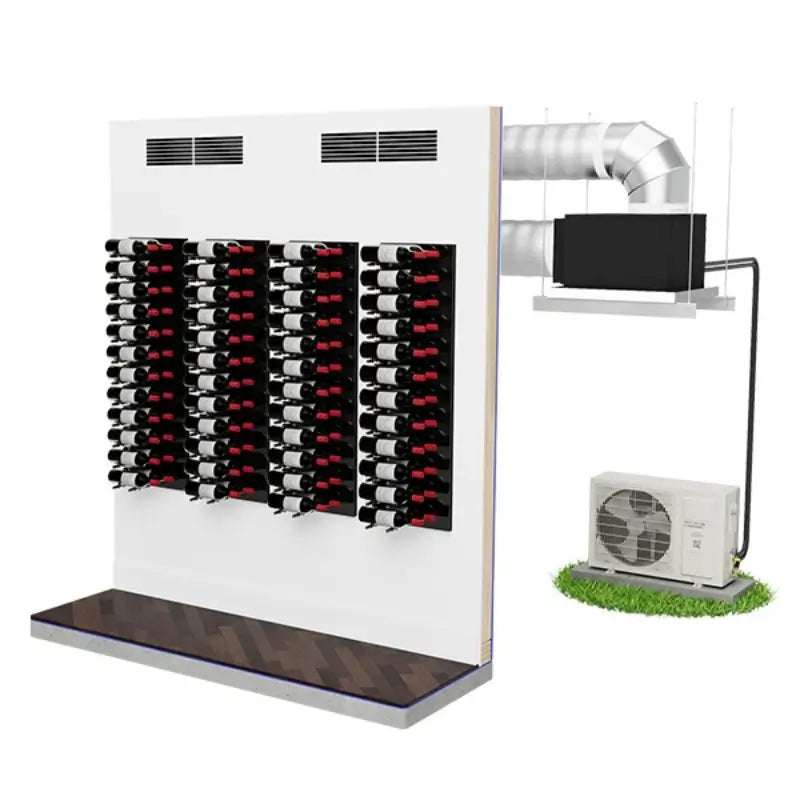

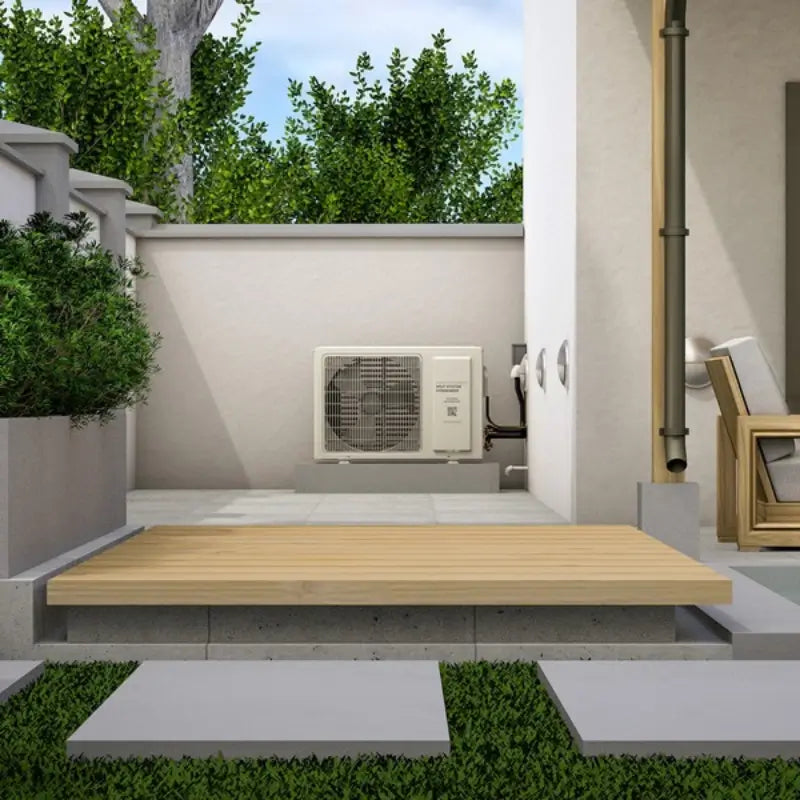

A split system is a cooling unit wherein the evaporator unit and condensing unit have been “split” into two separate units instead of being contained within the same housing. The evaporator unit is located in or near your cellar while the condensing unit is generally located outside, in an attic, or utility room.

The Quantum Series of cooling units are the highest-capacity units that we offer. KOOL your collection with our trusted name.

The Quantum V2 Series cooling units are our newest, most advanced cooling systems. The fully ducted split systems come in two sizes, 9000 BTUs and 12000 BTUs. Utilizing R-404a refrigerant, these systems have been designed to be installed outside in cold weather climates where temperatures get as low as -15 degrees Fahrenheit. Simple to install by a certified technician, our pump-down

technology does not require any wiring from the condensing unit to the evaporator unit. Features interchangeable panels which allow the installer to direct the airflow in the most efficient and convenient direction.

Features:

  • Fully ducted split system

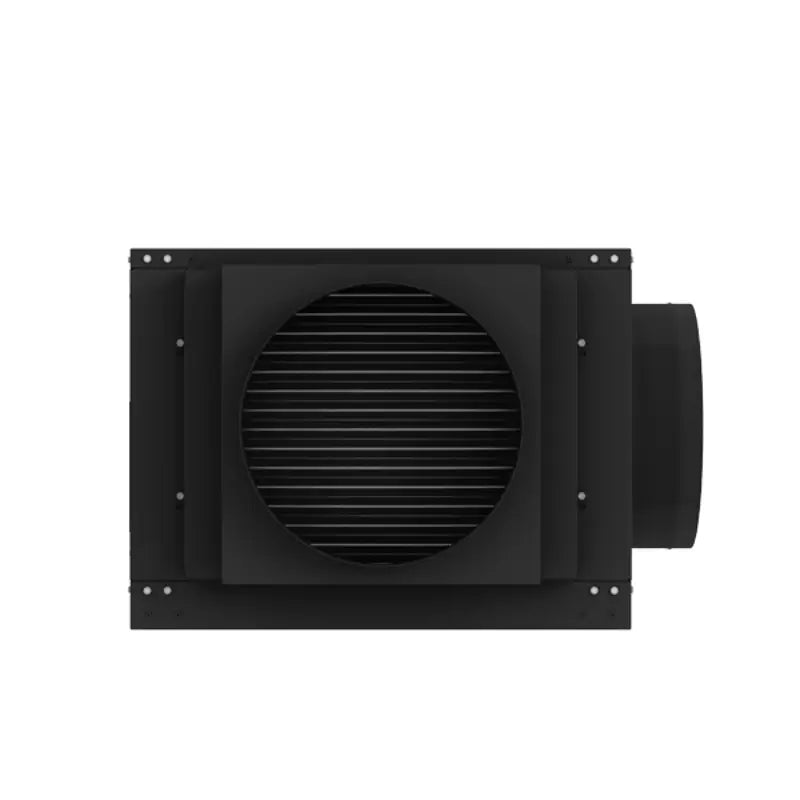

  • Interchangeable evaporator airflow panels
  • Includes a pump system to remove access condensation
  • Includes cold weather start kit
  • Electro-fin coated coils for protection against outgassing that occurs in cellars

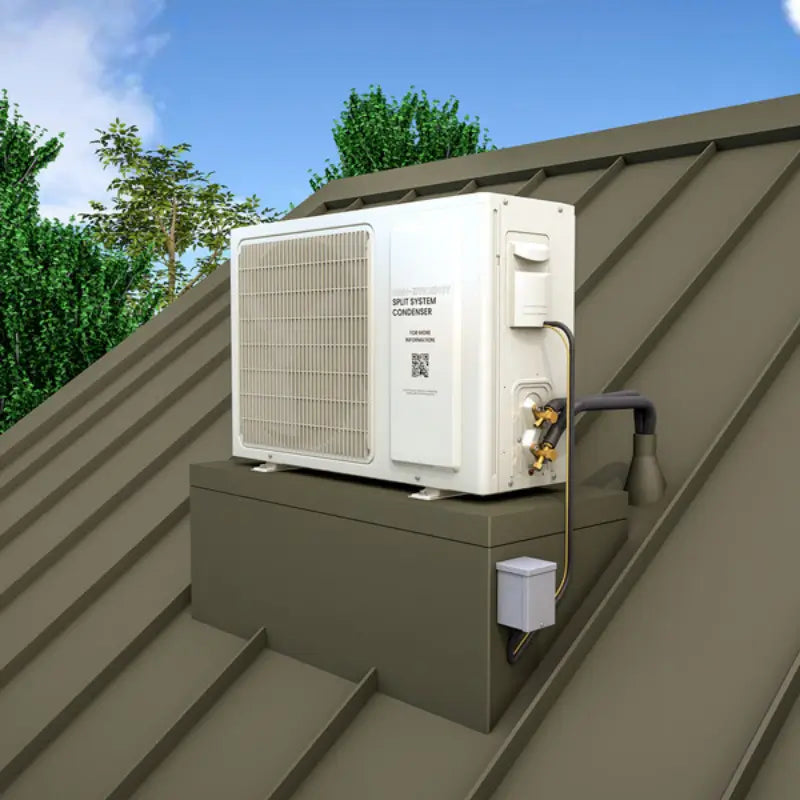

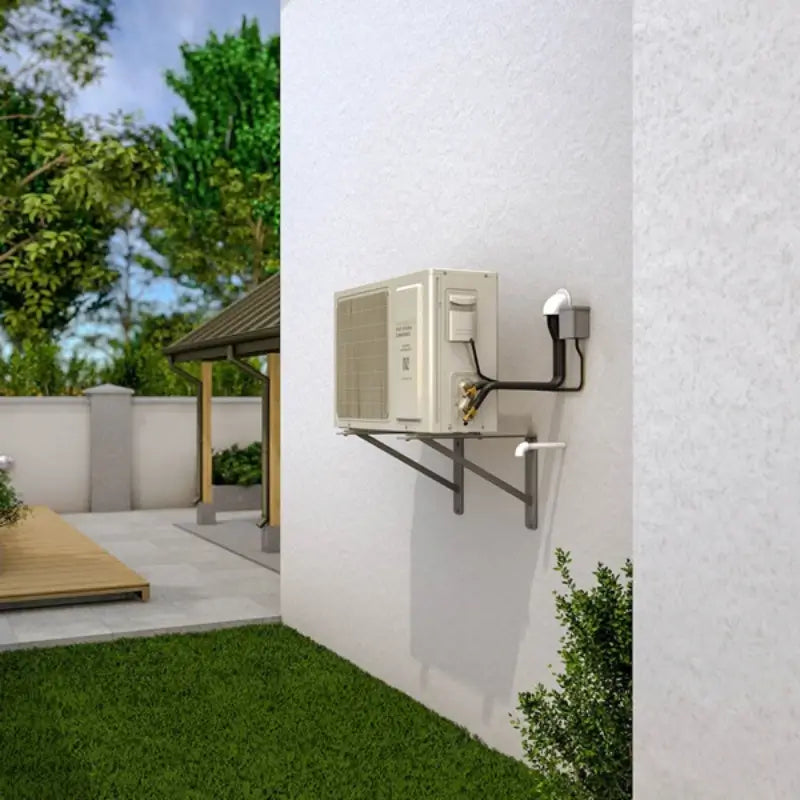

  • Condensing unit can be placed outdoors with purchase of exterior housing

24V Thermostat Conversion Kit (OPTIONAL)

Introducing our new 24-volt thermostat conversion kit for WhisperKOOL split systems! Utilize industry-leading technology from major manufacturers to monitor the environment of your cellar. (See individual thermostat manufacturers’ websites for details.)

  • Connect your thermostat to Wi‑Fi to control the temperature from your phone, tablet, or laptop.
  • Monitor run time and energy usage.
  • Set alarm notifications.
  • View your cellar conditions from your mobile device.

The use of the 24-volt thermostat conversion kit eliminates the thermostat normally included with the system and allows your contractor to select, purchase and install the thermostat technology of your choice, including but not limited to Nest, Ecobee, and Honeywell.

By selecting the 24V Thermostat Conversion Kit, you acknowledged that the system will not be built with the standard WhisperKOOL control or liquid measuring bottle probe. You will have to source and purchase your own 24V thermostat to run the equipment.

  • Not utilizing the thermostat from WhisperKOOL also eliminates the use of the bottle probe.
  • WhisperKOOL does not provide smart thermostats. Those must be purchased separately.
  • WhisperKOOL customer service staff do not provide technical support for customers’ selected thermostats.

Manuals:

Specifications:

Model: Quantum SS12000
Cellar Size:
Approx. 4000 cu.ft. when wine cellar is fully insulated and sealed with a proper vapor barrier
BTU/h (85°F condenser air intake temperature: 12530
Dimensions (L x W x H):

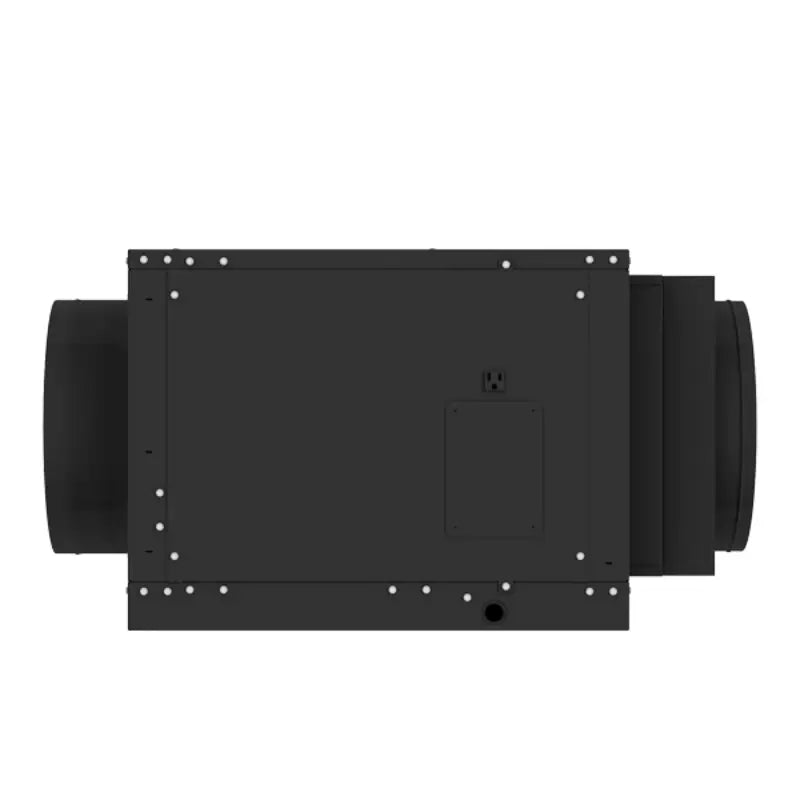

Evaporator: 29.5” x 30.9” x 19.8”

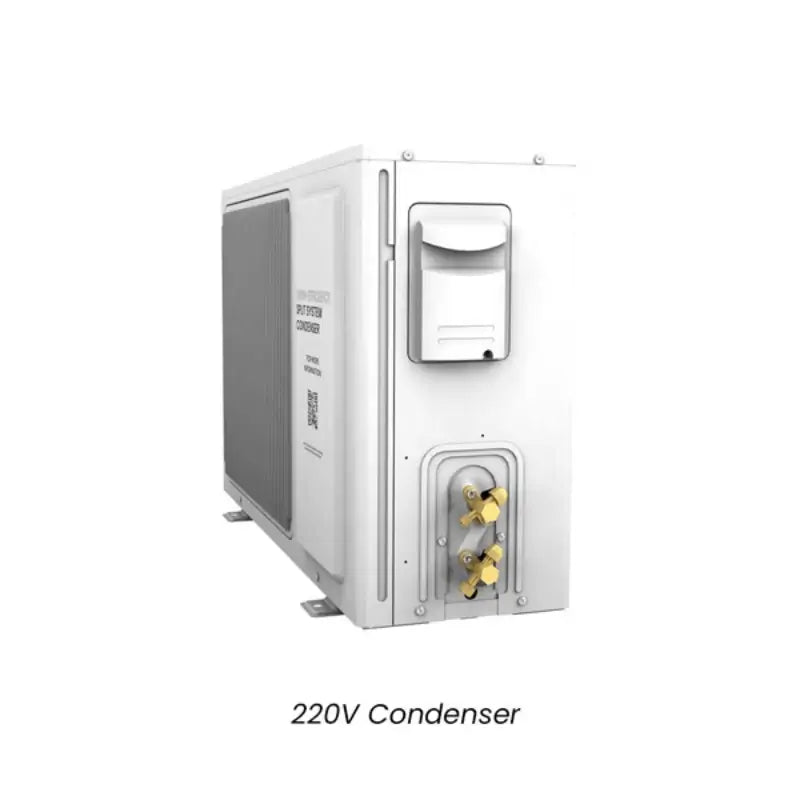

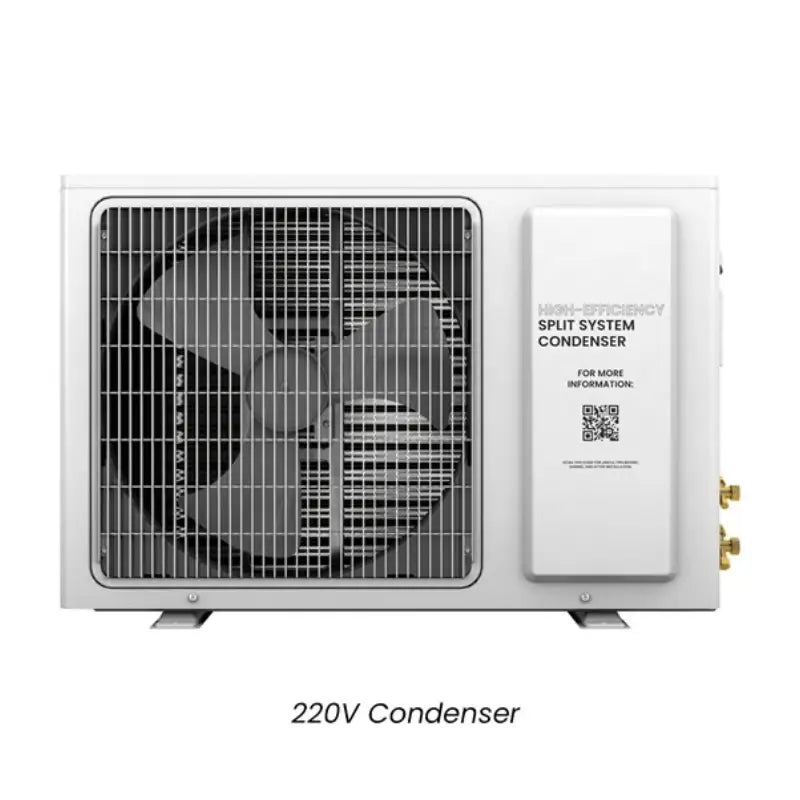

Condenser: 24” x 19.4” x 16.1”

Refrigerant: R-134a
HP: 1-1/4
Refrigeration Tons: 1
Voltage Rating:

Evaporator: 115V (15-amp dedicated circuit required),

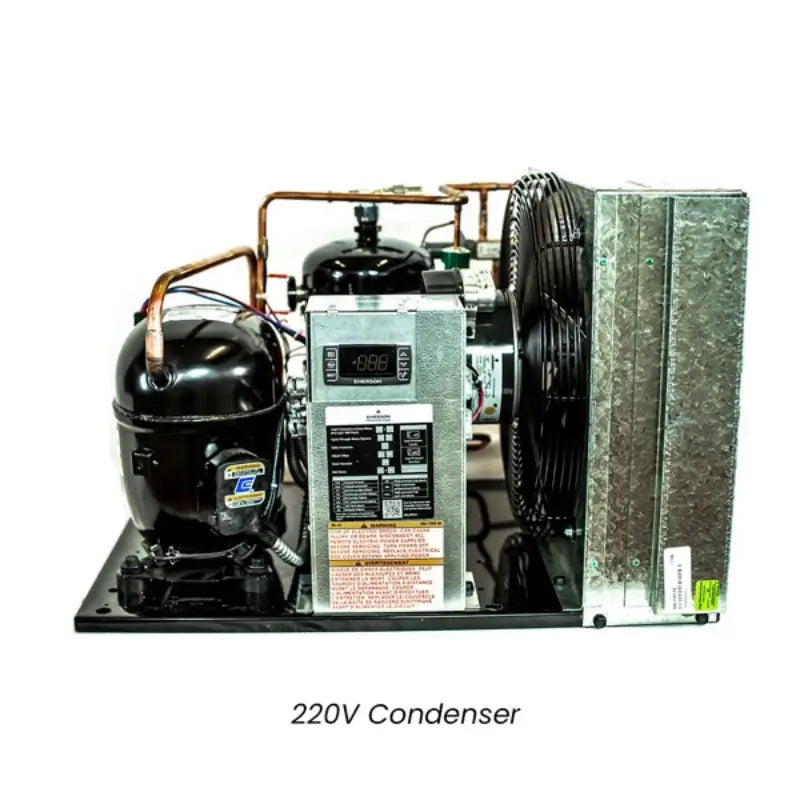

Condenser: 230V (15-amp dedicated circuit required)

Weight:

Evaporator: 96 lbs

Condenser: 85 lbs

Amps:

Evaporator: 3.2 (running amps)

Compressor: LRA 56, RLA 12

Line Set: Liquid line 3/8"; suction line 7/8"
Duct Size: 14" supply, 14" return
Drain Line: 3/4” ID CPVC
Installation: Evaporator can be installed up to 25 duct feet away from the cellar with 14” flex duct. Condensing unit can be installed up to 100 line feet from the evaporator unit.
Thermostat:

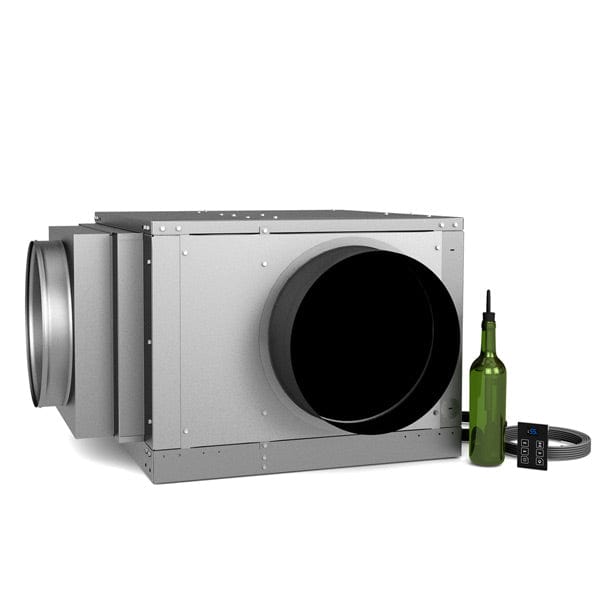

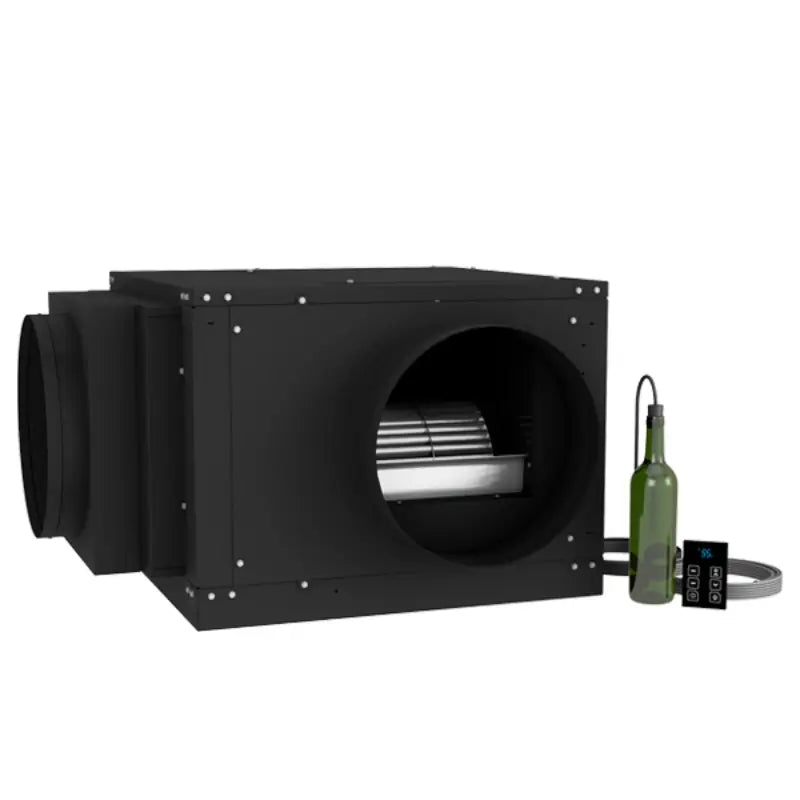

Advanced digital display (50- ft. cable), liquid-temperature-measuring bottle probe (50-ft. cable)
Temp. Delta: Can maintain a 55°F cellar temperature with up to 110°F condenser air intake temperature
Warranty:
Two-year limited warranty (parts and labor)
Buy the WhisperKOOL Quantum SS12000 Ducted Split System today and enjoy your amazing wines at its best temperature!

WhisperKOOL® Exterior Housing for Split Systems

  • Galvanized steel base and steel cabinet embossed — 20 GA, hinged access for easier servicing
  • Easily assembled in the shop or on the job
  • Rain Trough under hinge to catch moisture that might seep through the hinge
  • WhisperKOOL® provides fasteners
  • 20” W x 20” H x 27”D



Our exterior condenser housing protects the condenser portion of the split system from the elements when installed outdoors. Exterior Condenser Housing is used with the Platinum Mini Split, Ductless Platinum Split, and Ducted Platinum Split cooling units.



WhisperKOOL® Extreme Ducting Plenum

  • Ducting plenum for the evaporator and condenser of the Extreme ti
  • Duct the evaporator or condenser side of the unit to ­fit your installation needs
  • Small is compatible with Extreme 3500ti and 5000ti
  • Large is compatible with Extreme 8000ti
  • WhisperKOOL® provides fasteners



Sizes available for the 3500ti, 5000ti, and 8000ti. This plenum allows either side of the unit to be ducted. Duct the cold air through a vent into the cellar, duct the hot exhaust air out of the home. This plenum allows for total installation flexibility.



WhisperKOOL® Extreme Exterior Grille

  • Protects your Extreme ti through-the-wall unit from the elements of weather
  • Small is compatible with 3500ti and 5000ti
  • Large is compatible with 8000ti
  • WhisperKOOL® provides ½” pan-head screws



The Exterior Grille protects the exhaust side of the system from the weather elements when installed through an exterior wall.



WhisperKOOL® SC Exterior Grille

  • Protects your SC through-the-wall unit from the elements of weather
  • Small is compatible with 2000i, 3000i, and 4000i
  • Large is compatible with 6000i and 8000i
  • WhisperKOOL® provides ½” pan-head screws



The Exterior Grille protects the exhaust side of the system from the weather elements when installed through an exterior wall.



WhisperKOOL® SC Ducting Kit

  • Small is compatible with 2000i, 3000i, and 4000i

  • Large is compatible with 6000i and 8000i

  • ONLY the exhaust side of the SC can be ducted

  • WhisperKOOL® does not provide ducting



This kit allows the warm exhaust air to be ducted to another area. Ideal if the room adjacent to your cellar is not ideal for warm air to be exhausted into. The kit includes the Thermostat Controller, which will turn on and push warm exhaust air away from the ducting (not included). The in-line fan can be set to automatically turn on at varying temperatures in order to conserve the most electricity.



Small Duct works on the SC 2000i/3000i/4000i and XLT 1600/3000/4200. Kit includes:



  • Duct Plenum
  • Transition with integrated heat sensor
  • 8″ In-line fan
  • 8″ Adjustable Elbow



Large Duct works on the SC 6000i/8000i and XLT 6000/8000. Kit includes:



  • Duct Plenum
  • Transition with integrated heat sensor
  • 8″ In-line fan with transitions to 8″
  • 8″ Adjustable Elbow
