WhisperKOOL Quantum SS9000 Ducted Split System Review
When the wine cellar is fully insulated and sealed with a proper vapor barrier (each wine cellar is unique and has specific cooling requirements; heat load calculations should always be performed prior to selecting a cooling unit), the WhisperKOOL Quantum SS9000 Ducted Split System can accommodate approximately 3000 cu.ft. cellar size.

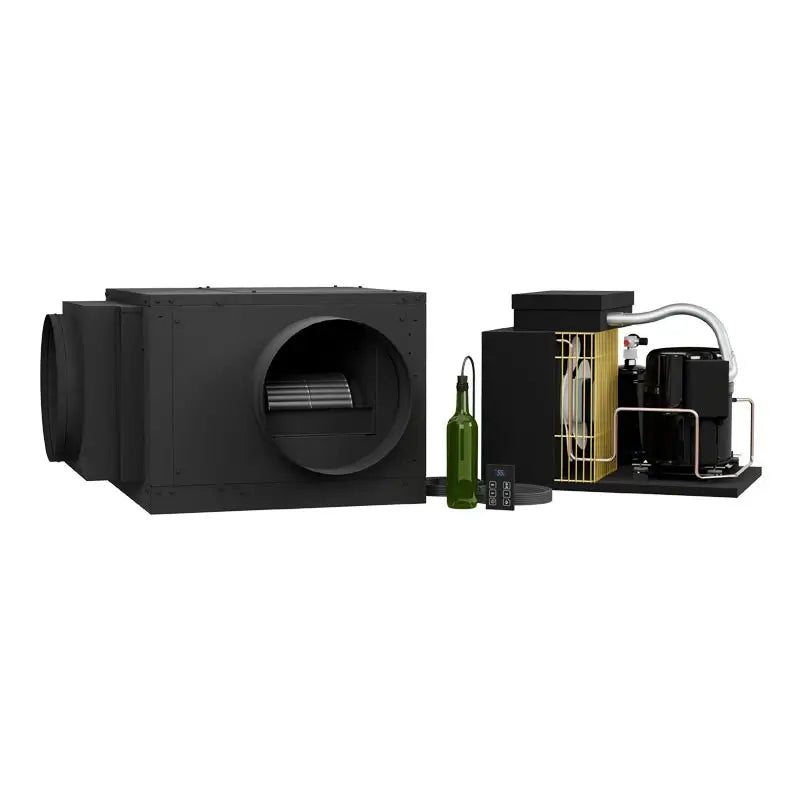

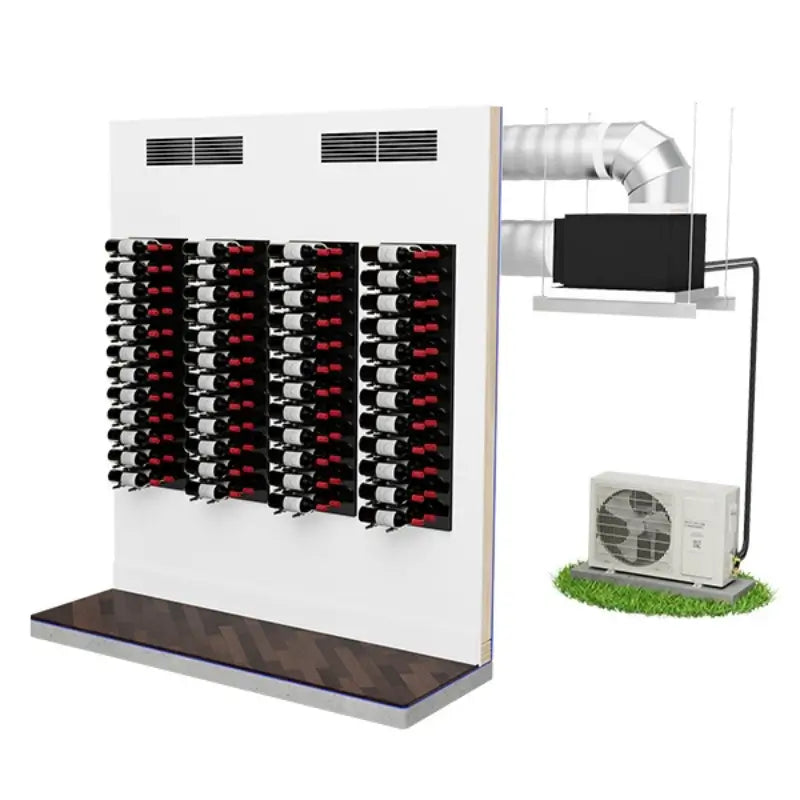

A split system is a cooling unit wherein the evaporator unit and condensing unit have been “split” into two separate units instead of being contained within the same housing. The evaporator unit is located in or near your cellar while the condensing unit is generally located outside, in an attic, or utility room.
WhisperKOOL Quantum Series is the highest-capacity units that we offer.

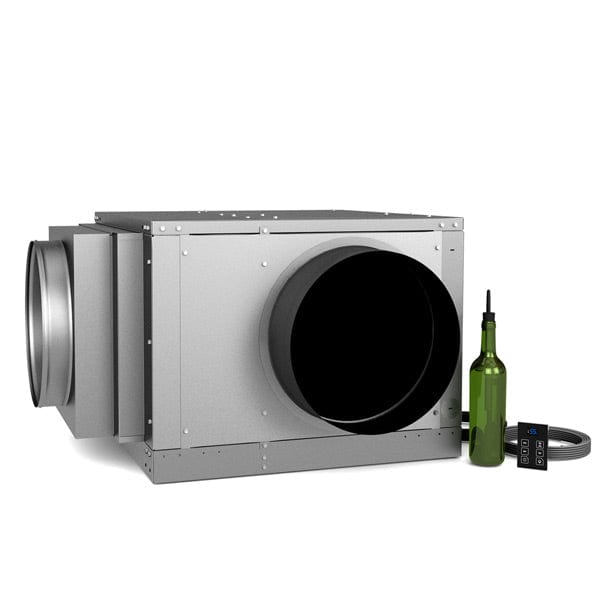

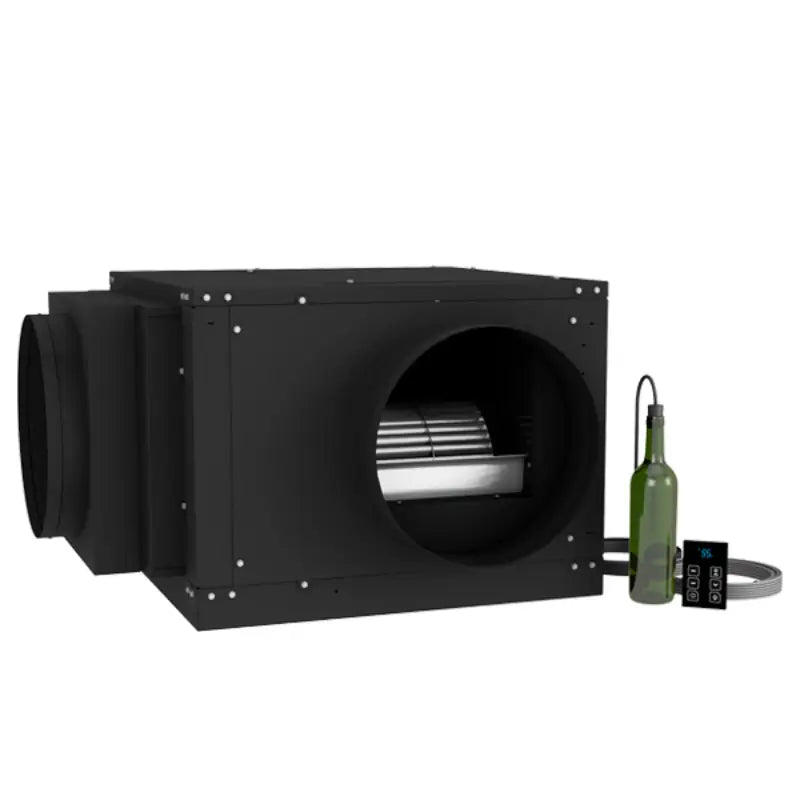

WhisperKOOL Quantum SS9000 is designed to handle larger and more challenging wine cellars. These wine storage cooling units include multiple ducting options which allow ease and flexibility of installation as well as accessibility. Utilizing R-404a refrigerant, this cooling unit is designed to be installed outside in cold weather climates where temperatures get as low as -15°F. The condenser can be ducted up to 25ft creating a virtually quiet cellar environment. While the evaporator coil is coated with electro fin coating to minimize corrosion.
Features:
- Fully ducted split system

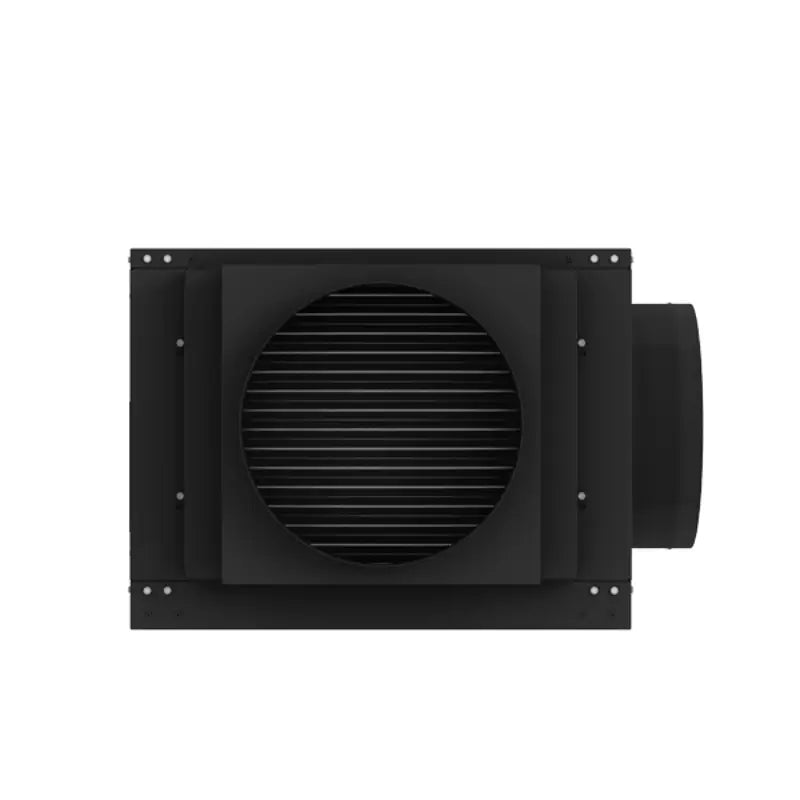

- Interchangeable evaporator airflow panels
- Includes a pump system to remove access condensation
- Includes cold weather start kit
- Electro-fin coated coils for protection against outgassing that occurs in cellars

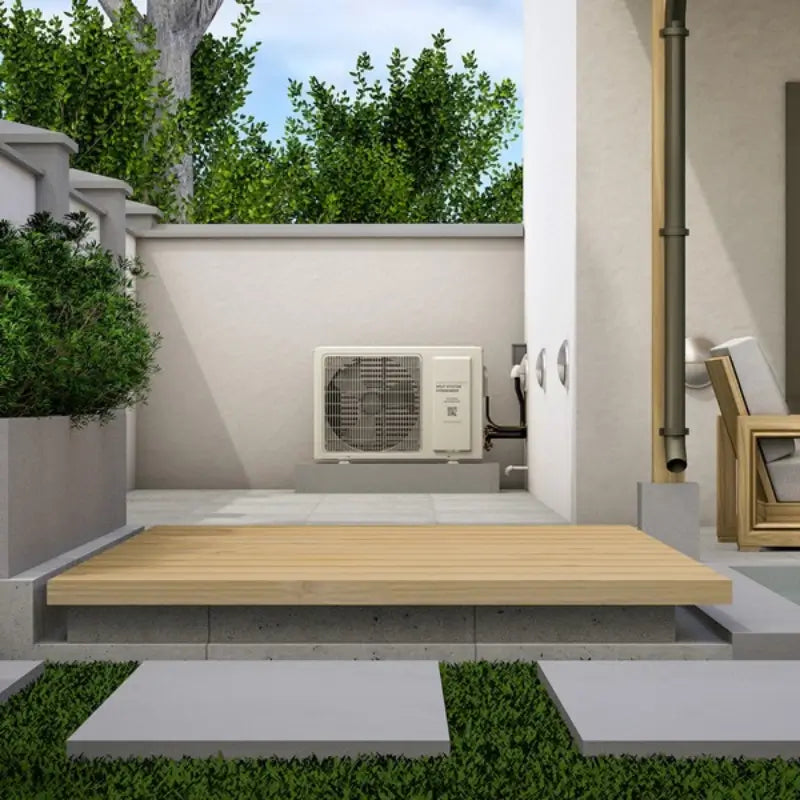

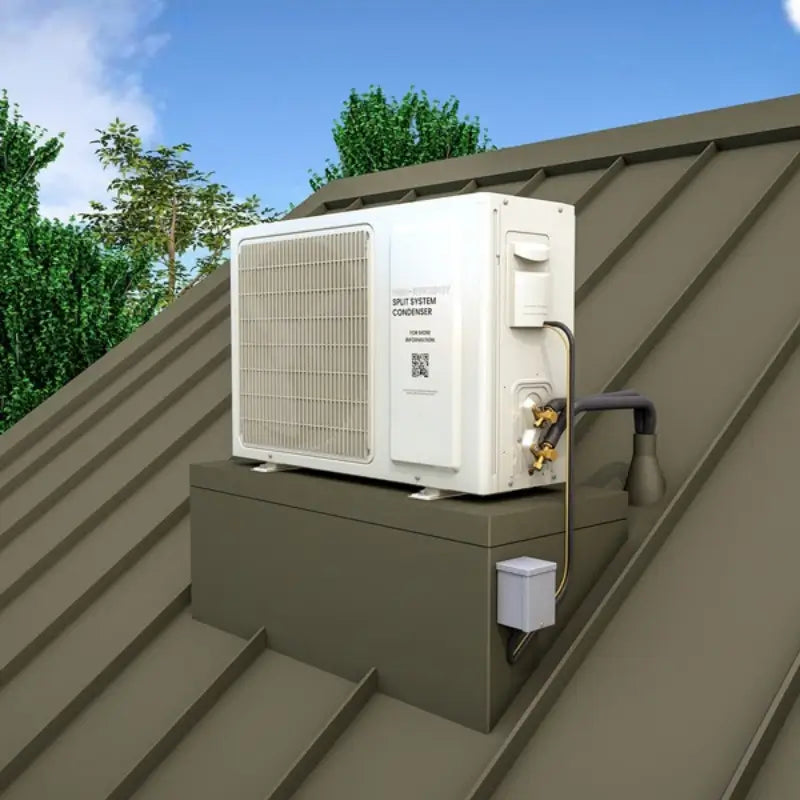

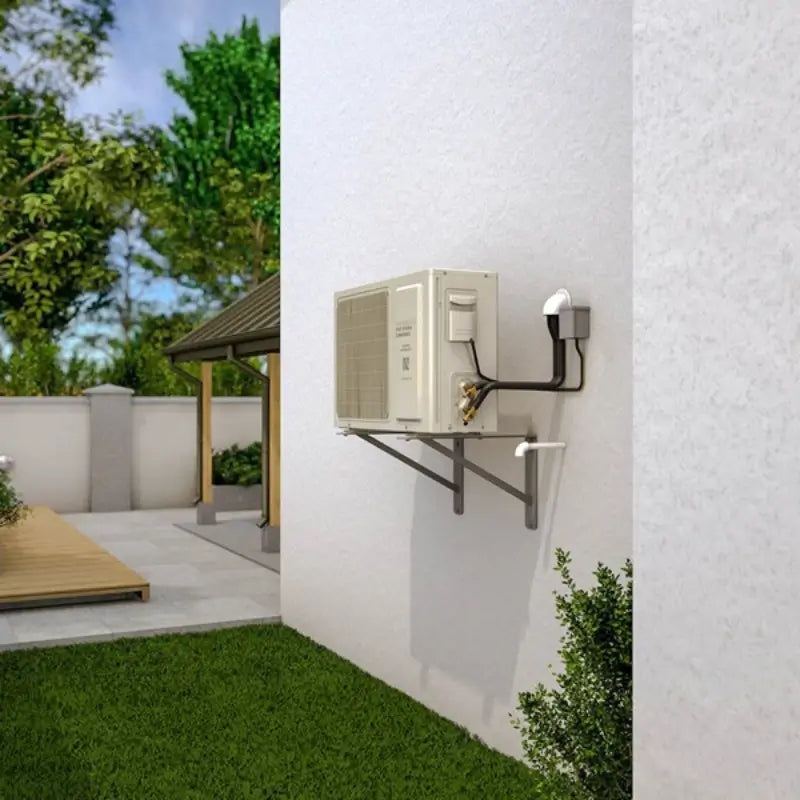

- Condensing unit can be placed outdoors with purchase of exterior housing
Manuals:
Available in Quantum SS9000 for 3000 cu.ft. wine cellar and Quantum SS12000 for 4000 cu.ft wine cellar.
Specifications:
| Model: | Quantum SS9000 |
|
Cellar Size: |
Approx. 3000 cu.ft. when wine cellar is fully insulated and sealed with a proper vapor barrier |
| BTU/h (85°F condenser air intake temperature: | 9572 |
|
Dimensions (L x W x H): |

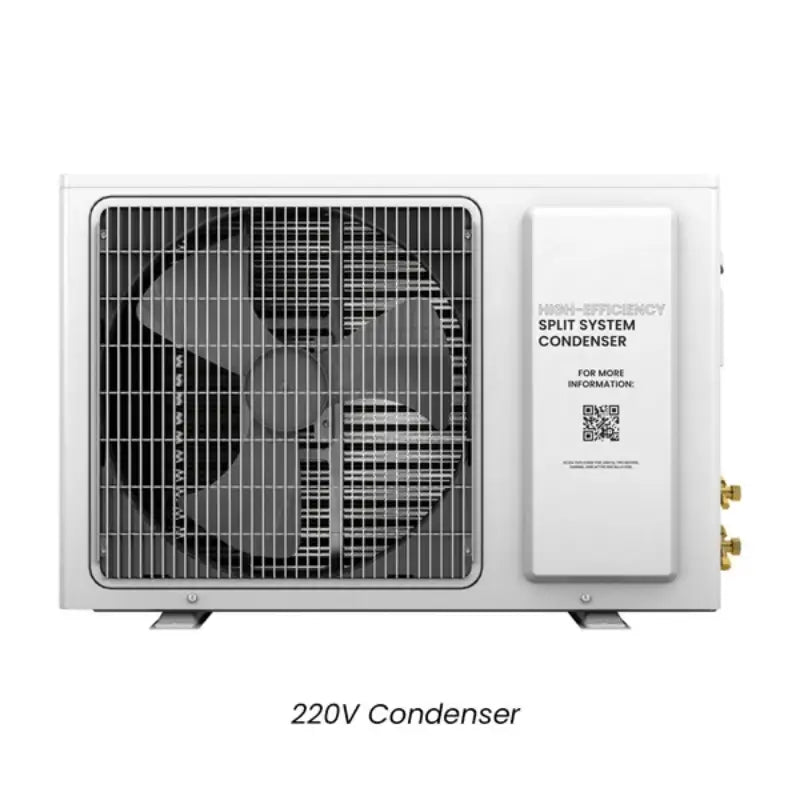

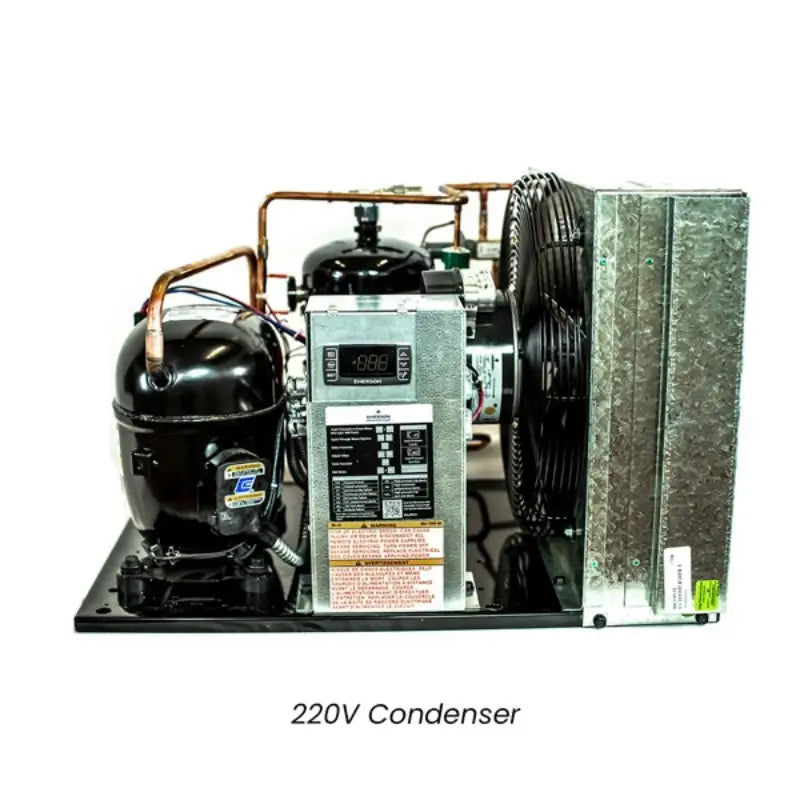

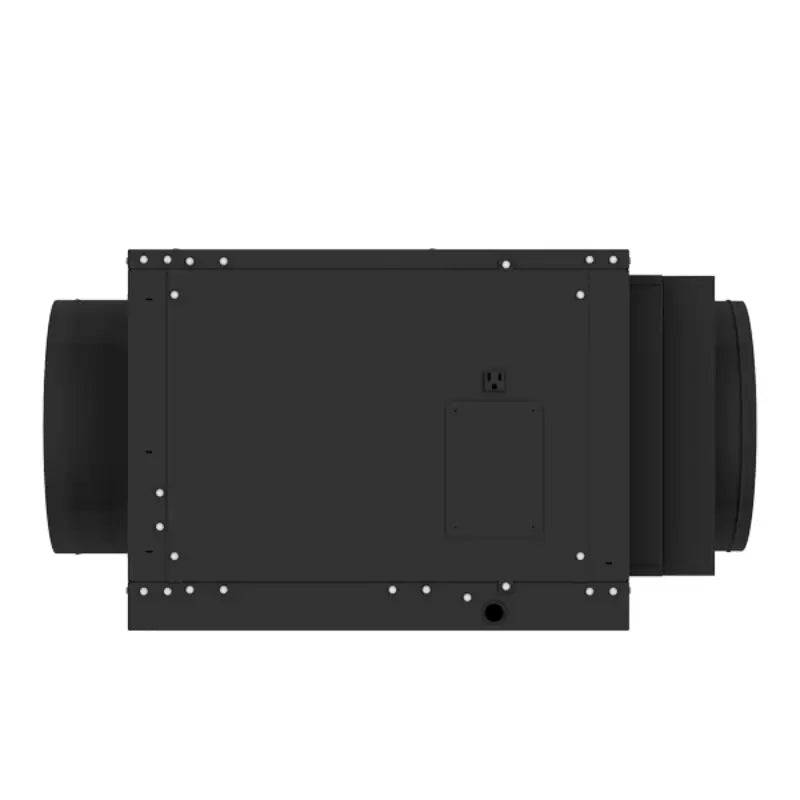

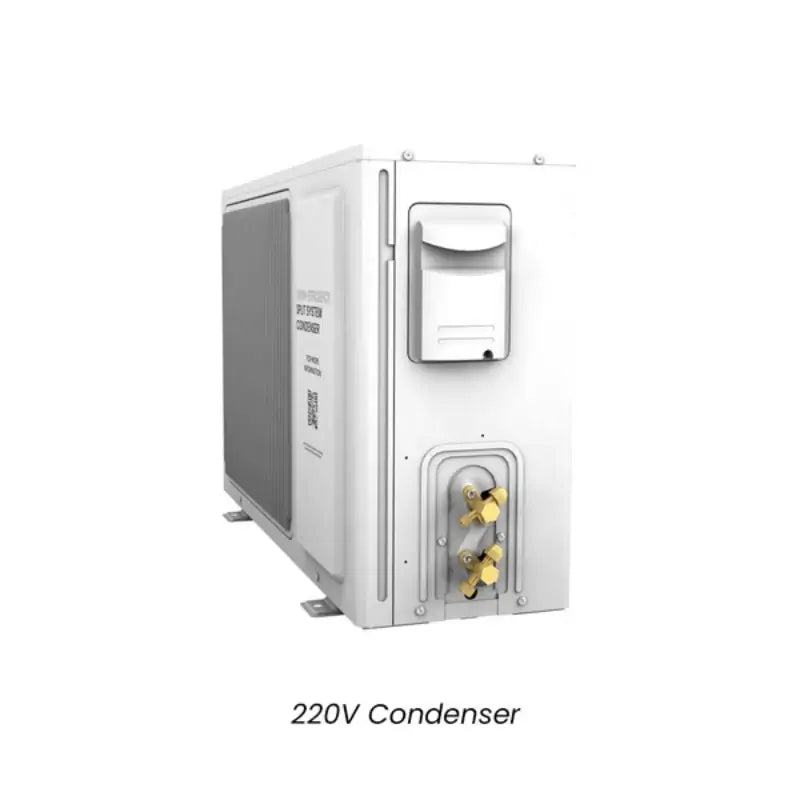

Evaporator: 29.5” x 30.9” x 19.8” Condenser: 24” x 18.98" x 16.16" |
| Refrigerant: | R-134a |
| HP: | 3/4 |
| Refrigeration Tons: | 0.79 |
| Voltage Rating: |
Evaporator: 115V (15-amp dedicated circuit required), Condenser: 230V (15-amp dedicated circuit required) |
| Weight: |
Evaporator: 96 lbs Condenser: 75 lbs |
| Amps: |
Evaporator: 3.2 (running amps) Compressor: LRA 35, RLA 6.5 |
| Line Set: | Liquid line 3/8"; suction line 3/4" (less than 50-ft.), 7/8" (greater than 50-ft.) |
| Duct Size: | 14" supply, 14" return |
| Drain Line: | 3/4” ID CPVC |

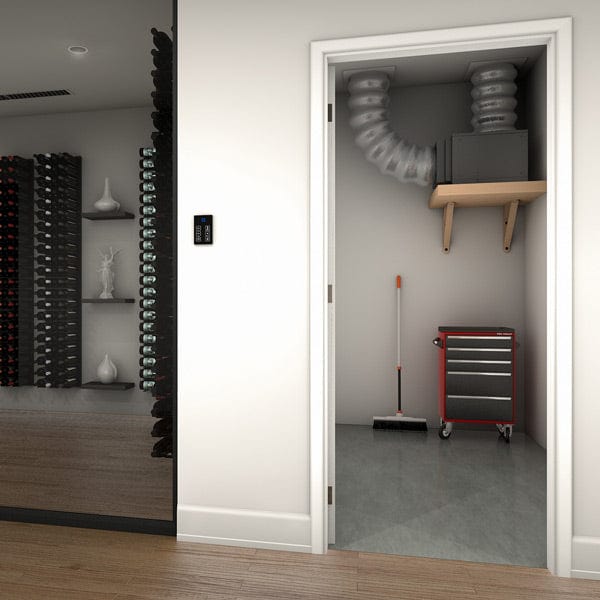

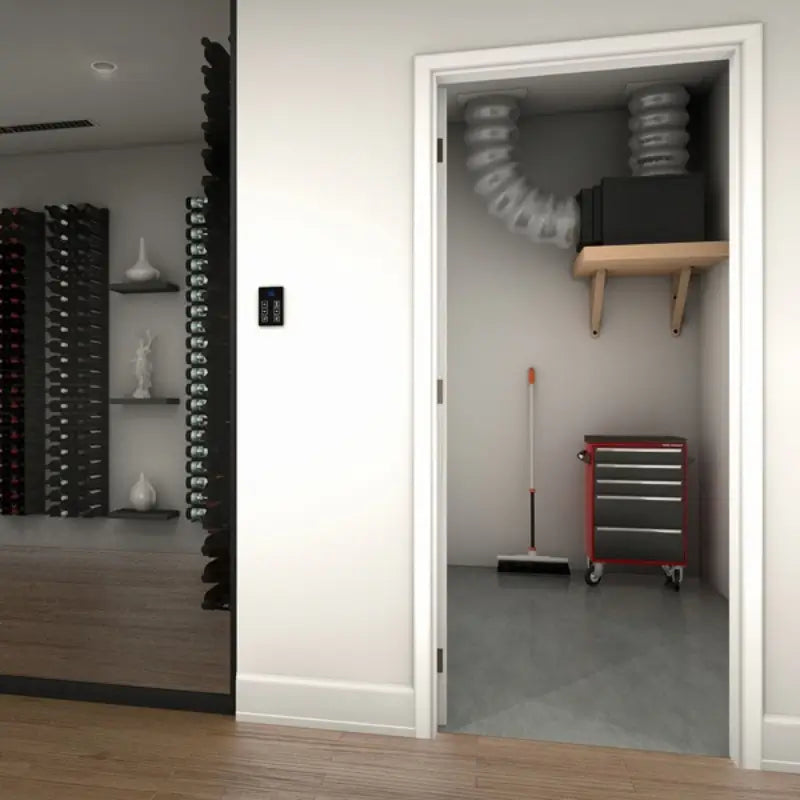

| Installation: | Evaporator can be installed up to 25 duct feet away from the cellar with a 14” flex duct. Condensing unit can be installed up to 100 line feet from the evaporator unit. |
|
Thermostat: |

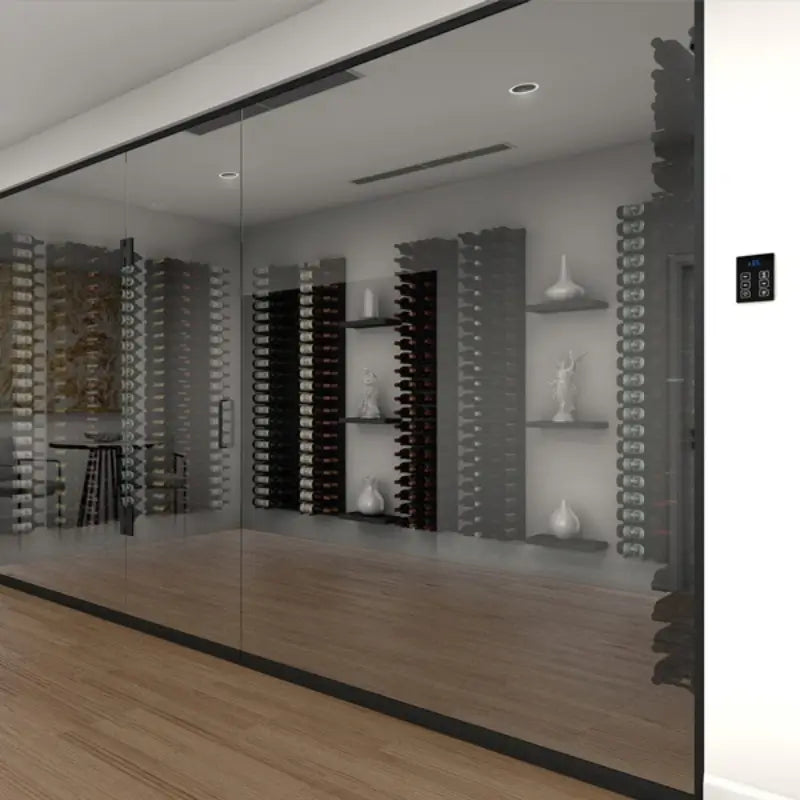

Advanced digital display (50- ft. cable), liquid-temperature-measuring bottle probe (50-ft. cable) |
| Temp. Delta: | Can maintain a 55°F cellar temperature with up to 110°F condenser air intake temperature |
|
Warranty: |
Two-year limited warranty (parts and labor) |
Do you have a different size wine cellar? Or just want to check your options? Check out other WhisperKOOL Quantum Ducted Split Cooling Units now! You can also browse our other Ducted Split Wine Cellar Coolers.
24V Thermostat Conversion Kit (OPTIONAL)
Introducing our new 24-volt thermostat conversion kit for WhisperKOOL split systems! Utilize industry-leading technology from major manufacturers to monitor the environment of your cellar. (See individual thermostat manufacturers’ websites for details.)
- Connect your thermostat to Wi‑Fi to control the temperature from your phone, tablet, or laptop.
- Monitor run time and energy usage.
- Set alarm notifications.
- View your cellar conditions from your mobile device.
The use of the 24-volt thermostat conversion kit eliminates the thermostat normally included with the system and allows your contractor to select, purchase and install the thermostat technology of your choice, including but not limited to Nest, Ecobee, and Honeywell.
By selecting the 24V Thermostat Conversion Kit, you acknowledged that the system will not be built with the standard WhisperKOOL control or liquid measuring bottle probe. You will have to source and purchase your own 24V thermostat to run the equipment.
- Not utilizing the thermostat from WhisperKOOL also eliminates the use of the bottle probe.
- WhisperKOOL does not provide smart thermostats. Those must be purchased separately.
- WhisperKOOL customer service staff do not provide technical support for customers’ selected thermostats.
Buy WhisperKOOL Quantum SS9000 Ducted Split System today and enjoy your amazing wines at their best temperature!
WhisperKOOL® Exterior Housing for Split Systems
Our exterior condenser housing protects the condenser portion of the split system from the elements when installed outdoors. Exterior Condenser Housing is used with the Platinum Mini Split, Ductless Platinum Split, and Ducted Platinum Split cooling units.
- Galvanized steel base and steel cabinet embossed — 20 GA, hinged access for easier servicing
- Easily assembled in the shop or on the job
- Rain Trough under hinge to catch moisture that might seep through the hinge
- WhisperKOOL® provides fasteners
- Dimensions (W x H x D): 20” x 20” x 27”
WhisperKOOL® Extreme Ducting Plenum
Sizes available for the 3500ti, 5000ti, and 8000ti. This plenum allows either side of the unit to be ducted. Duct the cold air through a vent into the cellar, duct the hot exhaust air out of the home. This plenum allows for total installation flexibility.
- Ducting plenum for the evaporator and condenser of the Extreme ti
- Duct the evaporator or condenser side of the unit to fit your installation needs
- Small is compatible with Extreme 3500ti and 5000ti
- Large is compatible with Extreme 8000ti
- WhisperKOOL® provides fasteners
WhisperKOOL® Extreme Exterior Grille
The Exterior Grille protects the exhaust side of the system from the weather elements when installed through an exterior wall.
- Protects your Extreme ti through-the-wall unit from the elements of weather
- Small is compatible with 3500ti and 5000ti
- Large is compatible with 8000ti
- WhisperKOOL® provides ½” pan-head screws
WhisperKOOL® SC Exterior Grille
The Exterior Grille protects the exhaust side of the system from the weather elements when installed through an exterior wall.
- Protects your SC through-the-wall unit from the elements of weather
- Small is compatible with 2000i, 3000i, and 4000i
- Large is compatible with 6000i and 8000i
- WhisperKOOL® provides ½” pan-head screws
WhisperKOOL® SC Ducting Kit
This kit allows the warm exhaust air to be ducted to another area. Ideal if the room adjacent to your cellar is not ideal for warm air to be exhausted into. The kit includes the Thermostat Controller, which will turn on and push warm exhaust air away from the ducting (not included). The in-line fan can be set to automatically turn on at varying temperatures in order to conserve the most electricity.
- Small is compatible with 2000i, 3000i, and 4000i
- Large is compatible with 6000i and 8000i
- ONLY the exhaust side of the SC can be ducted
- WhisperKOOL® does not provide ducting
Small Duct works on the SC 2000i/3000i/4000i and XLT 1600/3000/4200. Kit includes:
- Duct Plenum
- Transition with integrated heat sensor
- 8″ In-line fan
- 8″ Adjustable Elbow
Large Duct works on the SC 6000i/8000i and XLT 6000/8000. Kit includes:
- Duct Plenum
- Transition with integrated heat sensor
- 8″ In-line fan with transitions to 8″
- 8″ Adjustable Elbow
