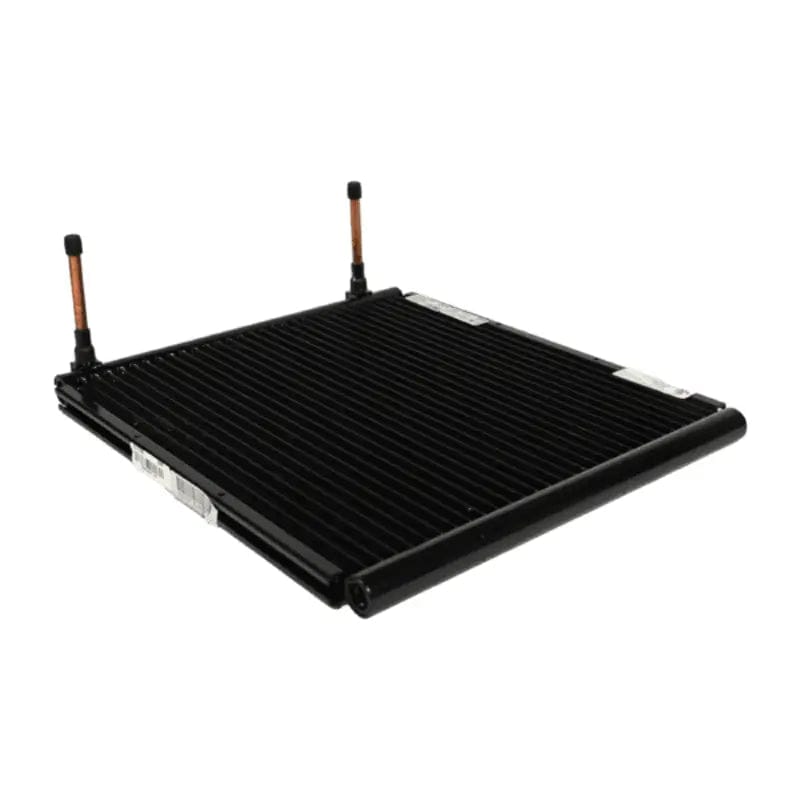

Wine Guardian Condenser Coil for TTW Defender Series 53H0063-01

The Wine Guardian Condenser Coil 53H0063-01 is the genuine replacement condenser coil that Wine Guardian lists specifically for the Defender trim of its TTW01, TTW02 and TTW04 through-the-wall wine cellar cooling units, where it is the coil that rejects heat on the warm side of the sealed refrigeration circuit.

This number is one digit away from the coil used by the other two trims, and the digit is the whole difference. Classic and Sentinel units take the 53H0063-00 Classic and Sentinel condenser coil; only Defender takes this one. If your data plate does not read Defender, order the other number. As an authorized Wine Guardian dealer we supply genuine Wine Guardian parts.

Wine Guardian publishes this coil as a condenser coil scoped to one trim across all three size classes: Defender TTW01, TTW02 and TTW04. The manufacturer's parts listing for this number carries no weight or dimension table, so none is published here.

Wine Guardian lists 53H0063-01 for the Defender trim of TTW01, TTW02 and TTW04. The Classic and Sentinel trims are excluded and carry their own condenser coil number.

On this store the Defender units this coil serves are the TTW01B Defender, the TTW02B Defender and the TTW04B Defender. Defender is the trim Wine Guardian specifies with the ultra quiet and exterior wall package, and it is the trim boundary that decides this part number.

Wine Guardian writes the coil scope as TTW01, TTW02 and TTW04 and names the Classic, Sentinel and Defender trims alongside it. The current units are sold as TTW01B, TTW02B and TTW04B, so read the full model designation from your unit's data plate and match it against Wine Guardian's published parts list before ordering rather than assuming the short form.

The scope spans the 1,000 BTU class through the 3,500 BTU class, so this coil crosses the cellar-size bands rather than belonging to one and no single cellar-size collection describes it. A coil is part of the sealed refrigeration circuit of the unit, so fitting a replacement is work for a licensed HVAC professional or qualified refrigeration contractor working to Wine Guardian's official service documentation.

A Defender unit carries a trim-specific condenser coil and a trim-neutral evaporator coil, which is why only one of its two coils changes with trim. The Classic and Sentinel condenser coil is the 53H0063-00. On the evaporator side Defender shares parts with the other trims: TTW01 and TTW02 take the 53H0080-01 and TTW04 takes the 53H0081-01.
