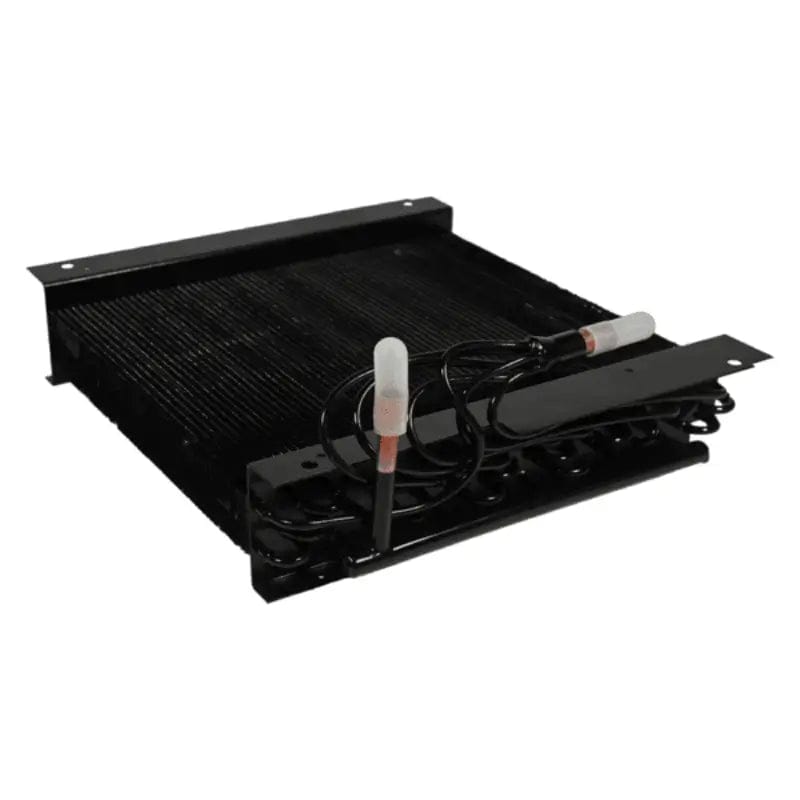

Wine Guardian Evaporator Coil for TTW01 and TTW02 53H0080-01

The Wine Guardian Evaporator Coil 53H0080-01 is the genuine replacement evaporator coil that Wine Guardian lists for all TTW01 and TTW02 through-the-wall units across the Classic, Sentinel and Defender trims, where it is the cold coil that takes heat out of the air returning from the cellar.

Wine Guardian scopes this coil to the platform rather than to a trim, and writes the scope as all TTW01 and TTW02 in Classic, Sentinel and Defender. That is the opposite of how the condenser coil in the same units is scoped, which does split by trim. The boundary that matters here is size: a TTW04 takes the 53H0081-01 evaporator coil instead. As an authorized Wine Guardian dealer we supply genuine Wine Guardian parts.

Wine Guardian publishes this coil against a platform rather than a trim, covering two size classes and all three trims of each. The manufacturer's parts listing for this number carries no weight or dimension table, so none is published here.

Wine Guardian lists 53H0080-01 for all TTW01 and TTW02 units and names all three trims explicitly, so trim does not change the part on the evaporator side. Only the step up to TTW04 changes it.

On this store that is six units: the TTW01B Classic, TTW01B Sentinel and TTW01B Defender, and the TTW02B Classic, TTW02B Sentinel and TTW02B Defender. All six sit in the small cellar band, up to 1,200 cubic feet.

Wine Guardian writes the coil scope as TTW01, TTW02 and TTW04 and names the Classic, Sentinel and Defender trims alongside it. The current units are sold as TTW01B, TTW02B and TTW04B, so read the full model designation from your unit's data plate and match it against Wine Guardian's published parts list before ordering rather than assuming the short form.

The earlier through-the-wall models are a separate case. Wine Guardian lists the TTW009 and TTW018 against the 53H0068-01 evaporator coil, not this one, so an older through-the-wall unit is not covered by this number. A coil is part of the sealed refrigeration circuit of the unit, so fitting a replacement is work for a licensed HVAC professional or qualified refrigeration contractor working to Wine Guardian's official service documentation.

Two rules govern the four TTW coil numbers. On the evaporator side size decides it and trim does not, so the step to TTW04 means the 53H0081-01. On the condenser side trim decides it and size does not, so Classic and Sentinel take the 53H0063-00 and Defender takes the 53H0063-01.
