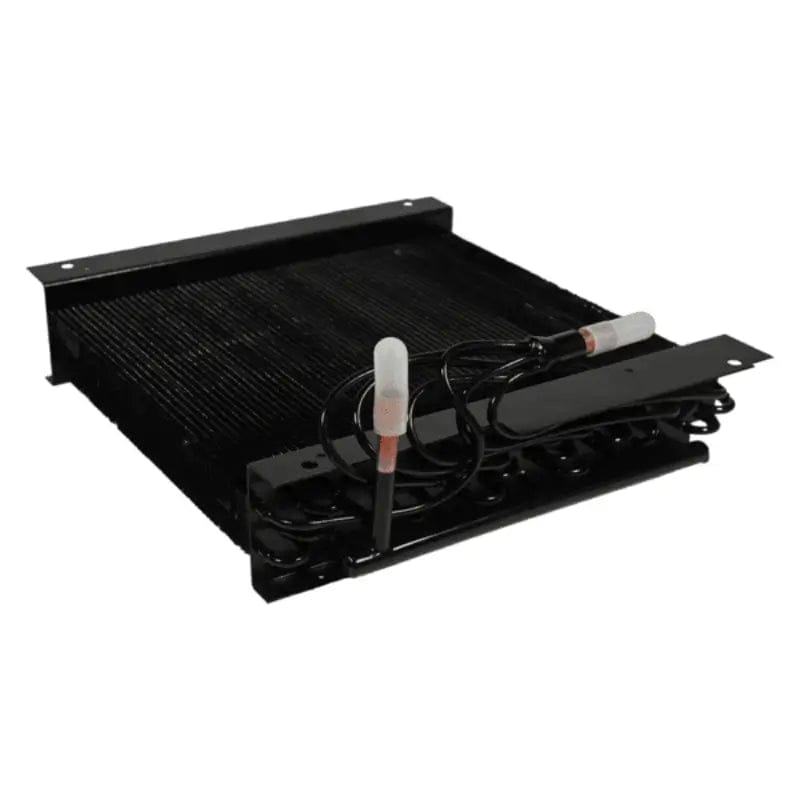

Wine Guardian Evaporator Coil for TTW04 53H0081-01

The Wine Guardian Evaporator Coil 53H0081-01 is the genuine replacement evaporator coil that Wine Guardian lists for all TTW04 through-the-wall units across the Classic, Sentinel and Defender trims, where it is the cold coil that takes heat out of the air returning from the cellar.

Wine Guardian's own product listing for this number is titled for all TTW04 in Classic, Sentinel and Defender, which makes the scope unusually explicit: the largest through-the-wall class, every trim of it. The smaller classes are the exclusion. TTW01 and TTW02 take the 53H0080-01 evaporator coil instead. As an authorized Wine Guardian dealer we supply genuine Wine Guardian parts.

Wine Guardian publishes this coil against one size class and all three trims of it. The manufacturer's parts listing for this number carries no weight or dimension table, so none is published here.

Wine Guardian lists 53H0081-01 for all TTW04 units and names Classic, Sentinel and Defender in the listing title itself, so trim does not change the part. The smaller through-the-wall classes are excluded.

On this store that is three units: the TTW04B Classic, the TTW04B Sentinel and the TTW04B Defender. All three sit in the medium cellar band, 1,200 to 2,200 cubic feet, which is one band above the TTW01 and TTW02 units.

Wine Guardian writes the coil scope as TTW01, TTW02 and TTW04 and names the Classic, Sentinel and Defender trims alongside it. The current units are sold as TTW01B, TTW02B and TTW04B, so read the full model designation from your unit's data plate and match it against Wine Guardian's published parts list before ordering rather than assuming the short form.

The earlier through-the-wall models are not covered by this number. Wine Guardian lists the TTW009 and TTW018 against the 53H0068-01 evaporator coil instead. A coil is part of the sealed refrigeration circuit of the unit, so fitting a replacement is work for a licensed HVAC professional or qualified refrigeration contractor working to Wine Guardian's official service documentation.

The smaller classes take the 53H0080-01 on the evaporator side, and on the condenser side the split is by trim rather than by size: Classic and Sentinel units take the 53H0063-00 and Defender units take the 53H0063-01, in all three size classes.
