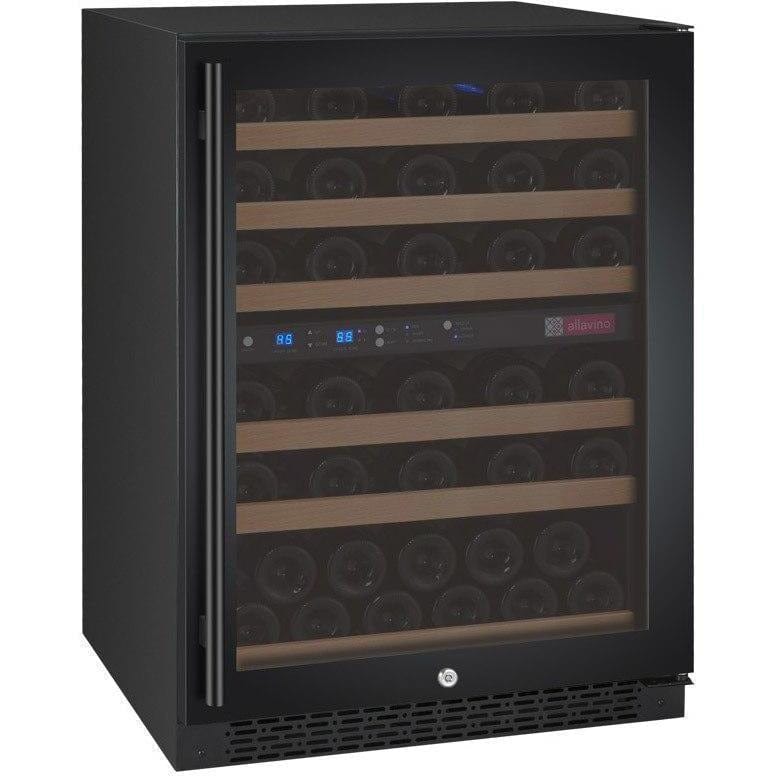

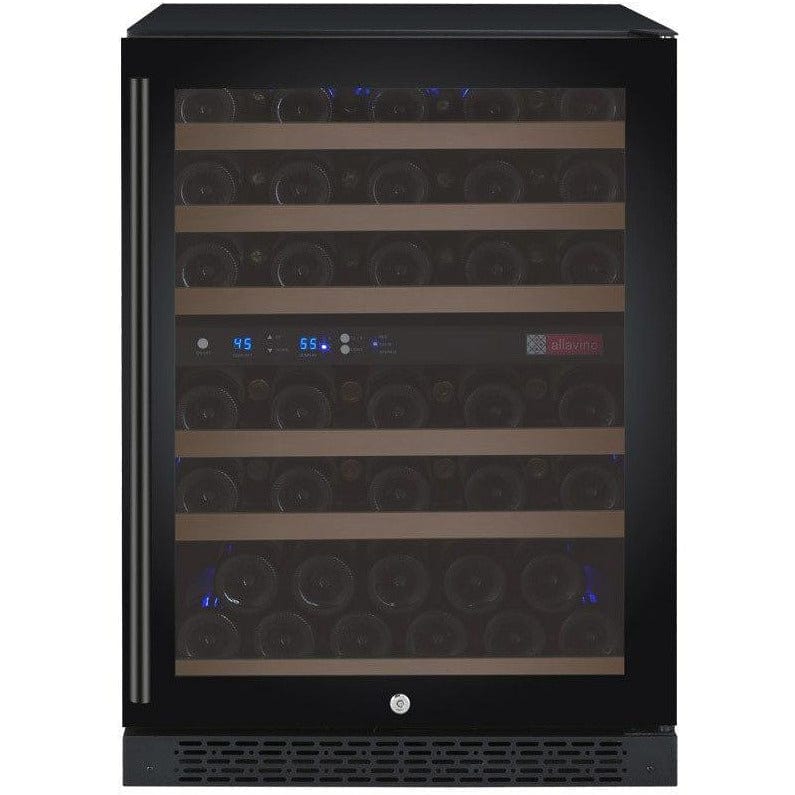

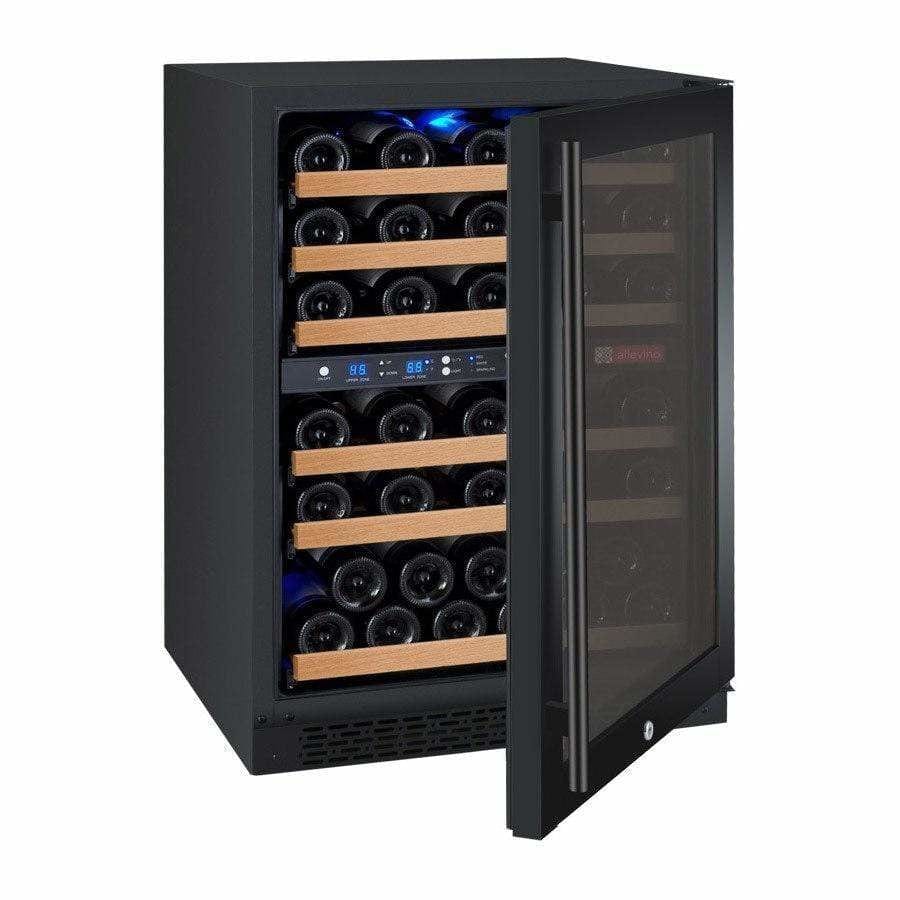

Black Cabinet and Door Frame with both Towel Bar and Curved Handle Options Included
All black interior:
All black interior emulates the look of a traditional wine cellar
Cool Blue Lighting:
Elegant cool blue LED lighting illuminates the interior without the heat created by incandescent bulbs

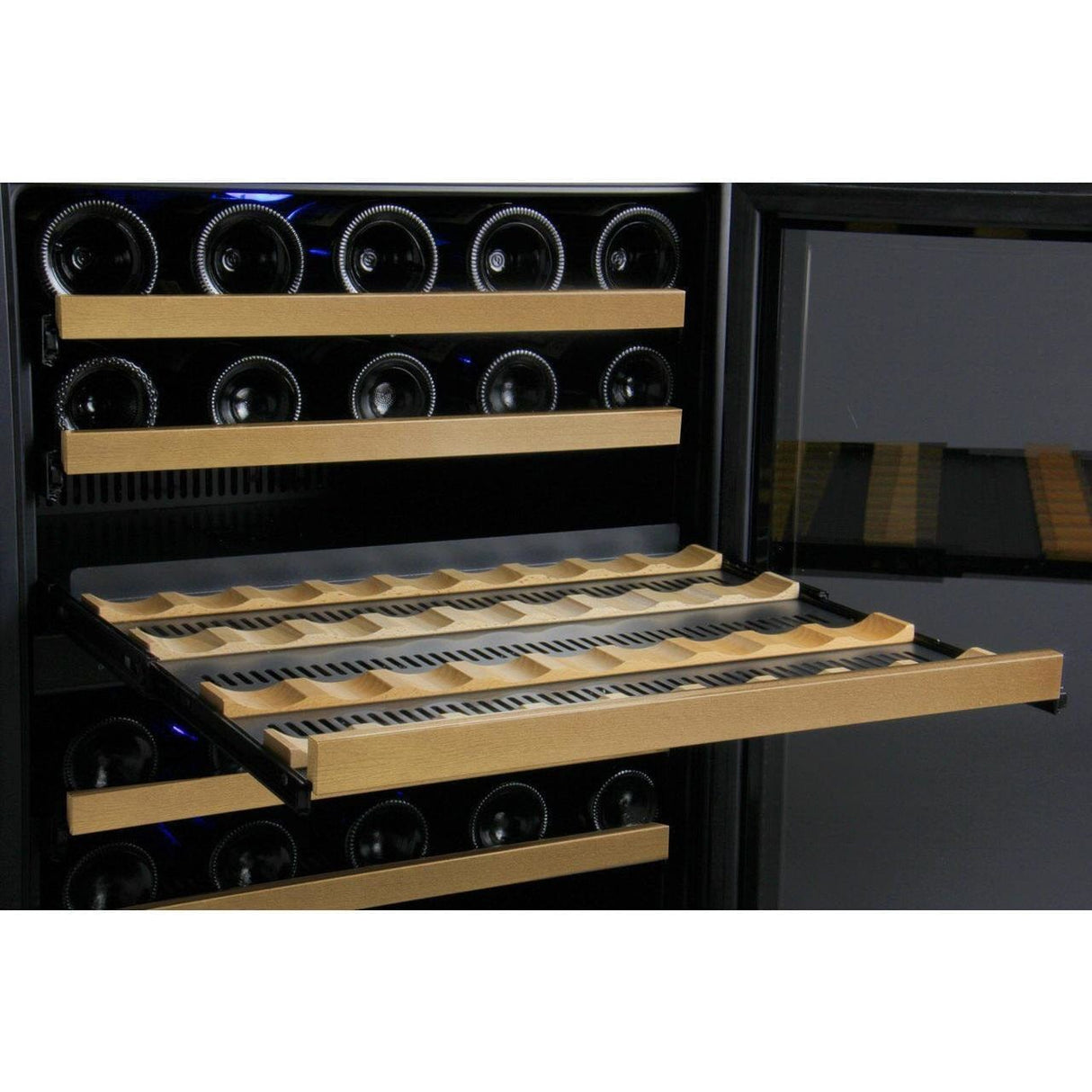

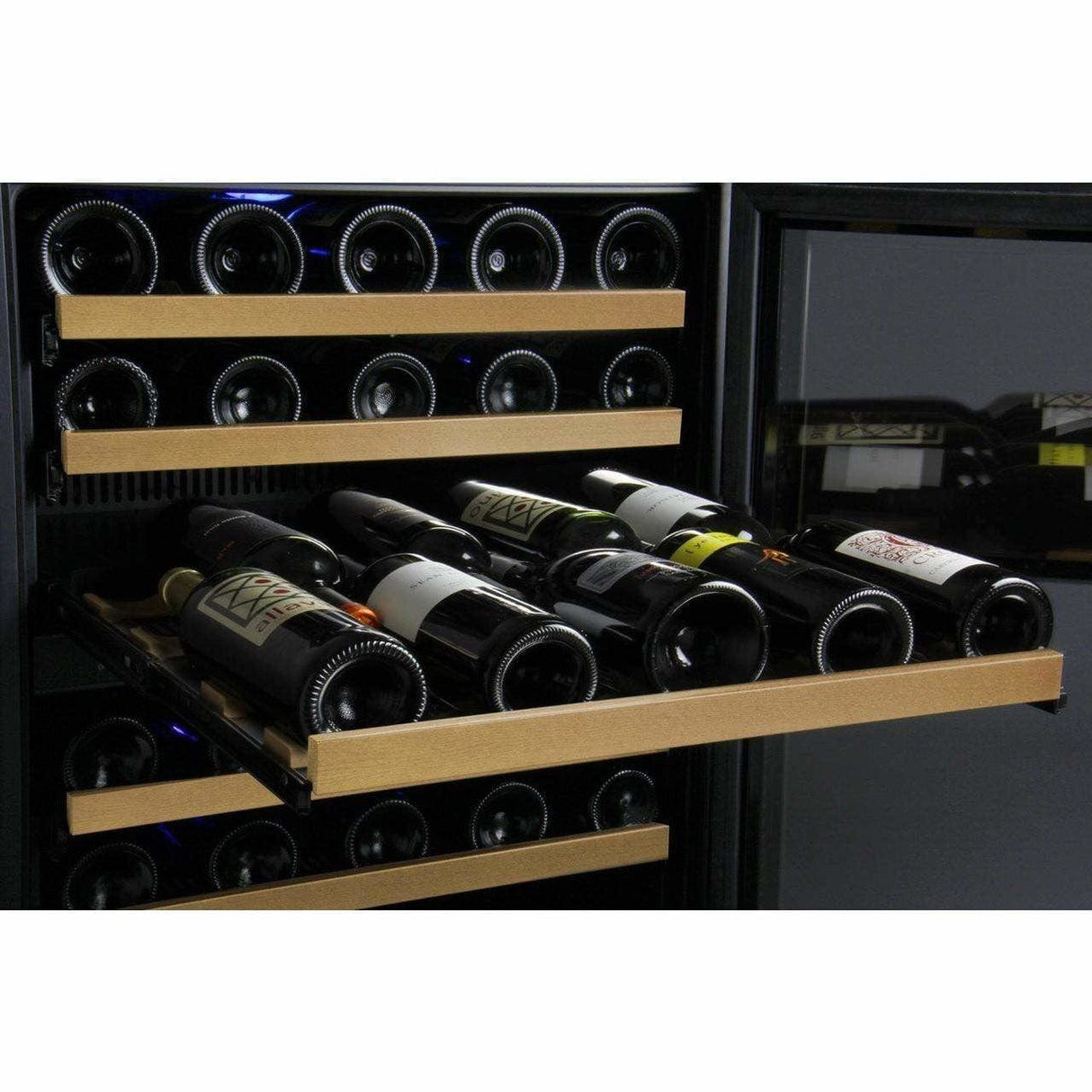

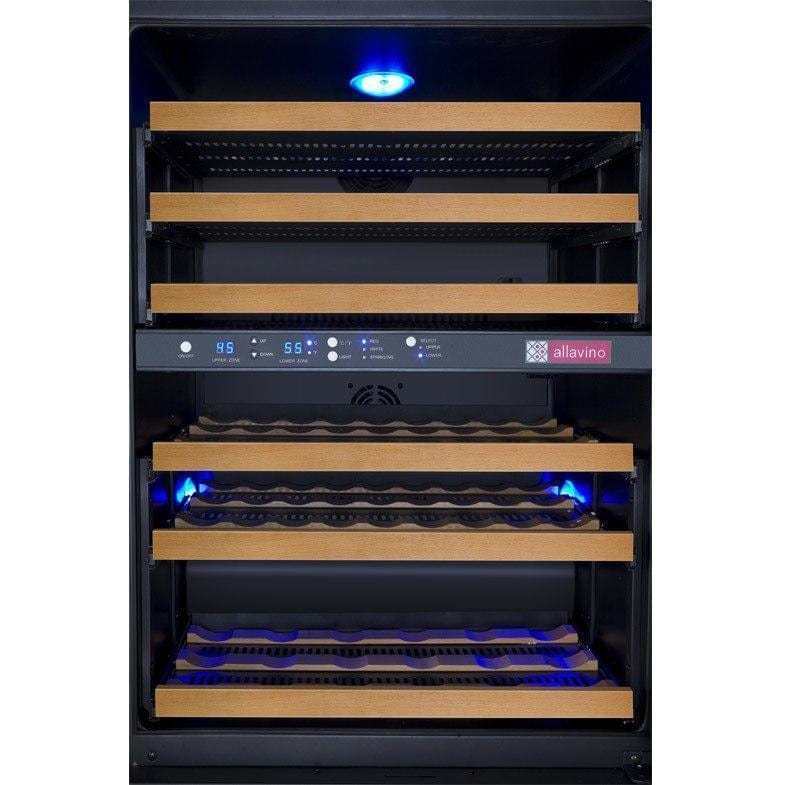

Smooth-glide shelving minimizes agitation to your wine
Internal fans circulate the air, providing even, consistent cooling and faster cooldown
25% More Energy Efficient Design:
Saves you money each month!

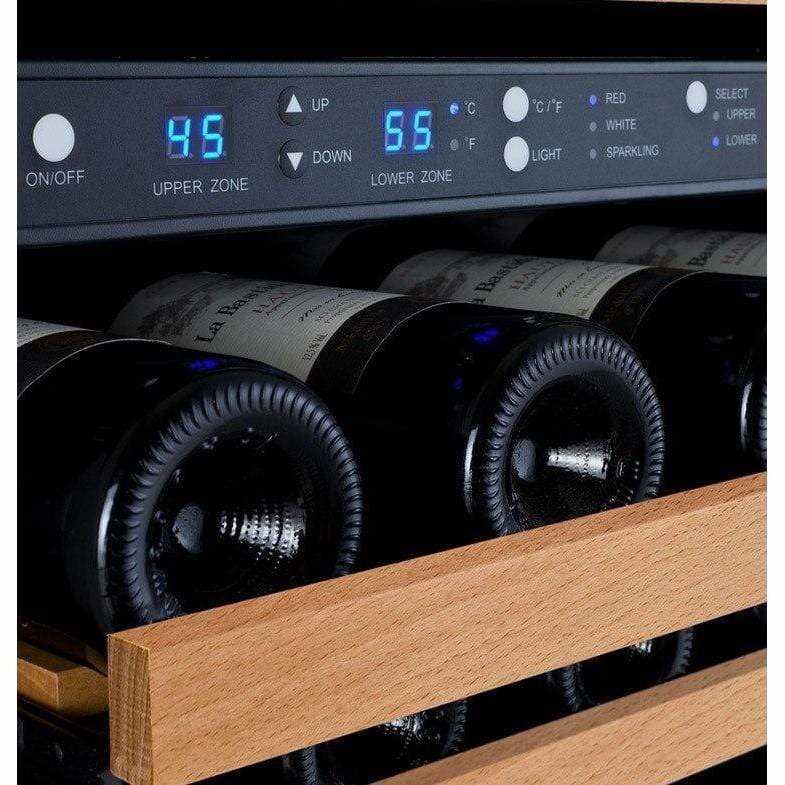

- Two independently controlled temperature zones:
- Upper Zone: The temperature setting can be adjusted between 41°F to 61°F
- Lower Zone: The temperature setting can be adjusted between 45°F to 64°F
Note: The lower zone must be set at least 4° and no more than 12° higher than upper zone. It is normal for there to be a 3-5° variance between the top and bottom of a zone.
- Maximum Ambient Temperature: 90°F
- Minimum Ambient Temperature: The lowest temperature you want to store your wine at. The unit does not have a heater, so if the ambient temperature is lower than the set temperature, the internal temperature will match the external temperature.
- Please Note: The handles are not attached to the unit during shipping, and will need to be installed when the unit arrives.

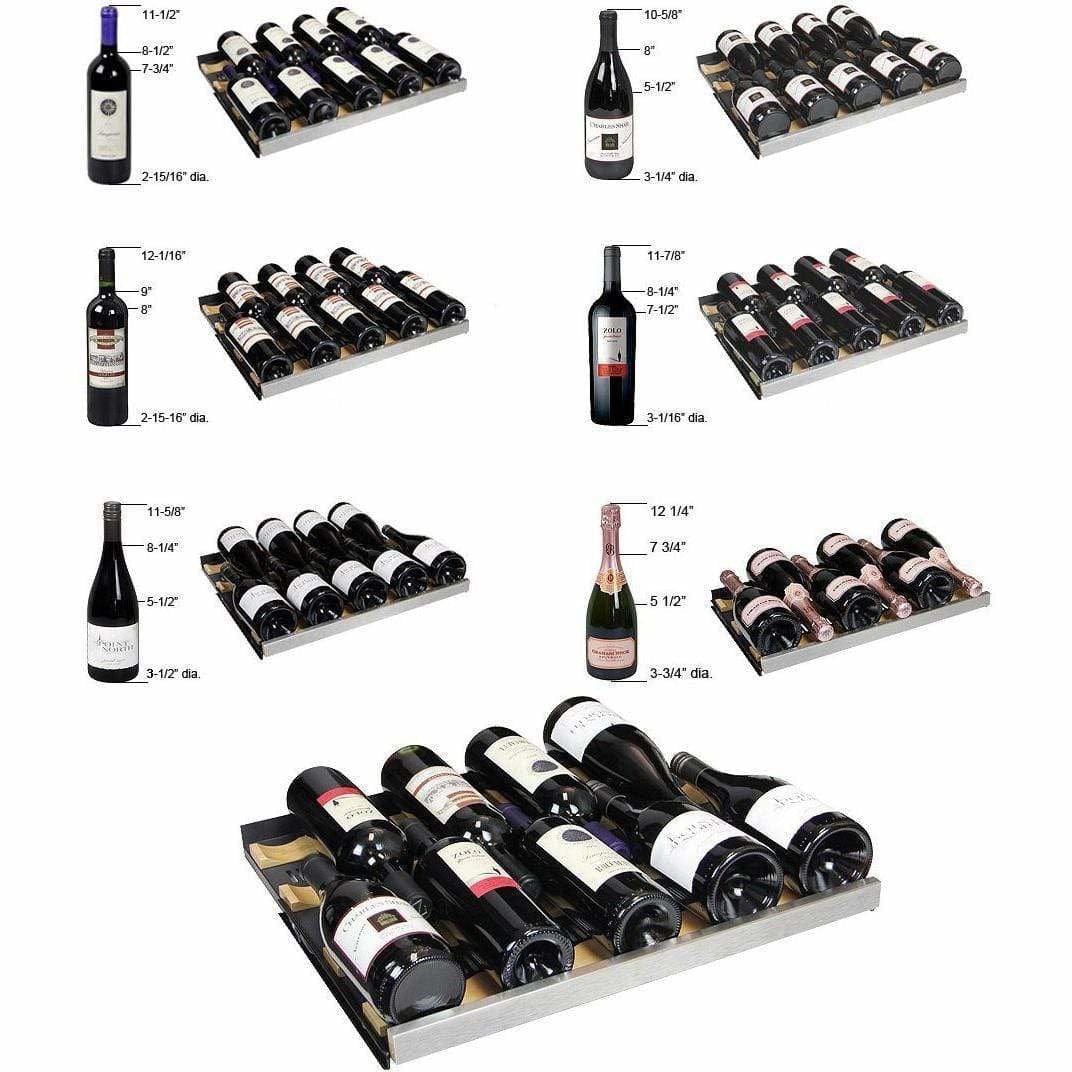

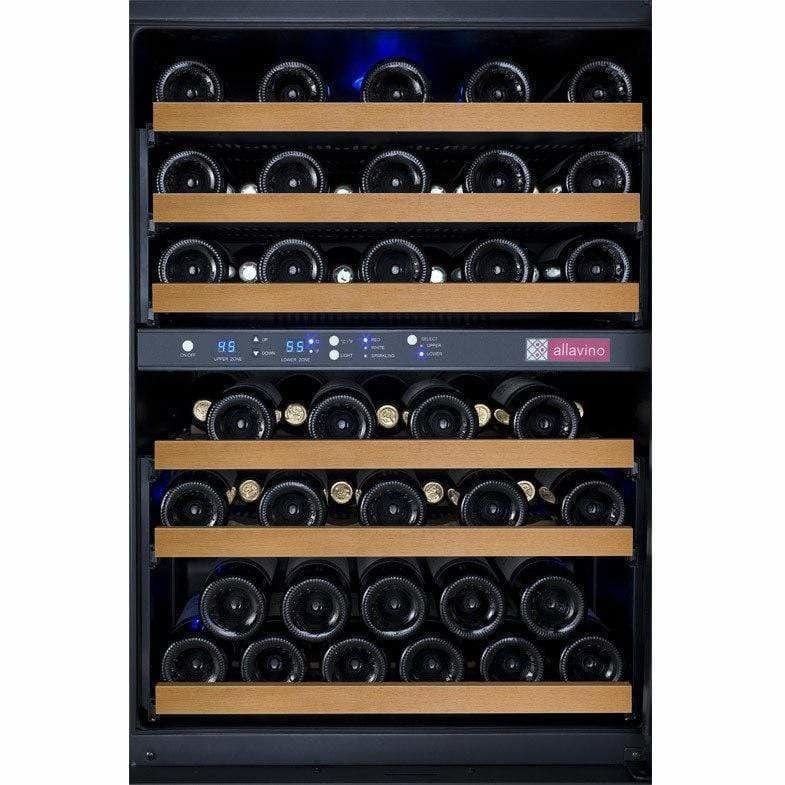

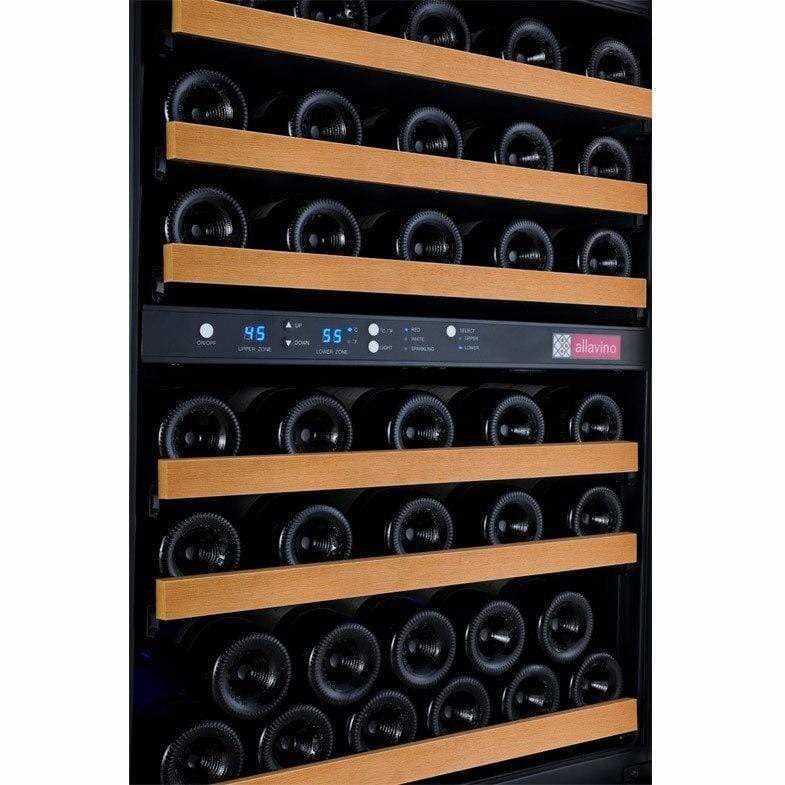

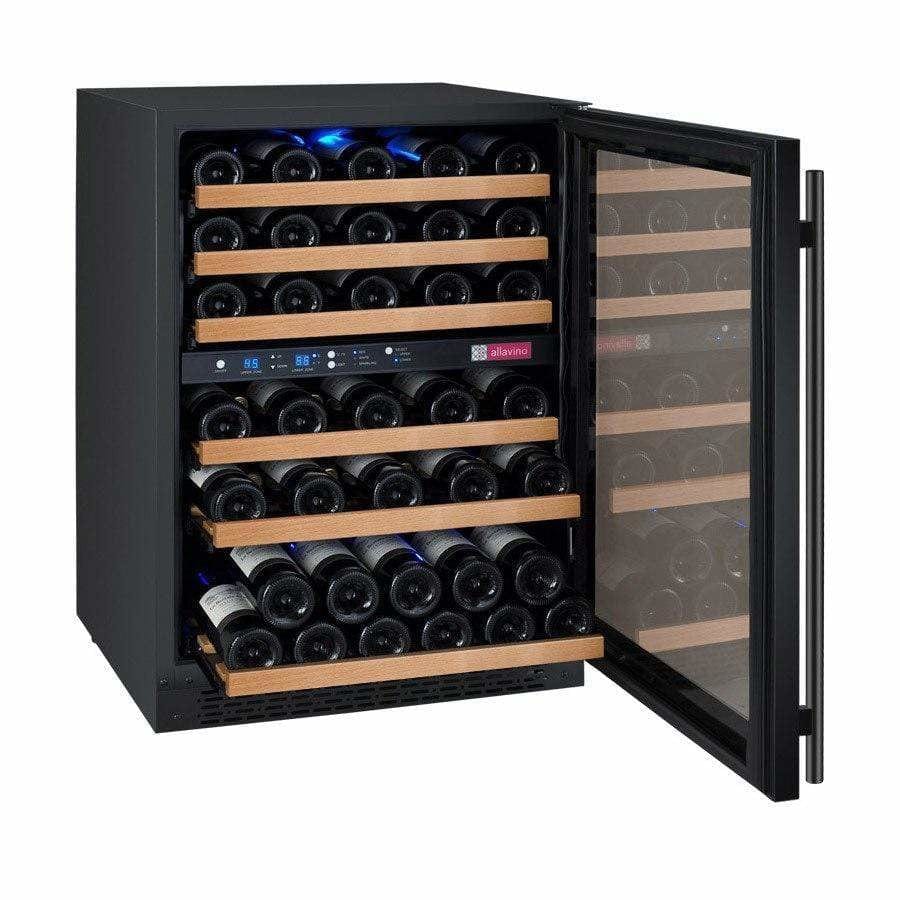

This wine refrigerator has 5 shelves that can hold up to 9 bottles each and a bottom shelf that can hold 11 bottles for a maximum bottle capacity of 56 bottles. The maximum capacity can be reached with many different bottle sizes and is only affected when adding in larger Pinot or Champagne bottles, making this the ideal unit for diverse wine collections.
This is the standard 750 mL bottle, which most wine refrigerators are configured around as it is the most popular size on the market. It measures 11-1/2" tall with a 2-15/16" diameter and the shoulder tapers up from 7-3/4" to 8-1/2". This wine refrigerator can easily store 9 of these bottles on each of the upper shelves and 11 more on the bottom shelf for a total of 56 bottles.
This bottle is taller than the standard 750 mL bottle. It measures 12-1/16" tall with a 2-15/16" diameter and the shoulder tapers up from 8" to 9". The taller shoulder and top would normally wreak havoc on your wine storage because the necks would touch, making the overall length of the bottles too tall for most shelves or pushing the outside bottles out, causing them to hit the sides of the wine refrigerator. Generally, you would have to remove a shelf to accommodate these bottles, but with the extra space available on these shelves, they fit just fine and do not affect the overall capacity.
This bottle has the same diameter at the base, but the shoulder is wider, which would generally push it out of the grooves and make it rub on the shelf above. It measures 11-7/8" tall with a 2-15/16" diameter at the base and the shoulder tapers up from 7-1/2" to 8-1/4" with a 3-1/16" diameter. Due to the smart spacing on these shelves, these bottles fit with room to spare, preventing rubbing and allowing the maximum bottle capacity to stay the same.
This bottle is wider and shorter than the standard 750 mL bottle. It measures 10-5/8" tall with a 3-1/4" diameter and the shoulder tapers up from 5-1/2" to 8". Bottles this wide don't usually fit in wine refrigerators and if they do, they have issues with rubbing on the shelf above and scuffing your labels. This wine refrigerator has no issues with this type of bottle so once again, your maximum capacity will not be affected if you have them in your collection.
Until now, you wouldn't dream of fitting a Pinot bottle in an undercounter built-in wine refrigerator without drastically reducing the overall capacity. It measures 11-5/8" tall with a whopping 3-1/2" diameter and the shoulder tapers up from 5-1/2" to 8-1/4". On this model, only the bottom shelf is slightly affected. You can fit 6 bottles comfortably in the grooves by alternating the necks. So even if your ENTIRE COLLECTION was made up of Pinot bottles, your total capacity would only be reduced to 51 bottles!
Champagne bottles are too big to fit on the upper shelves, but you can still store up to 6 on the bottom shelf. They measures 12-1/4" tall with a 3-3/4" diameter and the shoulder tapers up from 5-1/2" to 7-3/4". Most wine refrigerators this size would not be able to store any Champagne bottles without removing a shelf.
Perhaps there are people out there that only drink one type of wine, all the time. Most wine connoisseurs with a diverse palate are going to have varying bottle sizes in their collection, so having the ability to store all those varying bottle sizes without having to reconfigure and reduce your storage makes this the wine refrigerator of choice.
