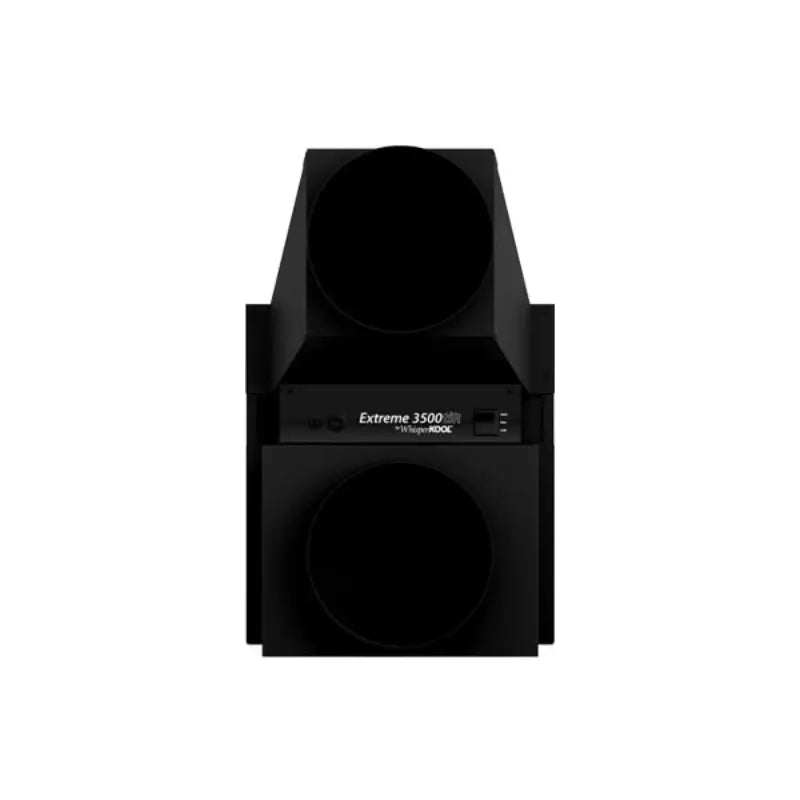

WhisperKOOL Extreme 3500tiR Ducted Cooling Unit
is backordered and will ship as soon as it is back in stock.
In Stock & Ready to Ship
Estimated Delivery in 3-7 business days
WhisperKOOL Extreme Series • Fully Ducted Wine Cellar Cooling System
WhisperKOOL Extreme 3500tiR Fully Ducted Wine Cellar Cooling System
The WhisperKOOL Extreme 3500tiR is a fully ducted self-contained wine cellar cooling system designed for properly insulated wine cellars up to approximately 800 cubic feet. Built for hidden installation, quiet operation, and reliable performance in demanding environments, this system allows the cooling equipment to remain out of sight while maintaining ideal wine storage temperatures.
Designed for wine cellars up to approximately 800 cu.ft.

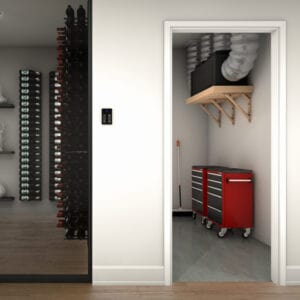

Fully ducted installation keeps equipment hidden from view
2688 BTU/h cooling capacity
Maintains 55°F cellar temperature with up to 110°F condenser intake air
Remote digital controller and bottle probe included
Can be installed up to 25 duct feet away from the cellar
115V operation with dedicated 20 amp circuit required
Fully ducted self-contained wine cellar cooling system
Maximum Duct Distance
Up to 25 duct feet
Voltage
115V
Dedicated Circuit
20 amp dedicated circuit required
Running Amps
9 amps
Refrigerant
R-134a
Warranty
2-year limited parts and labor / 5-year limited compressor warranty
Product Overview
The WhisperKOOL Extreme 3500tiR Fully Ducted Wine Cellar Cooling System is designed for collectors, builders, designers, and homeowners who want dependable cellar climate control without visible cooling equipment inside the wine room. Its fully ducted configuration allows the unit to be installed remotely while delivering conditioned air into the cellar through ductwork.
This makes the Extreme 3500tiR especially useful for luxury wine cellars, custom residential wine rooms, and designer-led projects where appearance, quiet operation, and long-term wine preservation matter. The system includes an advanced digital controller, liquid-temperature-measuring bottle probe, variable-speed fan capability, and duct plenums for flexible installation.
The Extreme 3500tiR is rated for wine cellars up to approximately 800 cubic feet when the room is properly insulated, sealed, and constructed with a correct vapor barrier. Because every wine cellar has unique cooling requirements, Wine Coolers Empire recommends confirming the heat load before selecting any cooling unit.
Best For / Not Recommended For
Best For
Dedicated wine cellars up to approximately 800 cu.ft.
Luxury residential wine rooms
Custom wine cellar projects
Hidden equipment installations
Designer-driven cellar layouts
Collectors who want quiet cellar operation
Projects where ducted airflow is preferred
Properly insulated and sealed wine rooms
Not Recommended For
Uninsulated rooms
Wine cabinets or furniture-style wine storage
Open-concept wine displays without enclosure
Cellars without a proper vapor barrier
Projects where ductwork cannot be installed
Cellars above 800 cu.ft. without heat load review
Rooms with excessive glass exposure without professional sizing
DIY installations without proper cellar construction planning
Key Features

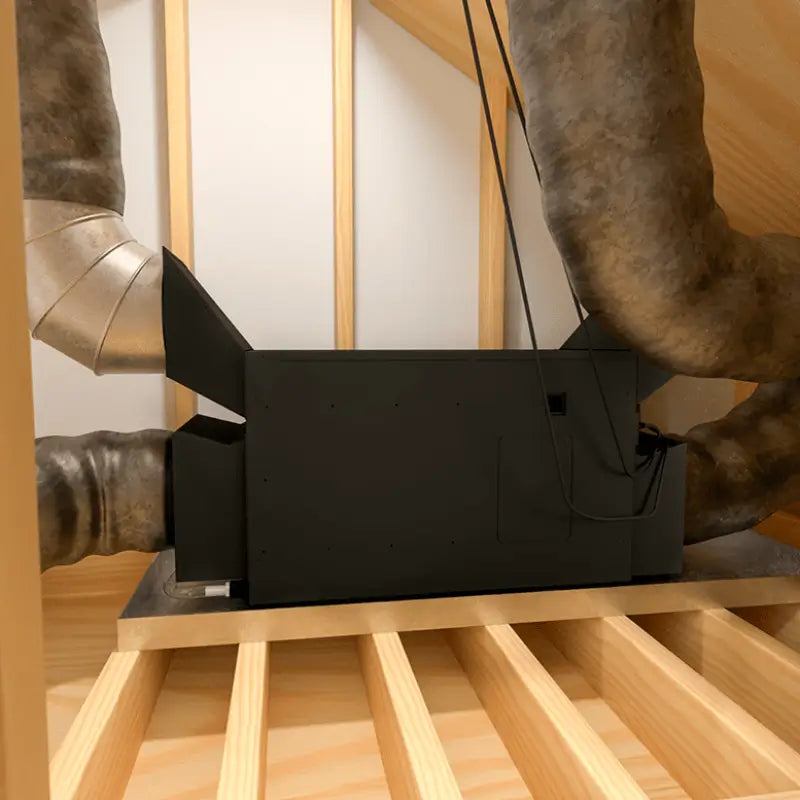

Fully Ducted Installation

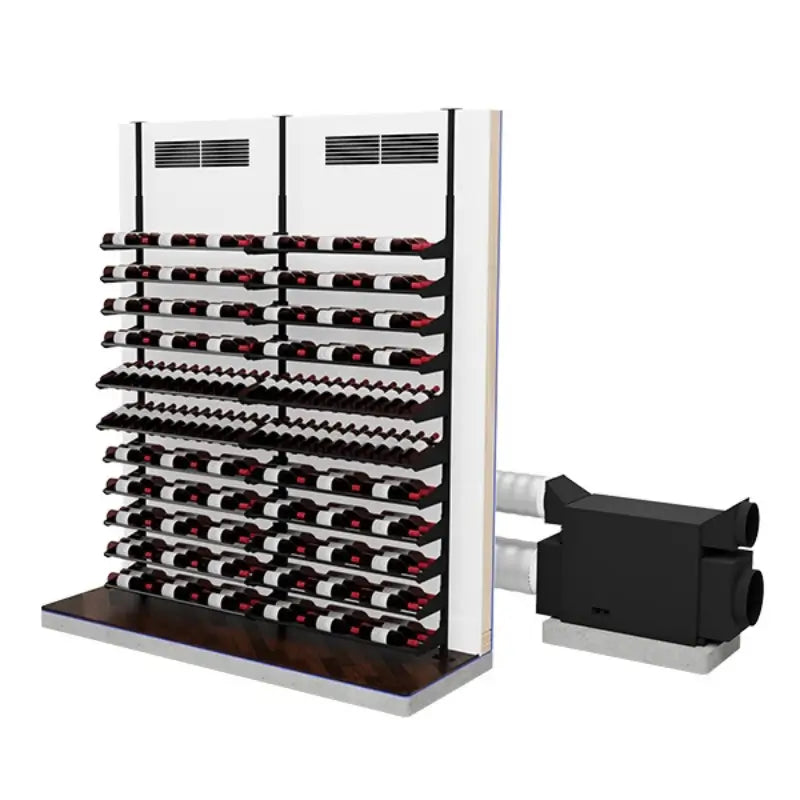

The Extreme 3500tiR allows ducting for a clean, hidden installation. This helps preserve the appearance of premium wine cellars while keeping mechanical equipment away from the finished space.
Advanced Digital Controller
The included WhisperKOOL digital controller provides system monitoring and Advanced System Protection alerts if operating parameters are not met.
Liquid Temperature Bottle Probe
The bottle probe measures the liquid temperature of wine rather than only the ambient air temperature, helping maintain more accurate cellar conditions.
Variable-Speed Fan Capability
Adjustable fan operation helps optimize airflow, improve efficiency, and support quieter system performance.
Extreme Environment Performance
The system is designed to maintain a 55°F wine cellar temperature with condenser air intake temperatures up to 110°F.
Remote Installation Flexibility
The unit can be installed up to 25 duct feet away from the cellar, allowing more flexibility for custom cellar layouts.
Advantages & Considerations
Advantages
Considerations
Hidden cooling equipment for premium cellar aesthetics
Requires ductwork planning and installation
Suitable for luxury residential wine cellars
Professional installation is recommended
Remote controller and bottle probe included
Proper insulation and vapor barrier are required
Can be installed up to 25 duct feet from the cellar
Cooling load should be verified before purchase
Designed for demanding ambient conditions
Glass, stone, concrete, and poor insulation may require a larger unit
Installation Requirements
Important: Wine cellar cooling performance depends on proper room construction. The cellar must be insulated, sealed, and built with a proper vapor barrier. Heat load calculations are recommended before selecting a cooling system.
Electrical
115V power supply with dedicated 20 amp circuit
Duct Distance
Up to 25 duct feet away from the cellar
Duct Size

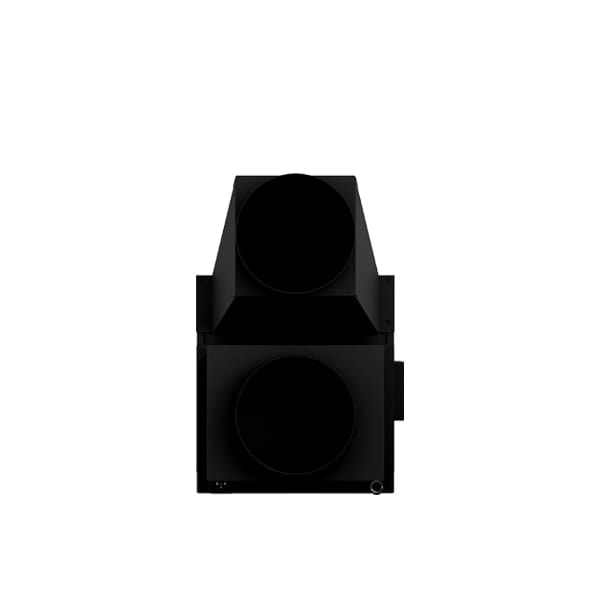

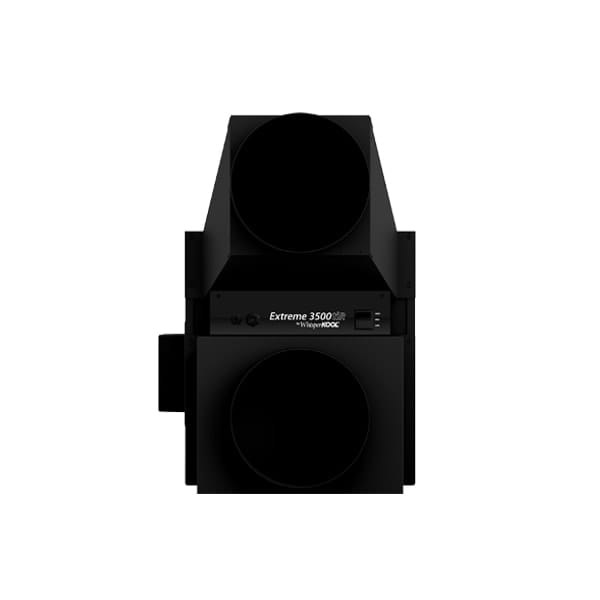

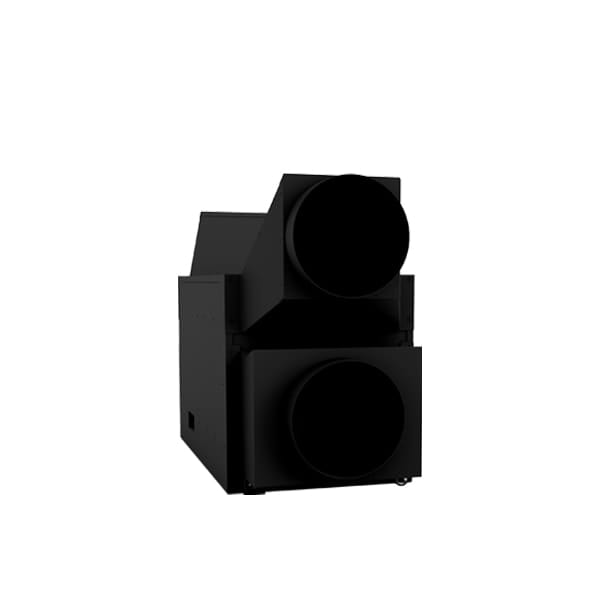

8" supply and 8" return on evaporator and condenser
Drain Line
3/8" ID clear plastic tubing required; not included
Cellar Construction
Fully insulated, sealed, and vapor-barrier protected wine cellar
Controller Cable
50-foot cable included
Bottle Probe Cable
50-foot cable included
If you plan to install this system in an attic or use ductwork in a complex layout, contact Wine Coolers Empire before purchase to confirm configuration and pricing.

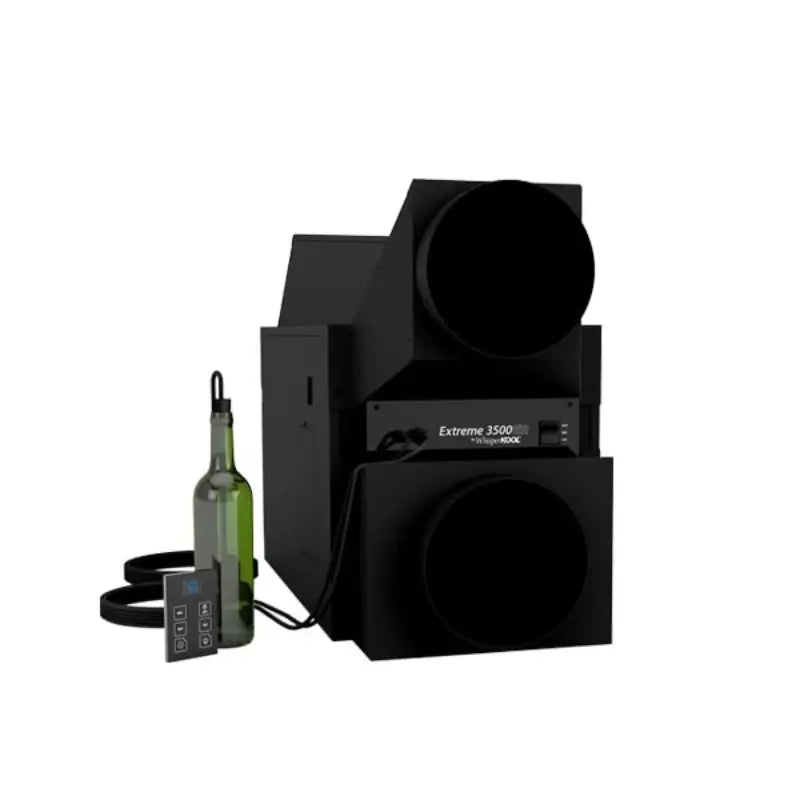

What’s Included

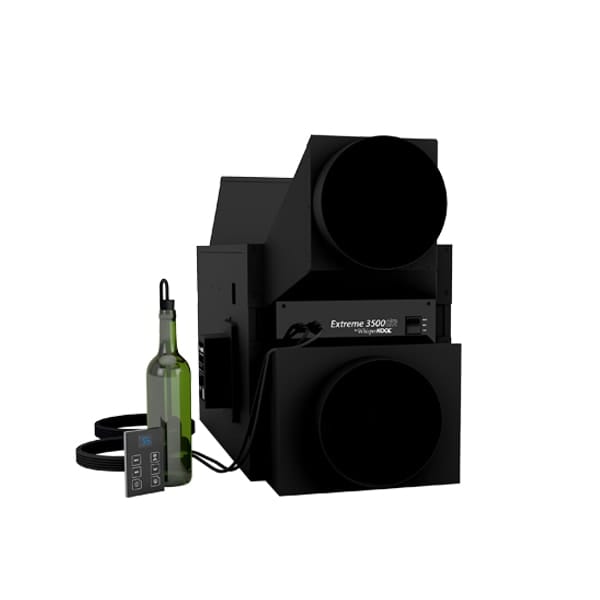

WhisperKOOL Extreme 3500tiR Ducted Cooling Unit
Duct plenums
Advanced digital controller with 50-foot cable
Liquid-temperature-measuring bottle probe with 50-foot cable
Installation documentation
Manufacturer warranty coverage
Technical Specifications
Model
Extreme 3500tiR Ducted
Recommended Cellar Size
Approx. 800 cu.ft. when fully insulated, sealed, and vapor-barrier protected
BTU/h
2688 BTU/h at 85°F condenser air intake temperature
Dimensions
39.5" L x 14.25" W x 22.5" H with duct plenums
Refrigerant
R-134a
Refrigeration Tons
0.22
Weight
115 lbs
Horsepower
1/4 HP
Voltage Rating
115V; 20 amp dedicated circuit required
Running Amps
9 amps
Duct Size
8" supply and 8" return for evaporator and condenser
Drain Line
3/8" ID clear plastic tubing required; not provided
Maximum Installation Distance
Up to 25 duct feet from the cellar
Thermostat
Advanced digital display with 50-foot cable
Bottle Probe
Liquid-temperature-measuring bottle probe with 50-foot cable
Temperature Differential
Can maintain 55°F cellar temperature with up to 110°F condenser air intake temperature
Ducting Options
Condensing side can be ducted
Warranty
2-year limited parts and labor warranty / 5-year limited compressor warranty
BTU/h & Sizing Notes
The WhisperKOOL Extreme 3500tiR is rated at 2688 BTU/h. This value is an estimate and should not be treated as a universal guarantee for every cellar. Wine cellar cooling demand can change based on insulation quality, vapor barrier construction, glass exposure, stone or concrete surfaces, ceiling height, ambient temperature, and door usage.
Choosing an undersized cooling unit may prevent the cellar from reaching the desired storage temperature and may increase system wear. For guidance on wine cellar construction, review our wine cellar insulation guide and ideal wine cellar temperature guide.
WhisperKOOL Extreme tiR Model Comparison
Model
Recommended Cellar Size
Best Application
WhisperKOOL Extreme 3500tiR
Up to 800 cu.ft.
Small to medium fully ducted residential wine cellars
The optional 24V thermostat conversion kit allows compatibility with select 24V smart thermostats for users who want Wi-Fi control and advanced monitoring.
Connect compatible thermostats to Wi-Fi
Control cellar temperature from a phone, tablet, or laptop
Monitor run time and energy usage
Set alarm notifications
View cellar conditions remotely
Please note: WhisperKOOL does not provide smart thermostats. If the 24V thermostat conversion kit is selected, the system will not be built with the standard WhisperKOOL control or liquid-measuring bottle probe. A compatible 24V smart thermostat must be purchased separately.
Optional Accessories
Condenser Coil Coating
Condenser coil coating is a protective option designed to help protect the condenser coil from salt air and corrosive environments. It is especially useful for coastal homes, beach properties, and humid environments where salt exposure may shorten equipment lifespan.
Wine Coolers Empire recommends the WhisperKOOL Extreme 3500tiR for collectors building dedicated wine cellars up to approximately 800 cubic feet where quiet operation, hidden equipment placement, and refined cellar aesthetics are priorities.
This model is especially well suited for luxury residential wine rooms, custom builder projects, and designer-led installations where a visible through-the-wall unit would interrupt the look of the space.
Consider stepping up to the WhisperKOOL Extreme 5000tiR if your cellar includes extensive glass, high ceilings, stone or concrete construction, elevated ambient temperatures, frequent door openings, or a cooling load that exceeds the 3500tiR rating.
Why Buy From Wine Coolers Empire?
Wine Coolers Empire is a trusted dealer of specialty wine cellar air conditioners, commercial wine cellar refrigeration units, residential wine cellar coolers, wine racks, and wine cellar equipment. Our team helps customers select cooling systems based on cellar size, insulation, vapor barrier construction, installation location, and long-term storage goals.
More customer feedback is available on our Customer Reviews page.
For shipping timelines, delivery options, and order processing details, visit our Shipping Policy.
Free Wine Cellar Design Assistance
Not sure if the WhisperKOOL Extreme 3500tiR is the correct system for your wine cellar? Wine Coolers Empire offers complimentary wine cellar design planning to help evaluate your cellar dimensions, insulation, vapor barrier, glass exposure, ambient conditions, and cooling load requirements.
Our team can help determine whether the 3500tiR is the right fit or whether a larger WhisperKOOL model would be a better long-term solution.
The WhisperKOOL Extreme 3500tiR Fully Ducted Wine Cellar Cooling System delivers hidden installation flexibility, strong cooling performance, and professional-grade cellar climate control for collectors who want a refined and reliable wine storage environment.
It is designed to cool a wine cellar of approximately 800 cubic feet, assuming proper insulation and a sealed vapor barrier.
The unit delivers around 2,688 BTU/hour in standard operating conditions.
You can fully duct both the evaporator and the condenser. The recommended duct run is up to 25 feet for either supply or return.
It includes a 3‑speed fan switch, allowing you to adjust the fan speed and balance noise versus performance.
Temperature is managed via a remote digital controller with a long cable, and the system uses a liquid‑temperature bottle probe to measure wine temperature accurately.
The unit runs on 115 V and requires a dedicated 20‑amp circuit for safe operation.
It uses a 3/8‑inch ID clear plastic tubing drain line to remove moisture generated during operation."]
FAST, FREE SHIPPING
Get your online orders fast at your door with free shipping.
It is as advertised. I have my house renovated and added a cellar. Not sure which type I need at first just wondering down and asked questions. That's why I am very thankful to your customer support which is very responsive and patient with me. I am very happy with this cooler. Thank you!
S
Stephanie
I was looking for a quiet cooling unit and saw this one. I checked it out and look at the reviews. Good thing I bought it in this website. They are very friendly and helpful. Also, the website is very easy to use.
N
Neil
cool
It is cool that it doesn't make any noise like what I had before
G
Ginger
great product
It didn't take too long to install it. Also, it doesn't take too much space
WhisperKOOL
WhisperKOOL Extreme 3500tiR Ducted Cooling Unit
Regular price$6,725.00
Unit price
WhisperKOOL Extreme Series • Fully Ducted Wine Cellar Cooling System
WhisperKOOL Extreme 3500tiR Fully Ducted Wine Cellar Cooling System
The WhisperKOOL Extreme 3500tiR is a fully ducted self-contained wine cellar cooling system designed for properly insulated wine cellars up to approximately 800 cubic feet. Built for hidden installation, quiet operation, and reliable performance in demanding environments, this system allows the cooling equipment to remain out of sight while maintaining ideal wine storage temperatures.
Designed for wine cellars up to approximately 800 cu.ft.
Fully ducted installation keeps equipment hidden from view
2688 BTU/h cooling capacity
Maintains 55°F cellar temperature with up to 110°F condenser intake air
Remote digital controller and bottle probe included
Can be installed up to 25 duct feet away from the cellar
115V operation with dedicated 20 amp circuit required
Fully ducted self-contained wine cellar cooling system
Maximum Duct Distance
Up to 25 duct feet
Voltage
115V
Dedicated Circuit
20 amp dedicated circuit required
Running Amps
9 amps
Refrigerant
R-134a
Warranty
2-year limited parts and labor / 5-year limited compressor warranty
Product Overview
The WhisperKOOL Extreme 3500tiR Fully Ducted Wine Cellar Cooling System is designed for collectors, builders, designers, and homeowners who want dependable cellar climate control without visible cooling equipment inside the wine room. Its fully ducted configuration allows the unit to be installed remotely while delivering conditioned air into the cellar through ductwork.
This makes the Extreme 3500tiR especially useful for luxury wine cellars, custom residential wine rooms, and designer-led projects where appearance, quiet operation, and long-term wine preservation matter. The system includes an advanced digital controller, liquid-temperature-measuring bottle probe, variable-speed fan capability, and duct plenums for flexible installation.
The Extreme 3500tiR is rated for wine cellars up to approximately 800 cubic feet when the room is properly insulated, sealed, and constructed with a correct vapor barrier. Because every wine cellar has unique cooling requirements, Wine Coolers Empire recommends confirming the heat load before selecting any cooling unit.
Best For / Not Recommended For
Best For
Dedicated wine cellars up to approximately 800 cu.ft.
Luxury residential wine rooms
Custom wine cellar projects
Hidden equipment installations
Designer-driven cellar layouts
Collectors who want quiet cellar operation
Projects where ducted airflow is preferred
Properly insulated and sealed wine rooms
Not Recommended For
Uninsulated rooms
Wine cabinets or furniture-style wine storage
Open-concept wine displays without enclosure
Cellars without a proper vapor barrier
Projects where ductwork cannot be installed
Cellars above 800 cu.ft. without heat load review
Rooms with excessive glass exposure without professional sizing
DIY installations without proper cellar construction planning
Key Features
Fully Ducted Installation
The Extreme 3500tiR allows ducting for a clean, hidden installation. This helps preserve the appearance of premium wine cellars while keeping mechanical equipment away from the finished space.
Advanced Digital Controller
The included WhisperKOOL digital controller provides system monitoring and Advanced System Protection alerts if operating parameters are not met.
Liquid Temperature Bottle Probe
The bottle probe measures the liquid temperature of wine rather than only the ambient air temperature, helping maintain more accurate cellar conditions.
Variable-Speed Fan Capability
Adjustable fan operation helps optimize airflow, improve efficiency, and support quieter system performance.
Extreme Environment Performance
The system is designed to maintain a 55°F wine cellar temperature with condenser air intake temperatures up to 110°F.
Remote Installation Flexibility
The unit can be installed up to 25 duct feet away from the cellar, allowing more flexibility for custom cellar layouts.
Advantages & Considerations
Advantages
Considerations
Hidden cooling equipment for premium cellar aesthetics
Requires ductwork planning and installation
Suitable for luxury residential wine cellars
Professional installation is recommended
Remote controller and bottle probe included
Proper insulation and vapor barrier are required
Can be installed up to 25 duct feet from the cellar
Cooling load should be verified before purchase
Designed for demanding ambient conditions
Glass, stone, concrete, and poor insulation may require a larger unit
Installation Requirements
Important: Wine cellar cooling performance depends on proper room construction. The cellar must be insulated, sealed, and built with a proper vapor barrier. Heat load calculations are recommended before selecting a cooling system.
Electrical
115V power supply with dedicated 20 amp circuit
Duct Distance
Up to 25 duct feet away from the cellar
Duct Size
8" supply and 8" return on evaporator and condenser
Drain Line
3/8" ID clear plastic tubing required; not included
Cellar Construction
Fully insulated, sealed, and vapor-barrier protected wine cellar
Controller Cable
50-foot cable included
Bottle Probe Cable
50-foot cable included
If you plan to install this system in an attic or use ductwork in a complex layout, contact Wine Coolers Empire before purchase to confirm configuration and pricing.
What’s Included

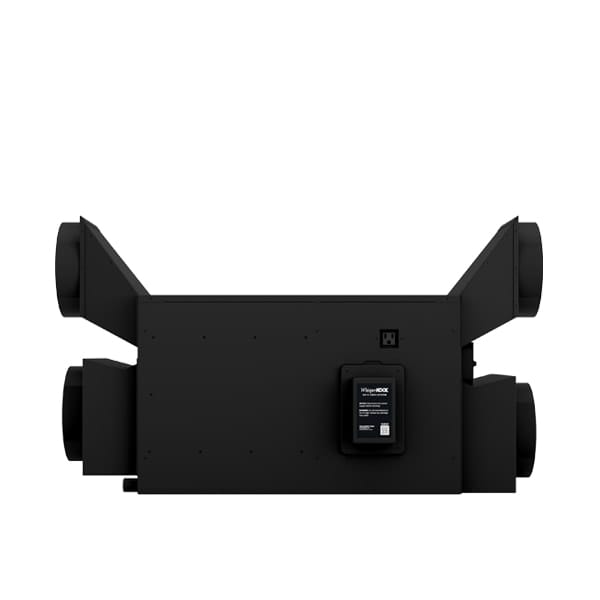

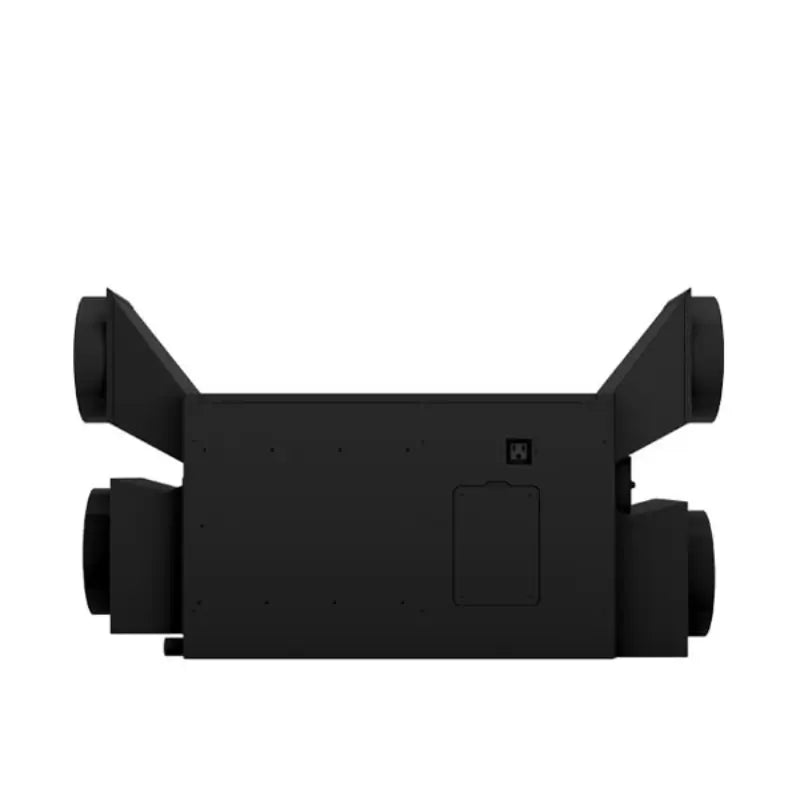

WhisperKOOL Extreme 3500tiR Ducted Cooling Unit
Duct plenums
Advanced digital controller with 50-foot cable
Liquid-temperature-measuring bottle probe with 50-foot cable
Installation documentation
Manufacturer warranty coverage
Technical Specifications
Model
Extreme 3500tiR Ducted
Recommended Cellar Size
Approx. 800 cu.ft. when fully insulated, sealed, and vapor-barrier protected
BTU/h
2688 BTU/h at 85°F condenser air intake temperature
Dimensions
39.5" L x 14.25" W x 22.5" H with duct plenums
Refrigerant
R-134a
Refrigeration Tons
0.22
Weight
115 lbs
Horsepower
1/4 HP
Voltage Rating
115V; 20 amp dedicated circuit required
Running Amps
9 amps
Duct Size
8" supply and 8" return for evaporator and condenser
Drain Line
3/8" ID clear plastic tubing required; not provided
Maximum Installation Distance
Up to 25 duct feet from the cellar
Thermostat
Advanced digital display with 50-foot cable
Bottle Probe
Liquid-temperature-measuring bottle probe with 50-foot cable
Temperature Differential
Can maintain 55°F cellar temperature with up to 110°F condenser air intake temperature
Ducting Options
Condensing side can be ducted
Warranty
2-year limited parts and labor warranty / 5-year limited compressor warranty
BTU/h & Sizing Notes
The WhisperKOOL Extreme 3500tiR is rated at 2688 BTU/h. This value is an estimate and should not be treated as a universal guarantee for every cellar. Wine cellar cooling demand can change based on insulation quality, vapor barrier construction, glass exposure, stone or concrete surfaces, ceiling height, ambient temperature, and door usage.
Choosing an undersized cooling unit may prevent the cellar from reaching the desired storage temperature and may increase system wear. For guidance on wine cellar construction, review our wine cellar insulation guide and ideal wine cellar temperature guide.
WhisperKOOL Extreme tiR Model Comparison
Model
Recommended Cellar Size
Best Application
WhisperKOOL Extreme 3500tiR
Up to 800 cu.ft.
Small to medium fully ducted residential wine cellars
The optional 24V thermostat conversion kit allows compatibility with select 24V smart thermostats for users who want Wi-Fi control and advanced monitoring.
Connect compatible thermostats to Wi-Fi
Control cellar temperature from a phone, tablet, or laptop
Monitor run time and energy usage
Set alarm notifications
View cellar conditions remotely
Please note: WhisperKOOL does not provide smart thermostats. If the 24V thermostat conversion kit is selected, the system will not be built with the standard WhisperKOOL control or liquid-measuring bottle probe. A compatible 24V smart thermostat must be purchased separately.
Optional Accessories
Condenser Coil Coating
Condenser coil coating is a protective option designed to help protect the condenser coil from salt air and corrosive environments. It is especially useful for coastal homes, beach properties, and humid environments where salt exposure may shorten equipment lifespan.
Wine Coolers Empire recommends the WhisperKOOL Extreme 3500tiR for collectors building dedicated wine cellars up to approximately 800 cubic feet where quiet operation, hidden equipment placement, and refined cellar aesthetics are priorities.
This model is especially well suited for luxury residential wine rooms, custom builder projects, and designer-led installations where a visible through-the-wall unit would interrupt the look of the space.
Consider stepping up to the WhisperKOOL Extreme 5000tiR if your cellar includes extensive glass, high ceilings, stone or concrete construction, elevated ambient temperatures, frequent door openings, or a cooling load that exceeds the 3500tiR rating.
Why Buy From Wine Coolers Empire?
Wine Coolers Empire is a trusted dealer of specialty wine cellar air conditioners, commercial wine cellar refrigeration units, residential wine cellar coolers, wine racks, and wine cellar equipment. Our team helps customers select cooling systems based on cellar size, insulation, vapor barrier construction, installation location, and long-term storage goals.
More customer feedback is available on our Customer Reviews page.
For shipping timelines, delivery options, and order processing details, visit our Shipping Policy.
Free Wine Cellar Design Assistance
Not sure if the WhisperKOOL Extreme 3500tiR is the correct system for your wine cellar? Wine Coolers Empire offers complimentary wine cellar design planning to help evaluate your cellar dimensions, insulation, vapor barrier, glass exposure, ambient conditions, and cooling load requirements.
Our team can help determine whether the 3500tiR is the right fit or whether a larger WhisperKOOL model would be a better long-term solution.
The WhisperKOOL Extreme 3500tiR Fully Ducted Wine Cellar Cooling System delivers hidden installation flexibility, strong cooling performance, and professional-grade cellar climate control for collectors who want a refined and reliable wine storage environment.
