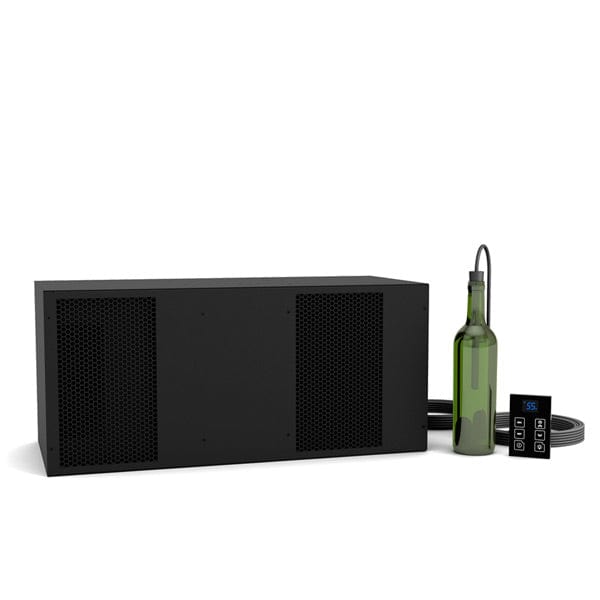

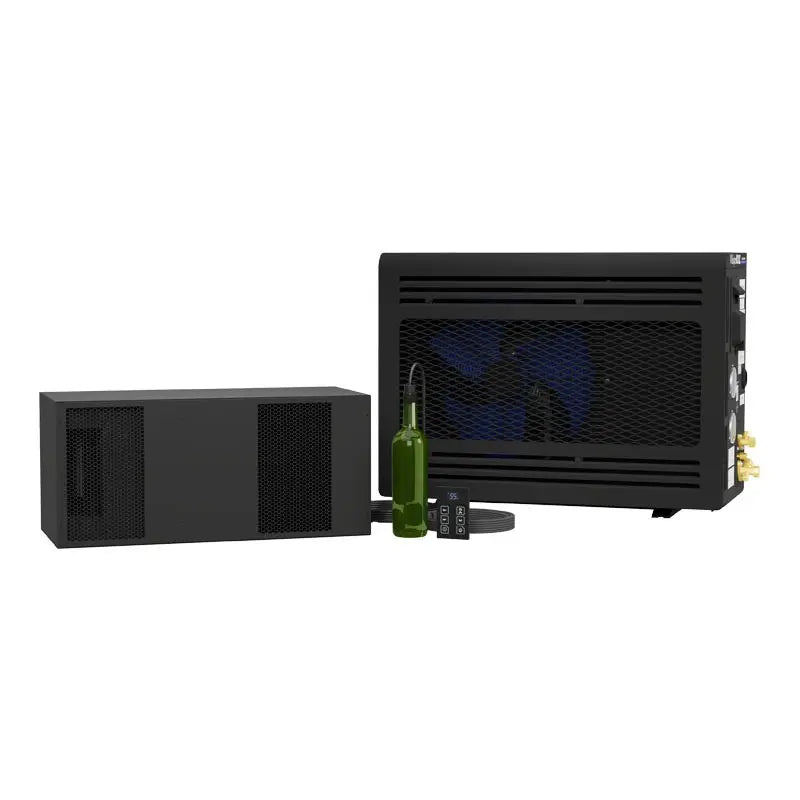

WhisperKOOL Mini Ceiling Mount Ductless Split System with 220V High Efficiency

SKU S-WKCMMINI-220

‚úÖ No Sales Tax (Except NV)

Save 21%
Original Price $8,476.65
Current Price $6,719.00
checked
FREE SHIPPING - Limited Time ONLY
SAVE UP TO $350 ON SHIPPING CHARGES
  • 2-speed fan switch
  • Hex mesh grille with air filter
  • Flare fittings for easy installation
  • Standard and 24V thermostat options available
  • Includes a pump system to remove excess condensation
  • Includes cold weather start kit
  • Allows for maximum racking space
  • No ducting required

ūüíĶ We Will Beat Any Online Competitor's Prices! Call (888) 407-7770 Or Chat With Us to get the lowest price!

Notify me when back in stock

WhisperKOOL Mini Ceiling Mount Ductless Split System with 220V High Efficiency Review

Looking for a powerful wine cooler unit for your small home wine cellar? This WhisperKOOL Mini Ceiling Mount Ductless Split System with 220V High Efficiency is perfect!

NOTE: A qualified HVAC-R technician is required for the installation of your WhisperKOOL Mini Ceiling Mount 220V. Failure to adhere to this requirement will void the warranty.

PLEASE NOTE: We will be phasing out the 9000 and 12000 110V condensers on 10/01/2023 or sooner. We will continue to support controllers through the two-year warranty period. All other replacement part requests will be directed to Copeland.

The WhisperKOOL Ceiling Mount Mini Split System is developed specifically for use in smaller cellars where space is limited. Don’t let a cooling unit limit you!

The WhisperKOOL Mini Ceiling Mount Split System is designed to ensure that the unit does not take up too much space, allowing more room for wine racking. It offers exceptional efficiency by drawing in the warmer air that accumulates at the ceiling, cooling it and dispersing it throughout the environment.

The system is equipped with a 2-speed fan switch that allows you to adjust the air flow according to your needs. It also features a hex mesh grille with an air filter to ensure that the air is clean and fresh. The flare fittings make installation easy, and the system comes with both standard and 24V thermostat options. Additionally, the system includes a pump system to remove excess condensation and a cold weather start kit. WhisperKOOL mini ceiling mount cooling units do not require ducting.

THE NEW MODEL IS 3 INCHES LONGER THAN THE PREVIOUS ONE: WhisperKOOL Mini Ceiling Mount wine cellar cooler is three inches longer than previous WhisperKOOL Mini Split Ceiling Mount generations. This update was made to accommodate the upgraded system.

Available in WhisperKOOL Ceiling Mount Mini Split 110V Condenser & Mini Ceiling Mount 220V for 500 cu.ft.

Other Sizes: WhisperKOOL Ceiling Mount 4000 220V H.E. for 1000 cu.ft. wine cellar, WhisperKOOL Ceiling Mount 8000 220V H.E. for 2000 cu.ft. wine cellar, WhisperKOOL Ceiling Mount Twin 9000 220V H.E. for 3000 cu.ft. wine cellar and WhisperKOOL Ceiling Mount Twin 12000 220V H.E. for 3500 cu. ft.

WhisperKOOL Reviews: WhisperKOOL Ceiling Mount Series

Let's hear from Audie Burgan, our customer from Clovis, CA, giving his testimonial about the new WhisperKOOL Ceiling Mount cooling system he installed for his wine cellar.

Want to see more wine cellar coolers in this installation type? Check out  Ductless Split Wine Cooling Systems now! Take a look at all the other WhisperKOOL Wine Cellar Cooling Systems.

Searching for the best wine racks? Check out Ultra Wine Racks & Cellars for modern and unique wine racks.

WHY BUY FROM US: Wine Coolers Empire is a trusted dealer of specialty wine cellar air conditioners, commercial wine cellar refrigeration units, and residential wine cellar coolers. More WhisperKOOL wine cellar cooling unit reviews can be found on our Customer Reviews page.

Contact us for any questions or concerns. For information on order processing, shipping options, and delivery times, please visit our Shipping Policy.

Buy the WhisperKOOL Mini Ceiling Mount Ductless Split System with 220V High-Efficiency today and enjoy your amazing wines at their best temperature!



Features:

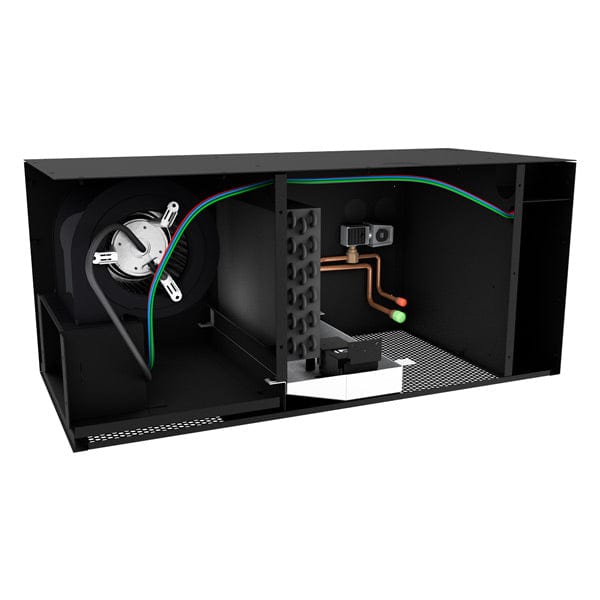

  • OPTIMIZED PERFORMANCE
    • Centrifugal Blower:¬†WhisperKOOL switched from¬†a Panasonic blower to¬†an AFL blower in order to improve the fan system for robust airflow, even distribution, and quieter operation.
    • 2 Speed Fan Switch:¬†The unit is now equipped with¬†a 2-speed fan switch for more flexibility (medium or high setting) and the option to select the required BTU.
    • For Your Information:¬†(1)¬†The lower fan speed will remove less moisture from the air than the higher fan speed.¬†(2) The dBA reading is 51.
    • Hex Mesh Grille Design:¬†The unit will no longer use louvers but instead will have a hex mesh grille, designed to direct air down into the cellar.

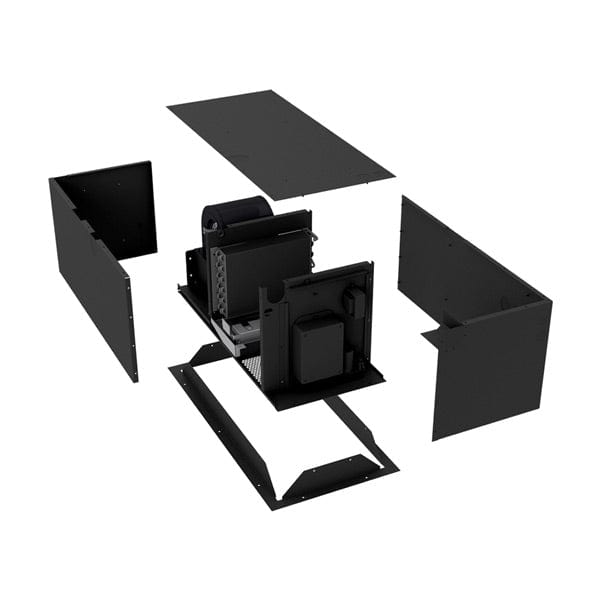

  • ACCESSIBILITY
    • Flare Fittings:¬†The line set is equipped with flare fittings, which eliminates the need for brazing and significantly reduces installation time.
    • Electrical: The condensate pump electrical components and the centrifugal fan are easier to access¬†for maintenance purposes.
    • Centrifugal Blower:¬†Easier access to centrifugal fan for system maintenance.
    • Debris Intake at Installation: WhisperKOOL Air Filter located behind the hex mesh grille to prevent debris from entering the coils during the initial start-up.

  • TOUCH DISPLAY
    The KDT Digital Touch Display can be installed up to 50 ft. away from the unit. The KDT is equipped with Advanced System Protection that has alarms to alert you if certain parameters are not met.

    Touch Display - WhisperKOOL | Wine Coolers Empire - Trusted Dealer

  • BOTTLE PROBE
    The unit accurately measures the temperature of wine in the cellar using a liquid temperature measuring probe. Measuring the temperature of a liquid is a more direct and accurate reflection of the temperature of the wines stored in the cellar than measuring the ambient cellar air.

    Bottle Probe - WhisperKOOL | Wine Coolers Empire - Trusted Dealer

  • AIR FILTER
    WhisperKOOL air filter has been added to protect the unit from the intake of potentially harmful debris during the initial start-up or installation of wine racks.

    Air Filter - WhisperKOOL | Wine Coolers Empire - Trusted Dealer



Specifications:

  • Cellar Size: Approx 500 cu.ft when the cellar is fully insulated
  • Dimensions:¬†25.05‚ÄĚL x 11.34‚ÄĚW x 11.17‚ÄĚH
  • Drain Line: 1/4‚Ä≥ ID clear plastic tubing (not provided)
  • WhisperKOOL Warranty:¬†Limited 2-year product warranty is offered with all split systems.¬†
  • Bottom View

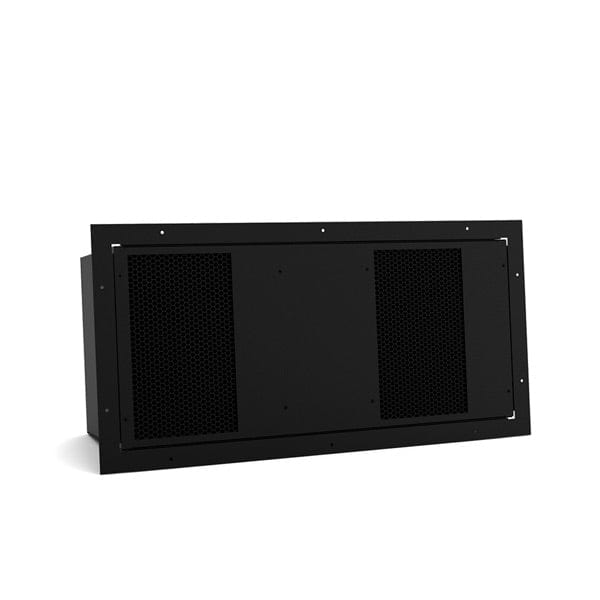

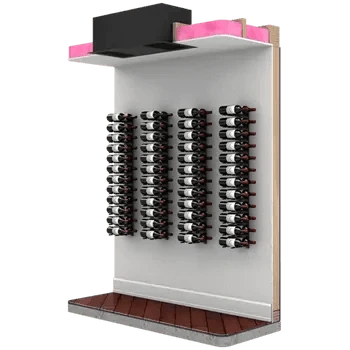

    The signature WhisperKOOL Ceiling Mount was created to be mounted flush to the drywall or sheet rock and fitted between the ceiling joists.

    Bottom View Ceiling Mount 4000 Ductless Split System - WhisperKOOL | Wine Coolers Empire - Trusted Dealer

  • Top View
    The unit's top or side can be used for running electrical wiring, bottle probe wiring, and line set wiring.

    Top View Ceiling Mount 4000 Ductless Split System - WhisperKOOL | Wine Coolers Empire - Trusted Dealer

    Is this a right-sized unit for your wine cellar? Talk to an Expert at +1-888-407-7770 or email: support@winecoolersempire.com to ensure that this cooling system is best suited for your needs.



    BTU/h

    2084 - 3288

    The BTU/h value range shown here is an estimate and not a guarantee. There may be instances where a cellar design requires a larger unit due to variables not included in the calculation. These variables can be building materials (such as glass, stone, concrete, etc.) that do not provide enough insulation to maintain the ideal wine cellar environment.

    We recommend purchasing a unit with a higher capacity to compensate for these unforeseen variables. Choosing an undersized unit may result in premature failure and may not be able to achieve your desired wine cellar temperature.



    Manuals:

    Please click below to read and download the owner manual for this cooling system.

    High-Efficiency Owner Manual

    Please click below to view all product specifications for WhisperKOOL Ceiling Mounted Mini Split Ductless Wine Cellar Cooling Units - 220V H.E.

    Product Warranty for WhisperKOOL Split System Units

    A limited 2-year product warranty is offered with all WhisperKOOL split systems.

    New 24-volt thermostat conversion kit for WhisperKOOL split systems



    24V THERMOSTAT CONVERSION KIT (OPTIONAL)

    Introducing our new 24-volt thermostat conversion kit for WhisperKOOL split systems! Utilize industry-leading technology from major manufacturers to monitor the environment of your cellar.

    • Connect your thermostat to Wi‚ÄĎFi to control the temperature from your phone, tablet, or laptop.
    • Monitor run time and energy usage.
    • Set alarm notifications.
    • View your cellar conditions from your mobile device.

    *PLEASE NOTE: WhisperKOOL does not provide smart thermostats. If you choose the 24V Thermostat Conversion Kit, you acknowledged that the system will not be built with the standard WhisperKOOL control or liquid measuring bottle probe. You will need to purchase your own 24V smart thermostat to operate the equipment. The WhisperKOOL Customer Satisfaction Team will not provide support for issues related to smart thermostats.

    For more information, check out 24V Thermostat Conversion Kit.



    WhisperKOOL Accessories (Optional)

    You may add WhisperKOOL replacement parts and accessories to enhance the performance and longevity of your wine cooling systems. These add-ons include items that upgrade and protect the system. Check out the other WhisperKOOL Parts & Accessories.

    Exterior Protective Housing for WhisperKOOL Split Systems

    Exterior Protective Housing for WhisperKOOL Split Systems | Wine Coolers Empire - Trusted Dealer

    The Exterior Protective Housing protects the condenser part of WhisperKOOL split systems from the weather and elements when installed outdoors. Exterior Condenser Housing is used with all WhisperKOOL Ducted Split Systems and WhisperKOOL Ductless Split Systems.

    • Galvanized steel base and steel cabinet embossed ‚ÄĒ 20 GA, hinged access for easier servicing
    • Easily assembled in the shop or on the job
    • Rain Trough under hinge to catch moisture that might seep through the hinge
    • WhisperKOOL¬ģ provides fasteners
    • Dimensions (W x H x D): 20‚ÄĚ x 20‚ÄĚ x 27‚ÄĚ

    Condenser Coil Coating

    The Condenser Coil Coating is a protective coating applied to a WhisperKOOL wine cellar cooling system's condenser coil to protect it from salt air. This coating helps to extend the lifespan of the cooling unit, especially in areas near the coast or beach where salt air can be a problem.



    Welcome to our Special Section,

    Here we've gathered all of the related articles in the hopes of assisting you in knowing the PERFECT MATCH for your Wine Cellar.

    Here are Top-Rated Articles:

    We understand that buying this unit is a significant investment, so we make sure you'll get the right unit for your wine room.

    We have our Professional Team that is ready to assist you!

    Contact Us - Wine Coolers Empire

     Furthermore, because YOUR SATISFACTION IS OUR TOP PRIORITY we offer ✨SURPRISING DISCOUNTS✨ that cannot be found anywhere else!

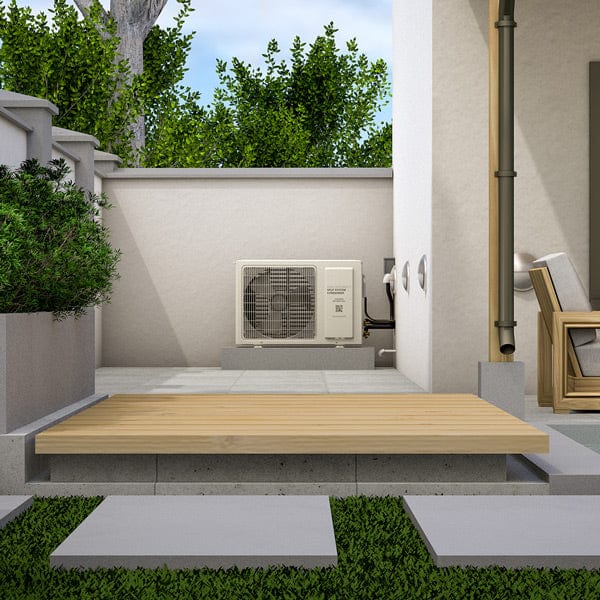

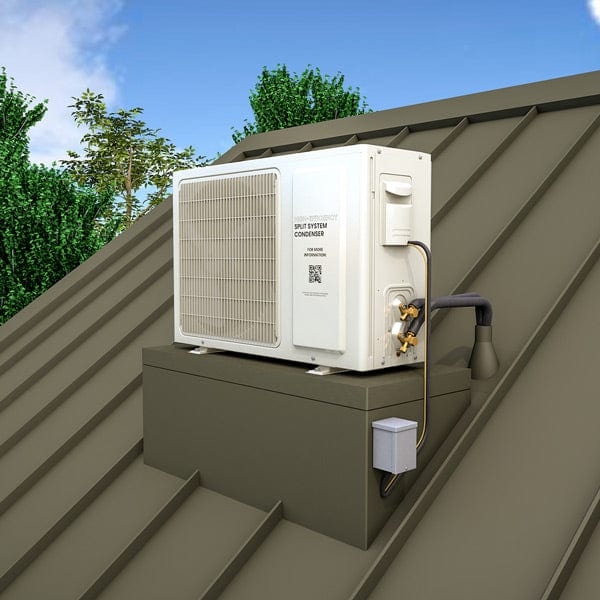

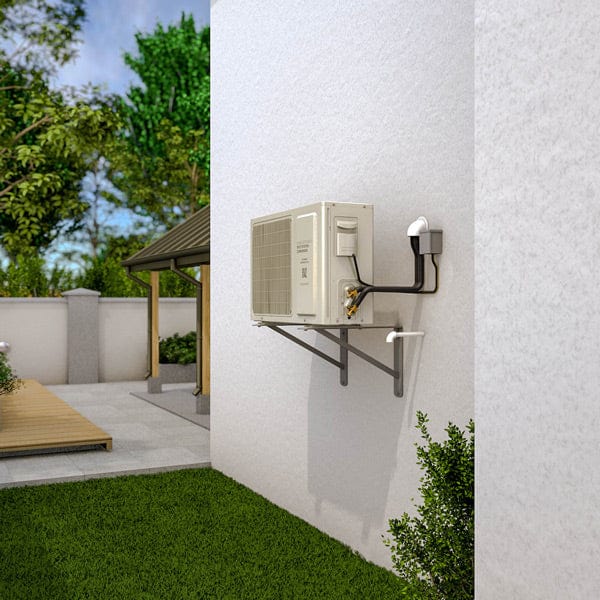

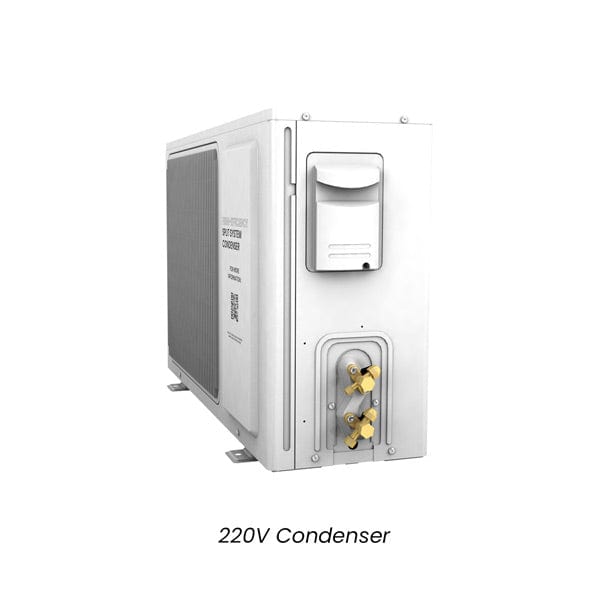

    All New High-Efficiency 220V Condenser Whisperkool Wine Cellar Cooling Systems

    WhisperKOOL is devoted to providing the most efficient, innovative split wine cellar cooling systems on the market. Whsiperkool offers new 220V High-Efficiency Condensers that outdo traditional 110V condensers in performance and efficiency with industry leading technology and multiple wine cellar cooling condensing unit sizes that make it perfect for nearly any application.

    ALL NEW High Efficiency 220V

    The 220V High-Efficiency Condensers offer a host of advantages over our traditional 110V condensers, including simplified installation, ultra-quiet operation, energy efficiency, & the ability to operate in extreme climates. For more information about our latest Split-System innovation.

    Features:

    • EFFICIENT CONDENSER COIL DESIGN:
      • The system was designed utilizing oversized condenser coils, which allow the unit to operate efficiently in adverse high heat humidity environments.
    • DESIGNED FOR EXTREME CLIMATES:
      • Allows the system to adjust to ambient temperature conditions to maintain the ideal storage conditions for your fine wine in cold winter temperatures (as low as -20°F) and hot summer temperatures (up to 120 °F).
    • ULTRA-QUIET SYSTEM OPERATION:
      • The system utilizes large, low-speed fans to create sustainably quieter operation sound levels with reduced dBs between (48dB - 55dB) without decreasing the airflow volume or capacity output.
    • NO LONGER A PUMP DOWN SYSTEM:
      • The condenser is controlled by a direct communication line to the evaporator unit using standard thermostat cable. This communication line will be installed with the line set. This eliminates the solenoid at the Evaporator also eliminating the clicking sound from the solenoid in the Cellar. The design reduced the number of components that will simplify service and increase system longevity.
    • SIMPLIFIED INSTALLATION
      Easy access to controls & valves for simplified installation + smart communication cable from the evaporator to the condenser.

              220V High-Efficiency Condenser

    • ULTRA QUIET OPERATION
      Utilizes large, low-speed fans to create substantially lower operation sound levels between (45dB-52dB).

              Ultra Quiet Operation 220V High-Efficiency Condenser

    • QR CODE
      We’ve placed QR codes to directly lead you to all the vital information about installing and maintaining your system.

             220V High-Efficiency Condenser

    Benefits:

    • 220 VOLT CONDENSERS:
      • Compared to previous models, this 220V system is a significantly more energy- efficient system, utilizing 50% less energy to operate, saving energy costs.
    • SIMPLIFIED SYSTEM INSTALLATION/MAINTENANCE:
      • The electrical connections and valves are easy to access and hook up. (This new system differs from previous models as it requires a communication cable from the evaporator to the condenser). Also, while servicing or installing, manifolds can easily be attached without having to adjust the access valve to review pressure.
    • ATTRACTIVE SYSTEM HOUSING:
      • The systems come complete with an attractive & durable exterior housing that can withstand adverse conditions, associated with outdoor environments.

    Specifications:

    • Line Set: Liquid line 1/4” OD; Suction line 1/2” OD (less than 50 ft.), 5/8” (greater than 50 ft.)
    • Voltage Rating: 220V (15-amp dedicated circuit required)
    • Dimensions: 31.18″L x 10.75″W x 21.18″H
    • DBA: 45
    • Temp. Data: Can maintain a 55°F cellar temperature with up to 120°F condenser air intake temperature.

      GETTING TO KNOW OUR 220V HIGH-EFFICIENCY COOLING SYSTEMS

    UPGRADED CONDENSER! 220V High-Efficiency

    220V High-Efficiency Communication Cable

      110V and 220V Differences

    Installation Guide of 220V High-Efficiency Condenser
