WhisperKOOL Platinum Split 8000 Ducted Cooling System - 110V Omega
is backordered and will ship as soon as it is back in stock.
In Stock & Ready to Ship
Estimated Delivery in 3-7 business days
Fully Ducted Split Wine Cellar Cooling System
WhisperKOOL Platinum Split 8000 Ducted Cooling System
Premium fully ducted split wine cellar cooling for large residential and commercial wine cellars up to approximately 1,750 cubic feet. Designed for quiet operation, hidden equipment placement, glass wine walls, and luxury wine cellar projects.
Designed for wine cellars up to approximately 1,750 cu. ft.
Fully ducted split-system configuration
Ideal for glass wine walls and luxury custom cellars
Condenser can be placed up to 100 ft. away
KDT digital touch display with bottle probe
Professional HVAC-R installation required
Important Installation Notice: A qualified HVAC-R technician is required for installation of the WhisperKOOL Platinum Split 8000 Ducted Cooling System. Failure to follow manufacturer installation requirements may void the warranty.
WhisperKOOL Platinum Split 8000 Overview
The WhisperKOOL Platinum Split 8000 Ducted Cooling System is engineered for collectors, designers, builders, restaurants, and hospitality professionals who need powerful wine cellar cooling without visible equipment or excessive noise inside the wine room.
This system separates the evaporator and condensing unit, allowing the condenser to be installed up to 100 feet away while the evaporator can be placed near the cellar and connected through ducting. This fully ducted split design helps preserve the visual quality of the wine cellar while supporting stable long-term wine storage conditions.
It is especially well suited for glass wine walls, luxury residential wine cellars, modern display cellars, commercial wine rooms, restaurants, and hospitality spaces where quiet operation and concealed equipment are priorities.
Cellars without proper insulation or vapor barrier protection
Projects where lowest upfront cost is the main priority
Simple through-the-wall replacement applications
Free Wine Cellar Design Assistance
Wine Coolers Empire can help review cellar size, glass exposure, ducting path, condenser placement, insulation quality, vapor barrier construction, and product fit before purchase.
The ducted split configuration allows cooling equipment to be placed outside the wine cellar, helping reduce or eliminate operating noise inside the wine room.
Flexible Split-System Design

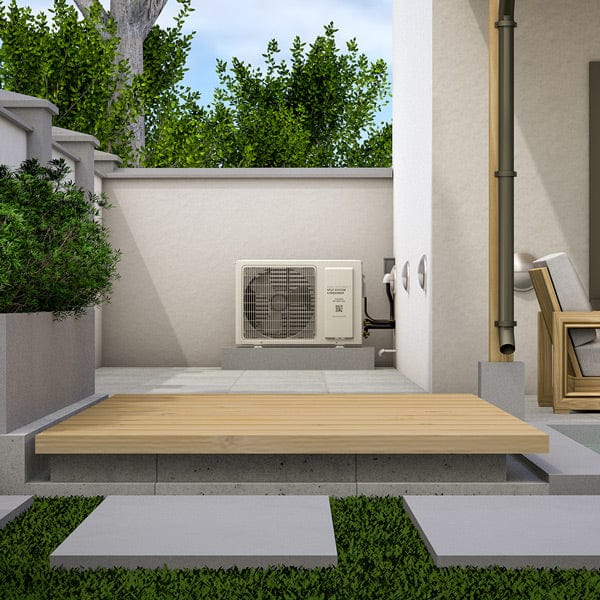

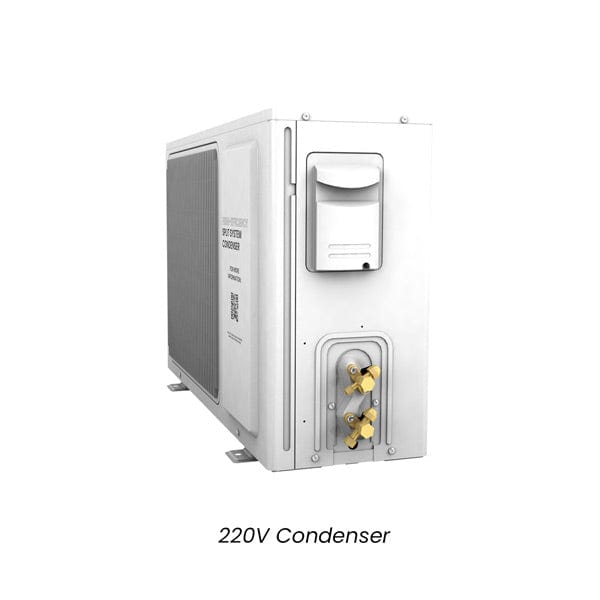

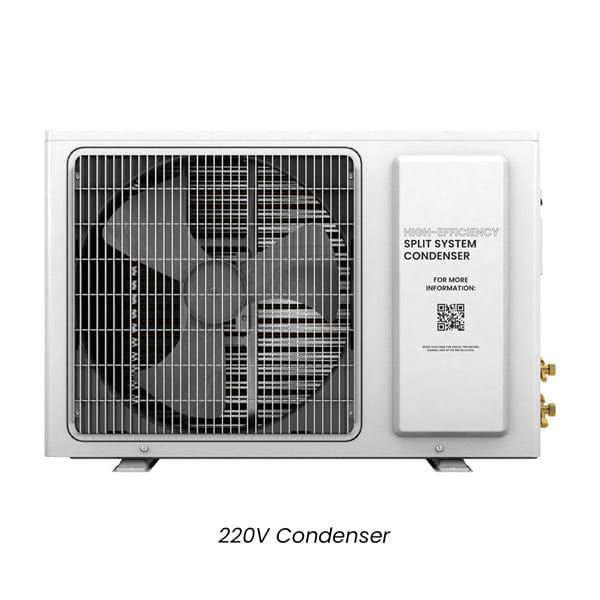

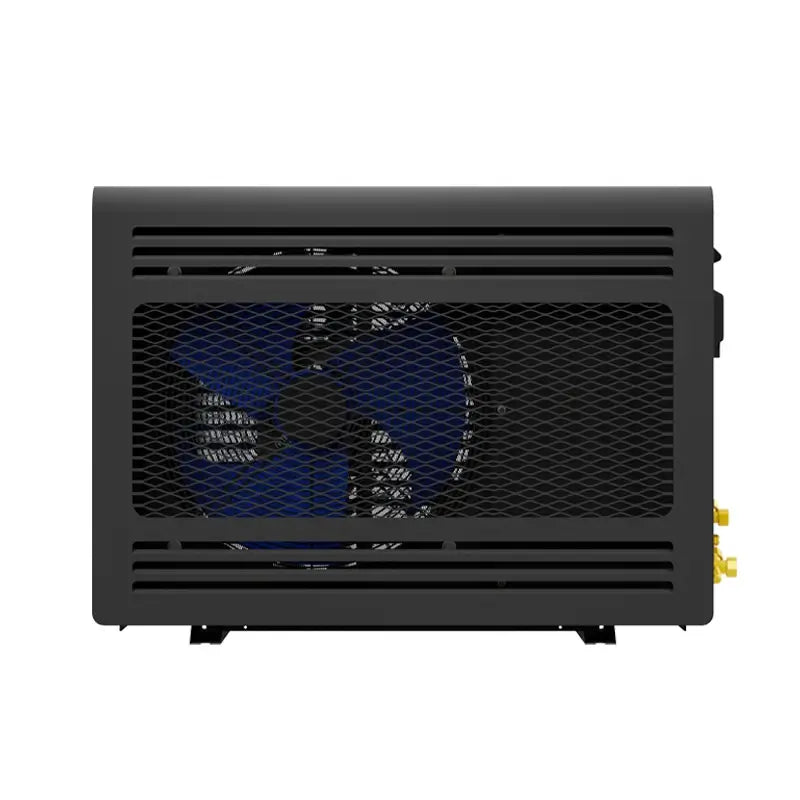

The evaporator and condensing unit are separated, allowing the condenser to be placed up to 100 feet away from the cellar.
KDT Digital Touch Display
The KDT controller can be installed up to 50 feet away from the unit and includes advanced system protection alerts.

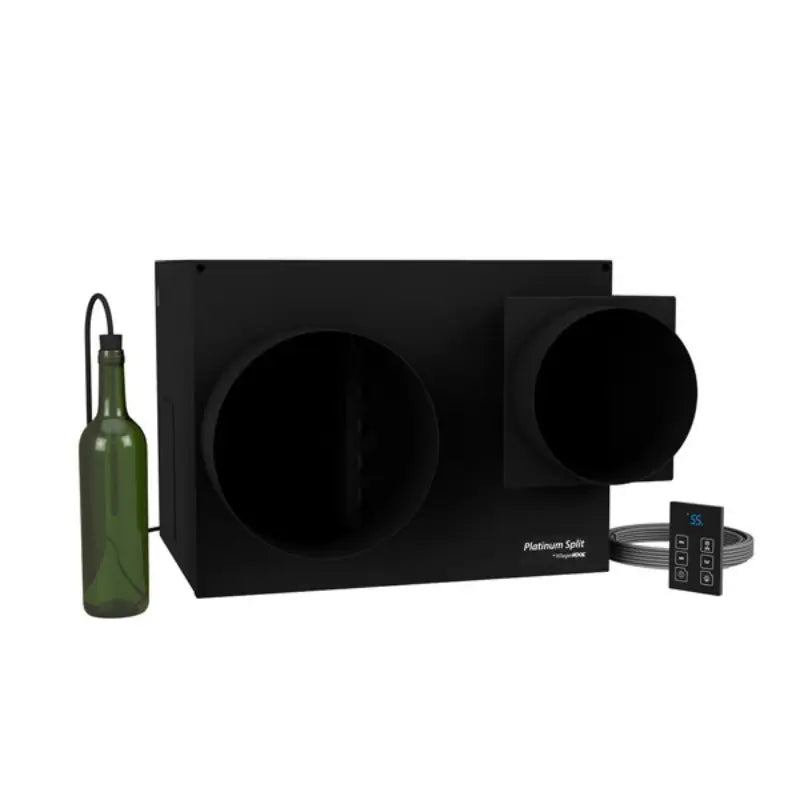

Bottle Probe Technology
The included bottle probe measures liquid temperature, helping provide a more accurate reflection of wine temperature than ambient cellar air readings alone.

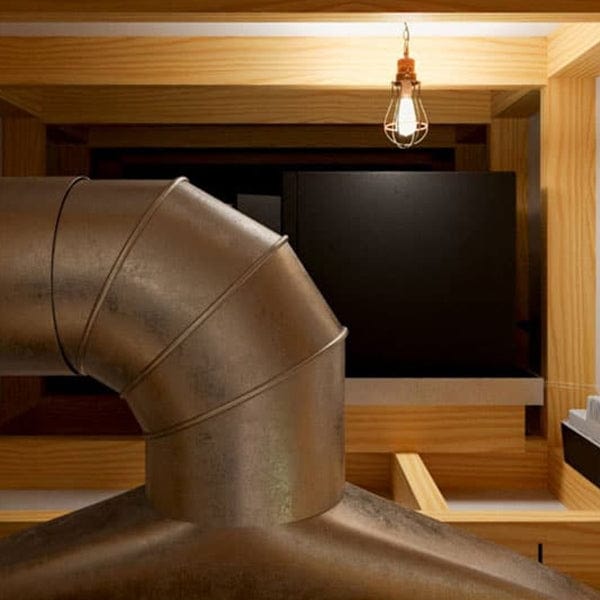

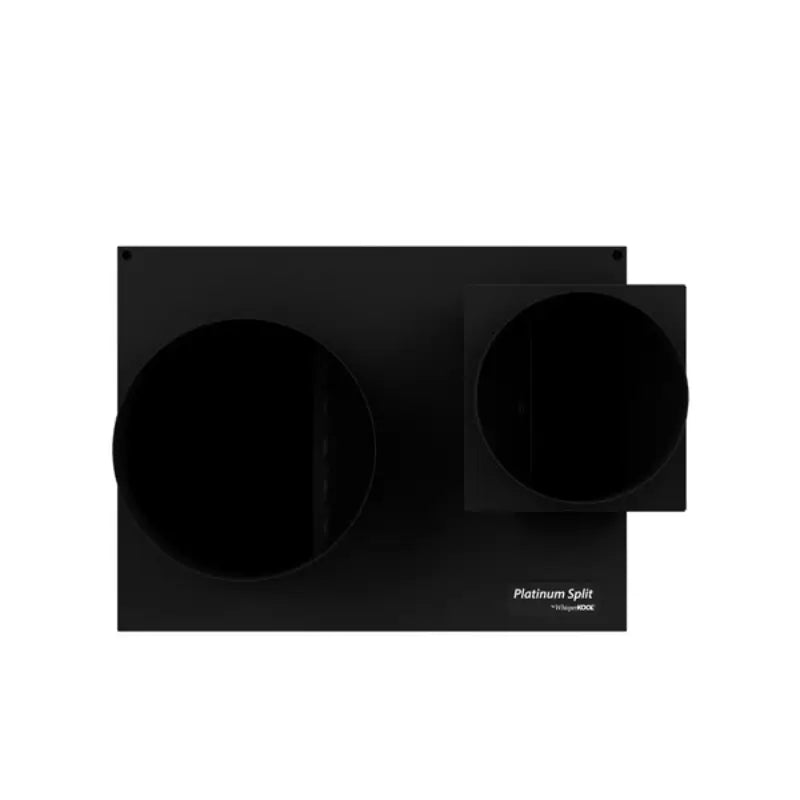

Ducting Flexibility
Fully ducted installation allows the cooling system to be hidden from view while still delivering conditioned air into the cellar.
Optional 24V Thermostat Integration
The optional 24V thermostat conversion kit allows use with compatible third-party smart thermostats.
Feature Images
Touch Display
Bottle Probe

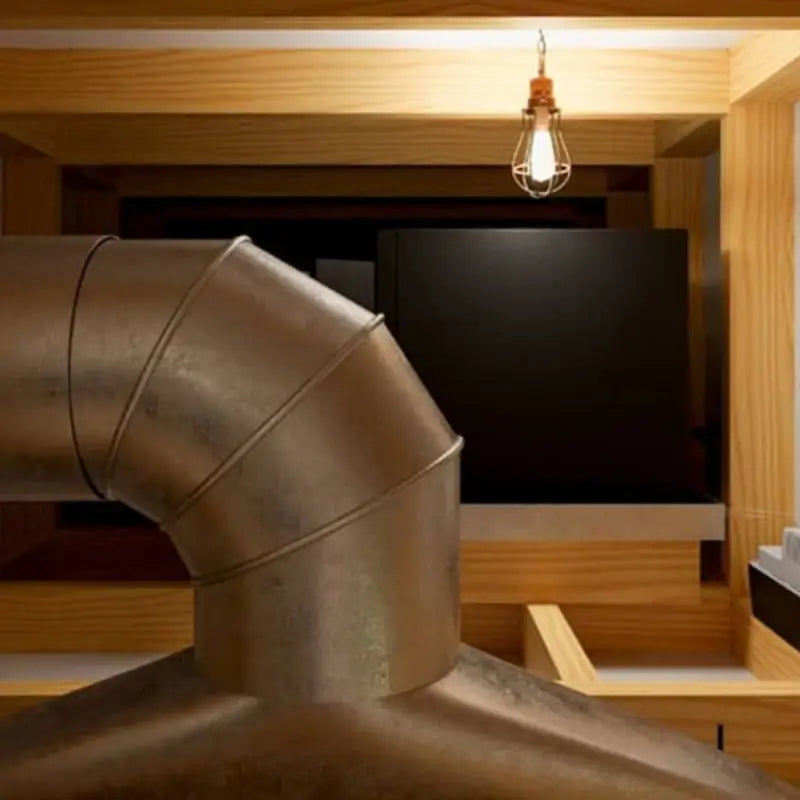

Ducting Options
Advantages and Limitations
Advantages
Considerations
Very quiet wine cellar operation
Requires professional HVAC-R installation
Cooling equipment can be hidden from view
More complex installation than self-contained systems
Excellent for glass wine walls and luxury cellars
Proper insulation and vapor barrier are essential
Flexible condenser placement up to 100 ft.
Additional ducting and line-set planning required
Optional 24V thermostat conversion available
Smart thermostat is not included
Installation Requirements
Cellar Construction Requirements
Fully insulated wine cellar envelope
Proper vapor barrier
Sealed doors and windows
Appropriate ducting design
Correct cooling load calculation
Mechanical Requirements
Qualified HVAC-R technician installation
Proper refrigerant line installation
Drain line routing
Electrical planning
Condenser placement and ventilation
Drain Line: Requires 1/2" ID clear plastic tubing. Tubing is not provided.
BTU/h and Sizing Guidance
The Platinum Split 8000 has an estimated cooling range of 3,073-4,798 BTU/h. This range is an estimate and not a guarantee for every 1,750 cubic foot cellar.
Some wine cellar designs require a larger cooling unit due to variables such as glass, stone, concrete, poor insulation, air leakage, or other construction conditions that affect cooling load.
Choosing an undersized unit may result in premature equipment failure and may prevent the cellar from reaching the desired wine cellar temperature.
If your cellar includes glass walls, unique construction materials, or uncertain insulation quality, contact Wine Coolers Empire before ordering.
Technical Specifications
Cellar Size
Approx. 1,750 cu. ft. when fully insulated and sealed with proper vapor barrier
Ray and Kim from Roseville, CA selected a WhisperKOOL Platinum Split System for their modern wine cellar to help protect their wine investment while maintaining a quiet cellar environment.
24V Thermostat Conversion Kit
UV-C Light Technology
Manuals and Downloads
Review the owner’s manual, technician manual, product specifications, and warranty documentation before purchase and installation.
The optional 24V thermostat conversion kit allows compatible third-party thermostats to monitor and control cellar conditions.
Connect compatible thermostats to Wi-Fi
Control temperature from a phone, tablet, or laptop
Monitor runtime and energy usage
Set alarm notifications
View cellar conditions from a mobile device
Please Note: WhisperKOOL does not provide smart thermostats. If you choose the 24V thermostat conversion kit, the system will not include the standard WhisperKOOL control or liquid-measuring bottle probe. You will need to purchase your own 24V smart thermostat. WhisperKOOL does not provide support for third-party smart thermostat issues.
Optional WhisperKOOL Accessories
WhisperKOOL accessories can help protect, upgrade, or extend the service life of your wine cellar cooling system. View all WhisperKOOL Parts & Accessories.

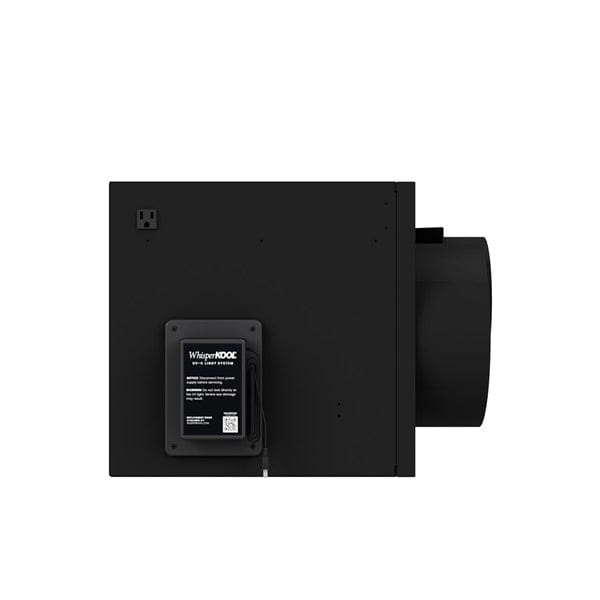

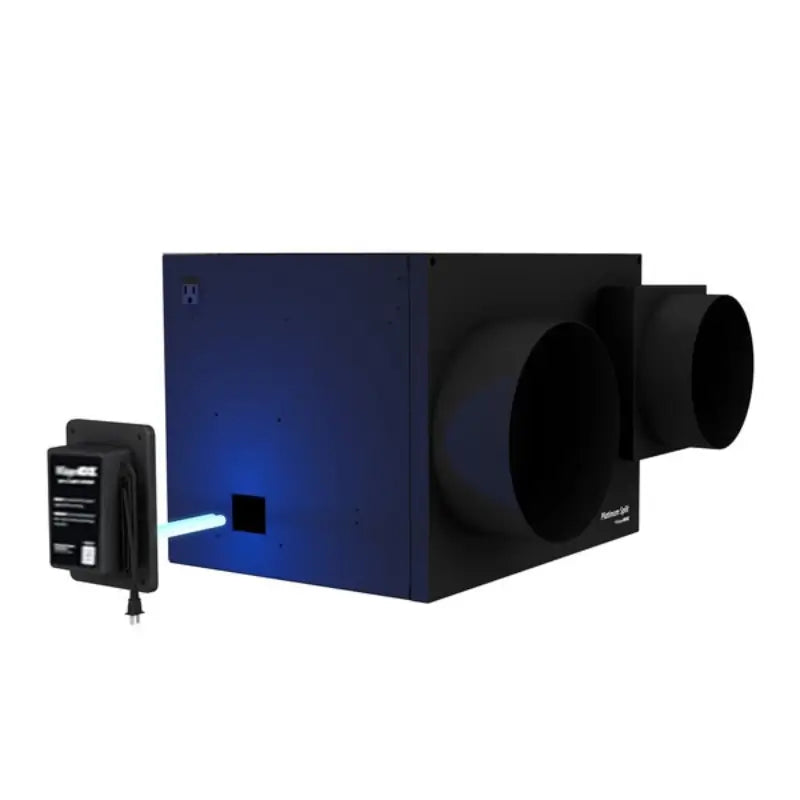

UV-C Light Technology
UV-C light technology helps improve indoor air quality inside the wine cellar and may help reduce mold and bacterial growth inside the cooling system.
The WhisperKOOL Platinum Split 8000 Ducted Cooling System is best suited for large custom wine cellars where quiet operation, hidden equipment, and flexible condenser placement are priorities. It is especially appropriate for luxury residential projects, glass wine walls, restaurants, and hospitality spaces.
For wine cellars with heavy glass exposure, unusual construction materials, or uncertain insulation quality, Wine Coolers Empire recommends confirming cooling load requirements before purchase.
Need Help Choosing the Right Wine Cellar Cooling System?
Wine Coolers Empire provides complimentary wine cellar design planning and product-focused cooling system recommendations for homeowners, builders, designers, and hospitality projects.
This system is designed to effectively cool wine cellars up to 2,000 cubic feet, assuming the space is properly insulated and sealed with a vapor barrier.
A ducted split system separates the evaporator (cooling coil) and condenser (heat-releasing unit), connected by refrigerant lines. The evaporator is ducted to the cellar, allowing the unit to be completely hidden while delivering quiet, consistent cooling.
Yes. This unit must be installed by a licensed HVAC technician. Proper installation ensures safe refrigerant handling and activates the manufacturer’s warranty.

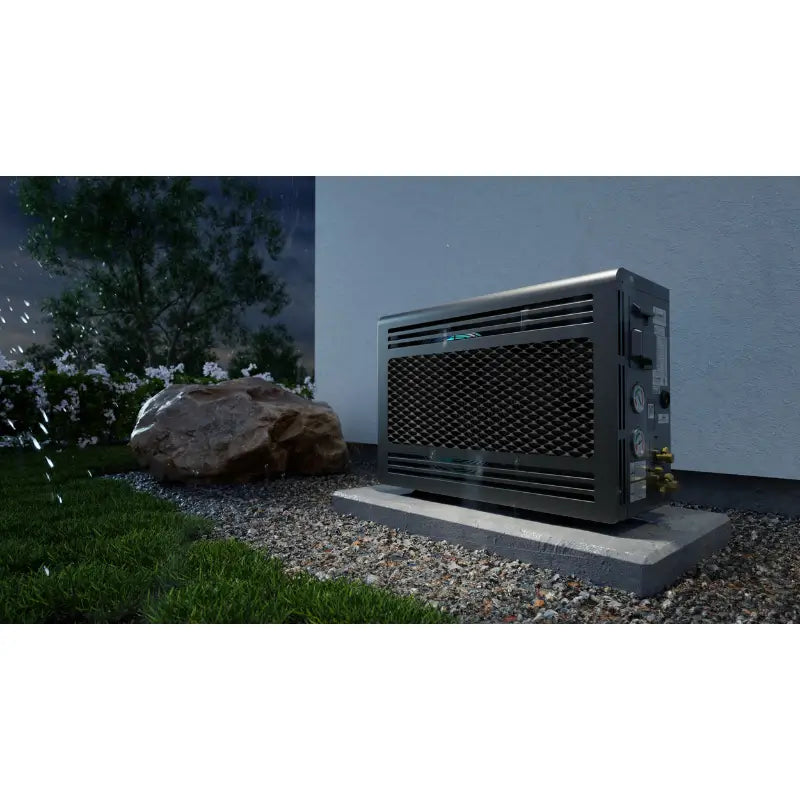

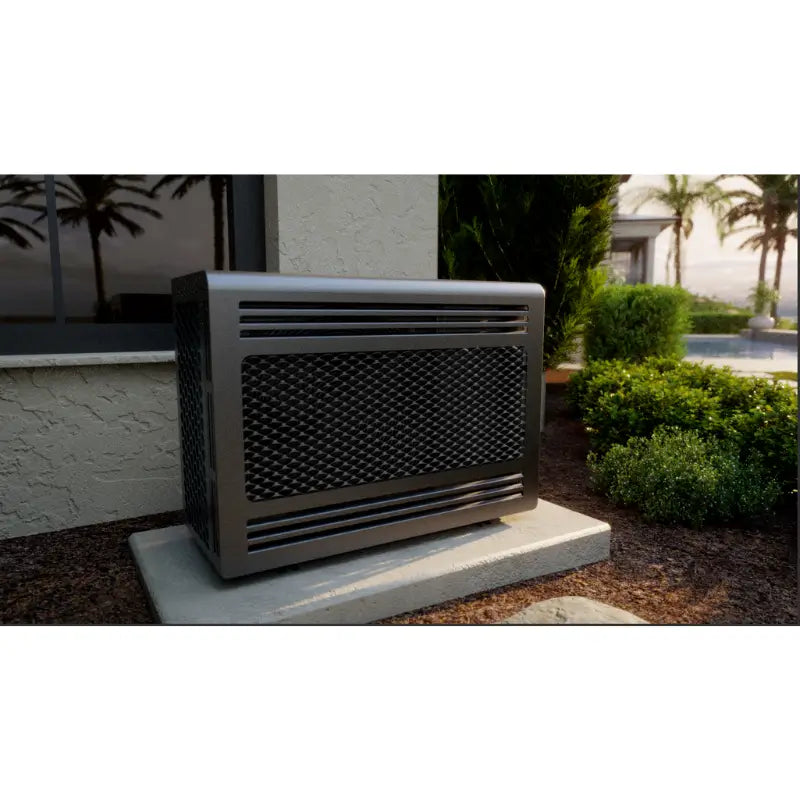

Yes, the condenser can be installed outside when paired with the optional exterior housing. It should be placed in a location with adequate airflow and protection from extreme weather.
This system is virtually silent inside the wine cellar, since the evaporator is ducted remotely and the condenser is located outside the room. It's ideal for cellars where ambiance and quiet are priorities.
The unit features the KDT Digital Controller with Advanced System Protection. It provides temperature and humidity monitoring, system alerts, and diagnostics for optimal cellar management.
WhisperKOOL provides a 2-year parts and labor warranty and a 5-year warranty on the compressor. The warranty is valid only with professional installation and product registration."]
