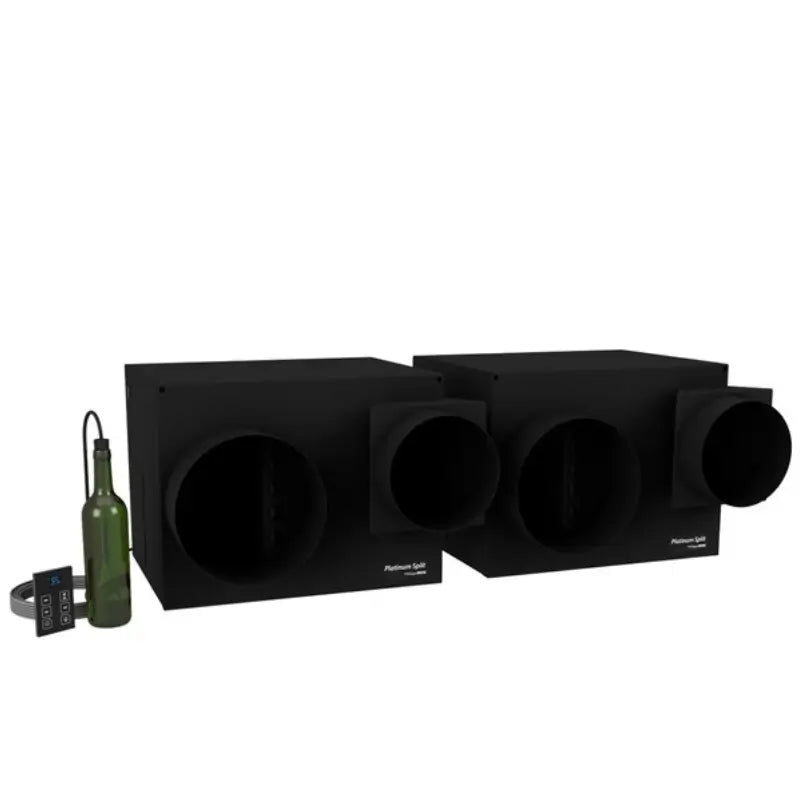

The WhisperKOOL Platinum Split Twin Ducted Cooling System is engineered for wine collectors, luxury homeowners, designers, builders, and hospitality professionals who need a powerful cooling system that can remain visually hidden from the wine cellar.

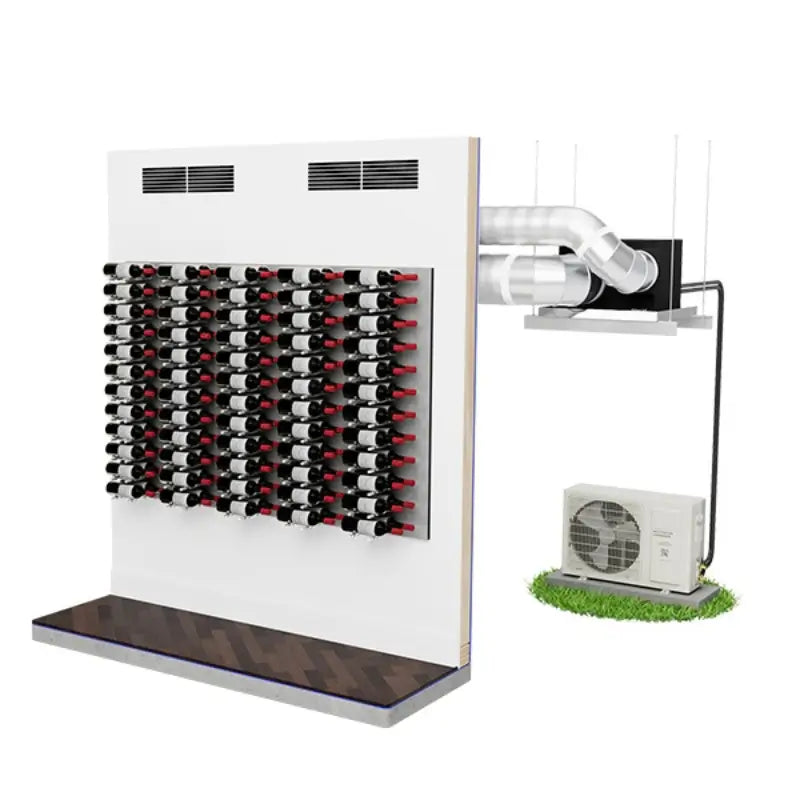

This system separates the evaporator and condenser components, allowing the condenser to be installed remotely while conditioned air is delivered discreetly through ducting. Because the main mechanical components can be positioned away from the wine room, this system helps reduce or eliminate equipment noise inside the cellar.

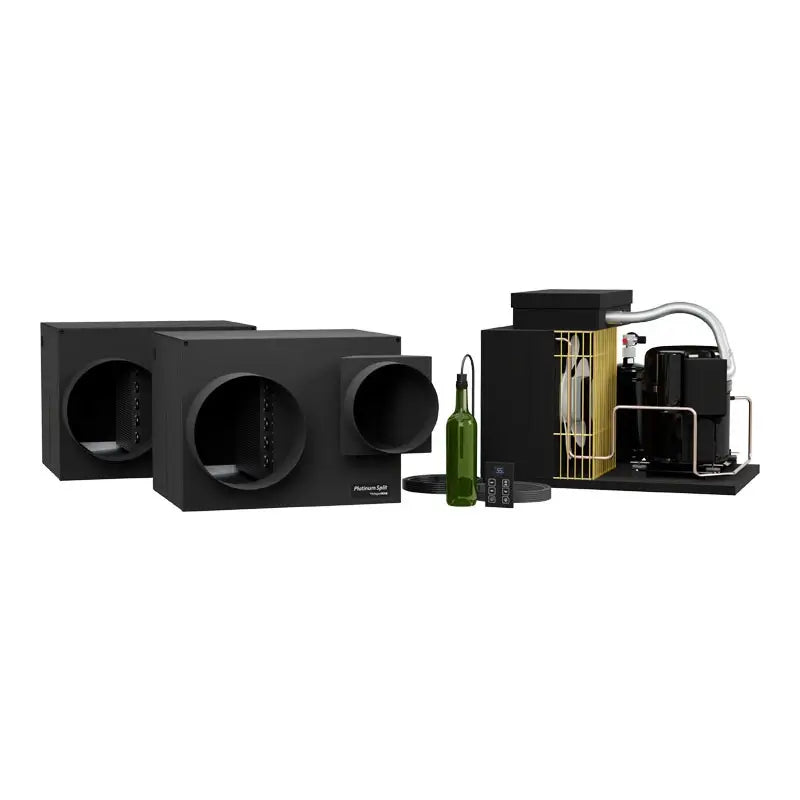

The Platinum Split Twin includes dual ducted evaporators, an advanced electronic control system, flare fittings, standard and 24V thermostat options, an optional UV-C light technology upgrade, and a 2-speed fan switch that allows BTU/h capacity adjustment.
Quick Answer Summary
Cooling System Type
Fully ducted split wine cellar cooling system
Approximate Cellar Size
Up to 3,000 cu. ft. when fully insulated and sealed with a proper vapor barrier
BTU/h Range
Low: 7,536 • Medium: 7,850 • High: 8,164

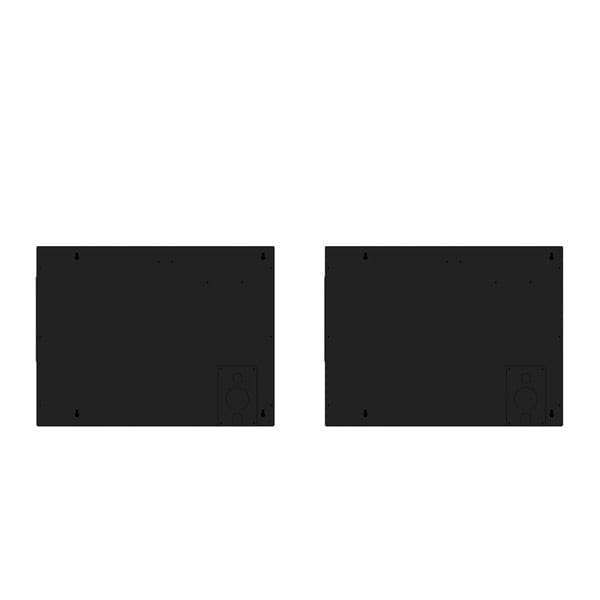

Evaporator Dimensions
16.1” L x 20.5” W x 15.5” H each

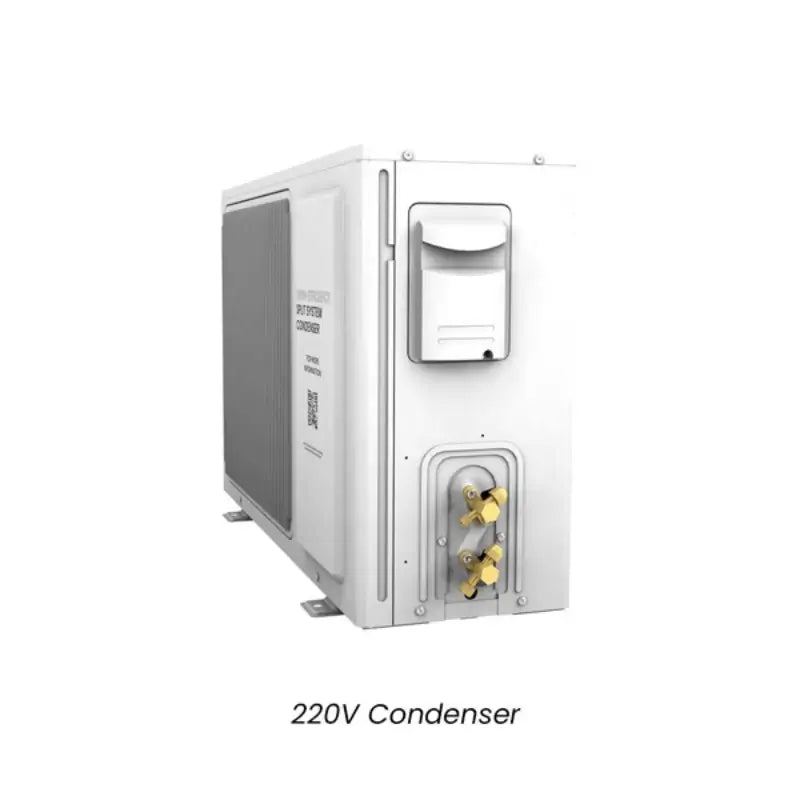

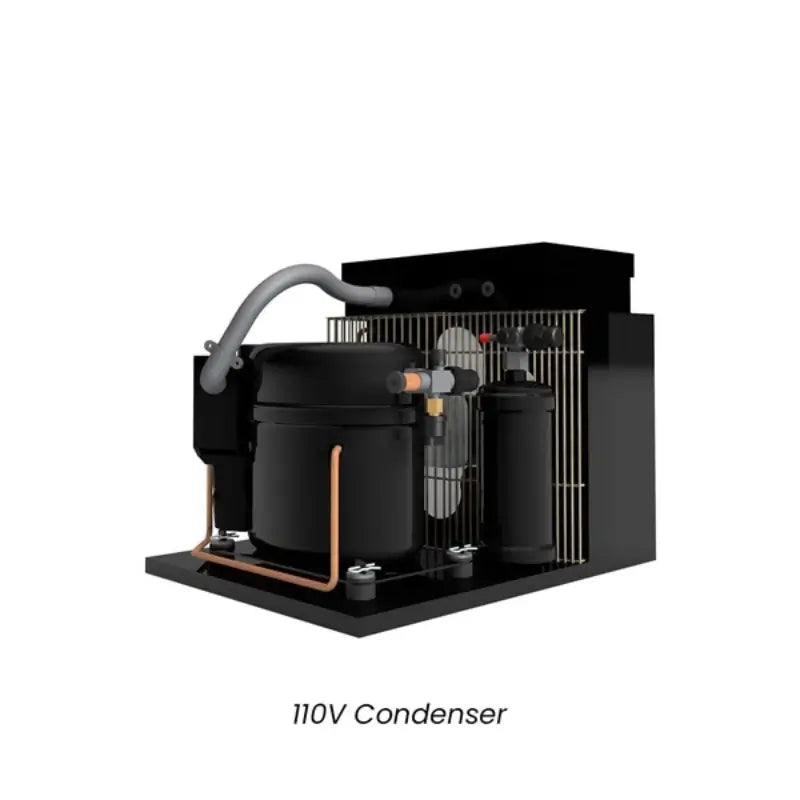

Condenser Dimensions
24” L x 18.98” W x 16.16” H
Remote Condenser Distance
Up to 100 ft. away
Display Distance
KDT digital touch display can be installed up to 50 ft. away
Drain Line
1/2” ID clear plastic tubing required, not provided
Installation
Qualified HVAC-R technician required
Warranty
Limited 2-year parts and labor warranty
The BTU/h value range is an estimate and not a guarantee. Glass, stone, concrete, poor insulation, missing vapor barriers, high ambient temperatures, and other cellar construction variables may require a larger cooling system.
Recommended For
Large residential wine cellars
Luxury glass wine walls
Modern custom wine rooms
Collectors who want quiet cellar operation
Designers who need hidden cooling equipment
Builders planning ducted wine cellar cooling
Hospitality wine displays and tasting spaces
Projects where the condenser must be located remotely
Not Recommended For
Small wine rooms under 1,000 cu. ft.
DIY installations
Uninsulated spaces
Rooms without a proper vapor barrier
Projects without ducting access
Temporary wine storage areas
Budget installations where a self-contained unit is more practical
Open spaces that cannot be sealed as a controlled wine cellar
Key Features
Virtually Silent Cellar Operation
The fully ducted split design allows cooling equipment to remain away from the wine cellar, helping reduce or eliminate mechanical noise in the room.

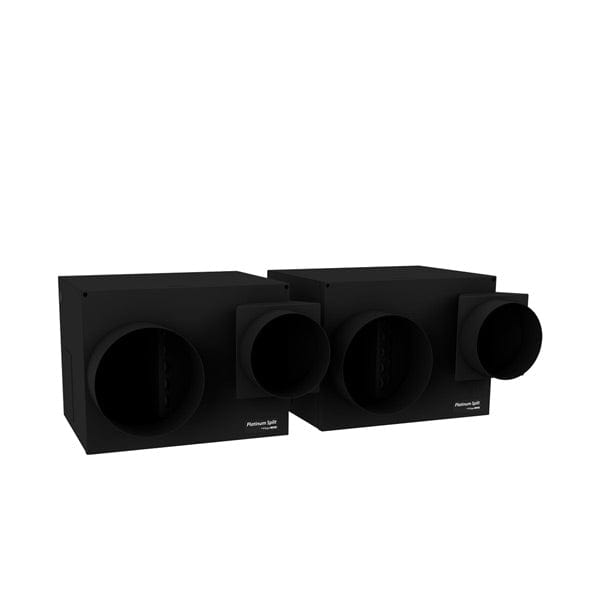

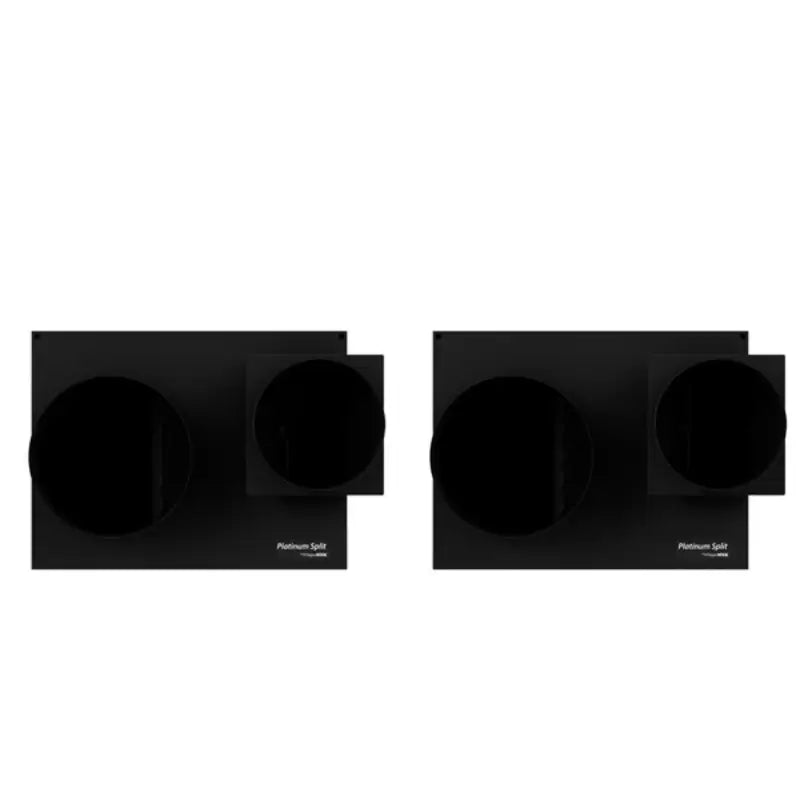

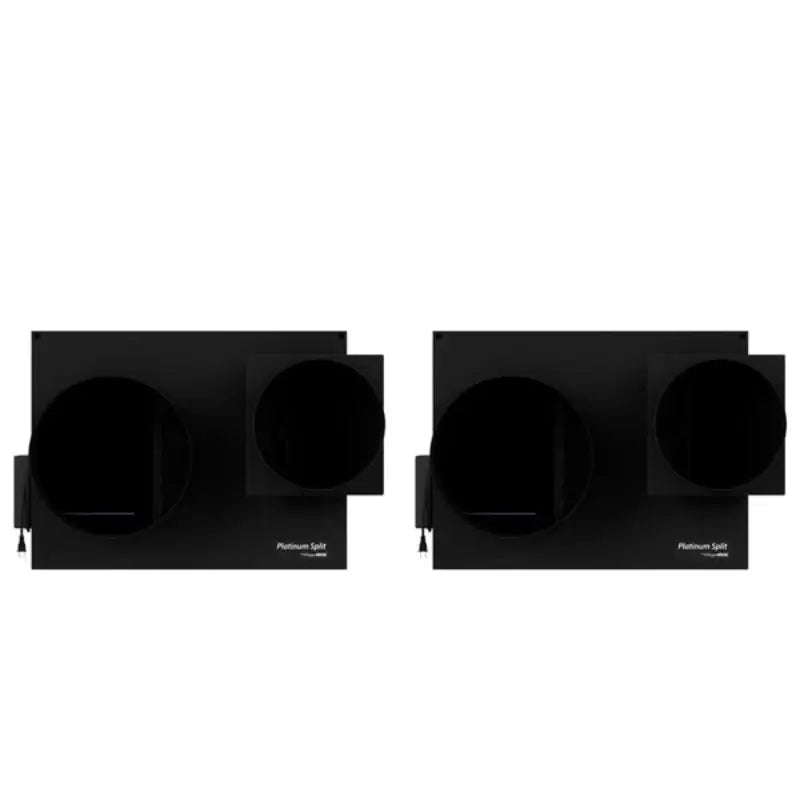

Dual Ducted Evaporators
The twin evaporator configuration supports larger cellar applications and provides flexible ducting options for custom layouts.
KDT Digital Touch Display
The KDT Digital Touch Display can be installed up to 50 ft. away from the unit and includes Advanced System Protection alerts when system parameters are not met.

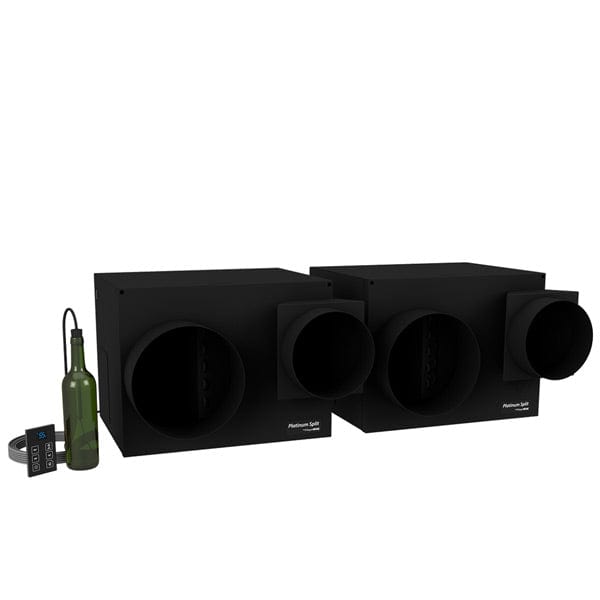

Bottle Probe Temperature Control
The included bottle probe measures liquid temperature, which provides a more accurate reflection of actual wine temperature than ambient air measurement alone.

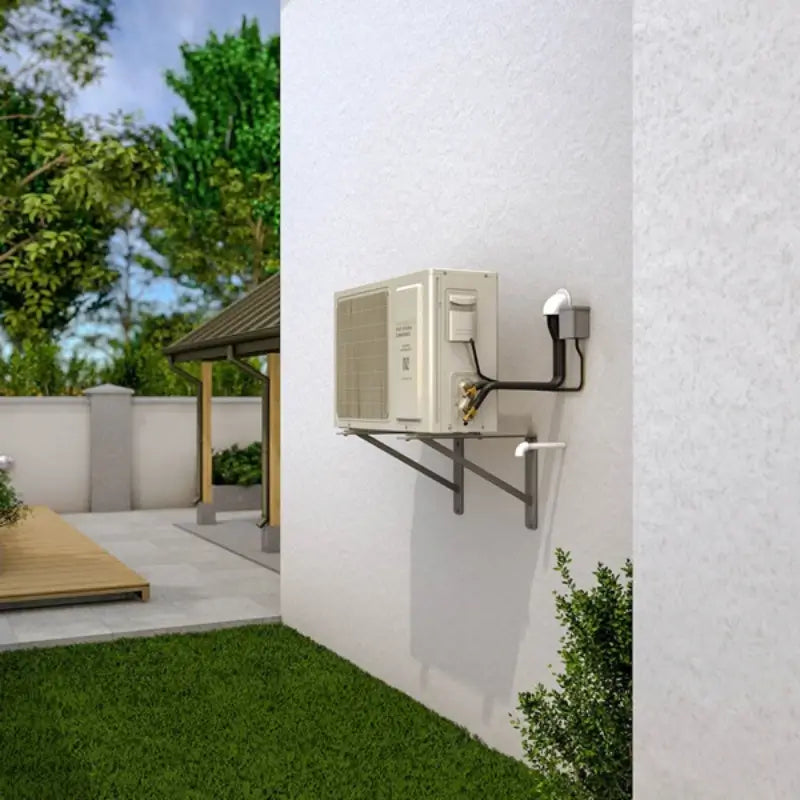

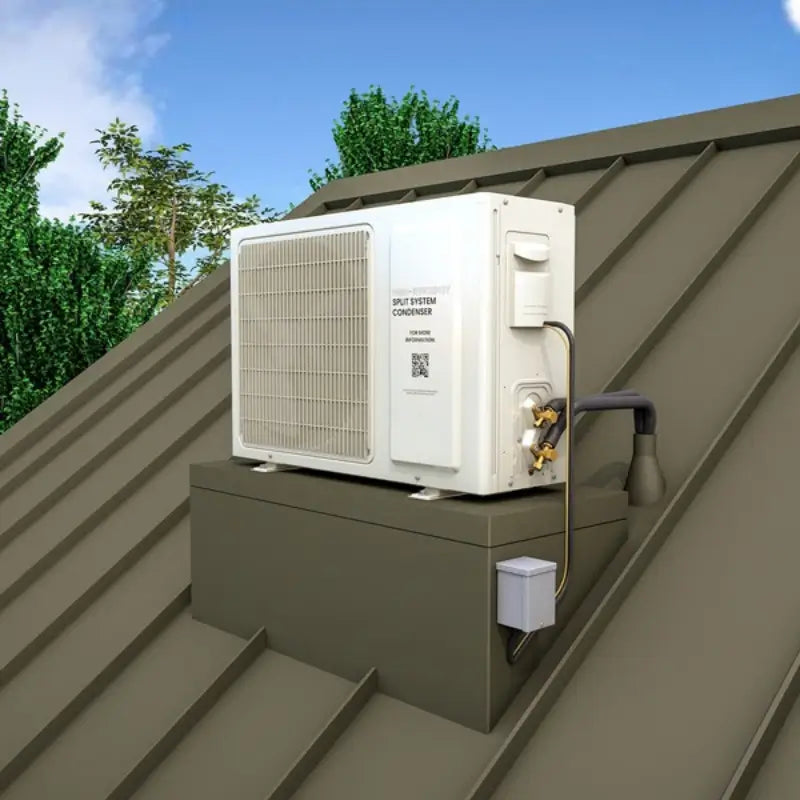

Flexible Condenser Placement
The condenser may be installed up to 100 ft. away, giving HVAC professionals, builders, and designers greater placement flexibility.

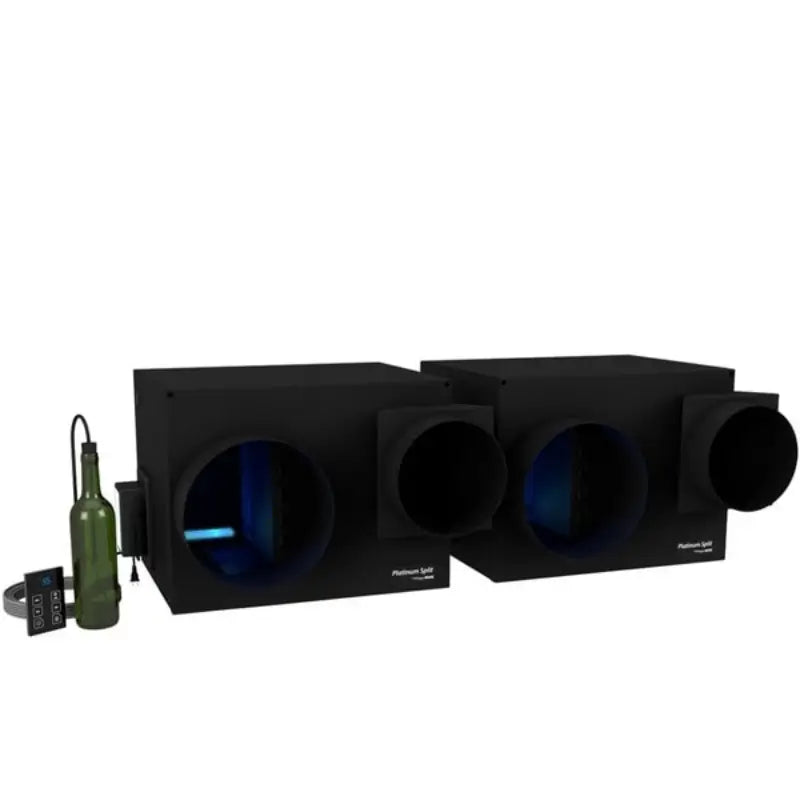

Optional UV-C Light Technology
Optional UV-C light technology helps protect the cooling system from mold and bacterial growth while supporting cleaner air inside the wine cellar.
Installation Requirements
Important: A qualified HVAC-R technician is required to install the WhisperKOOL Platinum Split Twin Ducted Cooling System. Failure to follow this requirement may void the warranty.
Requirement
Details
Professional Installation
Qualified HVAC-R technician required

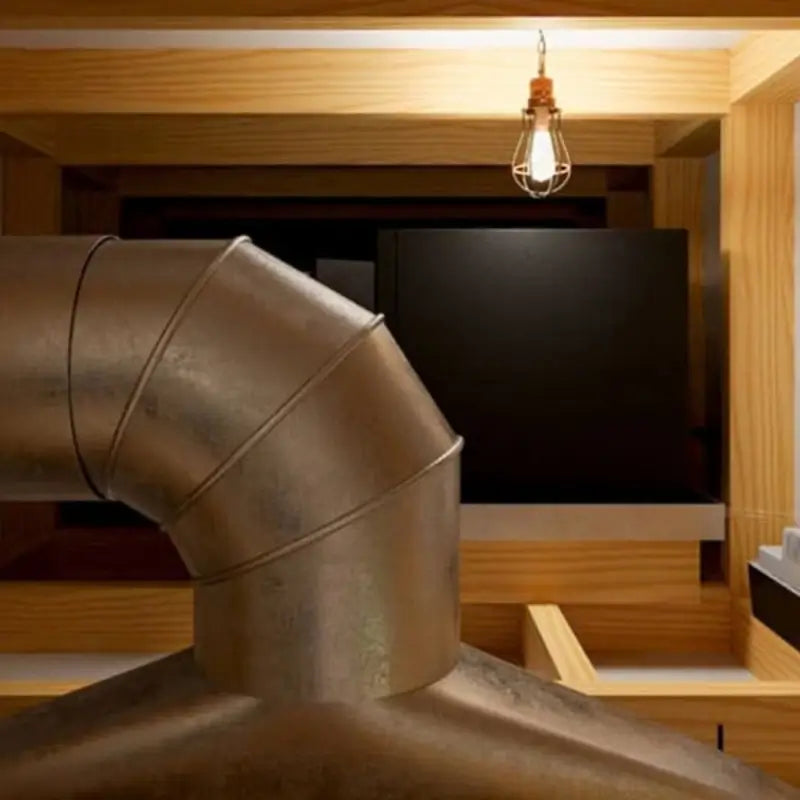

Ducting
Required for fully ducted installation
Cellar Insulation
Wine cellar must be properly insulated
Vapor Barrier
Required for proper wine cellar performance
Drain Line
1/2” ID clear plastic tubing required, not provided
Remote Condenser Placement
Condenser may be installed up to 100 ft. away
Display Placement
KDT display may be installed up to 50 ft. away
Proper construction is essential. Cellars with large glass surfaces, stone, concrete, inadequate insulation, missing vapor barriers, or high heat exposure may require additional capacity. Choosing an undersized unit may prevent the cellar from reaching the desired wine storage temperature and may cause premature system failure.
Higher installation complexity than self-contained systems
Liquid temperature monitoring with bottle probe
Not ideal for small wine rooms
Strong choice for glass wine walls and premium displays
Performance depends on proper insulation and vapor barrier
Optional smart thermostat conversion available
Smart thermostat is not included with the 24V conversion kit
Technical Specifications
Product Series
WhisperKOOL Platinum Split Ducted Series
Model
Platinum Split Twin Ducted Cooling System
Approximate Cellar Size
3,000 cu. ft. when properly insulated and sealed
BTU/h Low
7,536
BTU/h Medium
7,850
BTU/h High
8,164
Evaporator Dimensions
16.1” L x 20.5” W x 15.5” H each
Condenser Dimensions
24” L x 18.98” W x 16.16” H
Drain Line Requirement
1/2” ID clear plastic tubing, not provided
Control Display
KDT Digital Touch Display
Temperature Monitoring
Liquid measuring bottle probe
Warranty
Limited 2-year product warranty on split systems
Model Comparison
The Platinum Split Twin is best suited for larger wine cellars. If your cellar is smaller, a lower-capacity Platinum Split model may be more appropriate.
Ray and Kim from Roseville, CA selected a WhisperKOOL Platinum Split System for their modern wine cellar because they needed quiet cooling performance and reliable protection for their wine collection.
Control cellar temperature from a phone, tablet, or laptop
Monitor run time and energy usage
Set alarm notifications
View cellar conditions from a mobile device
Please note: WhisperKOOL does not provide smart thermostats. If you choose the 24V Thermostat Conversion Kit, the system will not be built with the standard WhisperKOOL control or liquid measuring bottle probe. You must purchase your own 24V smart thermostat. WhisperKOOL Customer Satisfaction will not provide support for issues related to smart thermostats.
WhisperKOOL replacement parts and accessories can help improve performance, protect the system, and support long-term reliability. View all WhisperKOOL Parts and Accessories.
UV-C Light Technology
Adding UV-C Light Technology can help improve indoor air quality inside the wine cellar and protect the cooling system from mold and bacterial growth.

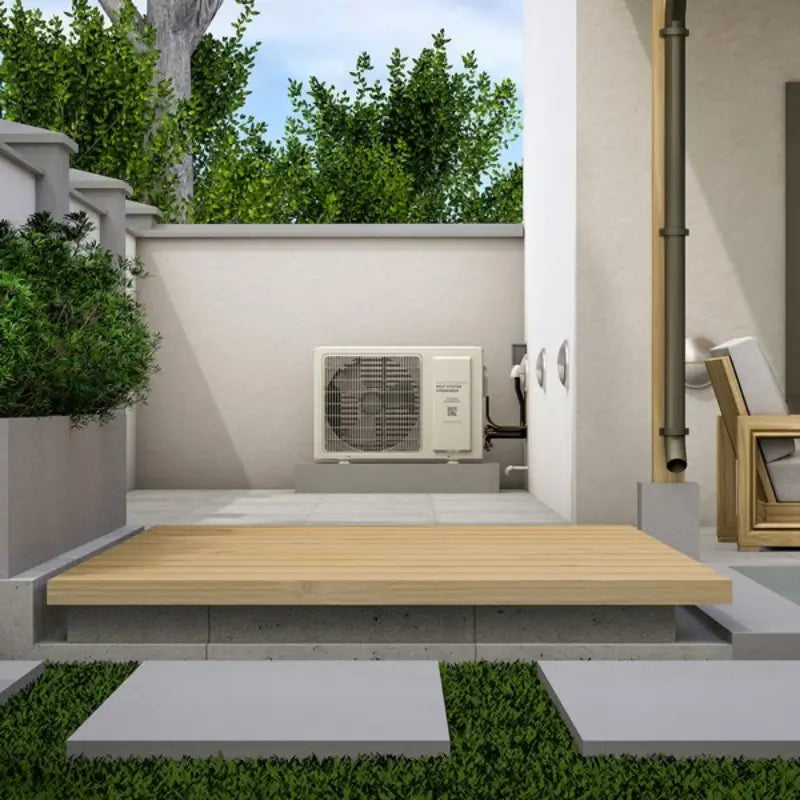

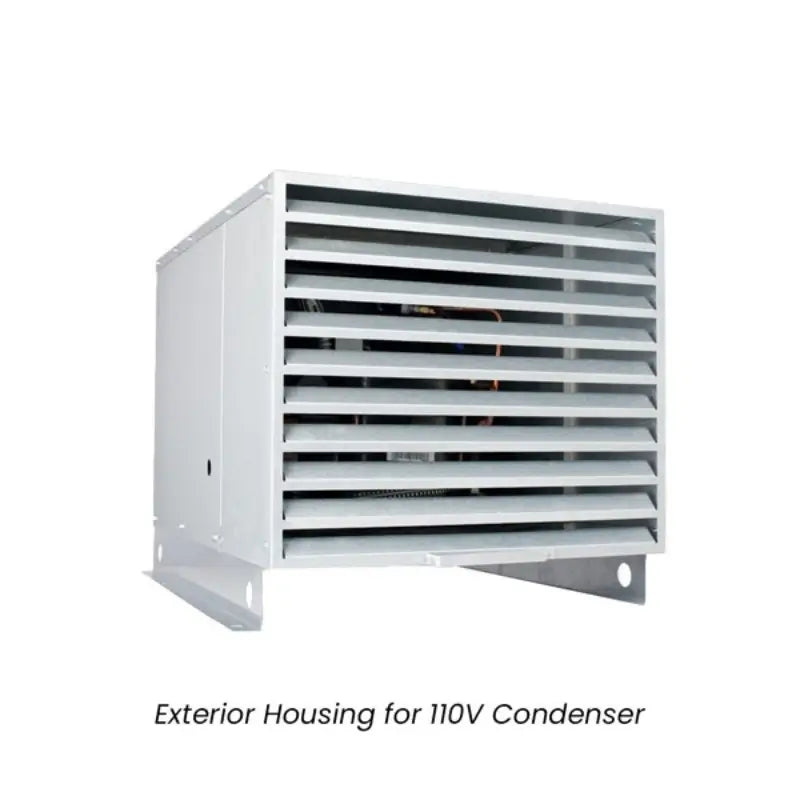

Exterior Protective Housing
Exterior protective housing helps protect the condenser from weather and outdoor elements when installed outside.
Galvanized steel base and embossed steel cabinet
20 GA construction
Hinged access for easier servicing
Rain trough under hinge
Fasteners provided by WhisperKOOL
Dimensions: 20” W x 20” H x 27” D
Condenser Coil Coating
Condenser coil coating helps protect the condenser coil from salt air exposure, making it especially useful for coastal or beach-area installations.
Related Wine Cellar Cooling Guides
These expert guides can help you compare system types, evaluate installation needs, and plan a better wine cellar cooling setup.
The WhisperKOOL Platinum Split Twin Ducted Cooling System is best suited for collectors, designers, builders, and hospitality professionals planning a large premium wine cellar where quiet operation and hidden mechanical equipment are priorities.
It is especially appropriate for modern glass wine walls and custom wine rooms up to approximately 3,000 cubic feet, provided the cellar is properly insulated, sealed, and built with a vapor barrier. For smaller spaces, the Platinum Split 4000 or Platinum Split 8000 may be a better fit.
Because wine cellar cooling performance depends heavily on construction quality, Wine Coolers Empire recommends confirming your cellar size, insulation, glass exposure, and ducting plan before purchase.
Why Buy From Wine Coolers Empire?
Wine Coolers Empire is a trusted dealer of specialty wine cellar air conditioners, commercial wine cellar refrigeration units, residential wine cellar coolers, and wine cellar design products.
Our team helps customers choose properly sized wine cooling systems based on cellar size, construction conditions, insulation, bottle capacity, and design goals.
Free wine cellar design planning assistance
Expert product sizing support
Residential and commercial wine cooling guidance
Access to manuals, specifications, warranty documents, and related accessories
Support for designers, builders, collectors, and hospitality projects
You can also view more customer feedback on our Customer Reviews page.
Need Help Choosing the Right Wine Cellar Cooling System?
The WhisperKOOL Platinum Split Twin Ducted Cooling System is a serious investment and should be properly matched to your cellar construction, insulation, glass exposure, and cooling load.
Contact Wine Coolers Empire for free wine cellar design planning and expert cooling system sizing before you buy.
For order processing, shipping options, and delivery times, please review our Shipping Policy.
📚 Frequently Asked Questions (FAQs)
This system is designed to cool wine cellars up to 3,000 cubic feet, depending on insulation quality, door seals, and heat load from surrounding rooms.
“Twin” refers to the system’s dual evaporators, which allow for balanced and even air distribution across larger or uniquely shaped wine cellars. This helps maintain consistent temperature throughout the space.
Yes. Installation must be done by a licensed HVAC technician. The system involves refrigerant lines, ducting, and electrical connections, and must be installed professionally to preserve the warranty.
Yes, the condenser can be installed outdoors with the optional exterior housing. The outdoor location should have proper ventilation and protection from harsh weather.
Extremely quiet. Since it's a fully ducted split system, the evaporators and ducting are installed away from the wine cellar itself, keeping the cellar space virtually silent.
It includes the WhisperKOOL KDT Digital Controller with Advanced System Protection, providing temperature and humidity monitoring, alarm notifications, and system diagnostics.
WhisperKOOL offers a 2-year warranty on parts and labor and a 5-year warranty on the compressor. Both warranties are valid only with professional installation and product registration."]
