Wine Guardian DS025 - Duct Split System Wine Cooling Unit - 60 HZ

SKU 99H0340-20

💵 We Will Beat Any Online Competitor's Prices! Call (888) 407-7770 Or Chat With Us to get the lowest price!

Save 26%
Original Price $9,180.00
Current Price $6,800.00

No Sales Tax (Except NV)

🚚 Free Shipping in Continental US - some exclusions apply

Fan-coil Options
Condensing Options

Notify me when back in stock

Wine Guardian DS025 - Duct Split System Wine Cellar Cooling Unit - 60 HZ Review

Want to ensure that your wine is stored in optimal conditions? Wine Guardian DS025 Ducted Split System Wine Cellar Cooling Unit precise temperature control and even air distribution!

NOTE: A qualified contractor is required for installation. The DS025 is a 60Hz system, which is commonly used in most of North America, including the USA and Canada. It has a unit capacity of up to 3,400 BTU/h.

The Wine Guardian DS025 Ducted Split Wine Cellar Cooling Unit - 60 HZ with ductable fan-coil is perfect for small home wine cellars and commercial wine rooms with volumes ranging from 250 to 2,000 cubic feet. It's a ducted split wine cooling unit with a maximum capacity of 3,400 BTU/H (1.055 Kilowatt). You must have a qualified contractor install the DS025 Wine Guardian cooling unit.

To ensure your wine collection is in the best condition, it's important to maintain the ideal wine cellar humidity levels. Temperature control alone isn't enough, therefore we advise using Wine Guardian Humidifiers. Although these humidifiers may not be mandatory, we strongly suggest purchasing one for your wine cellar. You have the option of attaching the Integrated Humidifier directly to your DS025 wine cooler unit, or you can opt for the Wine Guardian Freestanding Humidifier if you prefer it to be separate.

Other sizes: Wine Guardian DS050 for 650-3000 cu.ft, Wine Guardian DS088 for 850-4500 cu.ft, and Wine Guardian DS200 for 1500-7000 cu.ft.

Available in 24-volt version: Wine Guardian SP25 Ducted Pro Wine Cooling Unit - 60 HZ | Sentinel Series.

Looking for more options to protect your wine collection?

Wine Guardian offers the following options to provide extra protection:

Fan-coil Options:

  • Standard: Base model with coated evap coil.
  • Standard w/ All Wine Temperatures (AWT): This bundle includes a factory-mounted heater and extended controls to adjust your wine room to serving temperatures.

Condensing Options:

  • Standard: Base model with Low Ambient Protection – protects the system from cold temperatures below 5°C (40°F).
  • Extreme Climate Protection: This bundle offers protection to the condenser section of the unit only during extreme climate conditions. It is necessary to use it to ensure continuous operation in climates where temperatures drop below 20°F. It allows the system to function even in temperatures as low as -20°F.

Advantages of Wine Guardian Ducted Split Systems

Wine Guardian Ducted Split Cooling Systems are flexible and efficient cooling solutions to preserve your wine collection. They provide great air circulation and temperature regulation to keep your wine in perfect condition. There are different models available for different sizes of residential, restaurant, or commercial wine storage.

Wine Guardian split systems are designed to be very versatile, so they can be installed in many different ways. The evaporator and condenser sections are separate, which gives installers the freedom to set them up however they need to, even in tight spaces. This also means that the noisy and vibrating condenser can be placed outside, creating a vibration-free and quiet wine cellar.


Looking for more choices? Feel free to browse through our Ducted Split SystemsYou can also check more of our Wine Guardian Systems.

Organize your wine storage with Ultra Wine Racks & Cellars. They offer a great selection of unique wine racks to choose from!

WHY BUY FROM US: Wine Coolers Empire is a trusted dealer of premium wine cellar refrigeration units, commercial wine cellar cooling units, residential wine cellar coolers, and wine room humidifiers. More Wine Guardian reviews can be found on our Customer Reviews page.

Contact us for any questions or concerns. For information on order processing, shipping options, and delivery times, please visit our Shipping Policy.

Buy Wine Guardian DS025 Ducted Split System Wine Cooler Units - 60 HZ today and enjoy your amazing wines at their best temperature!



Features:

  • BEHIND THE SCENES CONTROL
    The Ducted Split System is designed to keep your wine collection in perfect condition while also preserving the beauty of your wine cellar. It works behind the scenes, hidden away in a mechanical room or outside the cellar, so it doesn't take up valuable wine storage space. This means you can appreciate the craftwork of your wine cellar without any equipment getting in the way.
    Behind The Scenes Control - Wine Guardian | Wine Coolers Empire - Trusted Dealer

  • ENGINEERED FOR MAXIMUM FLEXIBILITY
    Ducted Split systems are the most flexible cooling unit available. It can be installed in any wine storage space, no matter the location or design. It's ideal for wine cellars with these restrictions:
     - Limited space in the mechanical room
     - Difficulties with exhausting the condenser air
     - Long duct runs
    Engineered for Maximum Flexibility - Wine Guardian | Wine Coolers Empire - Trusted Dealer

  • EVAPORATOR AND CONDENSER MADE FOR EACH OTHER

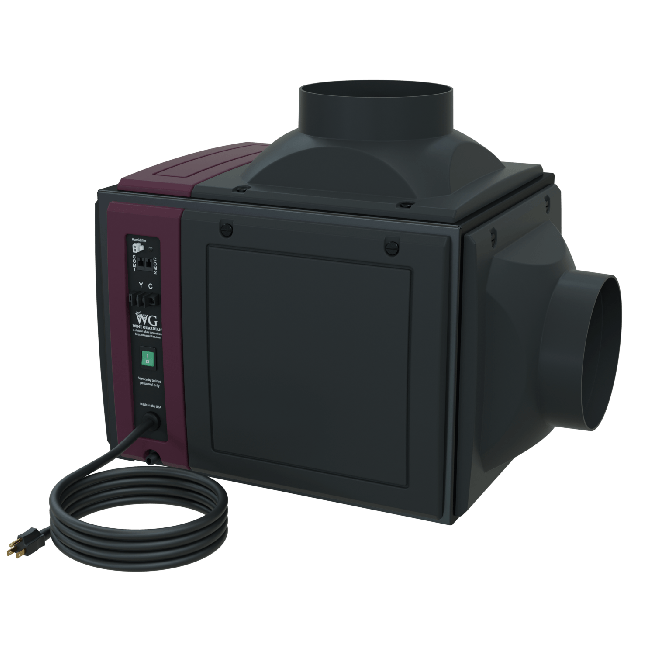

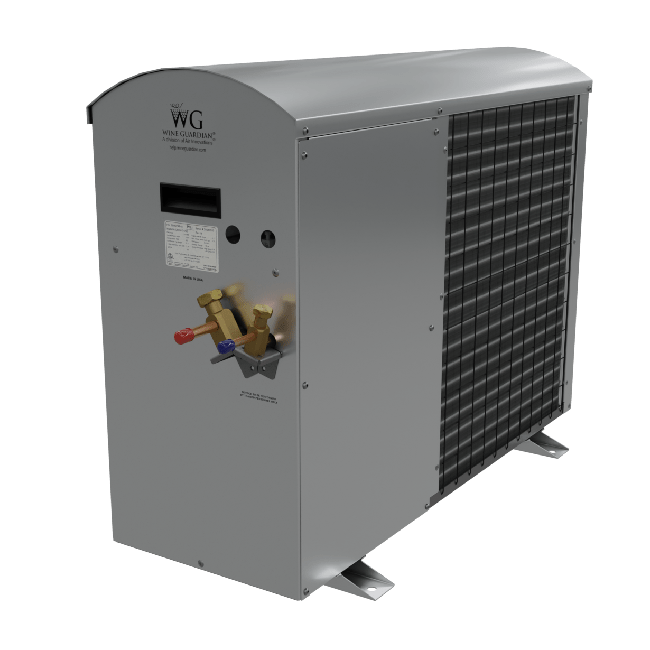

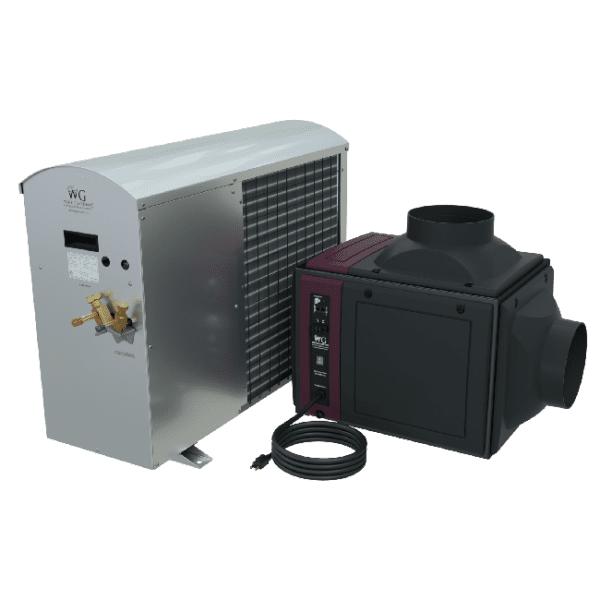

    The Ducted Split system has two separate units: an evaporator and a condenser. Wine Guardian created both units to work together. They are made with high-quality, corrosion-resistant materials that can withstand temperatures below 40°F/4°C.
    Evaporator and Condenser - Wine Guardian | Wine Coolers Empire - Trusted Dealer

  • INSTALLATION EFFICIENCY
    Ducted Split systems are easy and efficient for licensed contractors to install. It's similar to standard residential ducted mini split systems, with the evaporator and condenser sections connected by copper tubing. This makes the installation process familiar. If you need to mount the wine cooling unit against a wall or ceiling, there are multiple duct configurations possible without having to remove any internal components.
    Installation Efficiency - Wine Guardian | Wine Coolers Empire - Trusted Dealer

  • A SILENT GUARDIAN
    Wine Guardian is like a loyal knight from the olden days, guarding your wine room day and night. It has air sensing technology and a modern remote interface controller that continuously monitors the temperature and humidity of your cellar. If the conditions didn't meet the optimal range, the cooling system will bring it to the ideal wine cellar temperature. Your wine collection will never be at risk.
    A Silent Guardian - Wine Guardian | Wine Coolers Empire - Trusted Dealer

  • FULL CONTROL IN ANY ROOM
    The remote interface controller for the ducted system lets you adjust the temperature and check the humidity levels. The controller uses Wine Guardian's Wireless2Base™ Technology, which means you can place it anywhere that's convenient for you – in the cellar, kitchen, or living room. If you need to measure the temperature and humidity levels outside the cellar, you can connect an additional controller and remote sensors to get accurate readings. This makes it easy to keep an eye on your wine room's conditions from anywhere in your home.
    Controllers - Wine Guardian | Wine Coolers Empire - Trusted Dealer

  • FULLY SERVICEABLE SYSTEM
    Ducted Split systems have removable panels, front-facing controls, and refrigerant sight glass on the condenser. This makes it easy for servicepersons to make any necessary repairs and move on to the next job. Unlike other brands, Wine Guardian systems can be fully serviced in the field without needing to be returned to the factory.
    Fully Serviceable System - Wine Guardian | Wine Coolers Empire - Trusted Dealer

  • SENTINEL SERIES
    All ducted systems are now a part of the Wine Guardian Sentinel Series. This new series is an updated and improved design that features an all-new composite material that makes the system stronger, more efficient, and more beautiful than ever before.
    Sentinel Series - Wine Guardian | Wine Coolers Empire - Trusted Dealer


Specifications:

  • Model: DS025
  • Line Frequency: 60 HZ
  • Capacity: 1000 – 3485 BTU
  • Volume: 250 – 2000 ft³
  • Length: 21.43" | 34" (condenser)
  • Width: 16.6" | 12.3" (condenser)
  • Height: 15.56" | 26.07" (condenser)
  • Weight: 35 lbs | 75 lbs (condenser)
  • Electrical: 115/1/60 | 208-230/1/60 (condenser)



Available Options

Enhance your wine cooling systems by adding Wine Guardian parts and accessories. The system's performance and durability are upgraded and protected by these add-ons.

Fan-coil Options

  • Standard: Base model with coated evap coil.

  • Standard w/ All Wine Temperatures (AWT)
    This bundle helps a Wine Guardian cooler control temperatures over a wider range for different wine cellar designs and small wine rooms that need cooling for serving temperatures. It covers temperatures from 45°F(7°C) to 64°F(18°C) and has an electric heater coil and controls that protect wine cellars from very low temperatures. It's ideal for places where the temperature drops below 50°F/10°C.

Condensing Options

  • Standard: Base model with Low Ambient Protection – protects the system from cold temperatures below 5°C (40°F).

  • Extreme Climate Protection
    For Ducted Split Systems: The Extreme Climate Protection bundle protects the condenser section only in extreme climates that fall below 20°F to ensure continuous operation. This protection enables the system to operate in temperatures as low as -20°F.

Ducting Options

  • Duct Collar - Return - Inlet
    The Duct Collar Return Inlet pulls air from the wine room and returns it to the wine cellar air conditioning system.
    Duct Collar Return Inlet - Wine Guardian | Wine Coolers Empire - Trusted Dealer
  • Duct Collar - Supply - Outlet
    The Duct Collar Supply Outlet pushes conditioned air into the wine room from the wine cooling unit.
    Duct Collar Supply Outlet - Wine Guardian | Wine Coolers Empire - Trusted Dealer
  • Combo Duct Kit - Supply, Return & Flex Duct
    This Combo Duct Collar Kit directs warm condenser air away from the wine cellar cooling unit. It contains 1 duct collar supply outlet, 1 duct collar return inlet, and a flex duct.
    Combo Duct Kit Supply, Return, and Flex Duct - Wine Guardian | Wine Coolers Empire - Trusted Dealer
  • Flexible Ductwork 8" Round
    This option comes with one box of 25ft (7.6m) and 8in (20.3cm) round insulated flexible ductwork for Sentinel Series systems D025, DP25, DS025, and SP25.
    Flexible Ductwork - Wine Guardian | Wine Coolers Empire - Trusted Dealer

Control Options

  • Remote Interface
    The Wine Guardian system can be controlled by the Wine Guardian Remote Interface Controller, which includes thermostat (humidistat) and monitor controls. This device can be placed either inside or outside the wine room with the use of a remote sensor.
    Wine Guardian Remote Interface - Wine Guardian | Wine Coolers Empire - Trusted Dealer
  • Remote Sensor
    The Wine Guardian Remote Sensor is used for standard Wine Guardian cooling units. It can detect the temperature and humidity in the wine cellar and is especially useful for large rooms, multiple rooms controlled by one Wine Guardian cooling system, or when averaging temperature and humidity across different areas of the cellar. Each sensor comes with 50 feet of cable.
    Wine Guardian Remote Sensor - Wine Guardian | Wine Coolers Empire - Trusted Dealer



Humidifier Options

  • Integrated Humidifier (Attaches to Unit)
    Humidifiers help maintain the ideal wine storage conditions by adding moisture to the wine space. The Wine Guardian Integrated Humidifier directly attaches to the Wine Guardian cooling system, using the same power source and remote controller.
    Wine Guardian Integrated Humidifier | Wine Coolers Empire - Trusted Dealer
  • Standalone Humidifier (Through the Wall / Powered by Cooling Unit)
    This Wine Guardian Freestanding Humidifier includes a power-control cable to connect to the Wine Guardian cooling system. Includes wall-mount bracket for maximum placement flexibility. The humidifier can be operated using the existing Wine Guardian controller. Wine Guardian Freestanding Humidifier | Wine Coolers Empire - Trusted Dealer
  • Standalone Humidifier (Through the Wall / Independent Power)
    This Wine Guardian Freestanding Humidifier includes a wall mount bracket, power cord, and a humidistat for use in cellars with no Wine Guardian cooling system. The humidifier can be operated using the existing Wine Guardian controller. Wine Guardian Freestanding Humidifier | Wine Coolers Empire - Trusted Dealer

Warranty Options

  • 3 Years Extended Warranty
    By choosing this option, the warranty period for the compressor, evaporator coil, and condenser coil (parts only) will be extended by three (3) years.
