Wine Guardian DS088 - Duct Split System Wine Cellar Cooling Unit - 60 HZ - Base Model / Base Model
is backordered and will ship as soon as it is back in stock.
Call Us At (800) 407-7770 Or Chat Now To UNLOCK THE BEST PRICE AVAILABLE!
Options:
*All Wine Temperatures Bundle
For extended wine-cellar temperature ranges. Allows a Wine Guardian unit to control to an extended temperature range from 45°F(7° C) to 64°F(18° C), perfect for single to multiple cabinet applications and small wine rooms in which serving-temperature cooling is preferred.
This bundle also contains an integral electric heater coil and controls to protect wine cellars from dangerously low temperatures. It is ideal for areas where ambient temperatures fall below 50°F/10°C.
**Extreme Climate Protection Bundle
For Self-Contained Ducted systems: Contains an integral compressor crankcase heater and controls to protect the system against low temperatures (required when inlet air to the condenser coil is below 40°F/5°C). The bundle also contains an integral high capacity condenser fan and coil for operation at elevated ambient temperatures. This bundle should be considered when inlet air to the condenser coil is above 100°F/38°C (condenser air inlet cannot exceed 120°F/49°C).
For Ducted Split systems: Unit protection in extreme climate conditions (on the condenser section only). It is required for continuous operation in climates that fall below 20°F. Enables the system to operate in temperatures as low as -20°F.

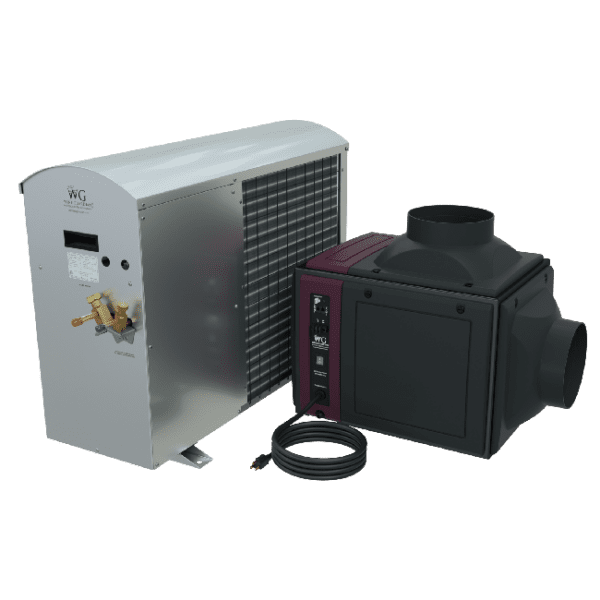

Wine Guardian DS088 - Duct Split System Wine Cellar Cooling Unit - 60 HZ
Fan-coil Options:Base Model, Condenser Options:Base Model
Wine Guardian DS088 - Duct Split System Wine Cellar Cooling Unit - ...
Wine Guardian DS088 - Duct Split System Wine Cellar Cooling Unit - 60 HZ - Base Model / Base Model
is backordered and will ship as soon as it is back in stock.
In Stock & Ready to Ship
Estimated Delivery in 3-7 business days
Wine Guardian Ducted Split Wine Cellar Cooling Systems
The Wine Guardian DS088 Ducted Split Wine Cellar Cooling Unit is a professional-grade wine cellar cooling system designed for medium to large wine rooms from approximately 850 to 4,500 cubic feet. With a cooling capacity range of 5,000 to 9,840 BTU/h, the DS088 is built for collectors, restaurants, hospitality spaces, custom builders, and designers who need quiet, hidden, and flexible wine cellar climate control.
Designed for wine cellars from 850 to 4,500 cu. ft.
5,000-9,840 BTU/h cooling capacity
Ducted split configuration for quiet cellar operation
Remote condenser placement helps reduce vibration and noise
Compatible with Wine Guardian humidifier options
60Hz system for North American applications
Professional installation required
Important Installation Note: The Wine Guardian DS088 is a professional ducted split system and must be installed by a qualified contractor. This is a 60Hz system, commonly used in most of North America, including the United States and Canada.
Quick Product Summary
The DS088 is ideal for medium to large custom wine cellars where the cooling equipment should remain hidden from the main wine room. The ducted split design separates the evaporator and condenser sections, giving contractors more flexibility for equipment placement while helping preserve the appearance, quietness, and comfort of the cellar environment.
Model
DS088
System Type
Ducted Split Wine Cellar Cooling System
Line Frequency
60Hz
Cooling Capacity
5,000-9,840 BTU/h
Recommended Cellar Volume
850-4,500 cu. ft.
Electrical
208-230/1/60
Installation Requirement
Qualified contractor required
Best For
Medium to large wine cellars
Luxury residential wine rooms
Restaurant wine storage spaces
Hospitality wine display and storage areas
Custom builder and designer-led wine cellar projects
Projects where quiet operation and hidden equipment are priorities
Wine rooms where condenser noise and vibration should be kept away from the cellar
Not Recommended For
DIY installation projects
Small wine cabinets or compact wine storage areas
Projects that need a simple through-the-wall cooling unit
Spaces without a practical path for refrigerant lines or ducting
Wine cellars outside the recommended 850-4,500 cu. ft. range without professional sizing review
Buyer Fit Assessment
Buyer Type
Fit
Why It Fits
Serious Collecting Enthusiasts
Excellent
Strong capacity, stable cooling performance, and optional humidity support for larger collections.
Designed for larger wine rooms where consistent conditions and quiet operation matter.
Custom Builder Specialists
Excellent
Flexible installation options support custom wine cellar construction and remodels.
HVAC Installation Experts
Excellent
Split-system installation layout is familiar to qualified contractors.
Weekend Wine Explorers
Moderate
May exceed the needs of smaller personal collections or compact spaces.
Why Choose the Wine Guardian DS088?
Quiet, Hidden Cooling
The DS088 works behind the scenes, helping reduce visible equipment, mechanical noise, and vibration inside the cellar.
Flexible Installation
The separated evaporator and condenser sections give installers flexibility with mechanical rooms, duct runs, condenser exhaust, and custom layouts.
Built for Larger Spaces
With a recommended range of 850 to 4,500 cubic feet, the DS088 is suited for medium to large cellars.
Humidity Compatibility
The DS088 can be paired with Wine Guardian integrated or freestanding humidifier options.
Remote Interface Control
Wine Guardian controls allow temperature and humidity monitoring from a convenient location.
Field-Serviceable Design
Removable panels, front-facing controls, and service-friendly construction help qualified technicians inspect and maintain the system.
Advantages and Limitations
Advantages
Excellent option for concealed wine cellar cooling
Remote condenser placement helps support a quieter cellar
Flexible ducting configurations
Suitable for residential, restaurant, and commercial wine storage
Compatible with multiple Wine Guardian controls and humidifier options
Designed for professional installation and serviceability
Limitations
Requires a qualified contractor for installation
More complex than a self-contained through-the-wall unit
Requires planning for ducting, refrigerant lines, electrical connection, and drainage
May be oversized for smaller wine rooms
Professional sizing is strongly recommended before purchase
Installation Requirements
The Wine Guardian DS088 should be selected and installed as part of a properly planned wine cellar climate-control system. Correct sizing depends on cellar volume, insulation, glass exposure, door sealing, ambient conditions, ducting design, and desired wine storage temperature.
Professional Installation Required: The DS088 is not a plug-and-play wine cooler. A qualified contractor is required to install the fan-coil section, condenser section, refrigerant lines, electrical connection, ductwork, drainage, and controls.
Confirm cellar volume and cooling load before purchase.
Plan duct routing and supply/return airflow carefully.
Provide proper condenser placement and ventilation.
Ensure electrical service matches the 208-230/1/60 requirement.
Plan condensate drainage according to the installation manual.
Use compatible Wine Guardian accessories when adding humidification, remote sensors, or duct kits.
Humidity Management Recommendation
Temperature control is only one part of wine cellar preservation. Proper wine cellar humidity helps protect corks, labels, and long-term storage conditions.
Wine Guardian humidifiers are recommended when the wine room requires additional moisture control. For the DS088, you may choose an Integrated Humidifier that attaches directly to the unit or a Wine Guardian Freestanding Humidifier for a separate humidification setup.
Wine Guardian DS088 Features
Behind-the-Scenes Control
The ducted split design keeps cooling equipment away from the primary cellar display area.
Engineered for Maximum Flexibility
Ducted split systems are useful when mechanical-room space is limited, condenser exhaust is difficult, or longer duct runs are needed.

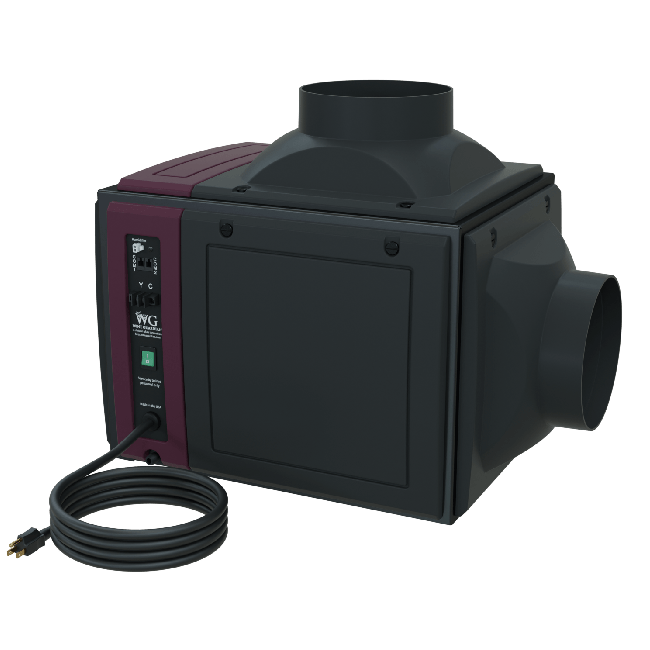

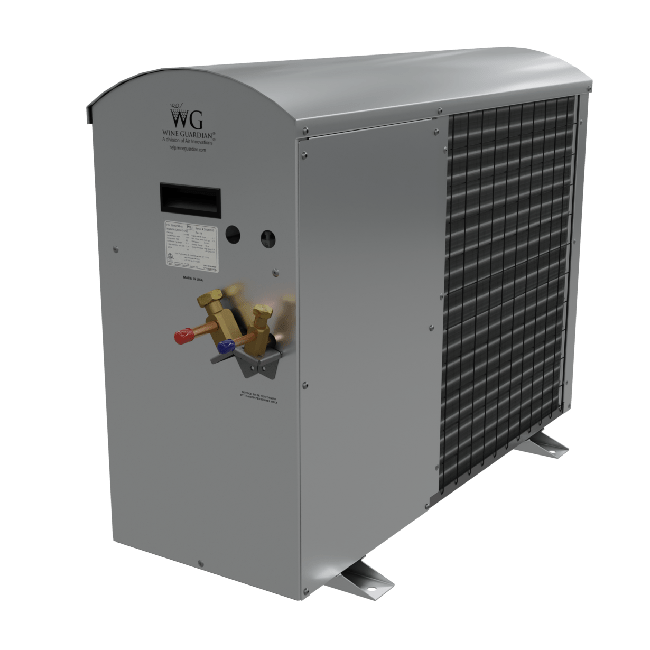

Matched Evaporator and Condenser
The system includes separate evaporator and condenser sections engineered to work together.
Efficient Contractor Installation
For qualified contractors, ducted split systems use an installation approach similar to ducted mini split systems.
Temperature and Humidity Monitoring
Wine Guardian systems use air-sensing technology and a remote interface controller to monitor cellar conditions.
Remote Control Options
The remote interface controller allows convenient monitoring and adjustment of temperature and humidity.
Fully Serviceable System
Removable panels, front-facing controls, and a refrigerant sight glass help service professionals inspect and maintain the system efficiently.
Sentinel Series Construction
Wine Guardian ducted systems are part of the Sentinel Series, with updated composite material construction.
Complete Technical Specifications
Model
DS088
Line Frequency
60Hz
Capacity
5,000-9,840 BTU/h
Recommended Volume
850-4,500 ft³
Fan-Coil Length
23.8"
Condenser Length
34"
Fan-Coil Width
25"
Condenser Width
12.3"
Fan-Coil Height
19.7"
Condenser Height
26.07"
Fan-Coil Weight
58 lbs
Condenser Weight
60 lbs
Electrical
208-230/1/60
Model Size Comparison
The DS088 is one of several Wine Guardian ducted split models available for different cellar sizes. Use the comparison below as a starting point, then confirm final sizing with a professional based on cellar construction and heat load.
The DS088 can be configured with Wine Guardian accessories and protection options to match the requirements of your wine cellar project.
Fan-Coil Options
Standard: Base model with coated evaporator coil.
Standard with All Wine Temperatures (AWT): Includes a factory-mounted heater and extended controls for wine rooms that need serving-temperature flexibility from 45°F to 64°F.
Condensing Options
Standard: Base model with Low Ambient Protection for temperatures below 5°C / 40°F.
Extreme Climate Protection: Protects the condenser section only in extreme climates below 20°F and allows operation in temperatures as low as -20°F.
Ducting Options
Duct Collar - Return - Inlet
The Duct Collar Return Inlet pulls air from the wine room and returns it to the wine cellar cooling system.
Duct Collar - Supply - Outlet
The Duct Collar Supply Outlet pushes conditioned air into the wine room from the wine cooling unit.
Combo Duct Kit
This kit includes one duct collar supply outlet, one duct collar return inlet, and a flex duct.
Flexible Ductwork
One box of 25 ft. insulated flexible ductwork for compatible Sentinel Series systems.
Control Options
Remote Interface
The Wine Guardian Remote Interface Controller includes thermostat, humidistat, and monitor controls. It may be placed inside or outside the wine room with the use of a remote sensor.
Remote Sensor
The Wine Guardian Remote Sensor detects temperature and humidity in the wine cellar. Each sensor includes 50 feet of cable.
Humidifier Options
Integrated Humidifier
The Wine Guardian Integrated Humidifier attaches directly to the cooling system and uses the same power source and remote controller.
Standalone Humidifier - Powered by Cooling Unit
Includes a power-control cable to connect to the Wine Guardian cooling system and a wall-mount bracket.
Standalone Humidifier - Independent Power
Includes a wall-mount bracket, power cord, and humidistat for use in cellars without a Wine Guardian cooling system.
Warranty Options
3-Year Extended Warranty
This option extends the warranty period for the compressor, evaporator coil, and condenser coil parts by three years.
Manufacturer Warranty
Wine Guardian warrants, to the original buyer, its goods and all parts thereof to be free from defects in material and workmanship for a period of two (2) years from the date of invoicing, assuming normal use and service.
The Wine Guardian DS088 is best suited for medium to large custom wine cellars where quiet operation, concealed equipment, and installation flexibility are priorities. It is a strong fit for serious collectors, restaurants, hospitality projects, luxury home designers, builders, and HVAC professionals working on wine rooms between approximately 850 and 4,500 cubic feet.
Wine Coolers Empire provides expert product guidance and free wine cellar design assistance to help you select the correct cooling system for your space.
The DS088 is designed to cool wine cellars up to 3,460 cubic feet, depending on insulation, vapor barriers, and the overall heat load.
This is a fully ducted split system, meaning the evaporator and condenser are installed separately and connected via refrigerant lines. Ductwork distributes cooled air to and from the wine cellar for quiet and discreet climate control.
The DS088 is an air-cooled system, which exhausts heat into the surrounding environment. This makes it suitable for installations where water-cooled solutions are not feasible or necessary.
Yes. The DS088 must be installed by a licensed HVAC technician, which ensures the system is set up safely, efficiently, and in accordance with Wine Guardian’s warranty requirements.
Yes. The DS088 is ideal for both residential and commercial applications, such as wine stores, tasting rooms, restaurants, and high-end hospitality venues.
Yes. Because it’s fully ducted and the components are installed outside the cellar, the DS088 provides ultra-quiet operation, making it ideal for display or entertainment-focused wine rooms.
Wine Guardian includes a 2-year parts and labor warranty. Warranty activation requires professional installation and product registration."]
