Wine Guardian DS050 - Duct Split System Wine Cellar Cooling Unit - 60 HZ - Base Model / Base Model
is backordered and will ship as soon as it is back in stock.
Call Us At (800) 407-7770 Or Chat Now To UNLOCK THE BEST PRICE AVAILABLE!
Options:
*All Wine Temperatures Bundle
For extended wine-cellar temperature ranges. Allows a Wine Guardian unit to control to an extended temperature range from 45°F(7° C) to 64°F(18° C), perfect for single to multiple cabinet applications and small wine rooms in which serving-temperature cooling is preferred.
This bundle also contains an integral electric heater coil and controls to protect wine cellars from dangerously low temperatures. It is ideal for areas where ambient temperatures fall below 50°F/10°C.
**Extreme Climate Protection Bundle
For Self-Contained Ducted systems: Contains an integral compressor crankcase heater and controls to protect the system against low temperatures (required when inlet air to the condenser coil is below 40°F/5°C). The bundle also contains an integral high capacity condenser fan and coil for operation at elevated ambient temperatures. This bundle should be considered when inlet air to the condenser coil is above 100°F/38°C (condenser air inlet cannot exceed 120°F/49°C).
For Ducted Split systems: Unit protection in extreme climate conditions (on the condenser section only). It is required for continuous operation in climates that fall below 20°F. Enables the system to operate in temperatures as low as -20°F.
Wine Guardian DS050 - Duct Split System Wine Cellar Cooling Unit - 60 HZ
Fan-coil Options:Base Model, Condenser Options:Base Model
Wine Guardian DS050 - Duct Split System Wine Cellar Cooling Unit - ...
Wine Guardian DS050 - Duct Split System Wine Cellar Cooling Unit - 60 HZ - Base Model / Base Model
is backordered and will ship as soon as it is back in stock.
In Stock & Ready to Ship
Estimated Delivery in 3-7 business days
Wine Guardian Ducted Split Wine Cellar Cooling Systems

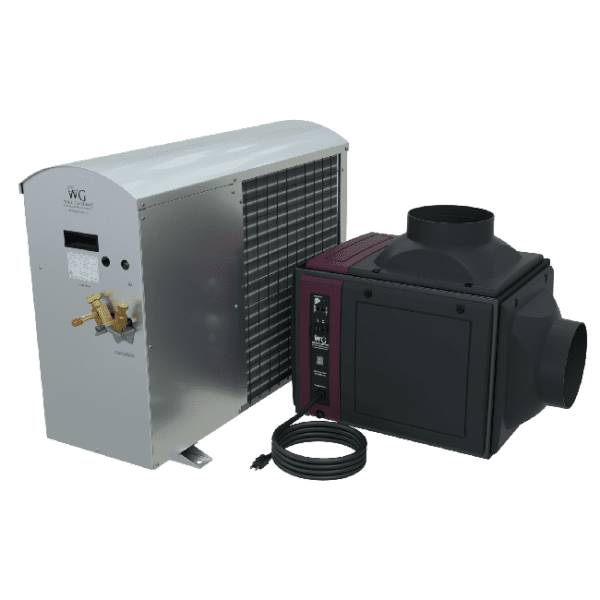

Wine Guardian DS050 Ducted Split System Wine Cellar Cooling Unit - 60 Hz
The Wine Guardian DS050 is a professional-grade ducted split wine cellar cooling system designed for medium-sized residential and commercial wine rooms from 650 to 3,000 cubic feet. With a cooling capacity range of 2,700 to 6,458 BTU/H, the DS050 provides quiet, flexible, concealed cooling for custom wine cellars where reliable temperature control and clean cellar aesthetics are both priorities.
Designed for 650-3,000 cu. ft. wine cellars
Cooling capacity range of 2,700-6,458 BTU/H
Ducted split design keeps equipment out of the wine room
Ideal for residential, restaurant, and commercial wine storage
60 Hz system for North American applications
Qualified contractor installation required
Wine Guardian DS050 Quick Specs
Model
DS050
System Type
Ducted split wine cellar cooling system
Line Frequency
60 Hz
Recommended Cellar Volume
650-3,000 cubic feet
Cooling Capacity
2,700-6,458 BTU/H
Fan-Coil Dimensions
23.8" L x 25" W x 19.7" H
Condenser Dimensions
34" L x 12.3" W x 26.07" H
Fan-Coil Weight
54 lbs
Condenser Weight
76 lbs
Electrical
115/1/60 | 208-230/1/60 condenser
Installation
Qualified contractor required
Important: The Wine Guardian DS050 is a 60 Hz system commonly used in most of North America, including the USA and Canada. Installation must be completed by a qualified contractor.
Best For
Medium-sized residential wine cellars
Restaurant wine rooms and wine storage areas
Commercial wine storage spaces
Luxury custom wine cellar projects
Noise-sensitive cellars where cooling equipment should remain concealed
Projects requiring flexible ducted installation
Wine rooms where even air distribution is important
Not Recommended For
DIY installations
Very small wine closets that do not require this cooling capacity
Projects without access to a qualified HVAC or refrigeration contractor
Simple through-the-wall cooling applications
Cellars above the DS050 sizing range without professional load confirmation
Installations without adequate space for ducting, refrigerant lines, and service access
What Is the Wine Guardian DS050?
The Wine Guardian DS050 Ducted Split Wine Cellar Cooling Unit is designed to maintain stable wine storage conditions in medium-sized wine cellars. It separates the fan-coil and condenser sections, allowing the cooling equipment to be positioned away from the finished wine room while conditioned air is supplied through ductwork.
This design makes the DS050 a strong choice for custom wine cellars where the cooling system should not interrupt the visual design of the room. It is especially useful for wine rooms built into luxury homes, restaurants, tasting spaces, hospitality venues, and commercial storage environments.
The DS050 is suitable for wine cellars from 650 to 3,000 cubic feet, but final sizing should always consider insulation, glass exposure, door type, ambient conditions, cellar location, desired temperature, and usage patterns.
To support proper long-term wine storage, humidity should also be reviewed. Learn more in our guide to wine cellar humidity.
Where the DS050 Fits in the Wine Guardian Ducted Split Lineup
The DS050 sits in the middle of the Wine Guardian ducted split lineup. It provides more capacity than the DS025 while remaining smaller than the DS088 and DS200 models.
Why Choose a Ducted Split Wine Cellar Cooling System?
A ducted split wine cellar cooling system is designed for projects where cooling performance, quiet operation, and design flexibility are all important. Because the fan-coil and condenser are separate, the system gives contractors more freedom when planning the cooling layout.
Wine Guardian ducted split systems are especially useful when the wine cellar has limited wall space, when the condenser needs to be placed remotely, or when the cellar owner wants the finished wine room to remain visually clean without exposed equipment.
Primary Benefits
Remote equipment placement
Reduced noise and vibration inside the wine room
Cleaner cellar design
Flexible duct routing
Strong fit for premium residential and commercial projects
Planning Considerations
Requires professional installation
Requires duct design and refrigerant line planning
Requires adequate service access
May require humidification depending on cellar conditions
Should be sized by a wine cellar cooling specialist
Key Features of the Wine Guardian DS050
Behind-the-Scenes Cooling
The DS050 is designed to keep cooling equipment away from the finished wine cellar. This helps preserve valuable wine storage space and allows the cellar design, racking, lighting, and display features to remain the visual focus.
Flexible Installation Design
The ducted split format gives contractors flexibility when working with challenging wine cellar layouts. It is useful for projects with limited mechanical room space, long duct runs, or difficult condenser air exhaust conditions.
Matched Evaporator and Condenser
Wine Guardian designs the evaporator and condenser sections to work as a matched system. The components are built with durable, corrosion-resistant materials for long-term performance in demanding wine cellar environments.
Efficient Professional Installation
The DS050 is designed for qualified contractors familiar with split-system installation. The evaporator and condenser sections are connected by copper tubing, and the system supports multiple duct configurations depending on the project layout.
Remote Temperature and Humidity Control
The Wine Guardian controller allows cellar owners to monitor and adjust cellar conditions. Optional sensors can help measure temperature and humidity across larger or more complex wine rooms.
Control Placement Flexibility
The remote interface controller can be positioned where it is most convenient, including inside the cellar, outside the cellar, or in another accessible room. Additional remote sensors can be used for improved readings in larger spaces.
Field-Serviceable System
Removable panels, front-facing controls, and condenser sight glass access help qualified service professionals inspect and service the system in the field.
Sentinel Series Construction
Wine Guardian ducted split systems are part of the Sentinel Series, featuring updated construction and composite material designed for strength, efficiency, and modern wine cellar applications.
Advantages and Limitations
Advantages
Limitations
Quiet wine cellar operation with remote condenser placement
Contractor installation is required
Concealed mechanical equipment for cleaner cellar design
More complex than through-the-wall cooling systems
Flexible equipment placement and duct routing
Requires ductwork, refrigerant lines, condenser placement, and service access planning
Even air distribution through ducted delivery
Proper sizing is essential; cubic footage alone is not enough
Residential and commercial compatibility
Humidity may require additional equipment
Compatible with ducting, controls, sensors, humidifiers, and warranty options
Project layout affects installation feasibility
Before ordering: Contact Wine Coolers Empire if you are unsure whether the DS050 is properly sized for your wine cellar. Our team can help review your room size, design, and cooling needs.
Installation Requirements
Requirement
Details
Installer
Qualified contractor required
System Type
Ducted split system with separate fan-coil and condenser sections
Electrical
115/1/60 | 208-230/1/60 condenser
Ducting
Required based on cellar layout and installation plan
Refrigerant Lines
Required between evaporator and condenser sections
Service Access
Required for fan-coil, condenser, ducting, and controls
Climate Protection
Standard condensing option includes Low Ambient Protection; Extreme Climate Protection is available for colder environments
Humidity Control
Optional integrated or freestanding humidifier available
Installation warning: A qualified contractor must install this unit. Improper sizing, duct planning, refrigerant line installation, or condenser placement can reduce performance and may affect system reliability.
Cellar Sizing Guidance
The DS050 is rated for wine rooms from 650 to 3,000 cubic feet, but actual cooling load depends on more than room volume. A cellar with heavy glass exposure, poor insulation, frequent door openings, high ambient temperatures, or exterior wall exposure may require a different system size.
Factors That Affect Cooling Load
Wine cellar cubic footage
Wall, floor, and ceiling insulation
Glass doors or glass walls
Ambient temperature around the cellar
Cellar location inside the building
Door seal quality
Lighting and heat-generating equipment
Frequency of use and door openings
When to Ask for Sizing Help
Your wine room includes large glass areas
Your cellar is near a warm garage, exterior wall, or mechanical room
You are unsure about insulation quality
Your cellar is close to the upper end of the DS050 range
You are comparing DS025, DS050, DS088, or DS200
For sizing assistance, contact Wine Coolers Empire through our Contact Us page.
Fan-Coil and Condensing Options

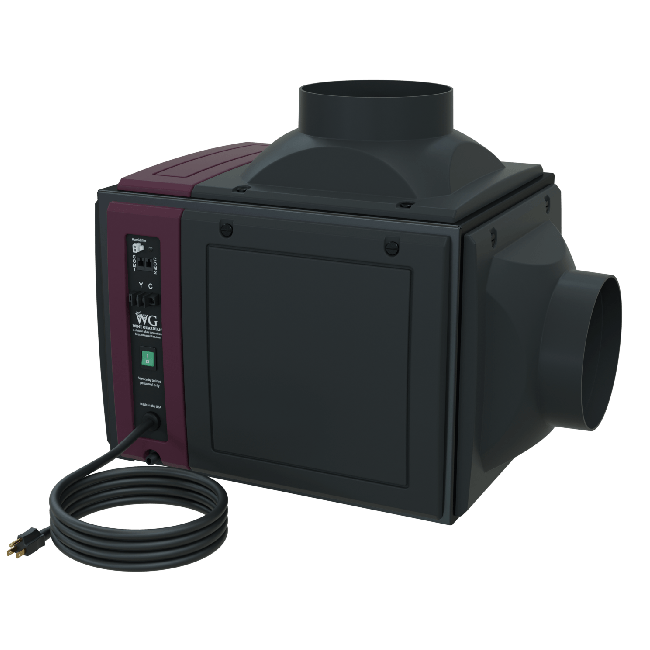

Standard Fan-Coil
The standard fan-coil option is the base model with a coated evaporator coil. It is suitable for standard wine cellar storage applications where the system is primarily used to maintain proper wine storage temperatures.
Standard with All Wine Temperatures
The All Wine Temperatures (AWT) bundle includes a factory-mounted heater and extended controls that allow the wine room to be adjusted across a wider range of serving temperatures. It covers 45°F to 64°F and is useful for applications where temperatures may drop below 50°F.

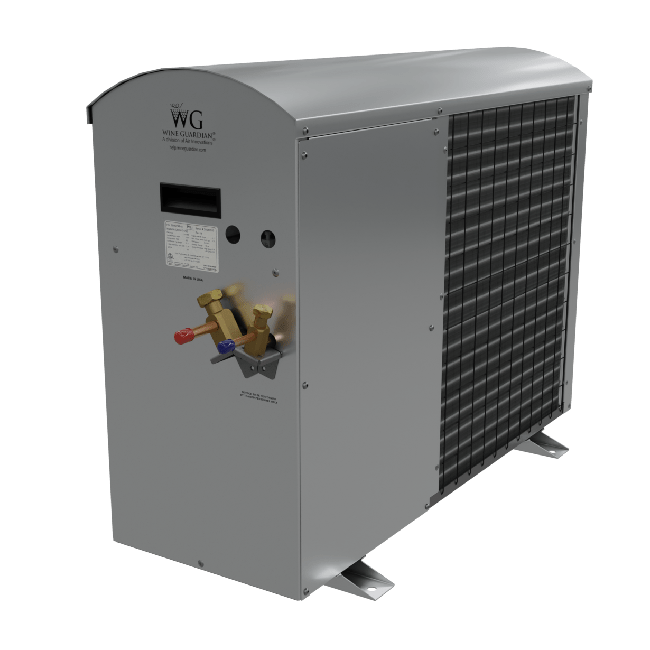

Standard Condensing Option
The standard condensing option is the base model with Low Ambient Protection, which helps protect the system from cold temperatures below 5°C / 40°F.
Extreme Climate Protection
The Extreme Climate Protection bundle protects the condenser section only in extreme climate conditions. It is designed for climates that fall below 20°F and allows the system to operate in temperatures as low as -20°F.
Ducting Options
Ducting options help customize how air moves into and out of the wine cellar. Final ducting configuration should be planned by a qualified installer based on the cellar layout.
Duct Collar - Return - Inlet
The return inlet duct collar pulls air from the wine room and returns it to the wine cellar cooling system.
Duct Collar - Supply - Outlet
The supply outlet duct collar pushes conditioned air into the wine room from the wine cooling unit.
Combo Duct Kit - Supply, Return & Flex Duct
The combo duct collar kit includes one duct collar supply outlet, one duct collar return inlet, and a flex duct.
Flexible Ductwork
This option includes one box of 25 ft. / 7.6 m and 10 in. / 25.4 cm round insulated flexible ductwork for Sentinel Series systems D050, D088, DP50, DP88, DS050, DS088, SP50, and SP88.
Control and Humidifier Options
Remote Interface Controller
The Wine Guardian Remote Interface Controller includes thermostat, humidistat, and monitor controls. It can be placed inside or outside the wine room when used with a remote sensor.
Remote Sensor
The Wine Guardian Remote Sensor detects temperature and humidity in the wine cellar. It is useful for large rooms, multiple-room applications, or averaging temperature and humidity readings across different cellar areas. Each sensor includes 50 feet of cable.
Integrated Humidifier
The Wine Guardian Integrated Humidifier attaches directly to the Wine Guardian cooling system and uses the same power source and remote controller.
Standalone Humidifier - Powered by Cooling Unit
This Wine Guardian freestanding humidifier includes a power-control cable that connects to the Wine Guardian cooling system. It also includes a wall-mount bracket for flexible placement.
Standalone Humidifier - Independent Power
This Wine Guardian freestanding humidifier includes a wall-mount bracket, power cord, and humidistat for use in cellars without a Wine Guardian cooling system.
Wine Guardian warrants, to the original buyer, its goods and all parts thereof to be free from defects in material and workmanship for a period of two years from the date of invoicing, assuming normal use and service.
3-Year Extended Warranty
Extends the warranty period for the compressor, evaporator coil, and condenser coil parts only by three years.
Technical Specifications
Specification
Value
Model
DS050
Line Frequency
60 Hz
Capacity
2,700-6,458 BTU
Volume
650-3,000 ft³
Fan-Coil Length
23.8"
Condenser Length
34"
Fan-Coil Width
25"
Condenser Width
12.3"
Fan-Coil Height
19.7"
Condenser Height
26.07"
Fan-Coil Weight
54 lbs
Condenser Weight
76 lbs
Electrical
115/1/60 | 208-230/1/60 condenser
Product Videos
Wine Guardian Ducted Split Wine Cooling Systems
Wine Guardian Ducted Split Wine Cellar Cooling Unit - Features & Benefits | Sentinel Series
Wine Guardian Sentinel Series Wine Cellar Cooling Units
Wine Guardian Sentinel Series | Izod Strength Test
We recommend the Wine Guardian DS050 for medium-sized wine cellar projects where quiet operation, concealed equipment, and installation flexibility are important. It is a strong fit for residential custom cellars, restaurant wine rooms, and commercial wine storage projects that require professional-grade climate control.
Because ducted split systems require proper load calculation, duct planning, condenser placement, and contractor installation, we recommend confirming your cellar specifications before ordering.
Why Buy From Wine Coolers Empire?
Wine Coolers Empire is a trusted dealer of premium wine cellar refrigeration units, commercial wine cellar cooling units, residential wine cellar coolers, and wine room humidifiers. You can read customer feedback on our Customer Reviews page.
Free professional wine cellar design assistance
Expert guidance for cooling system sizing
Premium wine cellar cooling brands
Support for residential and commercial wine cellar projects
Access to manuals, spec sheets, CAD files, and manufacturer warranty details
For questions, contact Wine Coolers Empire through our Contact Us page.
For information on order processing, shipping options, and delivery times, visit our Shipping Policy.
Get the Right Wine Cellar Cooling System Before You Buy
The Wine Guardian DS050 is a professional wine cellar cooling system and should be selected carefully. Wine Coolers Empire can help you confirm whether this model fits your wine room size, layout, insulation, usage, and installation requirements.
Free wine cellar design planning
Cooling system sizing guidance
Product recommendations based on cellar conditions
Support for residential, restaurant, and commercial wine cellar projects
Talk to an Expert: +1-888-407-7770 Email: support@winecoolersempire.com
The DS050 is rated to cool wine cellars up to 1,800 cubic feet, depending on insulation, ambient temperatures, and the overall thermal load.
This is a ducted split system, which means the evaporator and condenser are installed separately and connected via refrigerant lines. Ductwork delivers the cooled air to and from the wine cellar, keeping the unit out of view.
The DS050 is an air-cooled system, which exhausts heat into the ambient air. This makes it a great choice for installations where water access is limited or not preferred.
Yes. The DS050 must be installed by a licensed HVAC technician to ensure proper performance and to comply with Wine Guardian’s warranty terms.
Yes, the DS050 is ideal for both residential wine cellars and small-to-mid-sized commercial applications, such as tasting rooms, boutique wine stores, and hospitality environments.
Yes. Since the components are ducted and located away from the cellar, the system delivers ultra-quiet operation, making it ideal for display cellars or entertainment spaces.
Wine Guardian offers a 2-year parts and labor warranty. To activate the warranty, professional installation and product registration are required."]
FAST, FREE SHIPPING
Get your online orders fast at your door with free shipping.
I switched from a different cooling system to the Wine Guardian DS050, and I could not be happier. The difference in performance is night and day. This unit is powerful yet quiet, and my cellar stays at a constant 55°F with the perfect humidity. I also love the remote control option, which lets me monitor everything without stepping into the cellar.
M
Mark H.
Extremely quiet and efficient
My old cooling unit was way too noisy, so I decided to upgrade to the DS050. Wow, what a difference! The split system keeps the noise completely out of my cellar, and I barely even notice it running. The cooling is consistent and reliable, which is all I could ask for.
S
Susan K.
Expensive, but worth every penny
I was not sure about spending this much on a cooling unit, but after using the DS050 for a few months, I totally get it. It does exactly what it promises. Quiet operation, reliable cooling, and great humidity control. The only reason I gave it four stars is the price, but if you have a serious wine collection, it is worth it.
D
David M.
The best investment for my wine collection!
I have been using the DS050 for over a year now, and I can confidently say it is one of the best decisions I made for my wine cellar. The split system is whisper-quiet, and my wines have been aging in perfect conditions. No temperature fluctuations, no humidity issues. Just a stable, well-controlled environment. If you’re serious about wine, this system is a must-have.
R
Robert D.
Took some time to install, but works great
This unit is incredible once it is up and running, but the installation was a little more complex than I expected. I had to hire a pro to ensure the ducting was done properly. Now that it is running, though, it is flawless. If you are not experienced with HVAC systems, get professional help with the setup!
E
Emily R.
Solid cooling
The cooling system itself is excellent. Steady temperature, great efficiency, and very quiet. Greatly appreciated it!
J
Jes T.
Humidity control makes all the difference
I live in an area with extremely dry air, and before getting this unit, I was constantly fighting to keep my cellar’s humidity at an acceptable level. I decided to go for the optional humidity control with my DS050, and it’s been a game-changer. My corks are not drying out anymore, and I can finally store my wines without constantly checking and adjusting things. This unit does all the work for me!
H
Hern W.
The quietest system I’ve ever had
One of the biggest surprises for me was just how quiet this unit is. My old unit was a constant source of background noise, but this one? I barely hear it running! The only reason I am giving it four stars instead of five is that I think the remote control interface could use an update. It is functional, but a more modern touchscreen would have been nice.
T
Tj H.
High-quality, reliable
Worried about finding the right unit for my medium-sized wine room, but the DS050 is handling it like a champ. It runs smoothly, keeps the temperature spot on, and even helps maintain a good humidity level. The best part? I do not even hear it running!
T
Thomas L.
Handles large collections with ease
I have a 1,500-bottle wine cellar, and this unit manages the temperature perfectly. I I have had zero issues with fluctuations, and I love that I can customize the settings to my liking. Just keep in mind that the unit itself is pretty large, so make sure you have enough space for it before buying.
Wine Guardian DS050 - Duct Split System Wine Cellar Cooling Unit - 60 HZ
Regular priceFrom$8,990.00
Unit price
Wine Guardian Ducted Split Wine Cellar Cooling Systems
Wine Guardian DS050 Ducted Split System Wine Cellar Cooling Unit - 60 Hz
The Wine Guardian DS050 is a professional-grade ducted split wine cellar cooling system designed for medium-sized residential and commercial wine rooms from 650 to 3,000 cubic feet. With a cooling capacity range of 2,700 to 6,458 BTU/H, the DS050 provides quiet, flexible, concealed cooling for custom wine cellars where reliable temperature control and clean cellar aesthetics are both priorities.
Designed for 650-3,000 cu. ft. wine cellars
Cooling capacity range of 2,700-6,458 BTU/H
Ducted split design keeps equipment out of the wine room
Ideal for residential, restaurant, and commercial wine storage
60 Hz system for North American applications
Qualified contractor installation required
Wine Guardian DS050 Quick Specs
Model
DS050
System Type
Ducted split wine cellar cooling system
Line Frequency
60 Hz
Recommended Cellar Volume
650-3,000 cubic feet
Cooling Capacity
2,700-6,458 BTU/H
Fan-Coil Dimensions
23.8" L x 25" W x 19.7" H
Condenser Dimensions
34" L x 12.3" W x 26.07" H
Fan-Coil Weight
54 lbs
Condenser Weight
76 lbs
Electrical
115/1/60 | 208-230/1/60 condenser
Installation
Qualified contractor required
Important: The Wine Guardian DS050 is a 60 Hz system commonly used in most of North America, including the USA and Canada. Installation must be completed by a qualified contractor.
Best For
Medium-sized residential wine cellars
Restaurant wine rooms and wine storage areas
Commercial wine storage spaces
Luxury custom wine cellar projects
Noise-sensitive cellars where cooling equipment should remain concealed
Projects requiring flexible ducted installation
Wine rooms where even air distribution is important
Not Recommended For
DIY installations
Very small wine closets that do not require this cooling capacity
Projects without access to a qualified HVAC or refrigeration contractor
Simple through-the-wall cooling applications
Cellars above the DS050 sizing range without professional load confirmation
Installations without adequate space for ducting, refrigerant lines, and service access
What Is the Wine Guardian DS050?
The Wine Guardian DS050 Ducted Split Wine Cellar Cooling Unit is designed to maintain stable wine storage conditions in medium-sized wine cellars. It separates the fan-coil and condenser sections, allowing the cooling equipment to be positioned away from the finished wine room while conditioned air is supplied through ductwork.
This design makes the DS050 a strong choice for custom wine cellars where the cooling system should not interrupt the visual design of the room. It is especially useful for wine rooms built into luxury homes, restaurants, tasting spaces, hospitality venues, and commercial storage environments.
The DS050 is suitable for wine cellars from 650 to 3,000 cubic feet, but final sizing should always consider insulation, glass exposure, door type, ambient conditions, cellar location, desired temperature, and usage patterns.
To support proper long-term wine storage, humidity should also be reviewed. Learn more in our guide to wine cellar humidity.
Where the DS050 Fits in the Wine Guardian Ducted Split Lineup
The DS050 sits in the middle of the Wine Guardian ducted split lineup. It provides more capacity than the DS025 while remaining smaller than the DS088 and DS200 models.
Why Choose a Ducted Split Wine Cellar Cooling System?
A ducted split wine cellar cooling system is designed for projects where cooling performance, quiet operation, and design flexibility are all important. Because the fan-coil and condenser are separate, the system gives contractors more freedom when planning the cooling layout.
Wine Guardian ducted split systems are especially useful when the wine cellar has limited wall space, when the condenser needs to be placed remotely, or when the cellar owner wants the finished wine room to remain visually clean without exposed equipment.
Primary Benefits
Remote equipment placement
Reduced noise and vibration inside the wine room
Cleaner cellar design
Flexible duct routing
Strong fit for premium residential and commercial projects
Planning Considerations
Requires professional installation
Requires duct design and refrigerant line planning
Requires adequate service access
May require humidification depending on cellar conditions
Should be sized by a wine cellar cooling specialist
Key Features of the Wine Guardian DS050
Behind-the-Scenes Cooling
The DS050 is designed to keep cooling equipment away from the finished wine cellar. This helps preserve valuable wine storage space and allows the cellar design, racking, lighting, and display features to remain the visual focus.
Flexible Installation Design
The ducted split format gives contractors flexibility when working with challenging wine cellar layouts. It is useful for projects with limited mechanical room space, long duct runs, or difficult condenser air exhaust conditions.
Matched Evaporator and Condenser
Wine Guardian designs the evaporator and condenser sections to work as a matched system. The components are built with durable, corrosion-resistant materials for long-term performance in demanding wine cellar environments.
Efficient Professional Installation
The DS050 is designed for qualified contractors familiar with split-system installation. The evaporator and condenser sections are connected by copper tubing, and the system supports multiple duct configurations depending on the project layout.
Remote Temperature and Humidity Control
The Wine Guardian controller allows cellar owners to monitor and adjust cellar conditions. Optional sensors can help measure temperature and humidity across larger or more complex wine rooms.
Control Placement Flexibility
The remote interface controller can be positioned where it is most convenient, including inside the cellar, outside the cellar, or in another accessible room. Additional remote sensors can be used for improved readings in larger spaces.
Field-Serviceable System
Removable panels, front-facing controls, and condenser sight glass access help qualified service professionals inspect and service the system in the field.
Sentinel Series Construction
Wine Guardian ducted split systems are part of the Sentinel Series, featuring updated construction and composite material designed for strength, efficiency, and modern wine cellar applications.
Advantages and Limitations
Advantages
Limitations
Quiet wine cellar operation with remote condenser placement
Contractor installation is required
Concealed mechanical equipment for cleaner cellar design
More complex than through-the-wall cooling systems
Flexible equipment placement and duct routing
Requires ductwork, refrigerant lines, condenser placement, and service access planning
Even air distribution through ducted delivery
Proper sizing is essential; cubic footage alone is not enough
Residential and commercial compatibility
Humidity may require additional equipment
Compatible with ducting, controls, sensors, humidifiers, and warranty options
Project layout affects installation feasibility
Before ordering: Contact Wine Coolers Empire if you are unsure whether the DS050 is properly sized for your wine cellar. Our team can help review your room size, design, and cooling needs.
Installation Requirements
Requirement
Details
Installer
Qualified contractor required
System Type
Ducted split system with separate fan-coil and condenser sections
Electrical
115/1/60 | 208-230/1/60 condenser
Ducting
Required based on cellar layout and installation plan
Refrigerant Lines
Required between evaporator and condenser sections
Service Access
Required for fan-coil, condenser, ducting, and controls
Climate Protection
Standard condensing option includes Low Ambient Protection; Extreme Climate Protection is available for colder environments
Humidity Control
Optional integrated or freestanding humidifier available
Installation warning: A qualified contractor must install this unit. Improper sizing, duct planning, refrigerant line installation, or condenser placement can reduce performance and may affect system reliability.
Cellar Sizing Guidance
The DS050 is rated for wine rooms from 650 to 3,000 cubic feet, but actual cooling load depends on more than room volume. A cellar with heavy glass exposure, poor insulation, frequent door openings, high ambient temperatures, or exterior wall exposure may require a different system size.
Factors That Affect Cooling Load
Wine cellar cubic footage
Wall, floor, and ceiling insulation
Glass doors or glass walls
Ambient temperature around the cellar
Cellar location inside the building
Door seal quality
Lighting and heat-generating equipment
Frequency of use and door openings
When to Ask for Sizing Help
Your wine room includes large glass areas
Your cellar is near a warm garage, exterior wall, or mechanical room
You are unsure about insulation quality
Your cellar is close to the upper end of the DS050 range
You are comparing DS025, DS050, DS088, or DS200
For sizing assistance, contact Wine Coolers Empire through our Contact Us page.
Fan-Coil and Condensing Options
Standard Fan-Coil
The standard fan-coil option is the base model with a coated evaporator coil. It is suitable for standard wine cellar storage applications where the system is primarily used to maintain proper wine storage temperatures.
Standard with All Wine Temperatures
The All Wine Temperatures (AWT) bundle includes a factory-mounted heater and extended controls that allow the wine room to be adjusted across a wider range of serving temperatures. It covers 45°F to 64°F and is useful for applications where temperatures may drop below 50°F.
Standard Condensing Option
The standard condensing option is the base model with Low Ambient Protection, which helps protect the system from cold temperatures below 5°C / 40°F.
Extreme Climate Protection
The Extreme Climate Protection bundle protects the condenser section only in extreme climate conditions. It is designed for climates that fall below 20°F and allows the system to operate in temperatures as low as -20°F.
Ducting Options
Ducting options help customize how air moves into and out of the wine cellar. Final ducting configuration should be planned by a qualified installer based on the cellar layout.
Duct Collar - Return - Inlet
The return inlet duct collar pulls air from the wine room and returns it to the wine cellar cooling system.
Duct Collar - Supply - Outlet
The supply outlet duct collar pushes conditioned air into the wine room from the wine cooling unit.
Combo Duct Kit - Supply, Return & Flex Duct
The combo duct collar kit includes one duct collar supply outlet, one duct collar return inlet, and a flex duct.
Flexible Ductwork
This option includes one box of 25 ft. / 7.6 m and 10 in. / 25.4 cm round insulated flexible ductwork for Sentinel Series systems D050, D088, DP50, DP88, DS050, DS088, SP50, and SP88.
Control and Humidifier Options
Remote Interface Controller
The Wine Guardian Remote Interface Controller includes thermostat, humidistat, and monitor controls. It can be placed inside or outside the wine room when used with a remote sensor.
Remote Sensor
The Wine Guardian Remote Sensor detects temperature and humidity in the wine cellar. It is useful for large rooms, multiple-room applications, or averaging temperature and humidity readings across different cellar areas. Each sensor includes 50 feet of cable.
Integrated Humidifier
The Wine Guardian Integrated Humidifier attaches directly to the Wine Guardian cooling system and uses the same power source and remote controller.
Standalone Humidifier - Powered by Cooling Unit
This Wine Guardian freestanding humidifier includes a power-control cable that connects to the Wine Guardian cooling system. It also includes a wall-mount bracket for flexible placement.
Standalone Humidifier - Independent Power
This Wine Guardian freestanding humidifier includes a wall-mount bracket, power cord, and humidistat for use in cellars without a Wine Guardian cooling system.
Wine Guardian warrants, to the original buyer, its goods and all parts thereof to be free from defects in material and workmanship for a period of two years from the date of invoicing, assuming normal use and service.
3-Year Extended Warranty
Extends the warranty period for the compressor, evaporator coil, and condenser coil parts only by three years.
Technical Specifications
Specification
Value
Model
DS050
Line Frequency
60 Hz
Capacity
2,700-6,458 BTU
Volume
650-3,000 ft³
Fan-Coil Length
23.8"
Condenser Length
34"
Fan-Coil Width
25"
Condenser Width
12.3"
Fan-Coil Height
19.7"
Condenser Height
26.07"
Fan-Coil Weight
54 lbs
Condenser Weight
76 lbs
Electrical
115/1/60 | 208-230/1/60 condenser
Product Videos
Wine Guardian Ducted Split Wine Cooling Systems
Wine Guardian Ducted Split Wine Cellar Cooling Unit - Features & Benefits | Sentinel Series
Wine Guardian Sentinel Series Wine Cellar Cooling Units
Wine Guardian Sentinel Series | Izod Strength Test
We recommend the Wine Guardian DS050 for medium-sized wine cellar projects where quiet operation, concealed equipment, and installation flexibility are important. It is a strong fit for residential custom cellars, restaurant wine rooms, and commercial wine storage projects that require professional-grade climate control.
Because ducted split systems require proper load calculation, duct planning, condenser placement, and contractor installation, we recommend confirming your cellar specifications before ordering.
Why Buy From Wine Coolers Empire?
Wine Coolers Empire is a trusted dealer of premium wine cellar refrigeration units, commercial wine cellar cooling units, residential wine cellar coolers, and wine room humidifiers. You can read customer feedback on our Customer Reviews page.
Free professional wine cellar design assistance
Expert guidance for cooling system sizing
Premium wine cellar cooling brands
Support for residential and commercial wine cellar projects
Access to manuals, spec sheets, CAD files, and manufacturer warranty details
For questions, contact Wine Coolers Empire through our Contact Us page.
For information on order processing, shipping options, and delivery times, visit our Shipping Policy.
Get the Right Wine Cellar Cooling System Before You Buy
The Wine Guardian DS050 is a professional wine cellar cooling system and should be selected carefully. Wine Coolers Empire can help you confirm whether this model fits your wine room size, layout, insulation, usage, and installation requirements.
Free wine cellar design planning
Cooling system sizing guidance
Product recommendations based on cellar conditions
Support for residential, restaurant, and commercial wine cellar projects
Talk to an Expert: +1-888-407-7770 Email: support@winecoolersempire.com
