Wine Guardian DS200 - Duct Split System Wine Cellar Cooling Unit - 60 HZ - Base Model / Base Model
is backordered and will ship as soon as it is back in stock.
Call Us At (800) 407-7770 Or Chat Now To UNLOCK THE BEST PRICE AVAILABLE!
Options:
*All Wine Temperatures Bundle
For extended wine-cellar temperature ranges. Allows a Wine Guardian unit to control to an extended temperature range from 45°F(7° C) to 64°F(18° C), perfect for single to multiple cabinet applications and small wine rooms in which serving-temperature cooling is preferred.
This bundle also contains an integral electric heater coil and controls to protect wine cellars from dangerously low temperatures. It is ideal for areas where ambient temperatures fall below 50°F/10°C.
**Extreme Climate Protection Bundle
For Self-Contained Ducted systems: Contains an integral compressor crankcase heater and controls to protect the system against low temperatures (required when inlet air to the condenser coil is below 40°F/5°C). The bundle also contains an integral high capacity condenser fan and coil for operation at elevated ambient temperatures. This bundle should be considered when inlet air to the condenser coil is above 100°F/38°C (condenser air inlet cannot exceed 120°F/49°C).
For Ducted Split systems: Unit protection in extreme climate conditions (on the condenser section only). It is required for continuous operation in climates that fall below 20°F. Enables the system to operate in temperatures as low as -20°F.
Wine Guardian DS200 - Duct Split System Wine Cellar Cooling Unit - 60 HZ
Fan-coil Options:Base Model, Condenser Options:Base Model
Wine Guardian DS200 - Duct Split System Wine Cellar Cooling Unit - ...
Wine Guardian DS200 - Duct Split System Wine Cellar Cooling Unit - 60 HZ - Base Model / Base Model
is backordered and will ship as soon as it is back in stock.
In Stock & Ready to Ship
Estimated Delivery in 3-7 business days
Wine Guardian Ducted Split Wine Cellar Cooling System
Wine Guardian DS200 Ducted Split System Wine Cellar Cooling Unit - 60 Hz
The Wine Guardian DS200 Ducted Split Wine Cellar Cooling Unit - 60 Hz is a professional-grade cooling system designed for large wine cellars from 1,500 to 7,000 cubic feet. With cooling capacity from 8,000 to 15,785 BTU/h, separate evaporator and condenser sections, and flexible ducted installation, the DS200 is built for large residential wine rooms, restaurant wine storage, commercial cellars, hospitality venues, and serious collectors who need quiet, stable, long-term wine preservation.
Designed for large wine cellars from 1,500 to 7,000 cubic feet

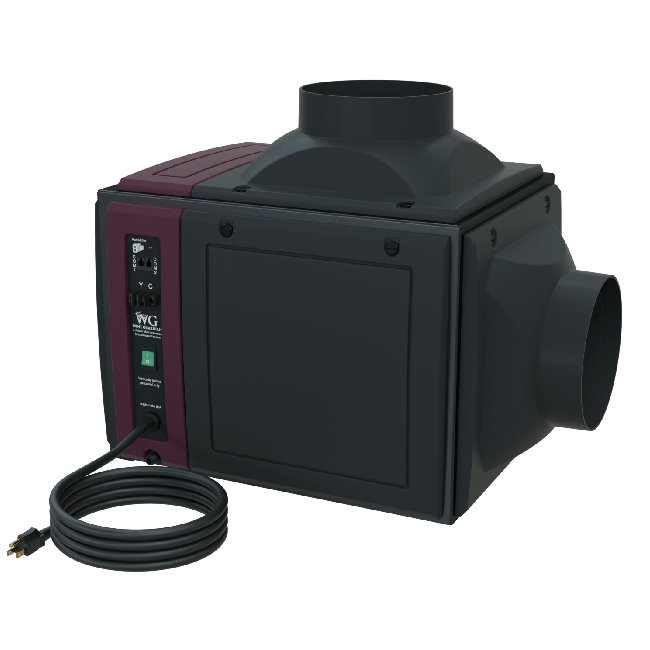

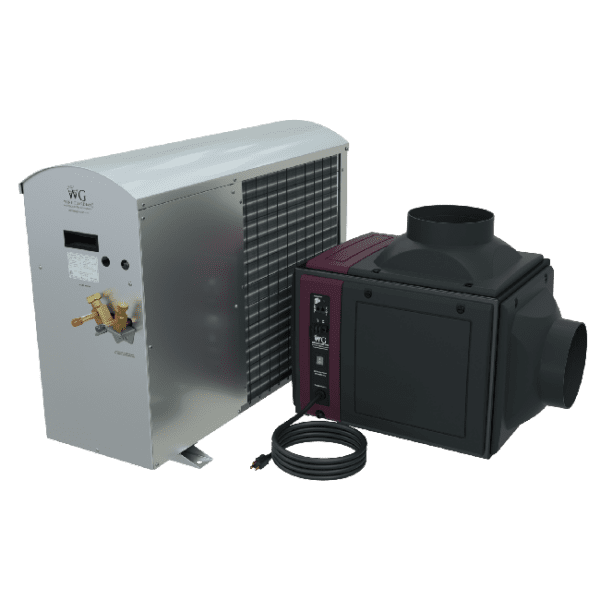

Ducted split system with separate fan-coil and condenser sections
Helps reduce cellar noise and vibration by allowing remote condenser placement
Compatible with Wine Guardian humidifier, ducting, sensor, and control options
Professional HVAC contractor installation required
Wine Guardian DS200 Quick Specifications
Model
DS200
System Type
Ducted Split Wine Cellar Cooling System
Line Frequency
60 Hz
Recommended Cellar Volume
1,500 to 7,000 cubic feet
Cooling Capacity
8,000 to 15,785 BTU/h
Electrical
208-230/1/60
Installation
Qualified HVAC contractor required
Best Use
Large residential cellars, restaurants, hospitality wine rooms, commercial wine storage, and custom wine cellar projects
Installation Notice: The Wine Guardian DS200 is not a DIY unit. A qualified HVAC contractor is required for refrigerant line connection, electrical setup, duct configuration, and system commissioning.
Best For
Large wine cellars from 1,500 to 7,000 cubic feet
Serious wine collectors with high-value inventories
Luxury residential wine rooms
Restaurant wine storage programs
Commercial and hospitality wine storage spaces
Projects where condenser noise should be kept away from the cellar
Cellars under 1,500 cubic feet unless professionally load-calculated
DIY installations
Projects without space for ductwork or refrigerant line routing
Installations where a qualified HVAC contractor is not available
Buyers who need a self-contained through-the-wall wine cooling unit
Product Overview
The Wine Guardian DS200 Ducted Split Wine Cellar Cooling Unit is engineered for large wine storage environments that require stable temperature control, flexible installation, and reduced in-cellar noise. Unlike self-contained systems, the DS200 separates the fan-coil and condensing sections, giving installers more freedom to place the louder condenser section away from the wine cellar.
This makes the DS200 a strong choice for luxury homes, restaurants, hospitality venues, commercial wine rooms, and custom wine cellar projects where the cooling system must preserve both the wine collection and the design of the space.
The DS200 is also compatible with Wine Guardian humidity-control accessories. Maintaining proper wine cellar humidity helps protect corks, labels, and long-term bottle condition. Temperature control alone may not be enough for premium wine storage, especially in dry climates or tightly sealed cellar environments.
Why Choose the Wine Guardian DS200?
High-Capacity Cooling for Large Cellars
The DS200 is designed for wine cellars from 1,500 to 7,000 cubic feet, making it one of the best Wine Guardian ducted split options for large residential, commercial, and hospitality wine storage spaces.
Quiet Wine Cellar Operation
The split design allows the condenser to be placed away from the wine room, helping reduce mechanical noise and vibration inside the cellar.
Flexible Ducted Installation
The DS200 supports flexible supply and return duct configurations, making it useful for custom wine rooms where equipment cannot be placed directly inside the cellar.
Humidity Control Compatibility
Optional integrated and freestanding Wine Guardian humidifiers can be added to support proper wine cellar humidity levels.
Service-Friendly Design
Wine Guardian ducted split systems are designed for field service, with removable panels, front-facing controls, and accessible components for qualified technicians.
Sentinel Series Construction
The DS200 is part of the Wine Guardian Sentinel Series, featuring updated composite construction designed for strength, durability, and long-term system performance.
Important Limitations Before You Buy
The DS200 is a powerful ducted split system, but it is not the right fit for every wine cellar. It should be selected only after confirming cellar size, insulation quality, installation conditions, and contractor requirements.
The DS200 requires a qualified HVAC contractor.
It requires refrigerant line installation between the fan-coil and condenser sections.
It requires proper duct design and airflow planning.
It is generally oversized for small wine rooms below 1,500 cubic feet.
It is not a plug-and-play or self-contained through-the-wall wine cooling unit.
Proper insulation, vapor barrier, cellar sealing, and cooling-load calculation are required for reliable performance.
Installation Requirements
The Wine Guardian DS200 must be installed by a qualified contractor familiar with split cooling systems, electrical requirements, refrigerant piping, ductwork, condensate management, and wine cellar climate control. Proper installation is critical because wine cellars require stable storage conditions, not general comfort cooling.
Requirement
Details
Contractor
Qualified HVAC contractor required
Electrical
208-230/1/60
Ducting
Supply and return duct planning required
Refrigerant Lines
Required between evaporator and condenser sections
Condensate Management
Must be planned according to installation conditions
Cellar Preparation
Insulation, vapor barrier, sealing, and proper load calculation required
Climate Protection
Standard Low Ambient Protection included; Extreme Climate Protection available for colder climates
For best results, confirm the cellar dimensions, insulation, bottle capacity, ambient conditions, and intended use before ordering the DS200.
Wine Guardian DS200 Technical Specifications
Specification
Fan-Coil / System
Condenser
Model
DS200
Matched Condensing Section
Line Frequency
60 Hz
60 Hz
Cooling Capacity
8,000 to 15,785 BTU/h
Matched to DS200 system
Recommended Volume
1,500 to 7,000 cubic feet
Project-dependent placement
Length
23.8 in.
34 in.
Width
25 in.
12.3 in.
Height
19.7 in.
26.07 in.
Weight
69 lbs.
120 lbs.
Electrical
208-230/1/60
208-230/1/60
Compare Wine Guardian Ducted Split Models
The DS200 is the largest listed ducted split option in this model group. Choose a smaller model if your cellar volume is below the DS200 range.
Base model with coated evaporator coil. This option is appropriate for most wine cellar projects requiring standard wine storage temperature control.
Standard with All Wine Temperatures
The All Wine Temperatures (AWT) option includes a factory-mounted heater and extended controls to adjust the wine room for serving temperatures. It covers temperatures from 45°F / 7°C to 64°F / 18°C and is useful for wine rooms where temperatures may drop below 50°F / 10°C.

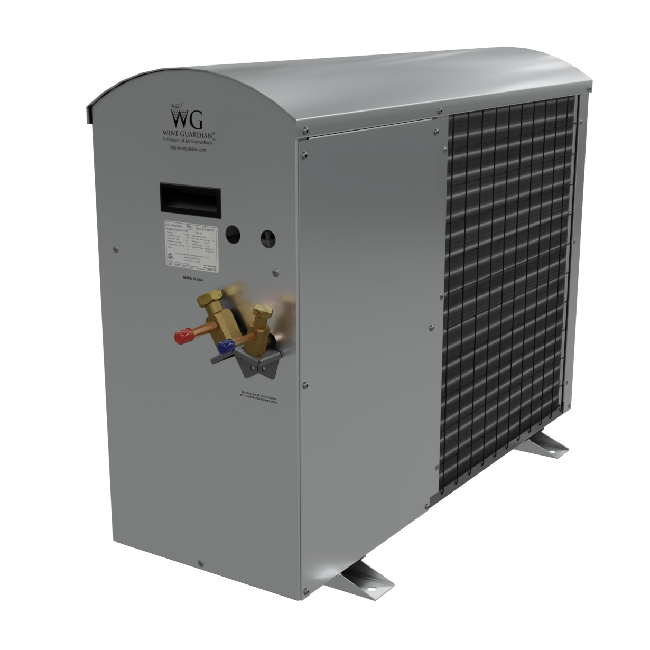

Standard Condensing Option
Base model with Low Ambient Protection, which protects the system from cold temperatures below 5°C / 40°F.
Extreme Climate Protection
Extreme Climate Protection applies to the condenser section only. It is designed for climates where temperatures drop below 20°F and allows system operation in temperatures as low as -20°F.
Ducting Options
Duct Collar - Return - Inlet
Pulls air from the wine room and returns it to the wine cellar cooling system.
Duct Collar - Supply - Outlet
Pushes conditioned air into the wine room from the wine cooling unit.
Combo Duct Kit - Supply, Return & Flex Duct
Includes one duct collar supply outlet, one duct collar return inlet, and a flex duct for ducted airflow planning.
Flexible Ductwork
Includes one box of 25 ft. / 7.62 m and 12 in. / 30.48 cm round insulated flexible ductwork for Sentinel Series systems D200, DP200, DS200, and SP200.
Control and Humidifier Options
Remote Interface Controller
The Wine Guardian Remote Interface Controller includes thermostat, humidistat, and monitoring controls. It can be placed inside or outside the wine room when used with a remote sensor.
Remote Sensor
The Wine Guardian Remote Sensor detects temperature and humidity in the wine cellar. Each sensor includes 50 feet of cable.
Integrated Humidifier
Attaches directly to the Wine Guardian cooling system and uses the same power source and remote controller.
Standalone Humidifier - Powered by Cooling Unit
Includes a power-control cable that connects to the Wine Guardian cooling system and includes a wall-mount bracket for flexible placement.
Standalone Humidifier - Independent Power
Includes a wall-mount bracket, power cord, and humidistat for cellar installations where independent humidifier operation is required.
Warranty Information
Manufacturer Warranty
Wine Guardian warrants, to the original buyer, its goods and all parts thereof to be free from defects in material and workmanship for a period of two (2) years from the date of invoicing assuming normal use and service.
3-Year Extended Warranty Option
The optional extended warranty adds three years of coverage for the compressor, evaporator coil, and condenser coil, parts only.
Wine Guardian DS200 Manuals, Brochures, and Technical Files
Review the official Wine Guardian documents below for installation, specification, warranty, and planning information.
Wine Coolers Empire is a trusted dealer of premium wine cellar refrigeration units, commercial wine cellar cooling systems, residential wine cellar coolers, wine room humidifiers, and wine cellar storage products. Our team helps customers select properly sized wine cooling systems for residential, restaurant, commercial, and hospitality projects.
More customer feedback is available on our Customer Reviews page.
For order processing, shipping options, and delivery times, please visit our Shipping Policy.
Expert Recommendation
The Wine Guardian DS200 is best suited for large wine cellars where quiet operation, flexible installation, and high-capacity cooling are more important than simple plug-and-play setup. It is an excellent match for serious collectors, luxury residential projects, restaurants, commercial wine rooms, and hospitality environments with properly constructed wine cellar envelopes.
Choose the DS200 if your cellar is within the 1,500 to 7,000 cubic foot range, you want the condenser located away from the cellar, and your project has access to a qualified HVAC contractor. Consider a smaller Wine Guardian model if your cellar is below this range.
Get Free Wine Cellar Cooling Design Help
The DS200 is a major wine cellar investment, and correct sizing is essential. Wine Coolers Empire can help review your cellar dimensions, insulation, location, intended use, and cooling needs before purchase.
The DS200 is rated to cool wine cellars up to 4,300 cubic feet, depending on the insulation, construction quality, and environmental conditions.
The DS200 is an air-cooled system, which means it exhausts heat into the surrounding air — a convenient solution for most residential and commercial installations.
A ducted split system separates the evaporator and condenser components and uses ductwork to deliver conditioned air to the wine cellar. This setup keeps equipment out of sight and minimizes noise in the storage space.
Yes. The DS200 must be installed by a licensed HVAC technician to ensure safety, performance, and to comply with the manufacturer’s warranty requirements.
Absolutely. The DS200 is ideal for both residential and commercial applications, including restaurants, wine retailers, and hospitality venues with large-scale wine storage needs.
Yes. Wine Guardian systems are compatible with building management systems (BMS), allowing centralized monitoring and smart control in both home and commercial environments.
Wine Guardian offers a 2-year parts and labor warranty. To activate warranty coverage, the unit must be installed by a professional and registered with the manufacturer."]
