WhisperKOOL Platinum Split 8000 Ductless Cooling System 220V High Efficiency

badge
badge
SKU S-WKPS8000-220

No Sales Tax (Except NV)

Save 26%
Original Price $9,448.00
Current Price $6,999.00

💵 We Will Beat Any Online Competitor's Prices! Call (888) 407-7770 Or Chat With Us to get the lowest price!

Notify me when back in stock

WhisperKOOL Platinum Split 8000 Ductless Cooling System 220V High Efficiency Overview

NOTE: A qualified HVAC-R technician is required for the installation of Platinum Split 8000 systems. Failure to have the system installed by a qualified technician will void the warranty.

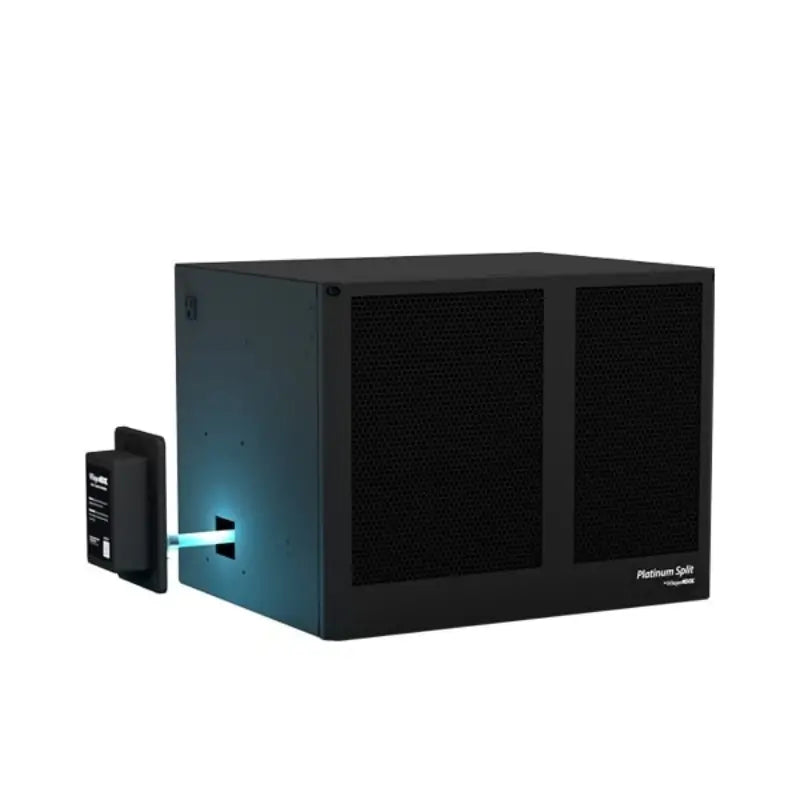

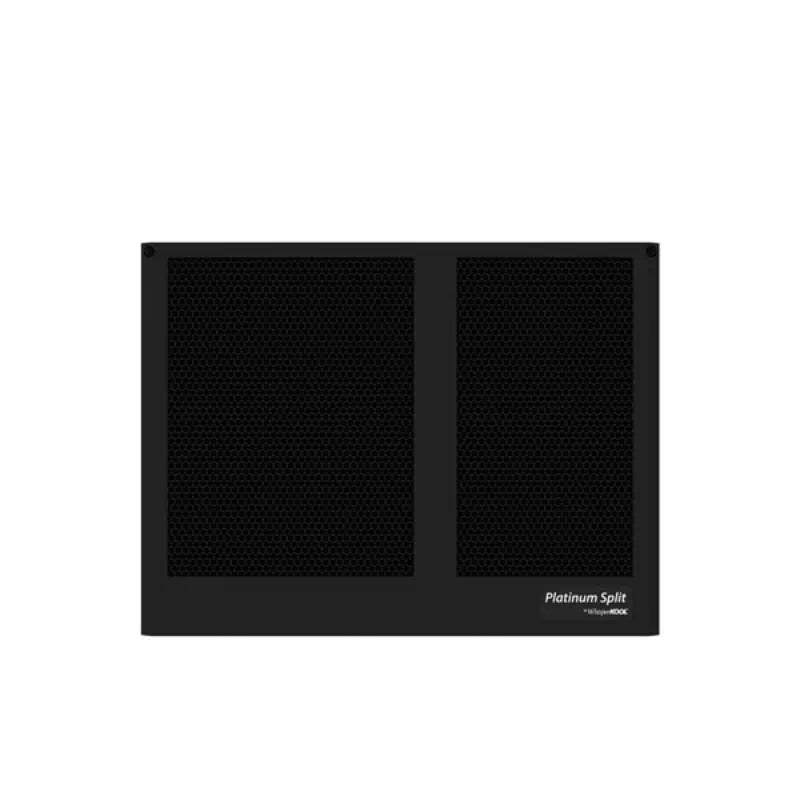

Described in the simplest terms, a split system is a cooling unit wherein the evaporator unit and condensing unit have been “split” into two separate units instead of being contained within the same housing. The evaporator unit is located in or near your cellar, and the condensing unit is generally located outside, or in an attic or utility room.

The Platinum Split 8000 allows you to decide where the evaporator unit and the condensing unit will be located. The condensing unit can be located up to 100 ft. away from the evaporator unit. The evaporator unit will be mounted in the cellar or it can also be located nearby with ducting.

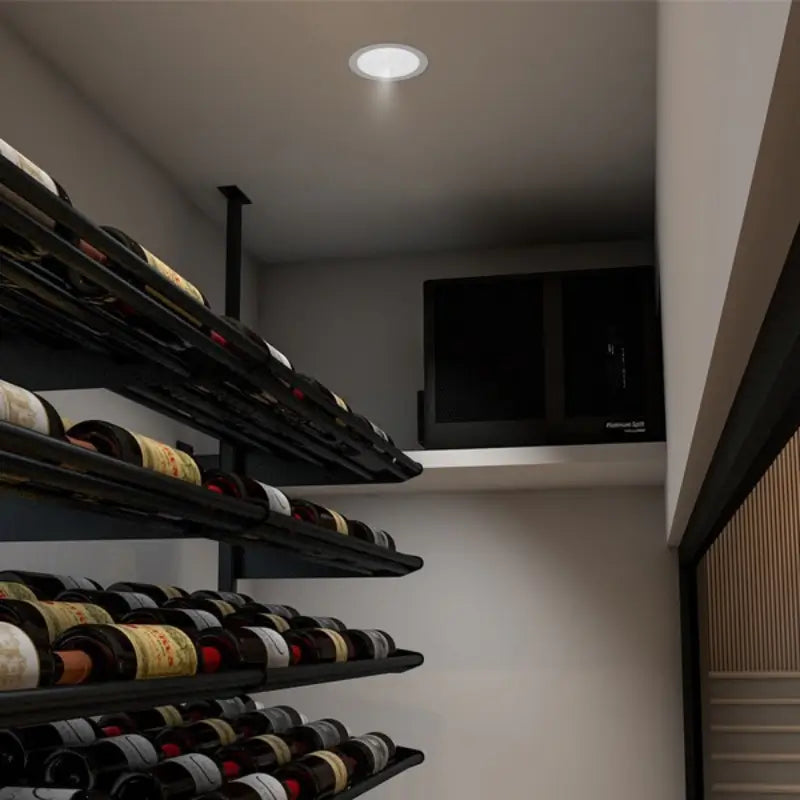

If you don’t mind seeing the grille of your cooling unit in your cellar, a wall-mounted split system is what you need. If you prefer your unit to be out of sight, you should get a fully ducted split system. The choice is yours.

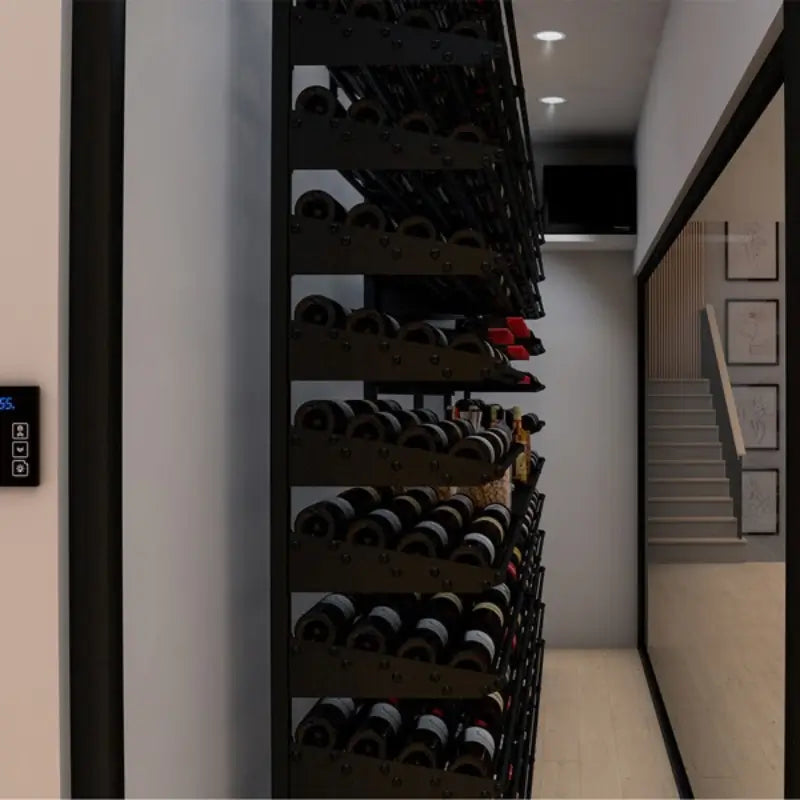

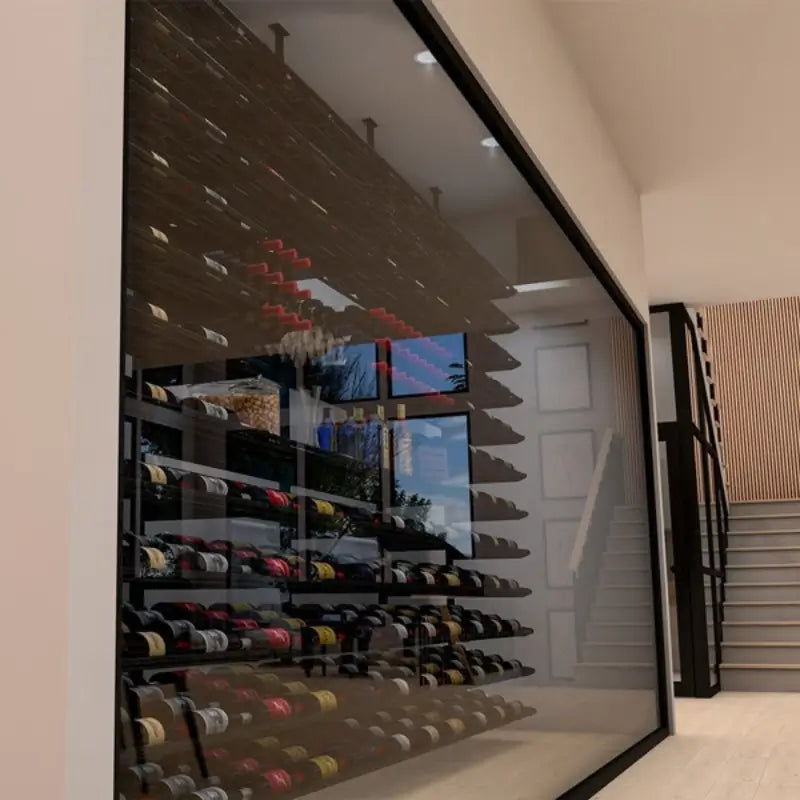

Perfect for Glass Wine Walls

Available in Platinum Split 8000 Ductless Cooling System 110V & Platinum Split 8000 Ductless Cooling System 220V for 1750 cu.ft.

Other Sizes: Platinum Mini Split 220V H.E. for 500 cu.ft. , Platinum Split 4000 220V H.E. for 1000 cu.ft. wine cellar,  and Platinum Split Twin 220V H.E. for 3000 cu.ft. wine cellar.

Features:

  • Quiet and efficient operation
  • Advanced electronic control system
  • Standard and 24V thermostat options available

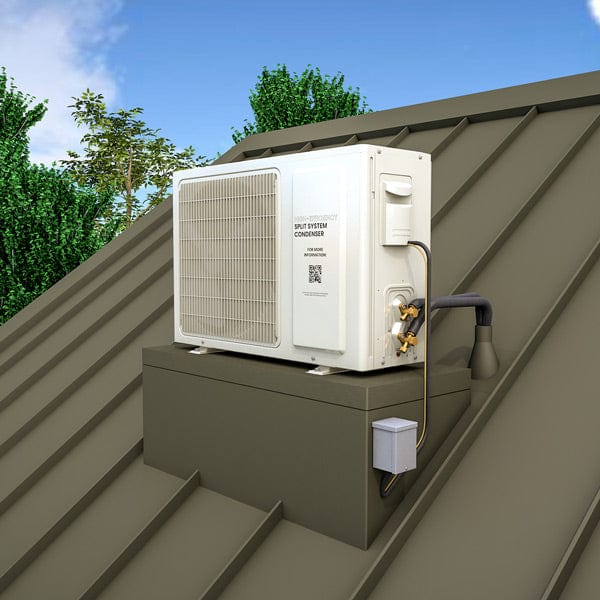

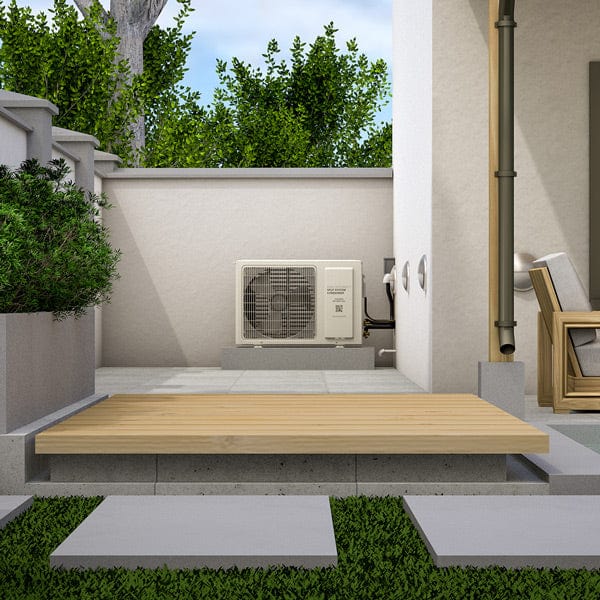

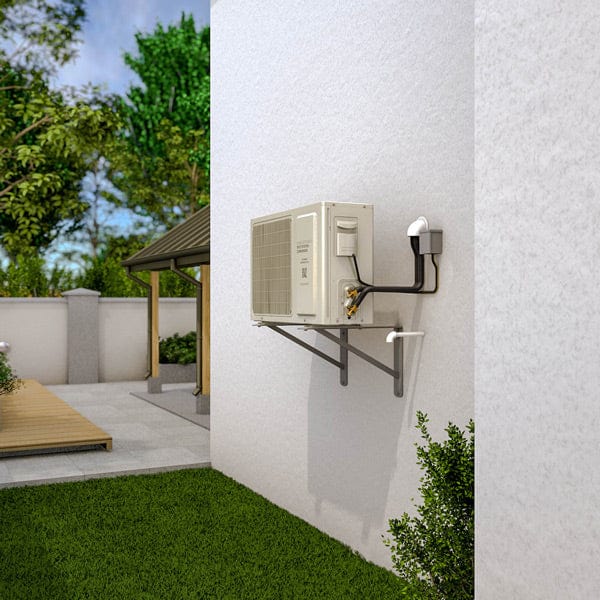

  • Condensing unit can be placed outdoors with purchase of exterior housing
  • 55ºF temperature differential between the cellar and condensing unit air intake temperature

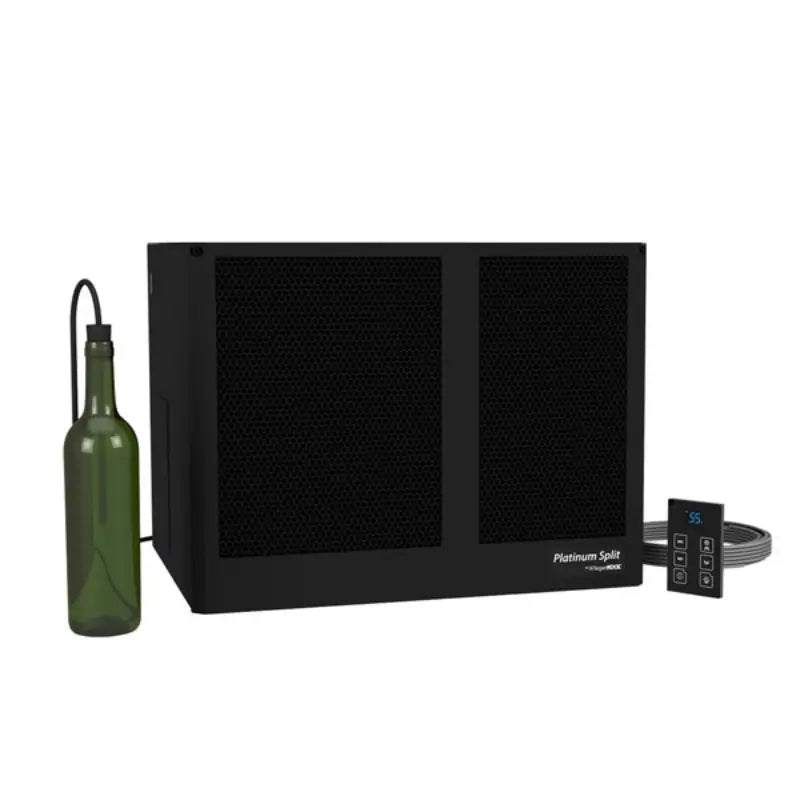

  • KDT Digital Controller/Thermostat with 50-ft. cable
Do you have a different size wine cellar? Or just want to check your options? Check out other WhisperKOOL Platinum Ductless Split Cooling Units now! You can also browse our other Ductless Split Wine Cellar Coolers.

Buy the WhisperKOOL Platinum Split 8000 Ductless Cooling System 220V High Efficiency today and enjoy your amazing wines at their best temperature!

Manuals:

Not sure if the Platinum Split 8000 is right for your wine cellar? Talk to an Expert at +1-888-407-7770 or email: support@winecoolersempire.com to find the right cooling system for your needs.

3576 - 4834

The BTU/h value range shown here is a theoretical number. There are often circumstances under which a cellar design may require a larger unit due to variables not accounted for in the formula. For example, these variables could be building materials (such as glass, stone, concrete, etc.) which do not offer the insulation capacity required to maintain the optimal cellar environment. We recommend purchasing a unit with a larger capacity to compensate for these unaccounted-for variables. An undersized unit can lead to premature failure and will most likely prevent the cellar from reaching your desired temperature.

Specifications:

  • Cellar Size: Approx. 1750 cu. ft. when cellar is fully insulated and sealed with a proper vapor barrier
  • Dimensions: Evaporator: 16.1”L x 20.5”W x 15.5”H | Condenser: 31.18"L x 10.75"W x 21.18" H
  • Drain Line: ti: 1/2” ID tubing, tiR: 3/8″ ID tubing
  • BTU/h: 3576 - 4834
  • Warranty: Limited 2-year product warranty is offered with all split systems.

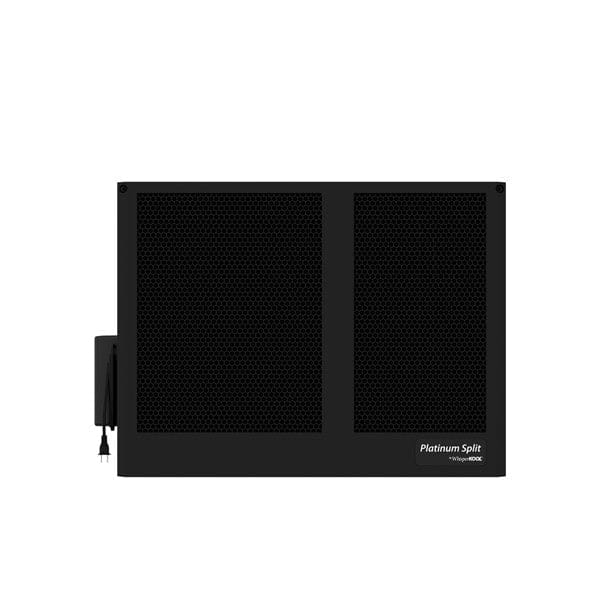

Platinum Split 8000

Please click below to view product specifications for the Platinum Split cooling system.

24V THERMOSTAT CONVERSION KIT (OPTIONAL)

Introducing our new 24-volt thermostat conversion kit for WhisperKOOL split systems! Utilize industry-leading technology from major manufacturers to monitor the environment of your cellar.

  • Connect your thermostat to Wi‑Fi to control the temperature from your phone, tablet, or laptop.
  • Monitor run time and energy usage.
  • Set alarm notifications.
  • View your cellar conditions from your mobile device.

*PLEASE NOTE: WhisperKOOL does not provide smart thermostat. By selecting the 24V Thermostat Conversion Kit, you have acknowledged that the system will not be built with the standard WhisperKOOL control or liquid measuring bottle probe. You will have to source and purchase your own 24V smart thermostat to run the equipment. The WhisperKOOL Customer Satisfaction Team does not provide technical support for smart thermostats.

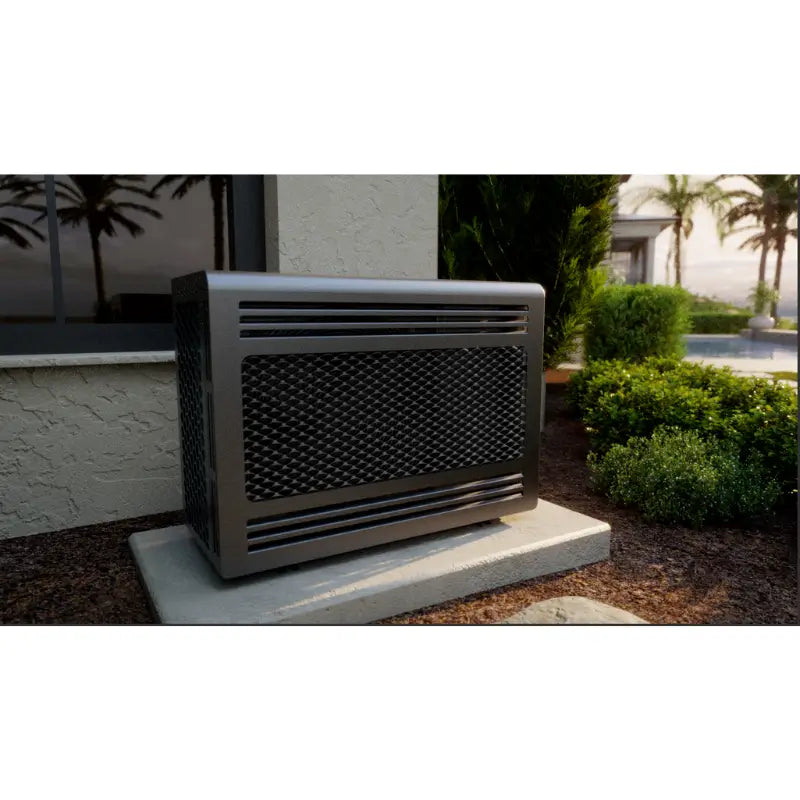

WhisperKOOL® Exterior Housing for Split Systems

Our exterior condenser housing protects the condenser portion of the split system from the elements when installed outdoors. Exterior Condenser Housing is used with the Platinum Mini Split, Ductless Platinum Split, and Ducted Platinum Split cooling units.

  • Galvanized steel base and steel cabinet embossed — 20 GA, hinged access for easier servicing
  • Easily assembled in the shop or on the job
  • Rain Trough under hinge to catch moisture that might seep through the hinge
  • WhisperKOOL® provides fasteners
  • Dimensions (W x H x D): 20” x 20” x 27”

WhisperKOOL® Extreme Ducting Plenum

Sizes available for the 3500ti, 5000ti, and 8000ti. This plenum allows either side of the unit to be ducted. Duct the cold air through a vent into the cellar, duct the hot exhaust air out of the home. This plenum allows for total installation flexibility.

  • Ducting plenum for the evaporator and condenser of the Extreme ti
  • Duct the evaporator or condenser side of the unit to ­fit your installation needs
  • Small is compatible with Extreme 3500ti and 5000ti
  • Large is compatible with Extreme 8000ti
  • WhisperKOOL® provides fasteners

WhisperKOOL® Extreme Exterior Grille

The Exterior Grille protects the exhaust side of the system from the weather elements when installed through an exterior wall.

  • Protects your Extreme ti through-the-wall unit from the elements of weather
  • Small is compatible with 3500ti and 5000ti
  • Large is compatible with 8000ti
  • WhisperKOOL® provides ½” pan-head screws

WhisperKOOL® SC Exterior Grille

The Exterior Grille protects the exhaust side of the system from the weather elements when installed through an exterior wall.

  • Protects your SC through-the-wall unit from the elements of weather
  • Small is compatible with 2000i, 3000i, and 4000i
  • Large is compatible with 6000i and 8000i
  • WhisperKOOL® provides ½” pan-head screws

WhisperKOOL® SC Ducting Kit

This kit allows the warm exhaust air to be ducted to another area. Ideal if the room adjacent to your cellar is not ideal for warm air to be exhausted into. The kit includes the Thermostat Controller, which will turn on and push warm exhaust air away from the ducting (not included). The in-line fan can be set to automatically turn on at varying temperatures in order to conserve the most electricity.

  • Small is compatible with 2000i, 3000i, and 4000i
  • Large is compatible with 6000i and 8000i
  • ONLY the exhaust side of the SC can be ducted
  • WhisperKOOL® does not provide ducting

Small Duct works on the SC 2000i/3000i/4000i and XLT 1600/3000/4200. Kit includes:

  • Duct Plenum
  • Transition with integrated heat sensor
  • 8″ In-line fan
  • 8″ Adjustable Elbow

Large Duct works on the SC 6000i/8000i and XLT 6000/8000. Kit includes:

  • Duct Plenum
  • Transition with integrated heat sensor
  • 8″ In-line fan with transitions to 8″
  • 8″ Adjustable Elbow

All New High-Efficiency 220V Condenser Whisperkool Wine Cellar Cooling Systems

WhisperKOOL is devoted to providing the most efficient, innovative split wine cellar cooling systems on the market. Whsiperkool offers new 220V High-Efficiency Condensers that outdo traditional 110V condensers in performance and efficiency with industry leading technology and multiple wine cellar cooling condensing unit sizes that make it perfect for nearly any application.

ALL NEW High Efficiency 220V

The 220V High-Efficiency Condensers offer a host of advantages over our traditional 110V condensers, including simplified installation, ultra-quiet operation, energy efficiency, & the ability to operate in extreme climates. For more information about our latest Split-System innovation.

Features:

  • EFFICIENT CONDENSER COIL DESIGN:
    • The system was designed utilizing oversized condenser coils, which allow the unit to operate efficiently in adverse high heat humidity environments.
  • DESIGNED FOR EXTREME CLIMATES:
    • Allows the system to adjust to ambient temperature conditions to maintain the ideal storage conditions for your fine wine in cold winter temperatures (as low as -20°F) and hot summer temperatures (up to 120 °F).
  • ULTRA-QUIET SYSTEM OPERATION:
    • The system utilizes large, low-speed fans to create sustainably quieter operation sound levels with reduced dBs between (48dB - 55dB) without decreasing the airflow volume or capacity output.
  • NO LONGER A PUMP DOWN SYSTEM:
    • The condenser is controlled by a direct communication line to the evaporator unit using standard thermostat cable. This communication line will be installed with the line set. This eliminates the solenoid at the Evaporator also eliminating the clicking sound from the solenoid in the Cellar. The design reduced the number of components that will simplify service and increase system longevity.
  • SIMPLIFIED INSTALLATION
    Easy access to controls & valves for simplified installation + smart communication cable from the evaporator to the condenser.

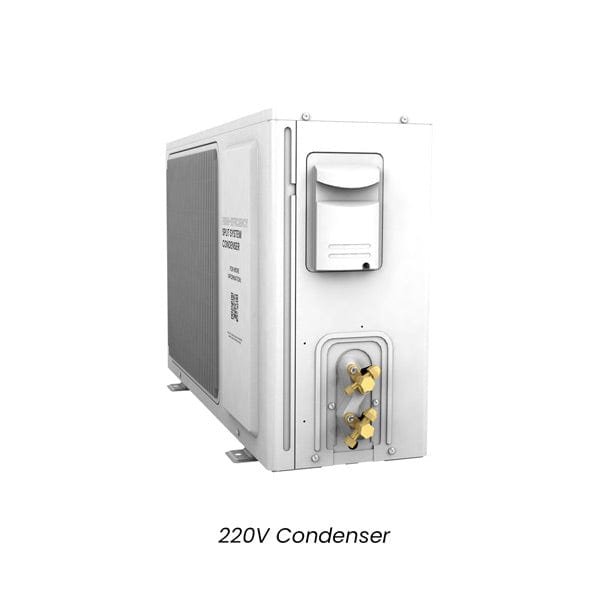

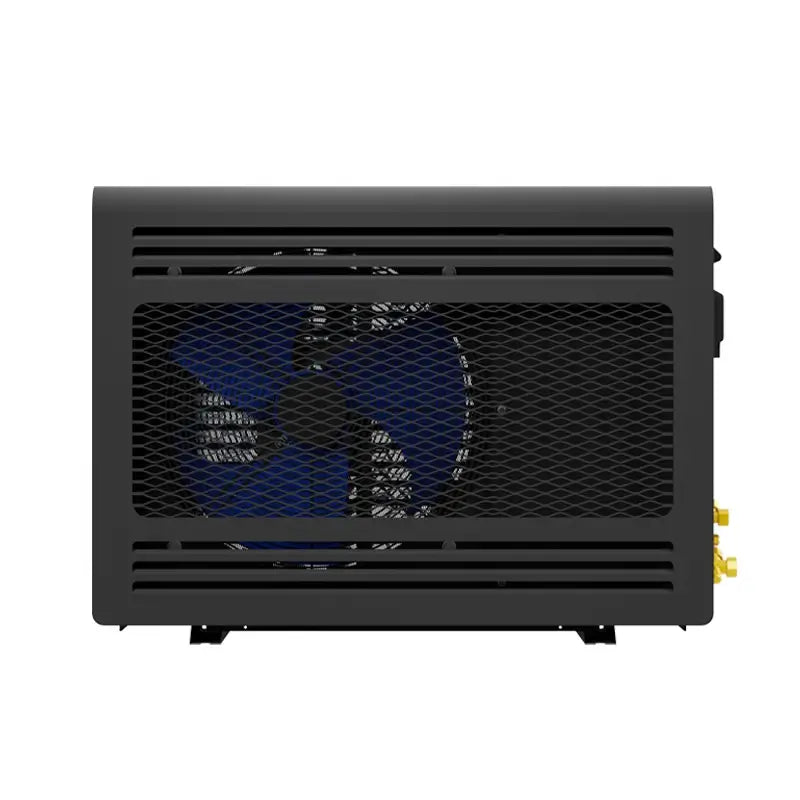

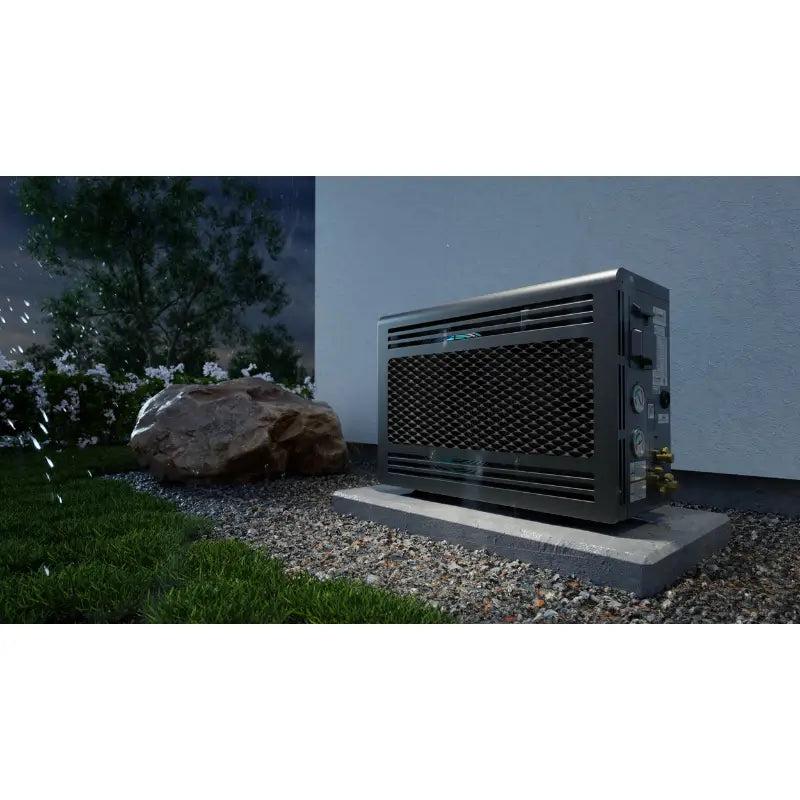

          220V High-Efficiency Condenser

  • ULTRA QUIET OPERATION
    Utilizes large, low-speed fans to create substantially lower operation sound levels between (45dB-52dB).

          Ultra Quiet Operation 220V High-Efficiency Condenser

  • QR CODE
    We’ve placed QR codes to directly lead you to all the vital information about installing and maintaining your system.

         220V High-Efficiency Condenser

Benefits:

  • 220 VOLT CONDENSERS:
    • Compared to previous models, this 220V system is a significantly more energy- efficient system, utilizing 50% less energy to operate, saving energy costs.
  • SIMPLIFIED SYSTEM INSTALLATION/MAINTENANCE:
    • The electrical connections and valves are easy to access and hook up. (This new system differs from previous models as it requires a communication cable from the evaporator to the condenser). Also, while servicing or installing, manifolds can easily be attached without having to adjust the access valve to review pressure.
  • ATTRACTIVE SYSTEM HOUSING:
    • The systems come complete with an attractive & durable exterior housing that can withstand adverse conditions, associated with outdoor environments.

Specifications:

  • Line Set: Liquid line 1/4” OD; Suction line 1/2” OD (less than 50 ft.), 5/8” (greater than 50 ft.)
  • Voltage Rating: 220V (15-amp dedicated circuit required)
  • Dimensions: 31.18″L x 10.75″W x 21.18″H
  • DBA: 45
  • Temp. Data: Can maintain a 55°F cellar temperature with up to 120°F condenser air intake temperature.

  GETTING TO KNOW OUR 220V HIGH-EFFICIENCY COOLING SYSTEMS

UPGRADED CONDENSER! 220V High-Efficiency

220V High-Efficiency Communication Cable

  110V and 220V Differences

Installation Guide of 220V High-Efficiency Condenser
