WhisperKOOL

S-WKPS8000-115-WM3

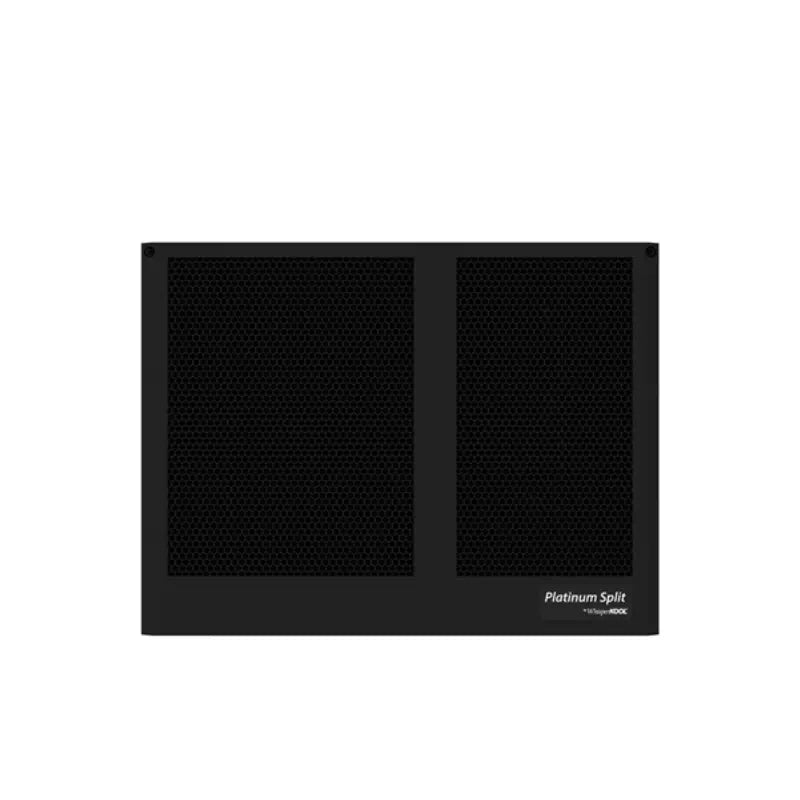

WhisperKOOL Platinum Split 8000 Ductless Cooling System

Exterior Housing
24V Thermostat Conversion Kit
Condenser Coil Coating

WhisperKOOL Platinum Split 8000 Ductless Cooling System Overview

When the wine cellar is fully insulated and sealed with a proper vapor barrier (each wine cellar is unique and has specific cooling requirements; heat load calculations should always be performed prior to selecting a cooling unit), the WhisperKOOL Platinum Split 8000 Ductless Cooling System can accommodate approximately 1750 cu.ft. cellar size.

Do you have a different size wine cellar? Or just want to check your options? Check out other WhisperKOOL Platinum Ductless Split Cooling Units now! You can also browse our other Ductless Split Wine Cellar Cooling Units.

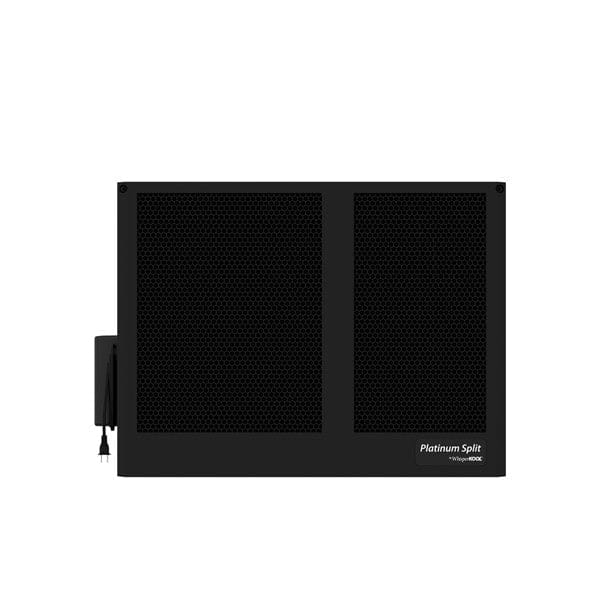

The Platinum Series of split systems allow you to decide where the evaporator unit and the condensing unit will be located. The condensing unit can be located up to 100 ft. away from the evaporator unit. The evaporator unit will be mounted in the cellar or it can also be located nearby with ducting.

If you don’t mind seeing the grille of your cooling unit in your cellar, a wall-mounted split system is what you need. If you prefer your unit to be out of sight, you should get a fully ducted split system. The choice is yours.

Features:

  • Ductless system
  • Quiet and efficient operation
  • An advanced electronic control system

  • Liquid-temperature-measuring bottle probe


  • Flexible installation
  • 55°F temperature differential
  • Standard and 24V thermostat options available
  • Built-in cold weather start kit on condensing unit - This completely new design improves airflow efficiency 25% and operates 10% quieter, all while being 35% smaller than our previous split system evaporator. This particular unit is perfect for wine cellars around the size of 1,750 cubic feet.

24V Thermostat Conversion Kit (OPTIONAL)

Introducing our new 24-volt thermostat conversion kit for WhisperKOOL split systems! Utilize industry-leading technology from major manufacturers to monitor the environment of your cellar. (See individual thermostat manufacturers’ websites for details.)

  • Connect your thermostat to Wi‑Fi to control the temperature from your phone, tablet, or laptop.
  • Monitor run time and energy usage.
  • Set alarm notifications.
  • View your cellar conditions from your mobile device.

The use of the 24-volt thermostat conversion kit eliminates the thermostat normally included with the system and allows your contractor to select, purchase and install the thermostat technology of your choice, including but not limited to Nest, Ecobee, and Honeywell.

By selecting the 24V Thermostat Conversion Kit, you acknowledged that the system will not be built with the standard WhisperKOOL control or liquid measuring bottle probe. You will have to source and purchase your own 24V thermostat to run the equipment.

  • Not utilizing the thermostat from WhisperKOOL also eliminates the use of the bottle probe.
  • WhisperKOOL does not provide smart thermostats. Those must be purchased separately.
  • WhisperKOOL customer service staff do not provide technical support for customers’ selected thermostats.

Manuals:

Specifications:

Model: Ductless Platinum Split 8000
Cellar Size:
Approx. 1750 cu.ft. when wine cellar is fully insulated and sealed with a proper vapor barrier
BTU/h (85°F condenser air intake temperature: 5211
Dimensions (L x W x H):

Evaporator: 16.1" x 20.5” x 15.5”

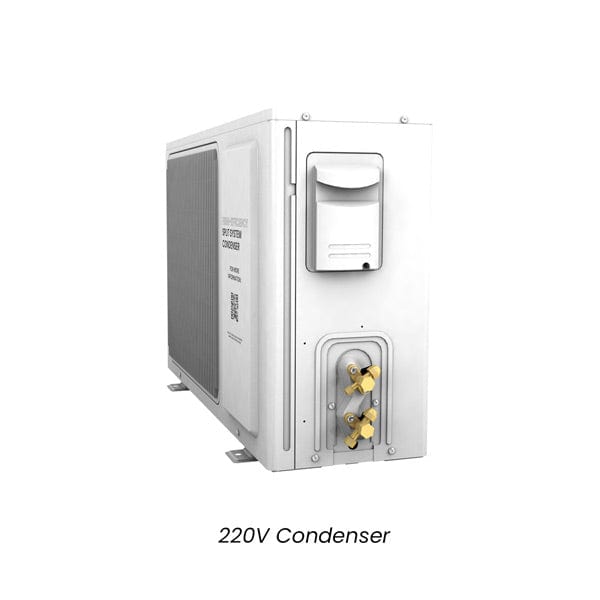

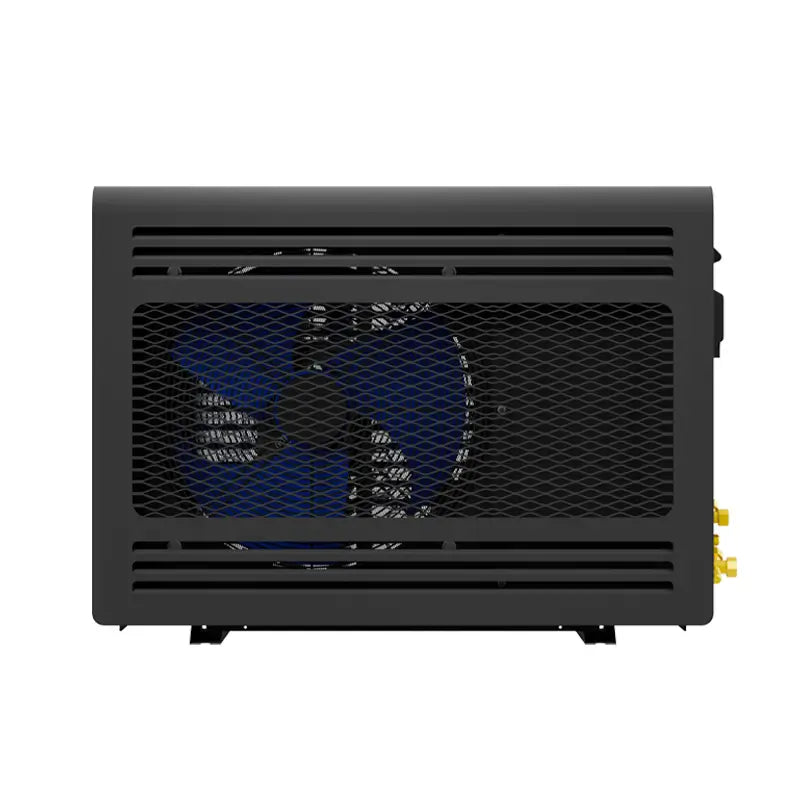

Condenser: 16.08” x 16.23” x 12.61"

Refrigerant: R-134a
HP: 1/3+
Refrigeration Tons: 0.43
Voltage Rating:

Evaporator: 115V (15-amp dedicated circuit required),

Condenser: 115V (20-amp dedicated circuit required)

Weight:

Evaporator: 57 lbs

Condenser: 66 lbs

Amps:

Evaporator: 1 (running amps)

Compressor: LRA 50, RLA 9.3

Line Set: Liquid line 1/4"; suction line 1/2" (less than 50 ft.), 5/8" (greater than 50 ft.)
Drain Line: 1/2” ID clear plastic tubing (NOT INCLUDED)

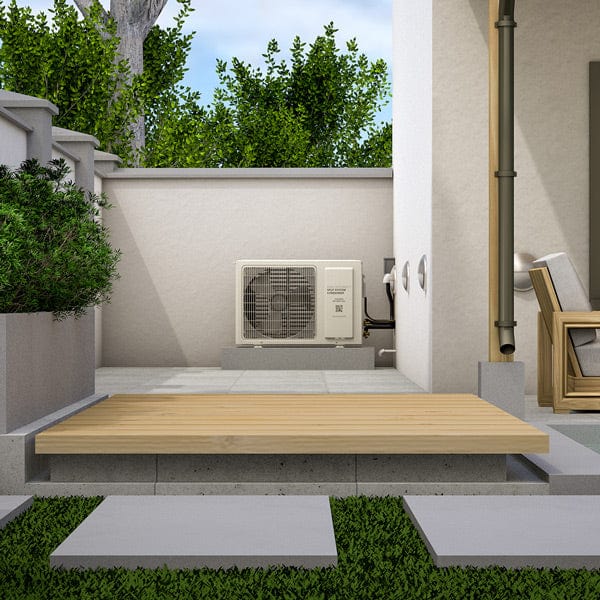

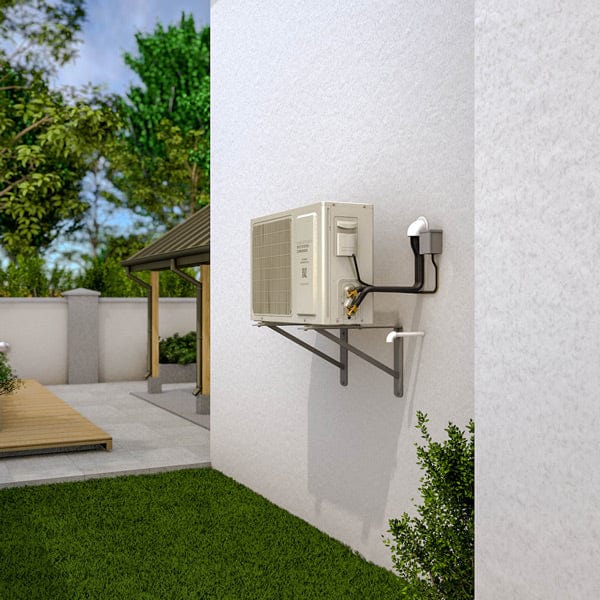

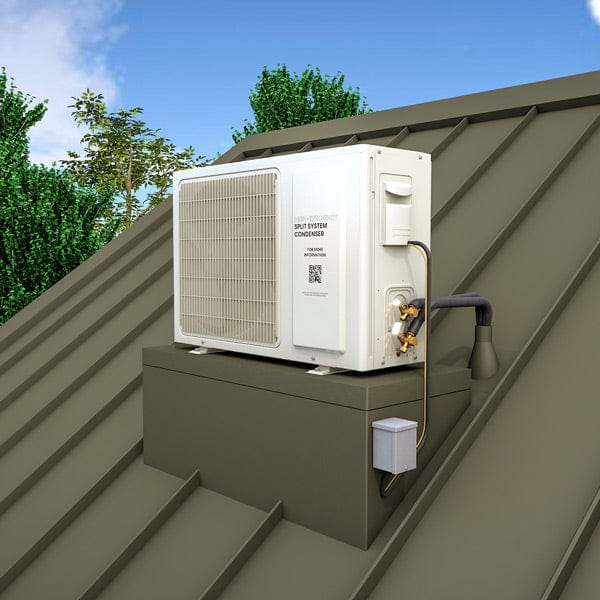

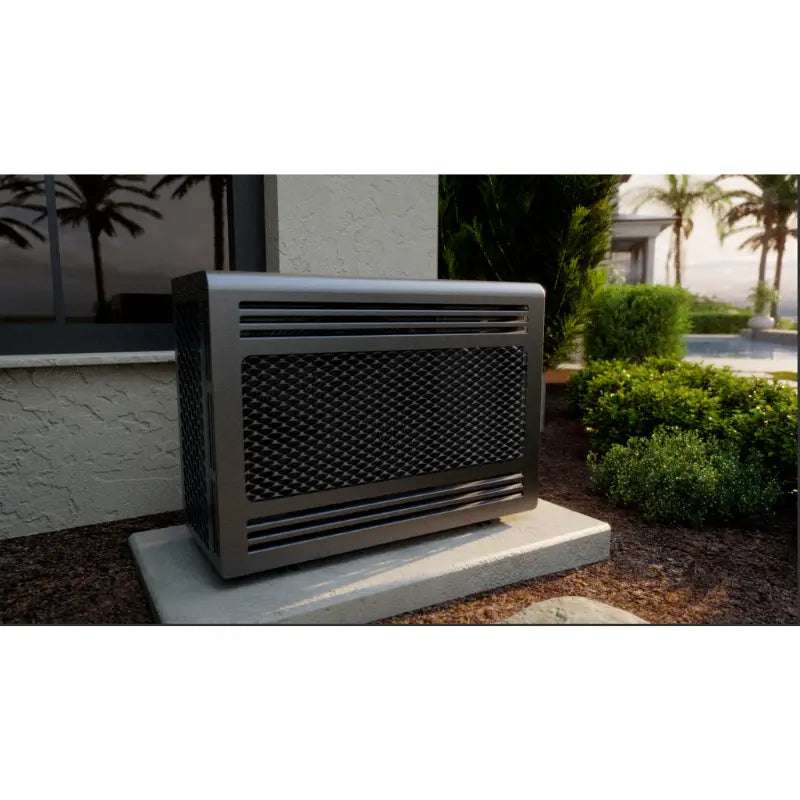

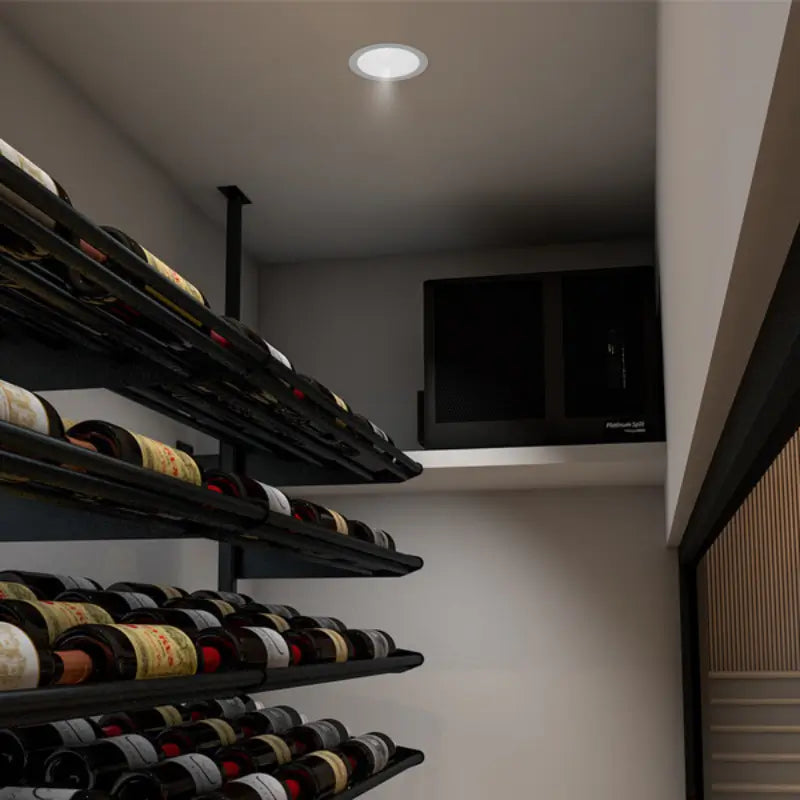

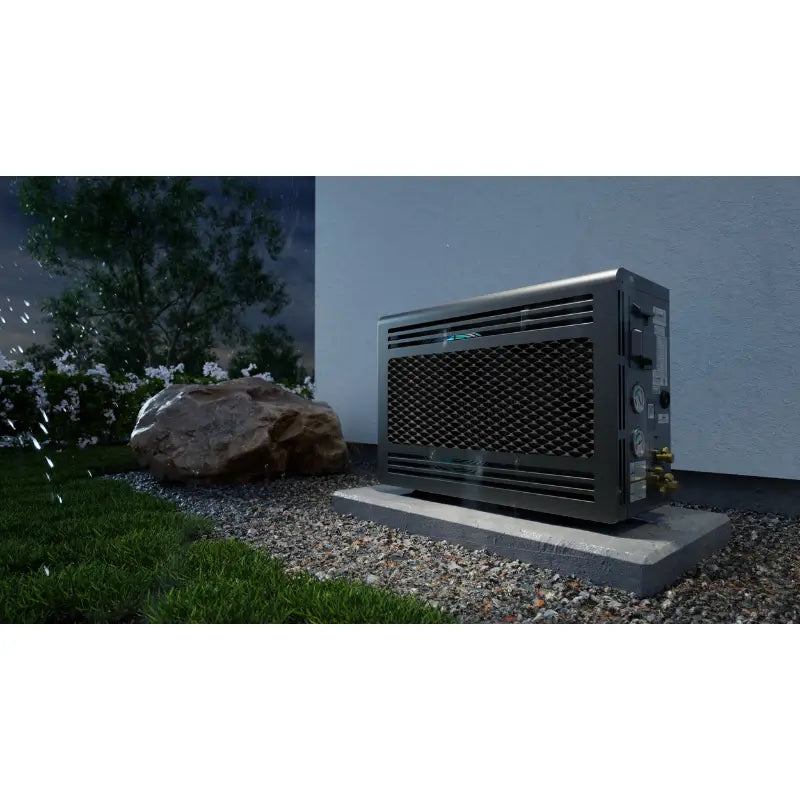

Installation: Evaporator unit is installed in the cellar. Condensing unit can be installed up to 100 line feet from the evaporator unit. Allow for adequate airflow.
Thermostat:

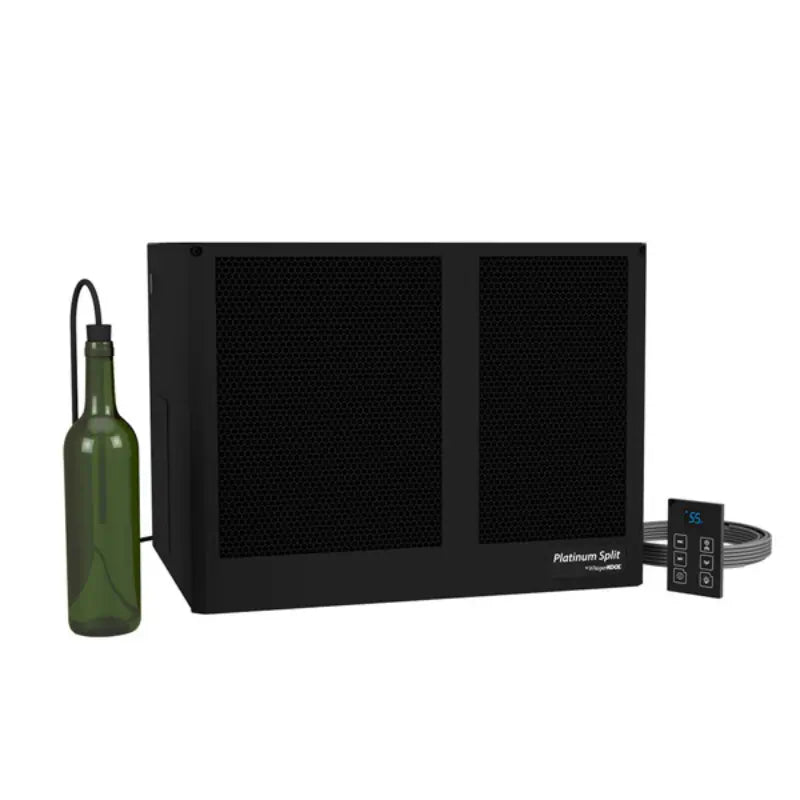

Advanced digital display (50-ft. cable), liquid-temperature-measuring bottle probe (retractable cable)
Temp. Delta: Can maintain a 55°F cellar temperature with up to 110°F condenser air intake temperature
Warranty:
Two-year limited warranty (parts and labor)

    WhisperKOOL Platinum Ductless Split Cooling Units Specifications

    WhisperKOOL Platinum Split 8000 Ductless Cooling System Specifications



    Buy the WhisperKOOL Platinum Split 8000 Ductless Cooling System today and enjoy your amazing wines at its best temperature!
