WhisperKOOL Platinum Split Twin Ductless Cooling System

No Sales Tax (some exclusions apply)
Price Match Guarantee - Call Us (888) 407-7770 to get the lowest price online!
SKU S-WKPS9000-000-WM
Financing Available
Platinum Ductless Series Available In Four Sizes
Made In USA
Exterior Housing
24V Thermostat COnversion Kit
Condenser Coil Coating

Notify me when back in stock

WhisperKOOL Platinum Split Twin Ductless Cooling System Overview

When the wine cellar is fully insulated and sealed with a proper vapor barrier (each wine cellar is unique and has specific cooling requirements; heat load calculations should always be performed prior to selecting a cooling unit), the WhisperKOOL Platinum Split Twin Ductless Cooling System can accommodate approximately 3000 cu.ft. cellar size.

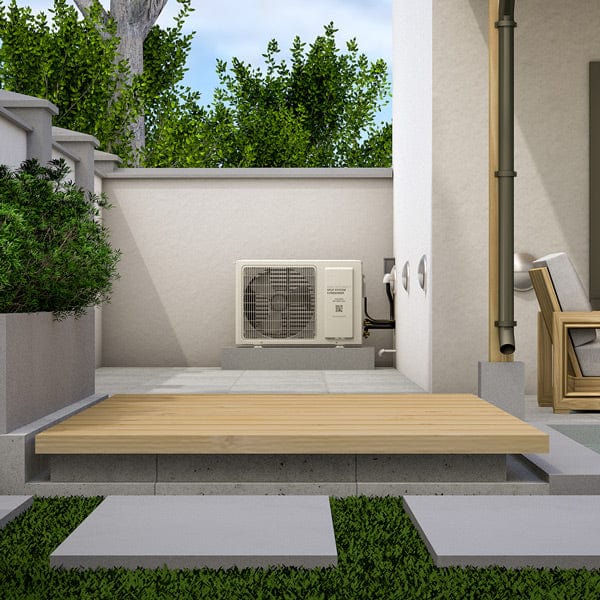

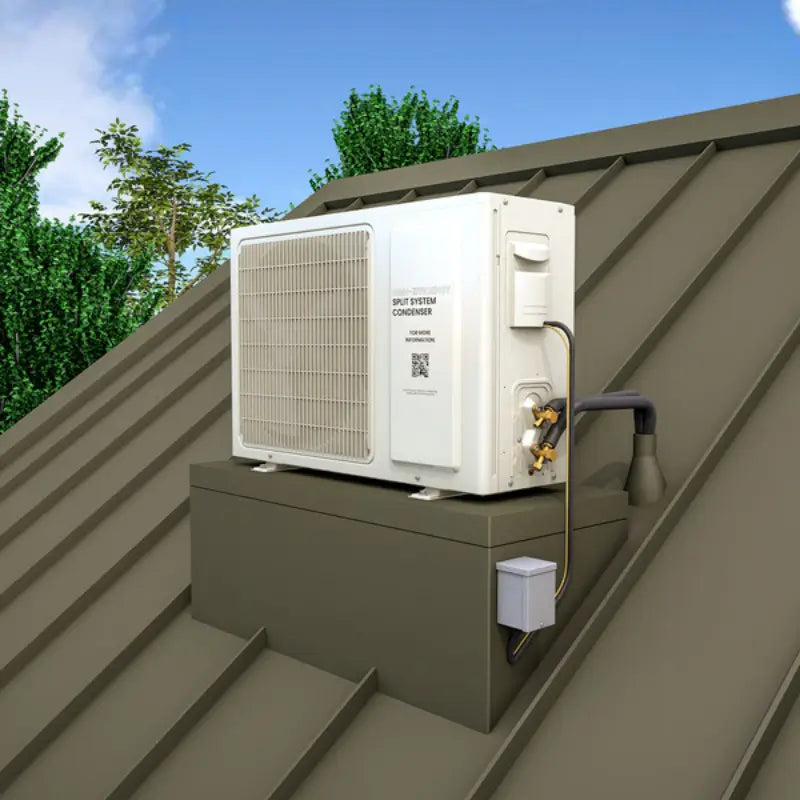

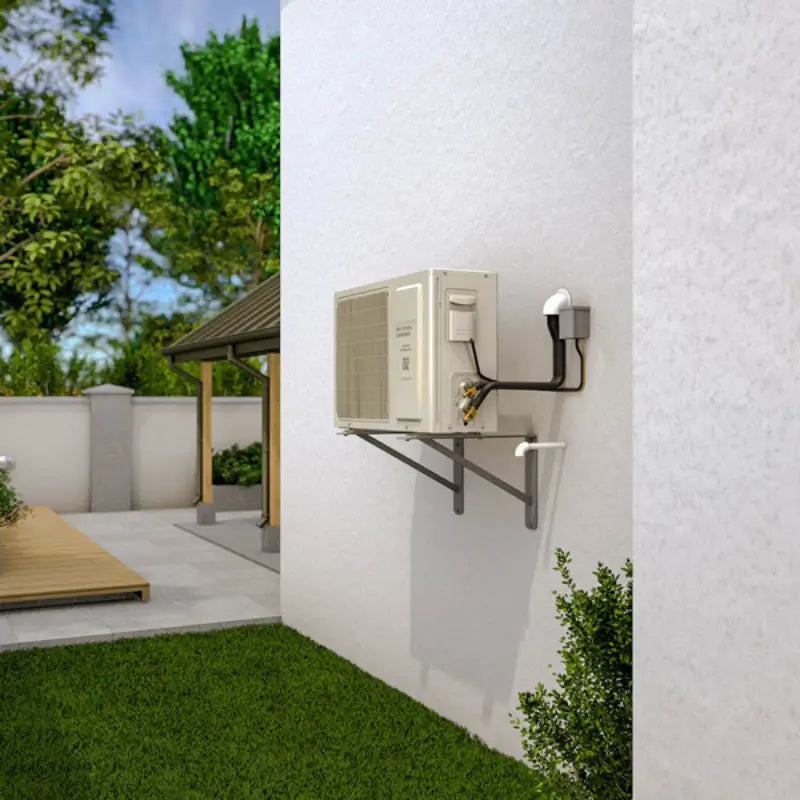

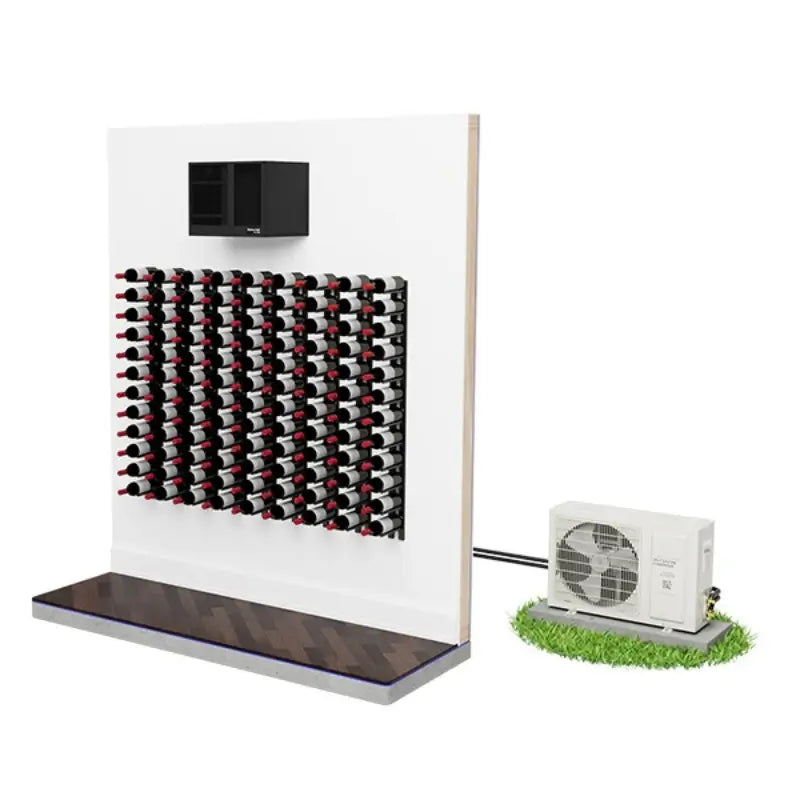

WhisperKOOL Platinum Split Series are often the most efficient way to cool a cellar. Condensers are typically noisy and require significant space for ventilation. By splitting the condenser and evaporator, the condenser can be placed in a space better suited for heat and noise dissipation while the quiet evaporator is inside, or near, the cellar.

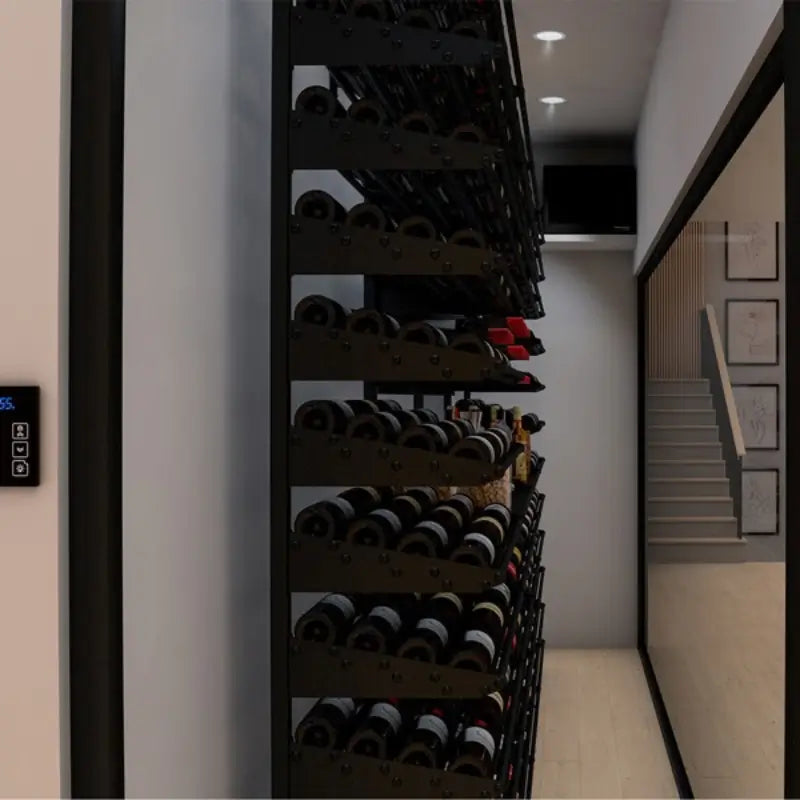

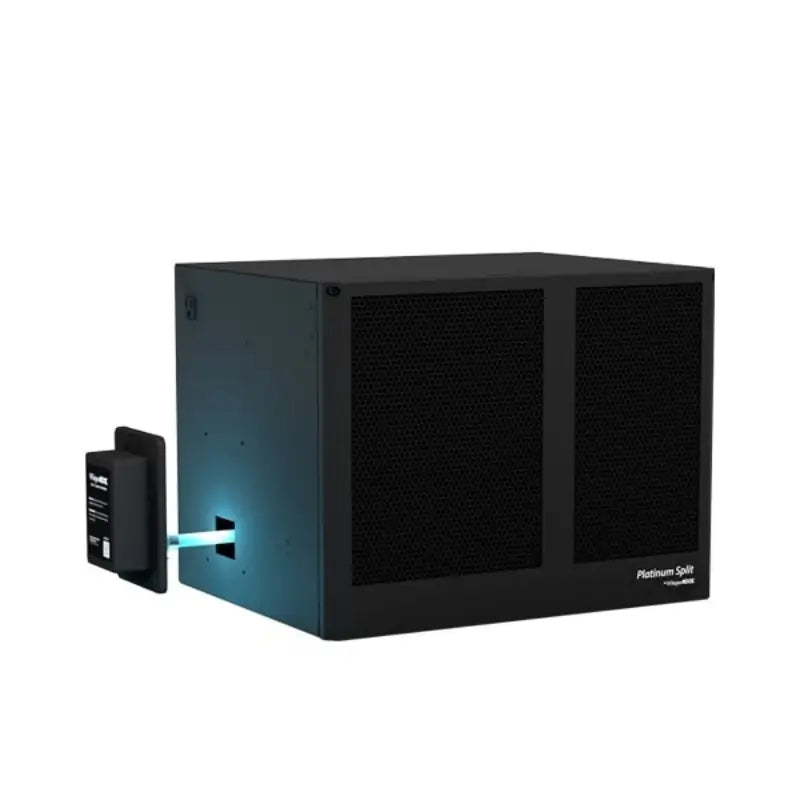

The WhisperKOOL Platinum Split Twin allows you to decide where the evaporator unit and the condensing unit will be located. The condensing unit can be located up to 100ft. away from the evaporator unit. The evaporator unit will be mounted in the cellar or it can also be located nearby with ducting.

If you don’t mind seeing the grille of your cooling unit in your cellar, a wall-mounted split system is what you need. If you prefer your unit to be out of sight, you should get a fully ducted split system. The choice is yours.


  • Ductless system
  • Quiet and efficient operation
  • An advanced electronic control system
  • Liquid-temperature-measuring bottle probe
  • Flexible installation
  • 55°F temperature differential
  • Standard and 24V thermostat options available
  • Built-in cold weather start kit on condensing unit - This completely new design improves airflow efficiency 25% and operates 10% quieter, all while being 35% smaller than our previous split system evaporator. This particular unit is perfect for wine cellars around the size of 500 cubic feet.


    Available in Platinum Mini Split for 500 cu.ft. wine cellar, Platinum Split 4000 for 1000 cu.ft. wine cellar, Platinum Split 8000 for 1750 cu.ft wine cellar, and Platinum Split Twin for 3000 cu.ft. wine cellar.


    Model: Ductless Platinum Split Twin
    Cellar Size:
    Approx. 3000 cu.ft. when wine cellar is fully insulated and sealed with a proper vapor barrier
    BTU/h (85°F condenser air intake temperature: 8500
    Dimensions (L x W x H):

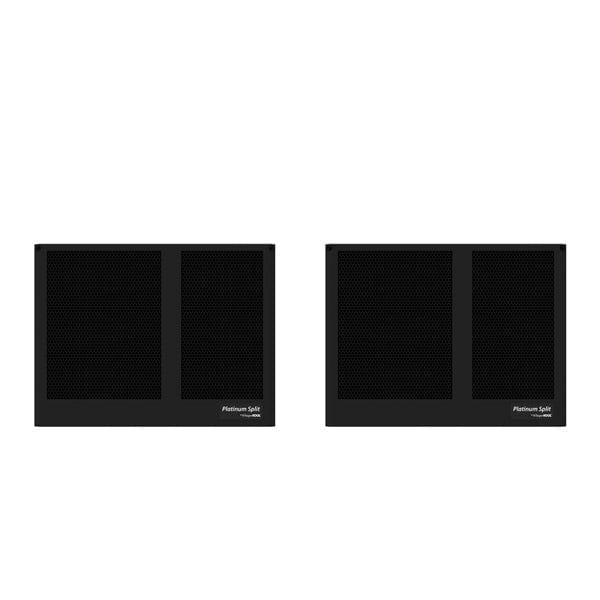

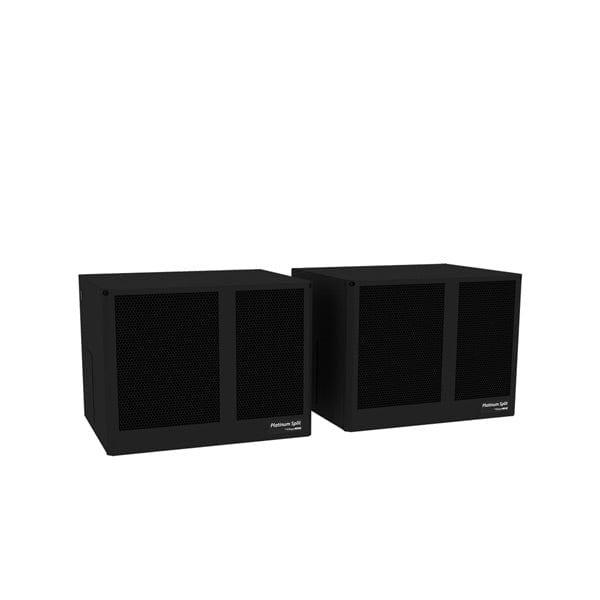

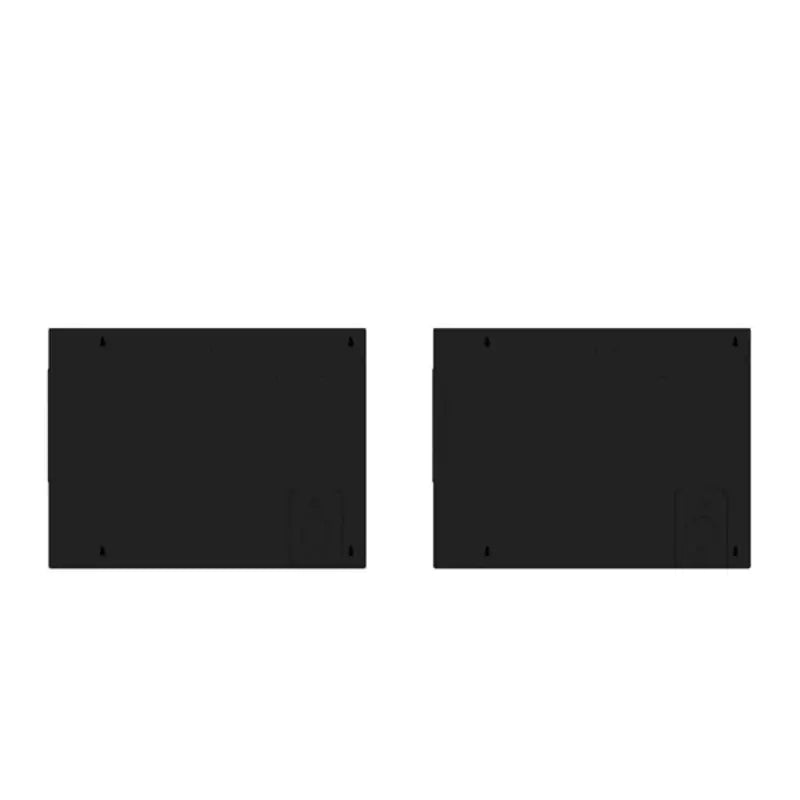

    Evaporator: 16.1" x 20.5” x 15.5” (x2)

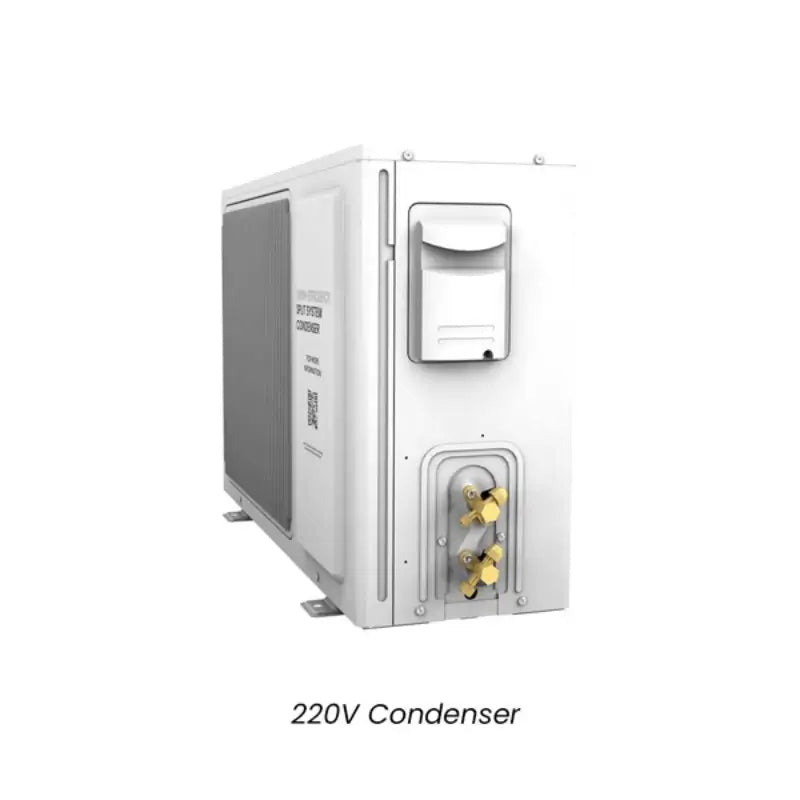

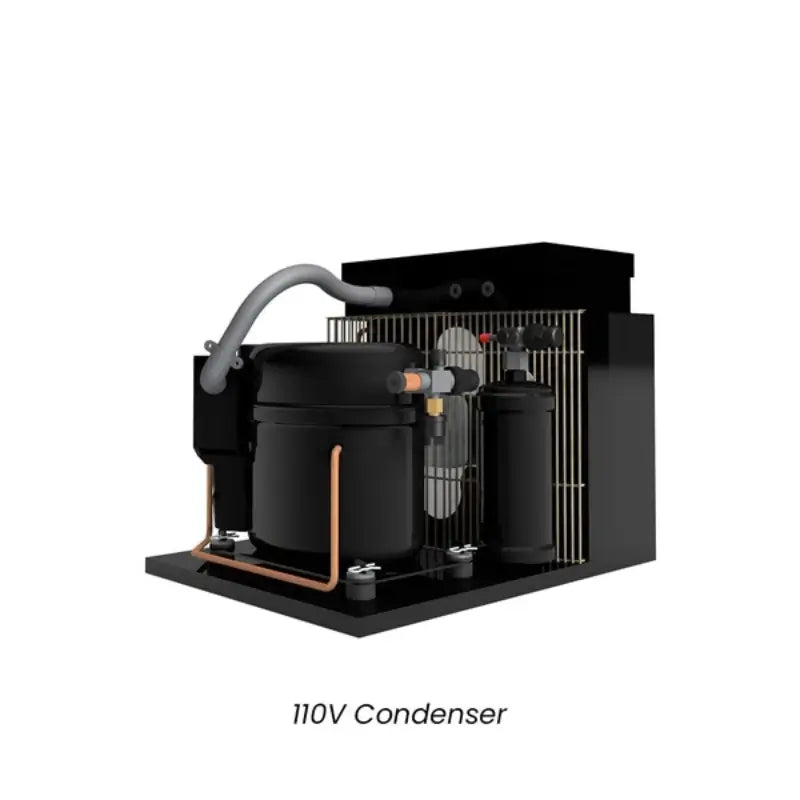

    Condenser: 24” x 18.98" x 16.16"

    Refrigerant: R-134a
    HP: 3/4
    Refrigeration Tons: 0.61
    Voltage Rating:

    Evaporator: 115V (15-amp dedicated circuit required),

    Condenser: 230V (15-amp dedicated circuit required)


    Evaporator: 57 lbs

    Condenser: 75 lbs


    Evaporator: 1 running amp (per unit)

    Compressor: LRA 50, RLA 9.3

    Line Set: Liquid Line 3/8", Suction Line (Less than 50ft. 3/4”) (Greater than 50ft. 7/8”)
    Drain Line: 1/2” ID clear plastic tubing (NOT INCLUDED)
    Installation: Evaporator is installed in the cellar. Condensing unit can be installed up to 100 line feet from the evaporator unit.

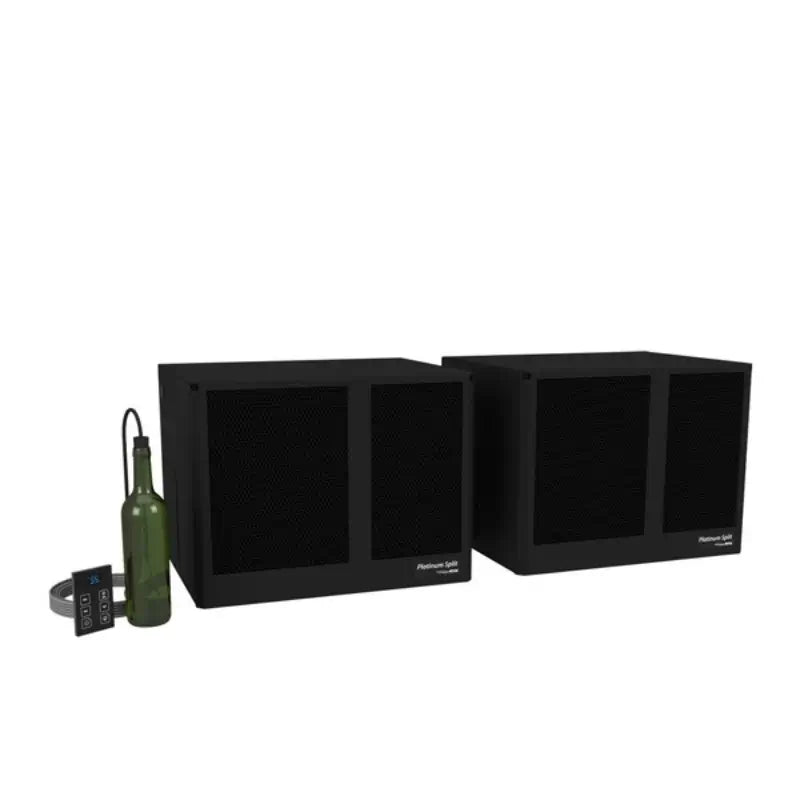

    Advanced digital display (50-ft. cable), liquid-temperature-measuring bottle probe (retractable cable)
    Temp. Delta: Can maintain a 55°F cellar temperature with up to 110°F condenser air intake temperature
    Two-year limited warranty (parts and labor)

    Do you have a different size wine cellar? Or just want to check your options? Check out other WhisperKOOL Platinum Ductless Split Cooling Units now! You can also browse our other Ductless Split Wine Cellar Coolers.

    24V Thermostat Conversion Kit (OPTIONAL)

    Introducing our new 24-volt thermostat conversion kit for WhisperKOOL split systems! Utilize industry-leading technology from major manufacturers to monitor the environment of your cellar. (See individual thermostat manufacturers’ websites for details.)

    • Connect your thermostat to Wi‑Fi to control the temperature from your phone, tablet, or laptop.
    • Monitor run time and energy usage.
    • Set alarm notifications.
    • View your cellar conditions from your mobile device.

    The use of the 24-volt thermostat conversion kit eliminates the thermostat normally included with the system and allows your contractor to select, purchase and install the thermostat technology of your choice, including but not limited to Nest, Ecobee, and Honeywell.

    By selecting the 24V Thermostat Conversion Kit, you acknowledged that the system will not be built with the standard WhisperKOOL control or liquid measuring bottle probe. You will have to source and purchase your own 24V thermostat to run the equipment.

    • Not utilizing the thermostat from WhisperKOOL also eliminates the use of the bottle probe.
    • WhisperKOOL does not provide smart thermostats. Those must be purchased separately.
    • WhisperKOOL customer service staff do not provide technical support for customers’ selected thermostats.

    Buy WhisperKOOL Platinum Split Twin Ductless Cooling System today and enjoy your amazing wines at their best temperature!

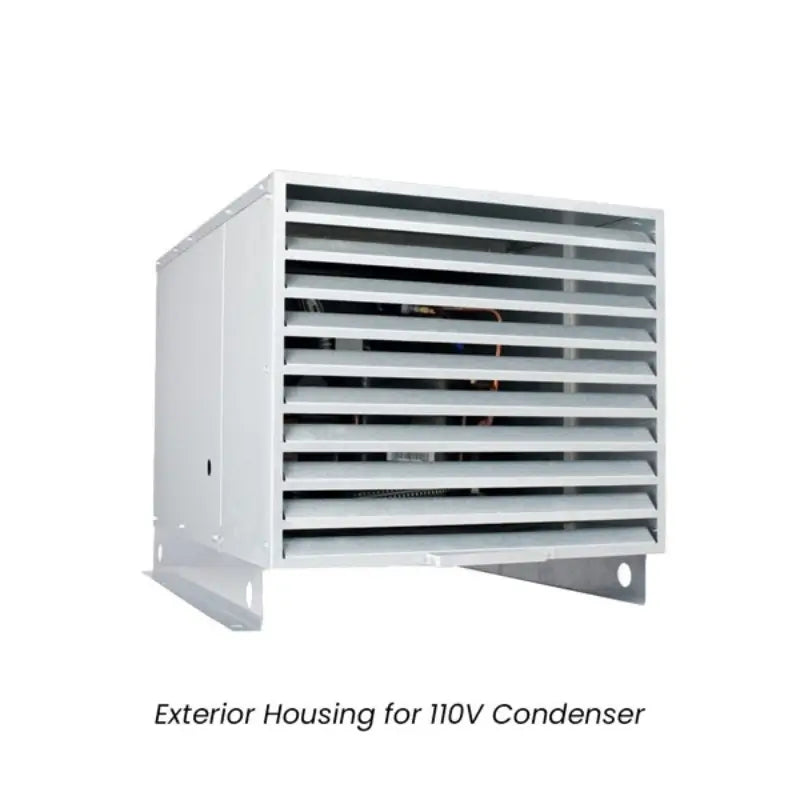

    WhisperKOOL® Exterior Housing for Split Systems

    Our exterior condenser housing protects the condenser portion of the split system from the elements when installed outdoors. Exterior Condenser Housing is used with the Platinum Mini Split, Ductless Platinum Split, and Ducted Platinum Split cooling units.

    • Galvanized steel base and steel cabinet embossed — 20 GA, hinged access for easier servicing
    • Easily assembled in the shop or on the job
    • Rain Trough under hinge to catch moisture that might seep through the hinge
    • WhisperKOOL® provides fasteners
    • Dimensions (W x H x D): 20” x 20” x 27”

    WhisperKOOL® Extreme Ducting Plenum

    Sizes available for the 3500ti, 5000ti, and 8000ti. This plenum allows either side of the unit to be ducted. Duct the cold air through a vent into the cellar, duct the hot exhaust air out of the home. This plenum allows for total installation flexibility.

    • Ducting plenum for the evaporator and condenser of the Extreme ti
    • Duct the evaporator or condenser side of the unit to ­fit your installation needs
    • Small is compatible with Extreme 3500ti and 5000ti
    • Large is compatible with Extreme 8000ti
    • WhisperKOOL® provides fasteners

    WhisperKOOL® Extreme Exterior Grille

    The Exterior Grille protects the exhaust side of the system from the weather elements when installed through an exterior wall.

    • Protects your Extreme ti through-the-wall unit from the elements of weather
    • Small is compatible with 3500ti and 5000ti
    • Large is compatible with 8000ti
    • WhisperKOOL® provides ½” pan-head screws

    WhisperKOOL® SC Exterior Grille

    The Exterior Grille protects the exhaust side of the system from the weather elements when installed through an exterior wall.

    • Protects your SC through-the-wall unit from the elements of weather
    • Small is compatible with 2000i, 3000i, and 4000i
    • Large is compatible with 6000i and 8000i
    • WhisperKOOL® provides ½” pan-head screws

    WhisperKOOL® SC Ducting Kit

    This kit allows the warm exhaust air to be ducted to another area. Ideal if the room adjacent to your cellar is not ideal for warm air to be exhausted into. The kit includes the Thermostat Controller, which will turn on and push warm exhaust air away from the ducting (not included). The in-line fan can be set to automatically turn on at varying temperatures in order to conserve the most electricity.

    • Small is compatible with 2000i, 3000i, and 4000i
    • Large is compatible with 6000i and 8000i
    • ONLY the exhaust side of the SC can be ducted
    • WhisperKOOL® does not provide ducting

    Small Duct works on the SC 2000i/3000i/4000i and XLT 1600/3000/4200. Kit includes:

    • Duct Plenum
    • Transition with integrated heat sensor
    • 8″ In-line fan
    • 8″ Adjustable Elbow

    Large Duct works on the SC 6000i/8000i and XLT 6000/8000. Kit includes:

    • Duct Plenum
    • Transition with integrated heat sensor
    • 8″ In-line fan with transitions to 8″
    • 8″ Adjustable Elbow
