WhisperKOOL Platinum Split 4000 Ductless Cooling System - 220V H.E.
is backordered and will ship as soon as it is back in stock.
In Stock & Ready to Ship
Estimated Delivery in 3-7 business days
WhisperKOOL Platinum Split Series
WhisperKOOL Platinum Split 4000 Ductless Wine Cellar Cooling System
Professional-grade ductless split wine cellar cooling for fully insulated wine rooms up to approximately 1,000 cubic feet. Ideal for modern glass wine walls, luxury residential cellars, and custom projects where quiet operation, remote condenser placement, and precise wine-temperature monitoring are priorities.
Designed for wine cellars up to approx. 1,000 cu. ft.
Ductless split configuration with remote condenser placement
Condenser can be installed up to 100 line feet from evaporator
Advanced digital touch display with bottle probe
115V dedicated circuits required for evaporator and condenser
Professional HVAC-R installation required
Important Installation Requirement: The WhisperKOOL Platinum Split 4000 Ductless Cooling System must be installed by a qualified HVAC-R technician. Improper installation may void the manufacturer warranty.
Quick Answer Summary
Product
WhisperKOOL Platinum Split 4000 Ductless Cooling System
Best For
Medium residential wine cellars, glass wine walls, luxury home wine rooms, and custom cellar projects
Approximate Cellar Size
Up to 1,000 cu. ft. when the cellar is fully insulated, sealed, and built with a proper vapor barrier
Installation Type
Ductless split wine cellar cooling system
Visible Component

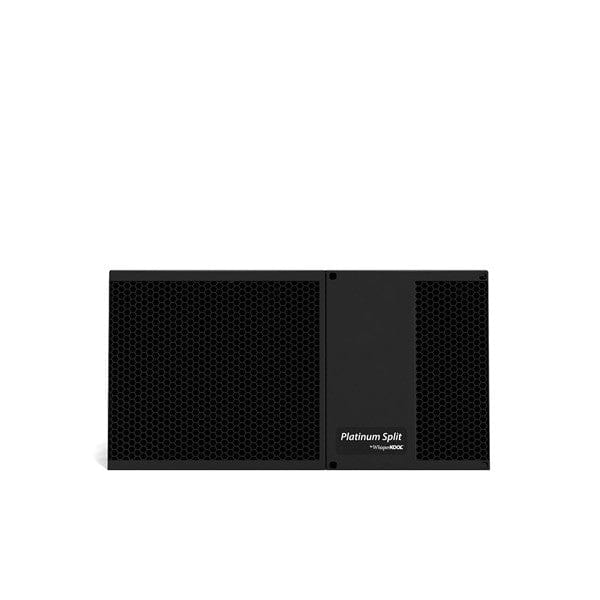

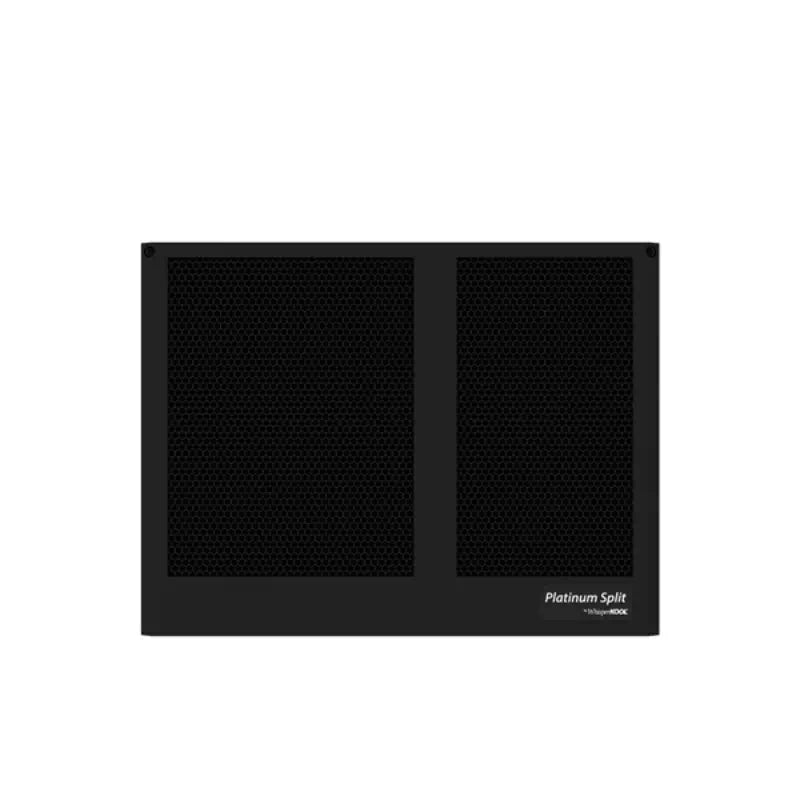

Evaporator grille is visible inside or near the cellar
Remote Condenser
Yes, up to 100 line feet from the evaporator
Electrical Requirement
115V dedicated circuit required for evaporator and condenser
Warranty
Two-year limited warranty for parts and labor
Recommended For
Wine cellars up to approximately 1,000 cubic feet

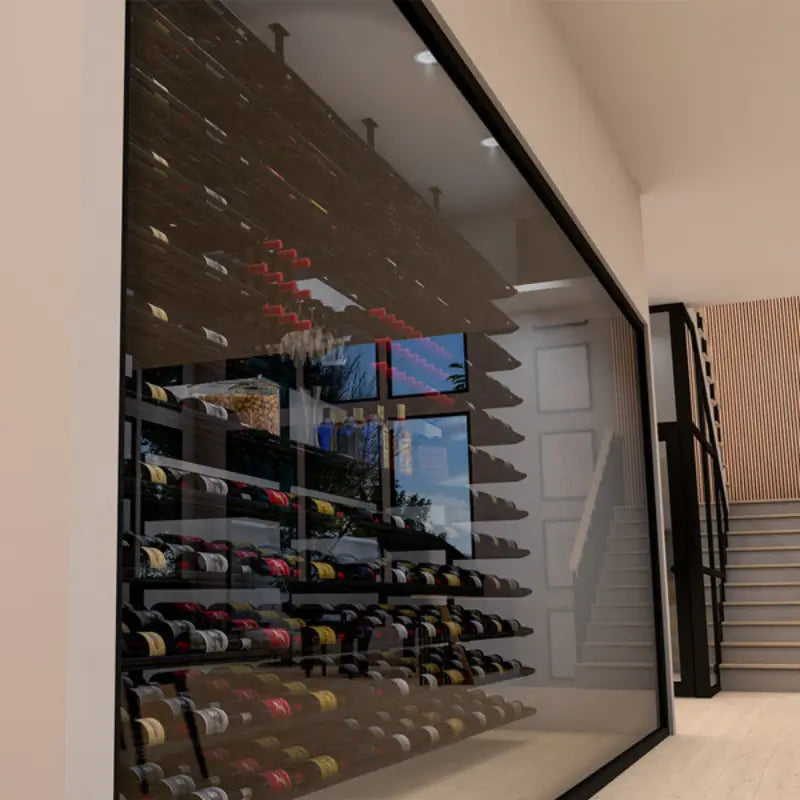

Modern glass wine walls and display cellars
Luxury residential wine rooms
Collectors who want quieter operation than many self-contained systems
Projects where the condenser can be placed outdoors, in an attic, utility room, or mechanical area
Homes where precise wine temperature monitoring is important
Not Recommended For
DIY installations without a licensed HVAC-R technician
Wine cellars larger than approximately 1,000 cubic feet
Poorly insulated rooms or spaces without a proper vapor barrier
Projects where a visible evaporator grille is not acceptable
Applications that require a completely hidden ducted design
Cellars exposed to unusual heat load without professional sizing review
Need Help Confirming the Right Cooling System?
Wine Coolers Empire provides complimentary wine cellar cooling guidance and product-focused wine cellar design planning before purchase.
The WhisperKOOL Platinum Split 4000 is a ductless split wine cellar cooling system built for medium-sized custom cellars where equipment placement, quiet operation, and reliable temperature control matter. In a split system, the evaporator and condensing unit are separated. The evaporator is installed near or inside the wine cellar, while the condensing unit can be placed remotely outdoors, in an attic, utility room, or mechanical space.
This configuration helps reduce noise and heat near the wine room while giving homeowners, designers, and builders more flexibility than a self-contained unit. For projects where the cooling equipment should be fully hidden, consider a ducted split alternative from the WhisperKOOL Platinum Split System collection.
Design Note: A ductless split system includes a visible evaporator grille. If the project requires fully concealed supply and return air, a ducted split wine cellar cooling system may be a better fit.
Available Voltage Options and Related Sizes
The Platinum Split 4000 is available in 110V and 220V options. Choose the version that matches the electrical requirements of the project and the installation plan confirmed by your HVAC-R professional.
Smart thermostat is not supplied by WhisperKOOL and is not supported by WhisperKOOL customer service.
Installation Requirements
The Platinum Split 4000 is not a plug-and-play wine cellar cooler. It is a split refrigeration system that requires professional installation, refrigerant line set planning, drainage, and electrical coordination.
Installer Requirement
Qualified HVAC-R technician required
Evaporator Location
Installed in or near the wine cellar
Condensing Unit Location

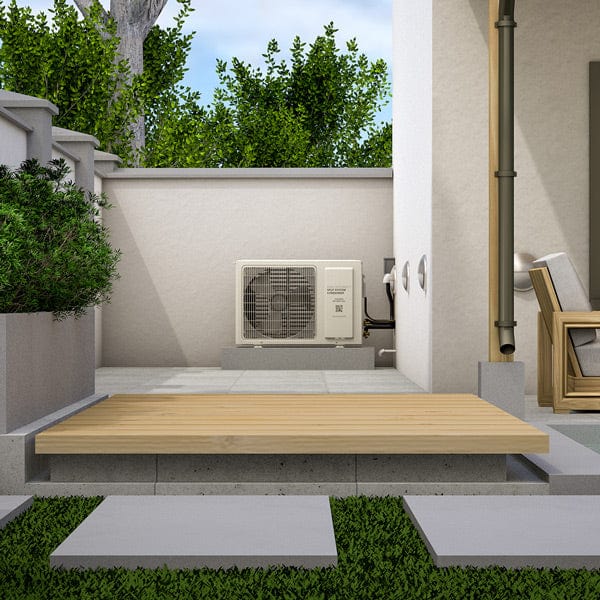

Can be installed outdoors, in an attic, utility room, or mechanical space
Maximum Line Distance
Up to 100 line feet from evaporator to condenser
Evaporator Electrical
115V, 15 amp dedicated circuit required
Condenser Electrical
115V, 15 amp dedicated circuit required
Drain Line
½" ID clear plastic tubing required; not provided
Line Set
Liquid line 1/4"; suction line 1/2" under 50 ft.; suction line 5/8" over 50 ft.
Do not size by cubic footage alone. Glass walls, poor insulation, sunlight exposure, exterior walls, high ambient temperatures, stone, concrete, and air leaks can increase heat load. Contact Wine Coolers Empire before purchase if your cellar includes these conditions.
Key Features

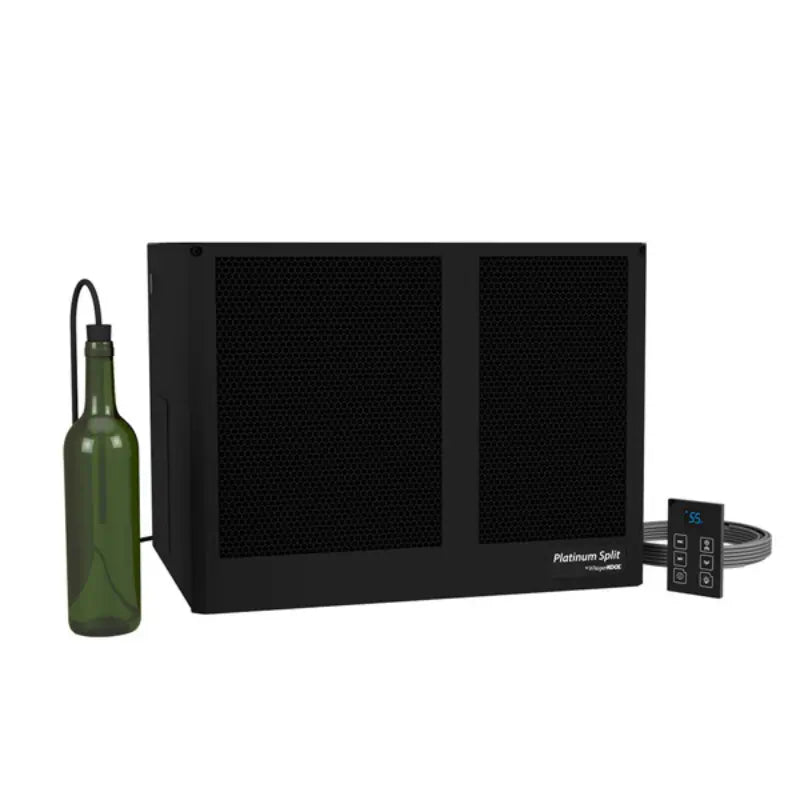

KDT Digital Touch Display

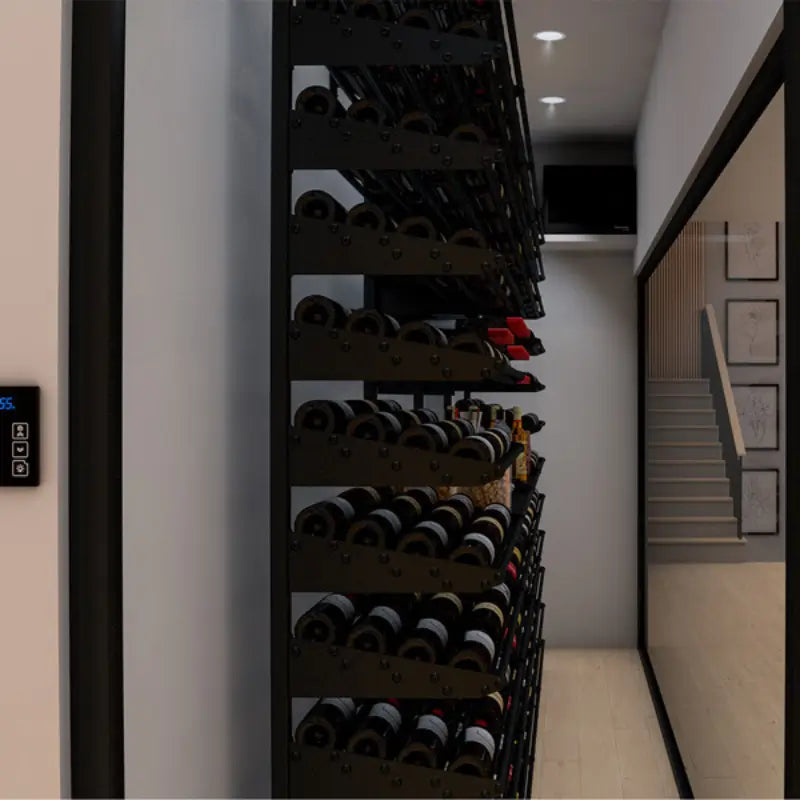

The KDT Digital Touch Display can be installed up to 50 feet away from the unit. It includes Advanced System Protection with alerts designed to notify users when operating parameters are not being met.

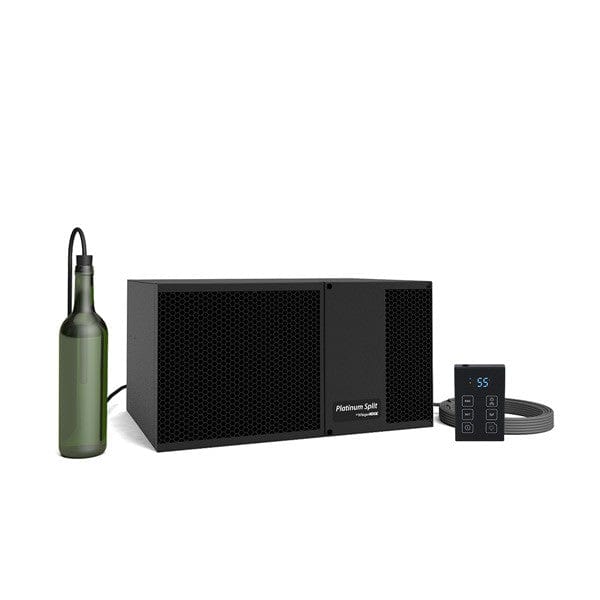

Liquid Temperature Bottle Probe
The bottle probe measures liquid temperature inside the cellar. This helps the system respond to wine storage conditions more directly than ambient air temperature readings alone.
Technical Specifications
Model
Platinum Split 4000
Cellar Size
Approximately 1,000 cu. ft. when fully insulated and sealed with a proper vapor barrier
BTU/h at 85°F Condenser Air Intake
Medium: 3,650 BTU/h | High: 3,738 BTU/h
Estimated BTU/h Range
3,120–4,096 BTU/h
CFM
270
Evaporator Dimensions
16.1"L x 20.5"W x 15.5"H

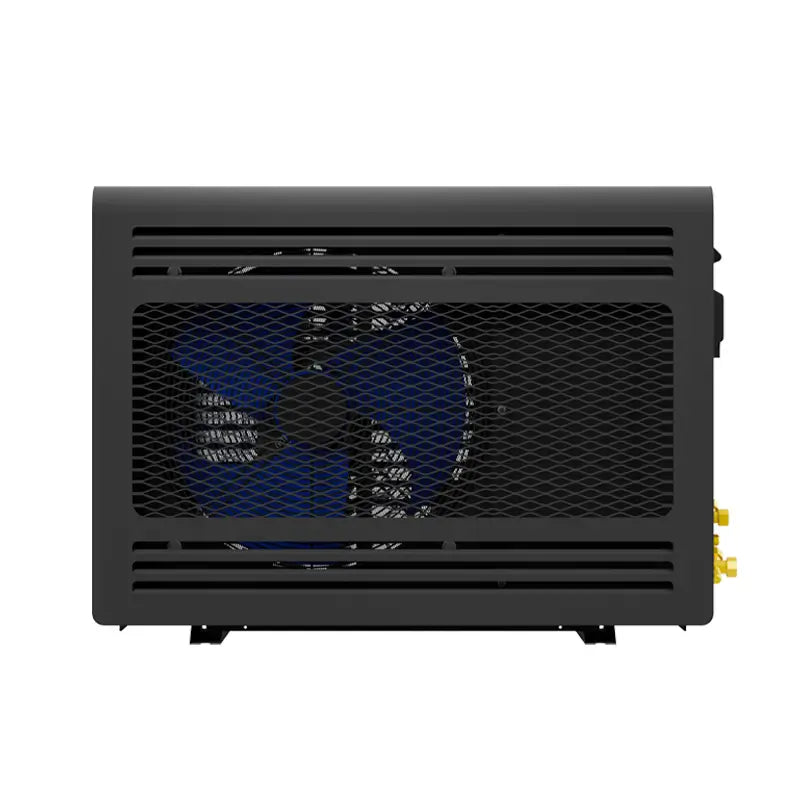

Condenser Dimensions
16.08"L x 16.23"W x 12.61"H
Refrigerant
R-134a
Evaporator Voltage
115V; 15 amp dedicated circuit required
Condenser Voltage
115V; 15 amp dedicated circuit required
Evaporator Weight
57 lbs
Condenser Weight
56 lbs
Evaporator Amps
1 running amp
Condenser Amps
LRA 43 / RLA 8
Line Set
Liquid line: 1/4"; suction line: 1/2" under 50 ft.; 5/8" over 50 ft.
Drain Line
½" ID clear plastic tubing required; not provided
Installation
Evaporator installed in cellar; condensing unit installed up to 100 line feet from evaporator
Thermostat / Controls
Advanced digital display with 50 ft. cable and liquid-temperature-measuring bottle probe with retractable cable
Temperature Delta
Can maintain a 55°F cellar temperature with up to 110°F condenser air intake temperature
Warranty
Two-year limited warranty for parts and labor
BTU Sizing Note: The BTU/h range is an estimate, not a guarantee. Cellar construction, insulation, vapor barrier quality, glass exposure, and ambient conditions can require a larger unit.
The optional 24V Thermostat Conversion Kit allows compatible WhisperKOOL split systems to use certain third-party 24V thermostats. This can support Wi-Fi monitoring, mobile access, runtime monitoring, alarm notifications, and energy-use visibility depending on the thermostat selected.
Connect compatible thermostats to Wi-Fi for remote control.
Monitor system run time and energy usage when supported by the thermostat.
Set alarm notifications through compatible thermostat apps.
View cellar conditions from a mobile device when supported.
Important: WhisperKOOL does not provide smart thermostats. If the 24V Thermostat Conversion Kit is selected, the system will not include the standard WhisperKOOL control or liquid measuring bottle probe. A compatible 24V smart thermostat must be purchased separately, and WhisperKOOL does not provide support for third-party smart thermostat issues.
WhisperKOOL replacement parts and accessories can help protect, upgrade, and extend the performance of compatible wine cellar cooling systems. View the full WhisperKOOL Parts & Accessories page for additional options.

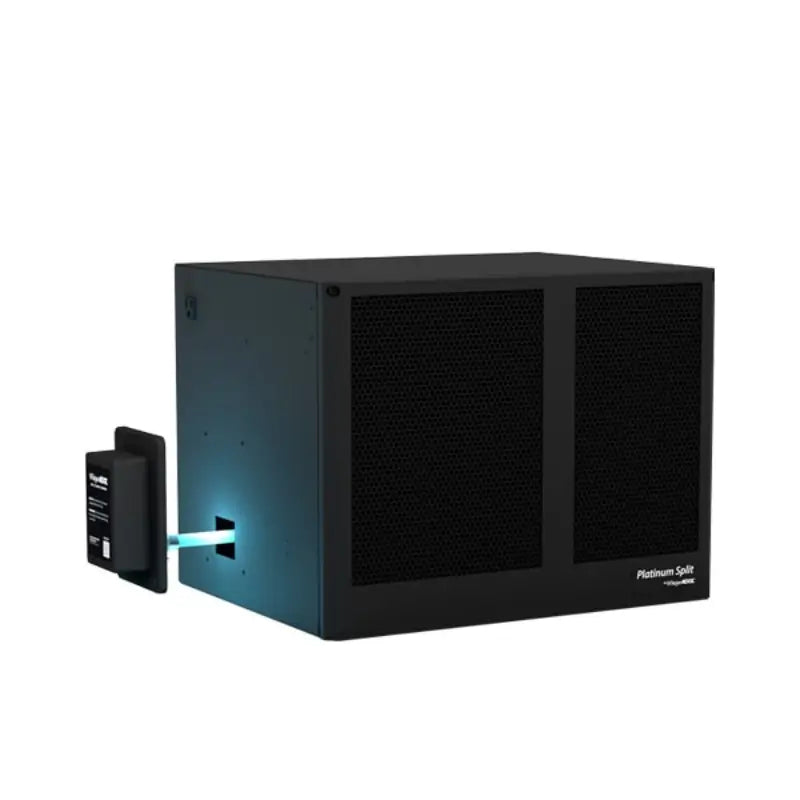

UV-C Light Technology
UV-C Light Technology helps support indoor air quality inside the wine cellar and can help protect the cooling system from mold and bacterial growth.

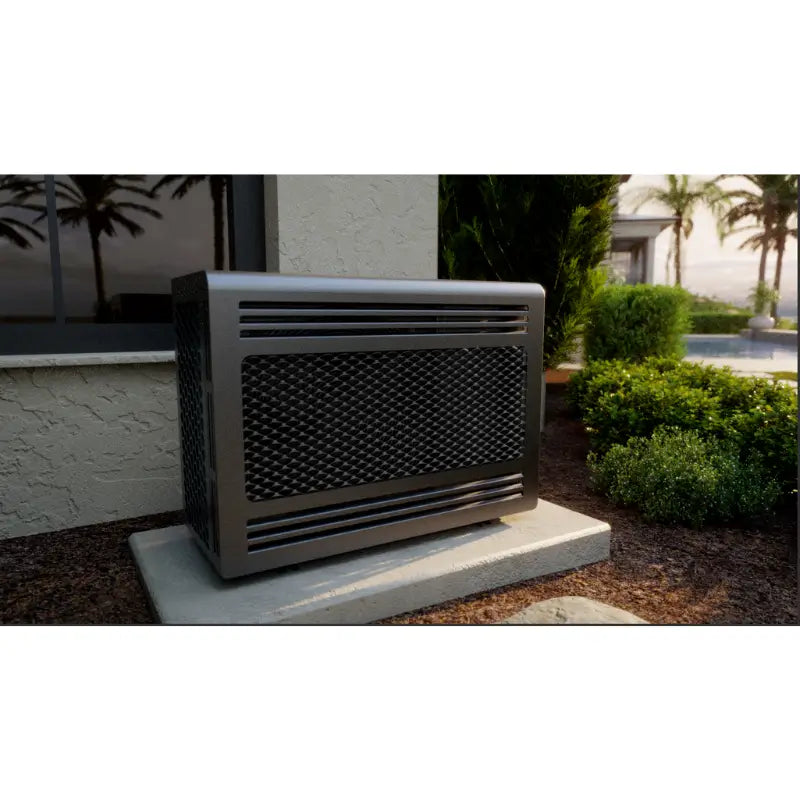

Exterior protective housing helps protect the condenser when installed outdoors.
Galvanized steel base and 20 GA embossed steel cabinet
Hinged access for easier servicing
Designed for shop or jobsite assembly
Rain trough under hinge to catch moisture
Dimensions: 20"W x 20"H x 27"D
Condenser Coil Coating
Condenser coil coating helps protect the condenser coil from salt air, making it useful for coastal or beach-area installations where corrosion risk is higher.
Videos
WhisperKOOL Platinum Split Series Customer Review
Ray and Kim from Roseville, California selected a WhisperKOOL Platinum Split System for their modern wine cellar and shared their experience.
Choose the WhisperKOOL Platinum Split 4000 Ductless Cooling System if your project requires a professional-grade cooling solution for a medium-sized, properly insulated wine cellar and you want the condenser placed away from the wine room. It is especially appropriate for glass wine walls, luxury residential wine rooms, and custom projects where quiet performance and precise wine temperature monitoring are important.
Do not choose this unit based on cubic footage alone. If your cellar includes glass, stone, exterior walls, high ceilings, poor insulation, direct sun exposure, or unusual ambient heat, request a sizing review before purchase. In those cases, the correct solution may be a larger Platinum Split model or a ducted split configuration.
Get Free Wine Cellar Cooling Guidance Before You Buy
Not sure whether the Platinum Split 4000 is the right fit? Wine Coolers Empire can help review your cellar size, insulation, installation conditions, and product options before purchase.
This system is rated for wine cellars up to 1,000 cubic feet, assuming the space is properly insulated and sealed with a vapor barrier.

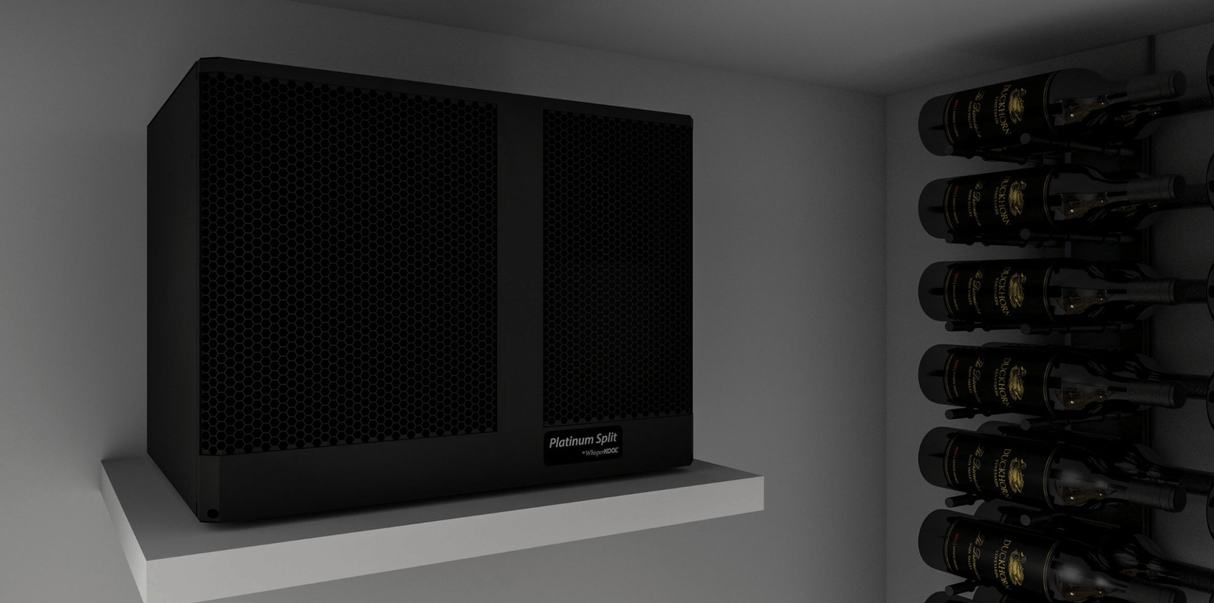

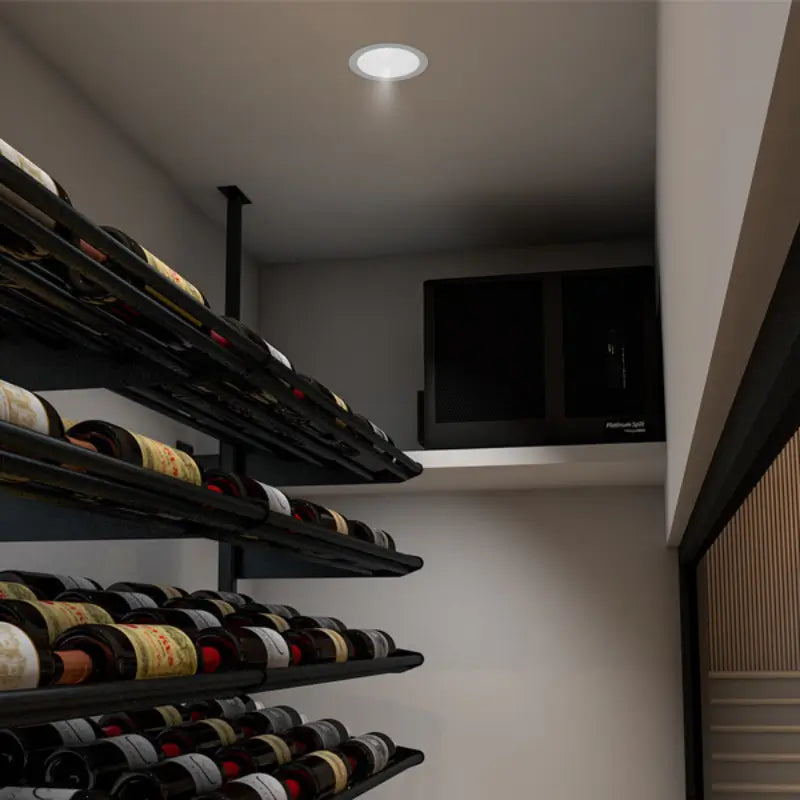

In a ductless split system, the evaporator is mounted on the wall inside the cellar, and the condenser is placed outside or in another room, connected by refrigerant lines. It eliminates the need for ductwork while offering quiet, efficient cooling.
Yes. The Platinum Split 4000 must be installed by a licensed HVAC professional. Proper installation is essential for system performance and to validate the warranty.

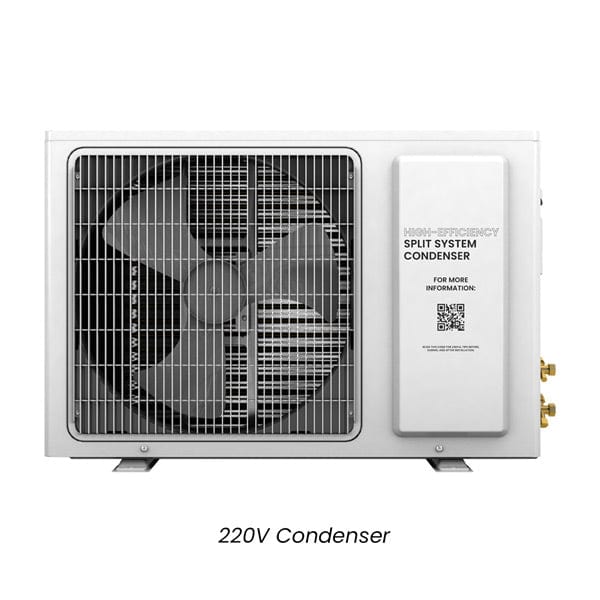

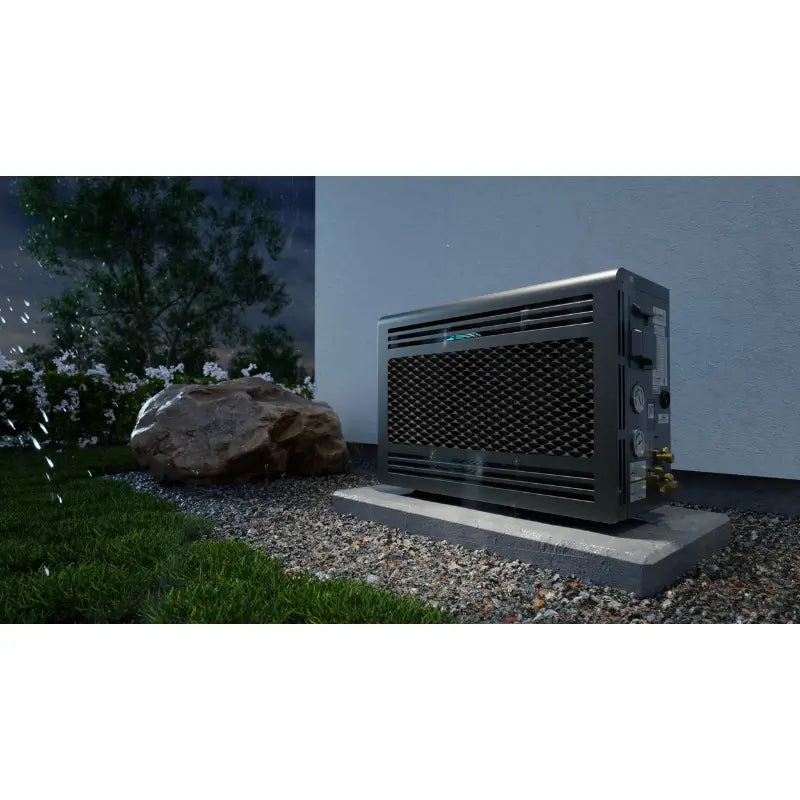

Yes, the condenser can be installed outdoors when paired with the optional exterior housing. It should be located in a well-ventilated area with protection from direct weather exposure.
Yes. The condenser is located outside the wine cellar, and the wall-mounted evaporator operates with minimal noise. It’s an ideal choice for environments where sound control matters.
This model features the KDT Digital Controller with Advanced System Protection. It allows you to monitor temperature and humidity, and provides system alerts and diagnostics.
WhisperKOOL includes a 2-year parts and labor warranty, and a 5-year compressor warranty. Both are only valid with professional installation and product registration."]
FAST, FREE SHIPPING
Get your online orders fast at your door with free shipping.
The cooling is pretty consistent and even. It is also very quiet compared to other units we used before. Me and my partner likes its compact size split type.
A
Allison
even cooling
Split type is great. Also, my whole cellar has even cooling
C
Crissa
It keeps my wine chilled and it is not noisy at all which is amazing.
