WhisperKOOL Platinum Mini Split Ductless Cooling System - 220V H.E
is backordered and will ship as soon as it is back in stock.
In Stock & Ready to Ship
Estimated Delivery in 3-7 business days
WhisperKOOL Split Wine Cellar Cooling System
WhisperKOOL Platinum Mini Split Ductless Wine Cellar Cooling System
Professional ductless split wine cellar cooling for small residential wine cellars, modern glass wine walls, and luxury wine storage spaces up to approximately 500 cubic feet when properly insulated, sealed, and vapor-barrier protected.
Recommended for wine cellars up to approximately 500 cu. ft.
Ductless split system with remote condenser placement
Condensing unit can be installed up to 100 line feet from the evaporator
Includes KDT digital touch display and liquid-temperature bottle probe
115V evaporator and 115V condenser configuration
Professional HVAC-R installation required
Important Installation Notice: A qualified HVAC-R technician is required for installation of the WhisperKOOL Platinum Mini Split Ductless Cooling System. Failure to use a qualified HVAC-R technician may void the manufacturer warranty.
Quick Answer Summary
Product Type
Ductless split wine cellar cooling system
Brand
WhisperKOOL
Recommended Cellar Size
Up to approximately 500 cu. ft.
BTU/h Capacity
2,101–2,492 BTU/h
Installation Type
Professional HVAC-R installation required
Maximum Line Length
Up to 100 line feet
Voltage
115V evaporator and 115V condenser
Best Application
Small residential wine cellars, luxury wine rooms, and glass wine walls
Warranty
2-year limited parts and labor warranty
Product Overview
The WhisperKOOL Platinum Mini Split Ductless Cooling System is designed for wine collectors, homeowners, designers, and builders who need a professional-grade wine cellar cooling system for a compact custom wine room or glass wine wall.
Unlike self-contained through-the-wall cooling units, this split wine cellar cooling system separates the evaporator and condensing unit. The evaporator is installed in or near the wine cellar, while the condensing unit can be placed in a remote location such as a utility room, attic, garage, mechanical space, or outdoors with the correct protective housing.
This split configuration helps reduce equipment noise inside the cellar while giving designers and builders more flexibility for high-end residential wine storage projects.
Recommended For
Small residential wine cellars
Modern glass wine walls
Luxury home wine displays
Quiet wine cellar installations
Remote condenser placement
Custom home projects
Wine cellars up to approximately 500 cu. ft.
Not Recommended For
Commercial wine rooms
DIY installations
Wine cellars larger than 500 cu. ft.
Projects without proper insulation or vapor barrier
Outdoor condenser placement without protective housing
Free Wine Cellar Design Assistance
Not sure if the WhisperKOOL Platinum Mini Split is properly sized for your wine cellar? Wine Coolers Empire can review cellar size, insulation, glass exposure, climate conditions, rack layout, and cooling requirements before purchase.
The condenser is separated from the cellar area, helping reduce operating noise inside the wine storage space.
Remote Condenser Placement
The condensing unit can be installed up to 100 line feet away from the evaporator for greater project flexibility.
Ideal for Glass Wine Walls

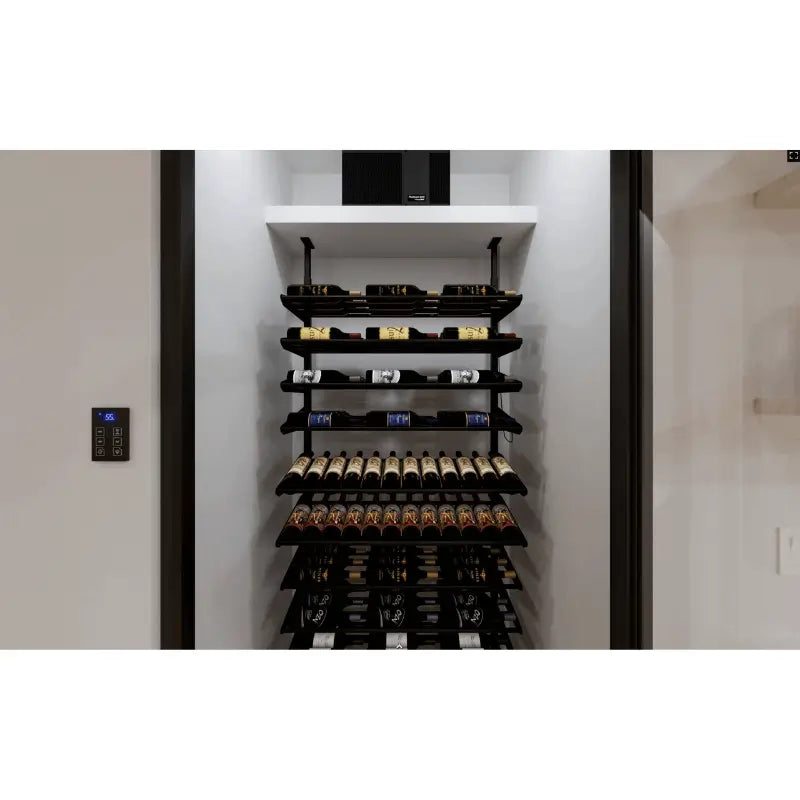

The compact ductless evaporator works well in modern wine displays where aesthetics and space planning matter.
Bottle Temperature Monitoring
The liquid-temperature bottle probe measures wine temperature more directly than ambient cellar air.
Small Cellar Fit
Designed for small, properly constructed residential wine cellars up to approximately 500 cubic feet.
Professional Design Flexibility
A strong choice for custom home projects where the condenser should be placed away from the finished cellar area.
Should You Buy This Cooling System?
Buy This Model If
Your wine cellar is approximately 500 cubic feet or less.
You want a quieter alternative to a through-the-wall cooling unit.
You have space for a remote condenser installation.
Your project is a residential wine cellar or modern glass wine wall.
You want precise bottle-temperature monitoring.
Consider Another Model If
Your cellar is larger than 500 cubic feet.
You need a fully ducted and concealed system.
You are cooling a commercial wine room.
Your cellar lacks proper insulation or a vapor barrier.
Your installation cannot support a remote condenser.
Installation Requirements
Electrical Requirements
Component
Requirement
Evaporator
115V, 15-amp dedicated circuit required
Condenser
115V, 15-amp dedicated circuit required
Line Set Requirements
Line Type
Size
Liquid Line
1/4"
Suction Line Under 50 ft.
3/8"
Suction Line Over 50 ft.
1/2"
Maximum Line Length
Up to 100 line feet
Drain Line: Requires 1/2" ID clear plastic tubing. Drain tubing is not included.
Outdoor Condenser Installation: Outdoor condenser installations require the optional exterior protective housing to protect the condenser from weather exposure.
When This Cooling System Is the Wrong Choice
The Platinum Mini Split may not be suitable if the cellar exceeds 500 cubic feet, contains significant glass exposure, lacks proper insulation, does not include a vapor barrier, or requires commercial-grade cooling capacity.
Selecting an undersized cooling system may prevent the cellar from reaching the desired storage temperature and may cause premature equipment wear.
Key Features

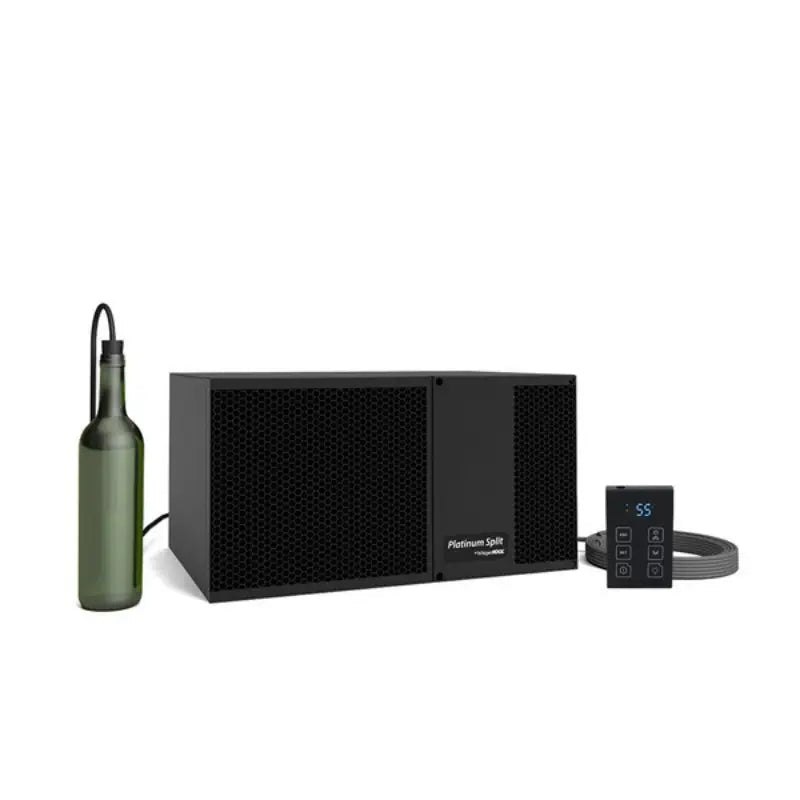

KDT Digital Touch Display
The KDT Digital Touch Display can be installed up to 50 feet away from the unit. It includes Advanced System Protection with alarms that alert users when operating conditions fall outside required parameters.
Liquid Temperature Bottle Probe
The included bottle probe measures liquid temperature to provide a more accurate reflection of the wine temperature inside the cellar compared with measuring only ambient air temperature.
Technical Specifications
Specification
Value
Model
Ductless Platinum Mini Split
Recommended Cellar Size
Approx. 500 cu. ft. when fully insulated and sealed with proper vapor barrier
BTU/h Capacity
2,101–2,492 BTU/h
BTU/h at 85°F Condenser Air Intake
2,101
Evaporator CFM
99
Condenser CFM
223
Evaporator Dimensions
13" L x 20" W x 10.5" H
Condenser Dimensions
13.97" L x 15.85" W x 9.86" H
Refrigerant
R-134a
Evaporator Voltage
115V, 15-amp dedicated circuit required
Condenser Voltage
115V, 15-amp dedicated circuit required
Evaporator Weight
40 lbs
Condenser Weight
38.8 lbs
Evaporator Running Amps
1 amp
Condenser Amps
LRA 26 / RLA 4.4
Liquid Line
1/4"
Suction Line
3/8" under 50 ft. / 1/2" over 50 ft.
Drain Line
1/2" ID clear plastic tubing, not provided
Maximum Distance
Up to 100 line feet from evaporator to condenser
Thermostat
Advanced digital display with 50 ft. cable and retractable bottle probe
Temperature Delta
Can maintain 55°F cellar temperature with up to 110°F condenser air intake temperature
Warranty
2-year limited parts and labor warranty
BTU/h Capacity Guidance
The estimated BTU/h range for this system is 2,101–2,492 BTU/h. This value is an estimate and not a guarantee because actual cooling requirements depend on cellar construction, glass exposure, insulation quality, vapor barrier performance, ambient temperature, and other design variables.
The optional 24V Thermostat Conversion Kit allows compatible WhisperKOOL split systems to work with third-party smart thermostat technology.
Connect a compatible thermostat to Wi-Fi.
Monitor temperature from a phone, tablet, or laptop.
Monitor run time and energy usage.
Set alarm notifications.
View cellar conditions remotely.
Please note: WhisperKOOL does not provide smart thermostats. If the 24V Thermostat Conversion Kit is selected, the system will not be built with the standard WhisperKOOL control or liquid measuring bottle probe. A compatible 24V smart thermostat must be purchased separately.
WhisperKOOL Accessories
Optional WhisperKOOL accessories can help protect the cooling system and improve installation suitability. View all WhisperKOOL parts and accessories.

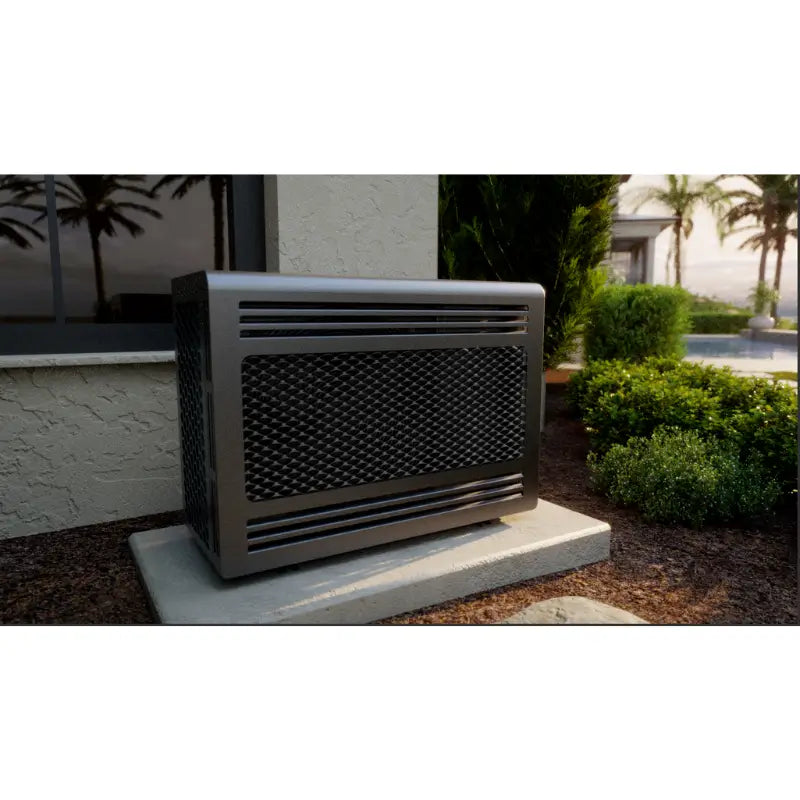

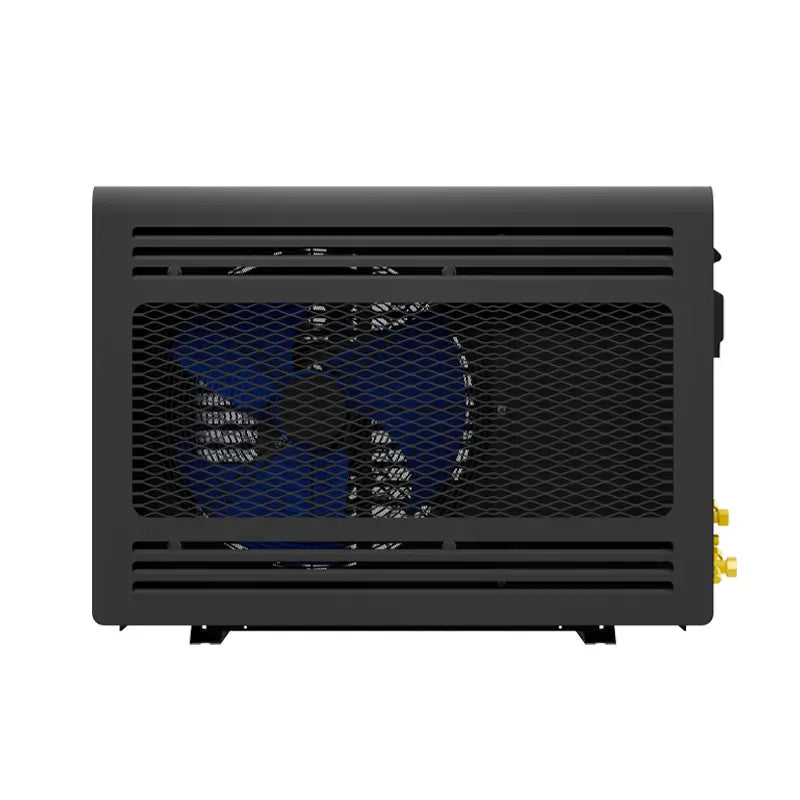

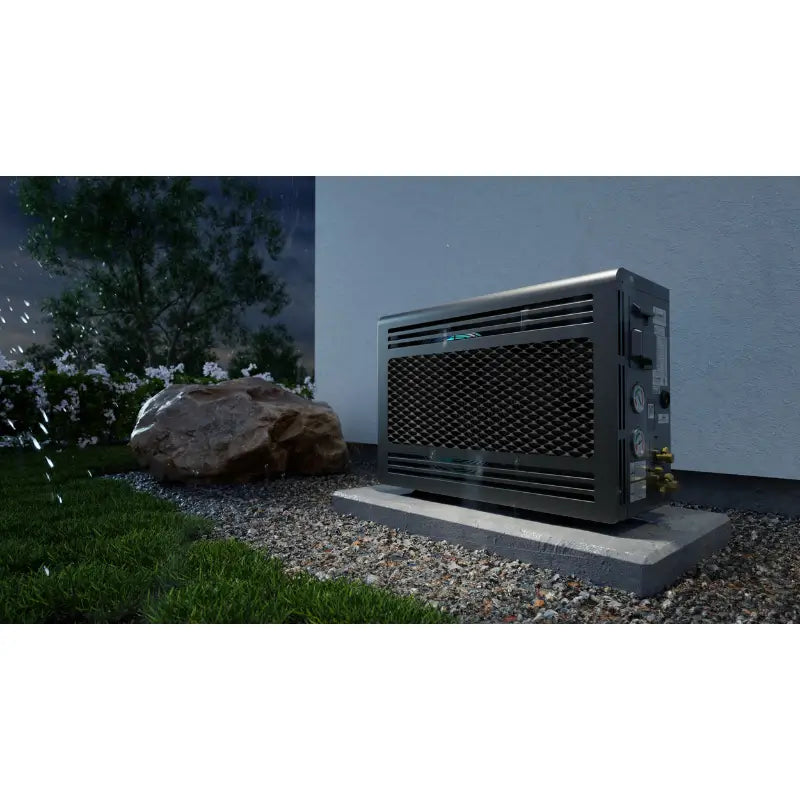

Exterior Protective Housing
Exterior Protective Housing is recommended when the condensing unit is installed outdoors. It helps protect the condenser from weather exposure and environmental wear.
Galvanized steel base and 20 GA embossed steel cabinet
Hinged access for easier servicing
Rain trough under hinge to manage moisture
Fasteners provided by WhisperKOOL
Dimensions: 20" W x 20" H x 27" D
Condenser Coil Coating
Condenser Coil Coating is recommended for coastal homes, beach properties, and salt-air environments. It protects the condenser coil from corrosion and can help extend system lifespan.
Videos
WhisperKOOL Platinum Split Series Customer Review
Ray and Kim from Roseville, CA selected a WhisperKOOL Platinum Split System for their modern wine cellar. Watch their customer review below.
Product Video
Installation and Application Tips
Manuals and Downloads
Review the official manuals, specifications, and warranty information before purchasing or installing this wine cellar cooling system.
The WhisperKOOL Platinum Mini Split is recommended for homeowners building a small dedicated wine cellar or glass wine wall where quiet operation, remote condenser placement, and clean visual design are priorities.
It is best suited for properly insulated and sealed residential wine cellars up to approximately 500 cubic feet. If your cellar includes large glass panels, high ceilings, exterior walls, unusual heat exposure, or custom construction details, request a professional wine cellar cooling evaluation before purchasing.
Need Help Choosing the Right Cooling System?
The WhisperKOOL Platinum Mini Split is a strong choice for small residential wine cellars and glass wine walls, but sizing depends on more than cubic footage. Wine Coolers Empire can help confirm the right system before you buy.
This system is ideal for wine cellars up to 500 cubic feet, assuming the space is properly insulated and sealed with a vapor barrier.
Its compact, wall-mounted evaporator takes up minimal room inside the cellar, while the condenser is placed remotely. This setup delivers quiet, efficient cooling without sacrificing storage or design aesthetics.
Yes. A licensed HVAC technician must install the system. The setup involves handling refrigerant lines and electrical wiring, and professional installation is required to activate the warranty.
Yes, the condenser can be installed outside using the optional exterior housing. Make sure it’s installed in a location with adequate ventilation and weather protection.
Yes. The noise-generating condenser is located outside the cellar, and the evaporator inside is designed to run quietly, making it suitable for residential and display cellar environments.
The Platinum Mini Split includes the KDT Digital Controller with Advanced System Protection. It allows you to monitor and adjust temperature and humidity, while providing system alerts and diagnostics.
WhisperKOOL provides a 2-year parts and labor warranty and a 5-year warranty on the compressor. Both warranties are valid only when the system is installed by a professional and registered with the manufacturer."]
FAST, FREE SHIPPING
Get your online orders fast at your door with free shipping.
It is very quiet compared to my previous one. At first I wasn't going for a split type. But I really need a quiet unit because we just had a baby. And this unit doesn't disturb her which is amazing.
B
Bernard
Very quiet. Controller was easy to use. Instructions was clear. On time delivery
R
Robert Heinrich
I understand there are delays because of the current situation with covid 19 so I wasn't expecting this cooler to arrive yesterday. I was surprised to received it but very excited to start using it. Thank you!
B
Benny
very quiet
Compared to my previous cooling unit, this one is very quiet. At first I thought it wasn't working because I got used to the noisy one I used before
J
Jeremy
shipping is awesome
totally grateful of your tracking data, I know exactly when it will arrive.
WhisperKOOL
WhisperKOOL Platinum Mini Split Ductless Cooling System
Regular price$6,119.00
Unit price
WhisperKOOL Split Wine Cellar Cooling System
WhisperKOOL Platinum Mini Split Ductless Wine Cellar Cooling System
Professional ductless split wine cellar cooling for small residential wine cellars, modern glass wine walls, and luxury wine storage spaces up to approximately 500 cubic feet when properly insulated, sealed, and vapor-barrier protected.
Recommended for wine cellars up to approximately 500 cu. ft.
Ductless split system with remote condenser placement
Condensing unit can be installed up to 100 line feet from the evaporator
Includes KDT digital touch display and liquid-temperature bottle probe
115V evaporator and 115V condenser configuration
Professional HVAC-R installation required
Important Installation Notice: A qualified HVAC-R technician is required for installation of the WhisperKOOL Platinum Mini Split Ductless Cooling System. Failure to use a qualified HVAC-R technician may void the manufacturer warranty.
Quick Answer Summary
Product Type
Ductless split wine cellar cooling system
Brand
WhisperKOOL
Recommended Cellar Size
Up to approximately 500 cu. ft.
BTU/h Capacity
2,101–2,492 BTU/h
Installation Type
Professional HVAC-R installation required
Maximum Line Length
Up to 100 line feet
Voltage
115V evaporator and 115V condenser
Best Application
Small residential wine cellars, luxury wine rooms, and glass wine walls
Warranty
2-year limited parts and labor warranty
Product Overview
The WhisperKOOL Platinum Mini Split Ductless Cooling System is designed for wine collectors, homeowners, designers, and builders who need a professional-grade wine cellar cooling system for a compact custom wine room or glass wine wall.
Unlike self-contained through-the-wall cooling units, this split wine cellar cooling system separates the evaporator and condensing unit. The evaporator is installed in or near the wine cellar, while the condensing unit can be placed in a remote location such as a utility room, attic, garage, mechanical space, or outdoors with the correct protective housing.
This split configuration helps reduce equipment noise inside the cellar while giving designers and builders more flexibility for high-end residential wine storage projects.
Recommended For
Small residential wine cellars
Modern glass wine walls
Luxury home wine displays
Quiet wine cellar installations
Remote condenser placement
Custom home projects
Wine cellars up to approximately 500 cu. ft.
Not Recommended For
Commercial wine rooms
DIY installations
Wine cellars larger than 500 cu. ft.
Projects without proper insulation or vapor barrier
Outdoor condenser placement without protective housing
Free Wine Cellar Design Assistance
Not sure if the WhisperKOOL Platinum Mini Split is properly sized for your wine cellar? Wine Coolers Empire can review cellar size, insulation, glass exposure, climate conditions, rack layout, and cooling requirements before purchase.
The condenser is separated from the cellar area, helping reduce operating noise inside the wine storage space.
Remote Condenser Placement
The condensing unit can be installed up to 100 line feet away from the evaporator for greater project flexibility.
Ideal for Glass Wine Walls
The compact ductless evaporator works well in modern wine displays where aesthetics and space planning matter.
Bottle Temperature Monitoring
The liquid-temperature bottle probe measures wine temperature more directly than ambient cellar air.
Small Cellar Fit
Designed for small, properly constructed residential wine cellars up to approximately 500 cubic feet.
Professional Design Flexibility
A strong choice for custom home projects where the condenser should be placed away from the finished cellar area.
Should You Buy This Cooling System?
Buy This Model If
Your wine cellar is approximately 500 cubic feet or less.
You want a quieter alternative to a through-the-wall cooling unit.
You have space for a remote condenser installation.
Your project is a residential wine cellar or modern glass wine wall.
You want precise bottle-temperature monitoring.
Consider Another Model If
Your cellar is larger than 500 cubic feet.
You need a fully ducted and concealed system.
You are cooling a commercial wine room.
Your cellar lacks proper insulation or a vapor barrier.
Your installation cannot support a remote condenser.
Installation Requirements
Electrical Requirements
Component
Requirement
Evaporator
115V, 15-amp dedicated circuit required
Condenser
115V, 15-amp dedicated circuit required
Line Set Requirements
Line Type
Size
Liquid Line
1/4"
Suction Line Under 50 ft.
3/8"
Suction Line Over 50 ft.
1/2"
Maximum Line Length
Up to 100 line feet
Drain Line: Requires 1/2" ID clear plastic tubing. Drain tubing is not included.
Outdoor Condenser Installation: Outdoor condenser installations require the optional exterior protective housing to protect the condenser from weather exposure.
When This Cooling System Is the Wrong Choice
The Platinum Mini Split may not be suitable if the cellar exceeds 500 cubic feet, contains significant glass exposure, lacks proper insulation, does not include a vapor barrier, or requires commercial-grade cooling capacity.
Selecting an undersized cooling system may prevent the cellar from reaching the desired storage temperature and may cause premature equipment wear.
Key Features
KDT Digital Touch Display
The KDT Digital Touch Display can be installed up to 50 feet away from the unit. It includes Advanced System Protection with alarms that alert users when operating conditions fall outside required parameters.
Liquid Temperature Bottle Probe
The included bottle probe measures liquid temperature to provide a more accurate reflection of the wine temperature inside the cellar compared with measuring only ambient air temperature.
Technical Specifications
Specification
Value
Model
Ductless Platinum Mini Split
Recommended Cellar Size
Approx. 500 cu. ft. when fully insulated and sealed with proper vapor barrier
BTU/h Capacity
2,101–2,492 BTU/h
BTU/h at 85°F Condenser Air Intake
2,101
Evaporator CFM
99
Condenser CFM
223

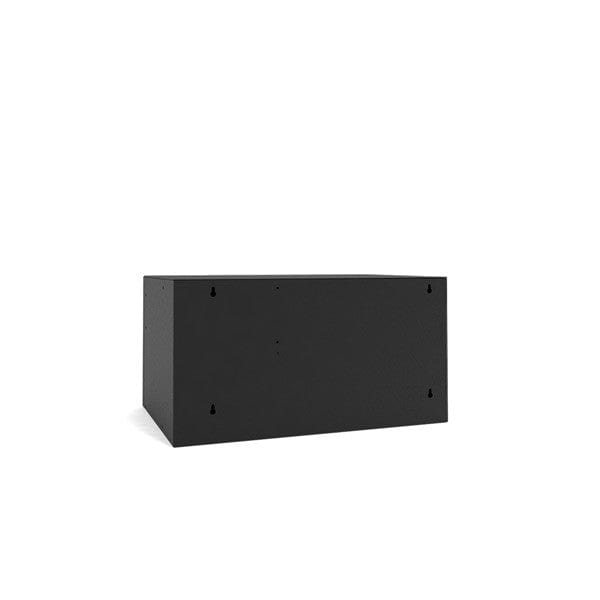

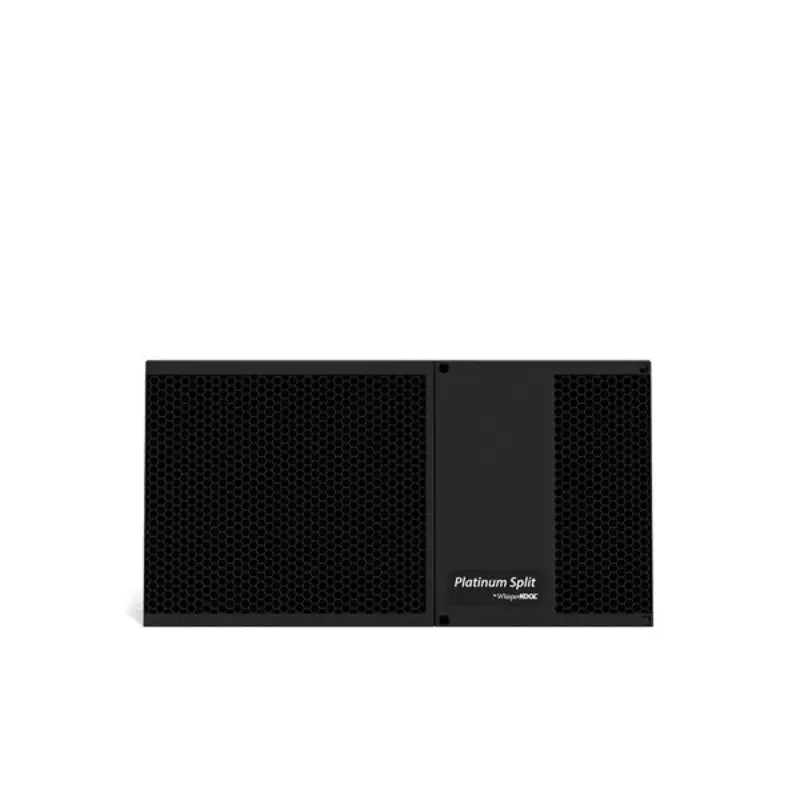

Evaporator Dimensions
13" L x 20" W x 10.5" H

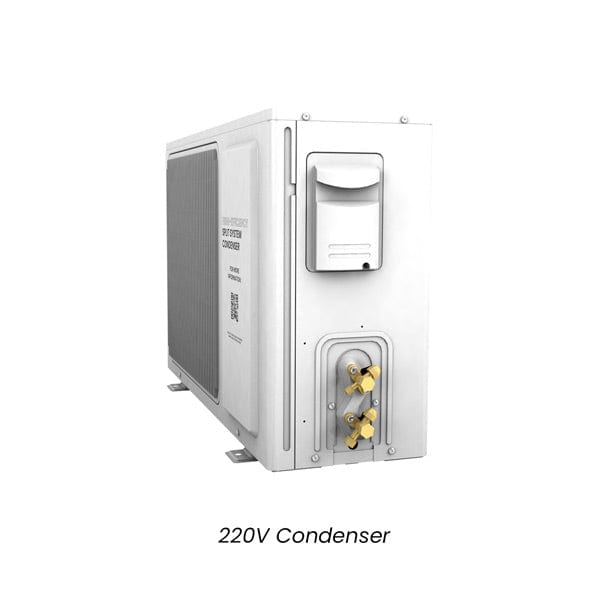

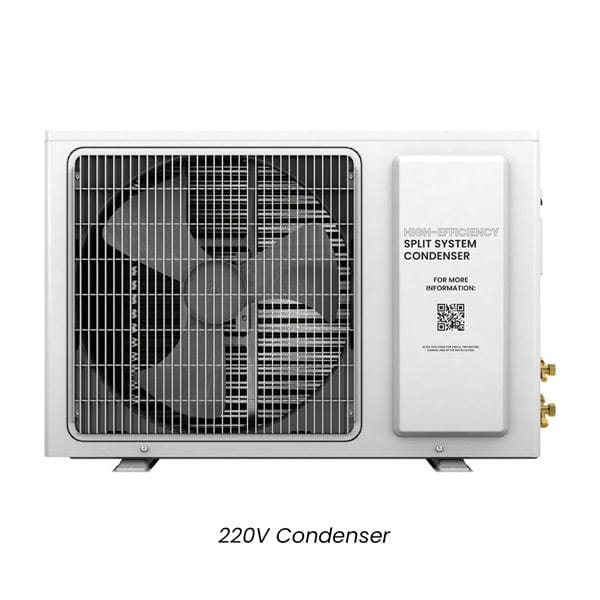

Condenser Dimensions
13.97" L x 15.85" W x 9.86" H
Refrigerant
R-134a
Evaporator Voltage
115V, 15-amp dedicated circuit required
Condenser Voltage
115V, 15-amp dedicated circuit required
Evaporator Weight
40 lbs
Condenser Weight
38.8 lbs
Evaporator Running Amps
1 amp
Condenser Amps
LRA 26 / RLA 4.4
Liquid Line
1/4"
Suction Line
3/8" under 50 ft. / 1/2" over 50 ft.
Drain Line
1/2" ID clear plastic tubing, not provided
Maximum Distance
Up to 100 line feet from evaporator to condenser
Thermostat
Advanced digital display with 50 ft. cable and retractable bottle probe
Temperature Delta
Can maintain 55°F cellar temperature with up to 110°F condenser air intake temperature
Warranty
2-year limited parts and labor warranty
BTU/h Capacity Guidance
The estimated BTU/h range for this system is 2,101–2,492 BTU/h. This value is an estimate and not a guarantee because actual cooling requirements depend on cellar construction, glass exposure, insulation quality, vapor barrier performance, ambient temperature, and other design variables.
The optional 24V Thermostat Conversion Kit allows compatible WhisperKOOL split systems to work with third-party smart thermostat technology.
Connect a compatible thermostat to Wi-Fi.
Monitor temperature from a phone, tablet, or laptop.
Monitor run time and energy usage.
Set alarm notifications.
View cellar conditions remotely.
Please note: WhisperKOOL does not provide smart thermostats. If the 24V Thermostat Conversion Kit is selected, the system will not be built with the standard WhisperKOOL control or liquid measuring bottle probe. A compatible 24V smart thermostat must be purchased separately.
WhisperKOOL Accessories
Optional WhisperKOOL accessories can help protect the cooling system and improve installation suitability. View all WhisperKOOL parts and accessories.
Exterior Protective Housing
Exterior Protective Housing is recommended when the condensing unit is installed outdoors. It helps protect the condenser from weather exposure and environmental wear.
Galvanized steel base and 20 GA embossed steel cabinet
Hinged access for easier servicing
Rain trough under hinge to manage moisture
Fasteners provided by WhisperKOOL
Dimensions: 20" W x 20" H x 27" D
Condenser Coil Coating
Condenser Coil Coating is recommended for coastal homes, beach properties, and salt-air environments. It protects the condenser coil from corrosion and can help extend system lifespan.
Videos
WhisperKOOL Platinum Split Series Customer Review
Ray and Kim from Roseville, CA selected a WhisperKOOL Platinum Split System for their modern wine cellar. Watch their customer review below.
Product Video
Installation and Application Tips
Manuals and Downloads
Review the official manuals, specifications, and warranty information before purchasing or installing this wine cellar cooling system.
The WhisperKOOL Platinum Mini Split is recommended for homeowners building a small dedicated wine cellar or glass wine wall where quiet operation, remote condenser placement, and clean visual design are priorities.
It is best suited for properly insulated and sealed residential wine cellars up to approximately 500 cubic feet. If your cellar includes large glass panels, high ceilings, exterior walls, unusual heat exposure, or custom construction details, request a professional wine cellar cooling evaluation before purchasing.
Need Help Choosing the Right Cooling System?
The WhisperKOOL Platinum Mini Split is a strong choice for small residential wine cellars and glass wine walls, but sizing depends on more than cubic footage. Wine Coolers Empire can help confirm the right system before you buy.
