WhisperKOOL Platinum Split Twin Ductless Cooling System Review
NOTE: A qualified HVAC-R technician is required for the installation of your WhisperKOOL Platinum Twin Ductless Split System. Failure to adhere to this requirement will void the warranty.

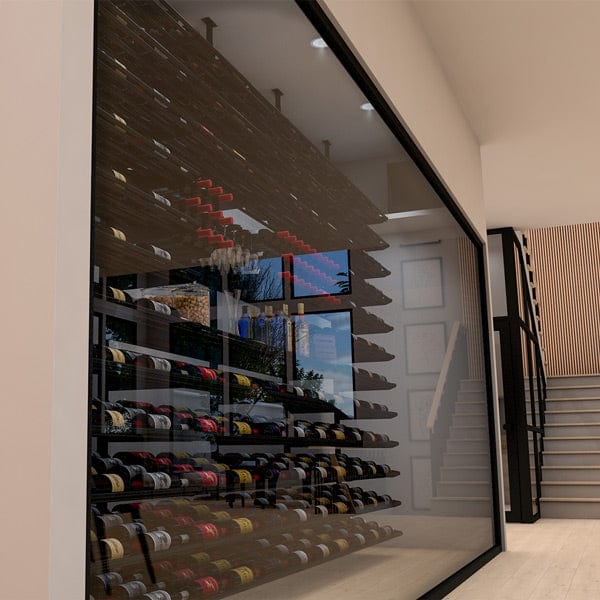

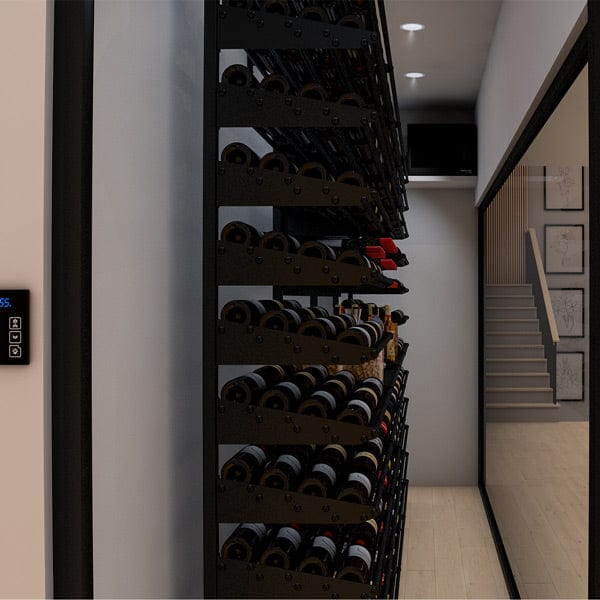

WhisperKOOL Platinum Split Twin Ductless Wine Cellar Cooling Units are designed to be installed in an aesthetically pleasing way. Perfect for glass wine walls.

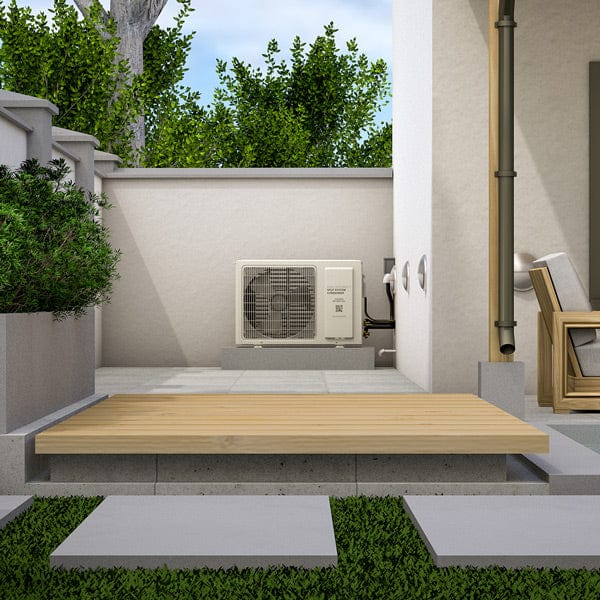

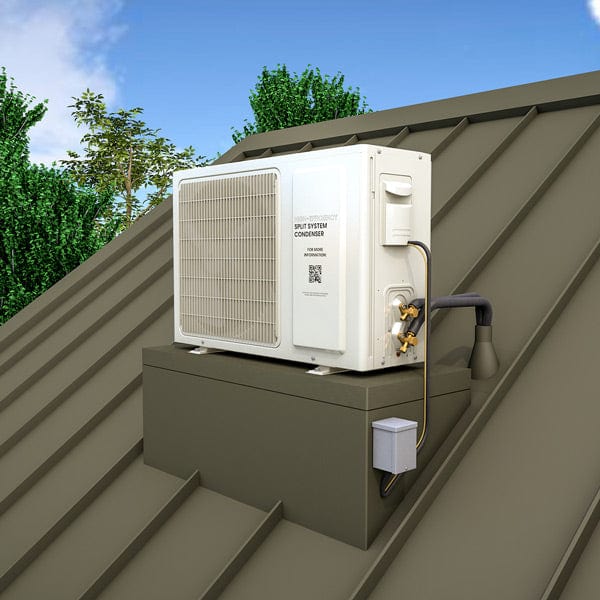

WhisperKOOL Platinum Split Wine Cooler Units offer flexible installation with the ability to place the condenser up to 100 feet from the evaporator—or even outdoors with optional exterior housing. Features include an advanced control system, standard and 24V thermostat compatibility, UV-C light upgrade, and a 2-speed fan switch to adjust BTU/h output for optimal performance.

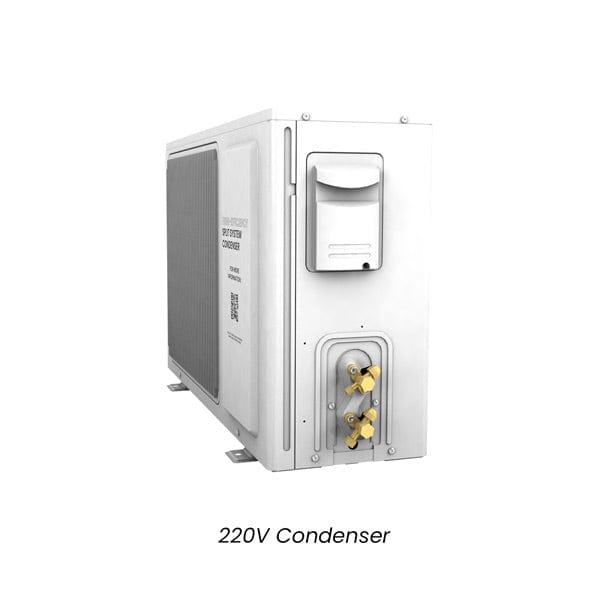

In a WhisperKOOL split system, the evaporator and condensing unit are in separate parts, the evaporator being near the cellar and the condensing unit being outside or in an attic or utility room. A ductless split wine cellar cooler will have a visible grille, if you prefer the system to be out of sight, you can opt for the WhisperKOOL Platinum ducted split system. The choice is yours.
WhisperKOOL Reviews: WhisperKOOL Platinum Split Series
Ray and Kim from Roseville, CA were in search of a quiet cooling system for their modern wine cellar. They recently had a WhisperKOOL Platinum Split System installed to ensure the safety of their wine investments. Let's hear their testimonial about the product.
WHY BUY FROM US:Wine Coolers Empire is a trusted dealer of specialty wine cellar air conditioners, commercial wine cellar refrigeration units, and residential wine cellar coolers. More WhisperKOOL wine cellar cooling unit reviews can be found on our Customer Reviews page.
Contact us for any questions or concerns. For information on order processing, shipping options, and delivery times, please visit our Shipping Policy.
Buy the WhisperKOOL Platinum Split Twin Ductless Cooling System today and enjoy your amazing wines at their best temperature!
Key Features
Features:
TOUCH DISPLAY The KDT Digital Touch Display can be installed up to 50 ft. away from the unit. The KDT is equipped with Advanced System Protection that has alarms to alert you if certain parameters are not met.

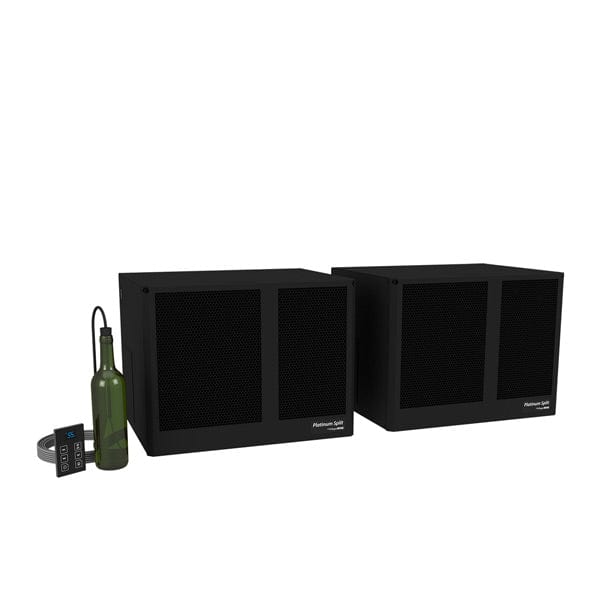

BOTTLE PROBE The unit accurately measures the temperature of wine in the cellar using a liquid temperature measuring probe. Measuring the temperature of a liquid is a more direct and accurate reflection of the temperature of the wines stored in the cellar than measuring the ambient cellar air.
Manuals
Manuals:
Please click below to read and download the WhisperKOOL Platinum Split manual.
Not sure if the Platinum Split Twin is the right unit for your cellar?Talk to an Expert at +1-888-407-7770 or email: support@winecoolersempire.com to ensure that this cooling system is best suited for your needs.
BTU/h
BTU/h
7850 - 8054
The BTU/h value range shown here is an estimate and not a guarantee. There may be instances where a cellar design requires a larger unit due to variables not included in the calculation. These variables can be building materials (such as glass, stone, concrete, etc.) that do not provide enough insulation to maintain the ideal wine cellar environment.
We recommend purchasing a unit with a higher capacity to compensate for these unforeseen variables. Choosing an undersized unit may result in premature failure and may not be able to achieve your desired wine cellar temperature.
Specifications
Specifications:
Cellar Size:Approx. 3000 cu. ft. when cellar is fully insulated and sealed with a proper vapor barrier
Dimensions:Evaporator (x2): 16.1”L x 20.5”W x 15.5”H • Condenser: 24”L x 18.98”W x 16.16”H
Drain Line: ti: 1/2” ID tubing, tiR: 3/8″ ID tubing
BTU/h:Low: 7536 • Medium: 7850 • High: 8164
WhisperKOOL Warranty: Limited 2-year product warranty is offered with all split systems.
Platinum Split Twin
Please click below for the full specification of WhisperKOOL Platinum Split Ductless Series.
Introducing our new 24-volt thermostat conversion kit for WhisperKOOL split systems! Utilize industry-leading technology from major manufacturers to monitor the environment of your cellar.
Connect your thermostat to Wi‑Fi to control the temperature from your phone, tablet, or laptop.
Monitor run time and energy usage.
Set alarm notifications.
View your cellar conditions from your mobile device.
*PLEASE NOTE:WhisperKOOL does not provide smart thermostats. If you choose the 24V Thermostat Conversion Kit, you acknowledged that the system will not be built with the standard WhisperKOOL control or liquid measuring bottle probe. You will need to purchase your own 24V smart thermostat to operate the equipment. The WhisperKOOL Customer Satisfaction Team will not provide support for issues related to smart thermostats.
You may add WhisperKOOL replacement parts and accessories to enhance the performance and longevity of your wine cooling systems. These add-ons include items that upgrade and protect the system. Check out the other WhisperKOOL Parts & Accessories.

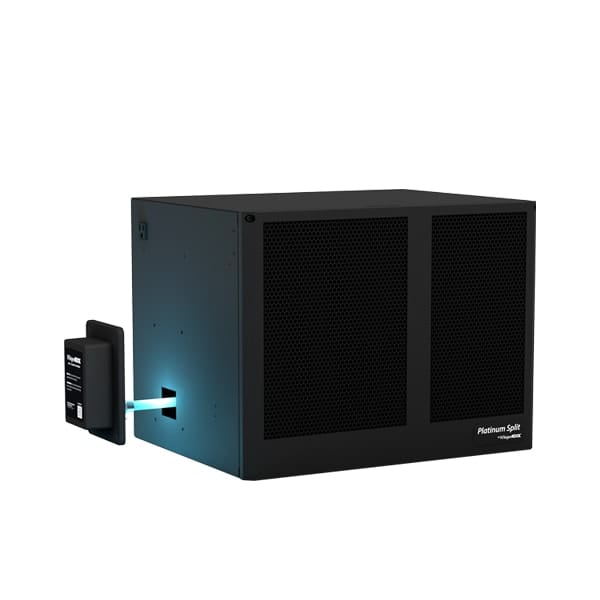

UV-C Light Technology
Adding UV-C Light Technology to WhisperKOOL wine cellar coolers enhances the overall indoor air quality inside the wine cellar and improves the system's performance. The UV-C light bulb inside the cooling system will protect it from mold and bacterial growth, extending the lifespan of the unit.
Exterior Protective Housing for WhisperKOOL Split Systems
The Exterior Protective Housing protects the condenser part of WhisperKOOL split systems from the weather and elements when installed outdoors. Exterior Condenser Housing is used with all WhisperKOOL Ductless Split Systems and WhisperKOOL Ducted Split Systems.
Galvanized steel base and steel cabinet embossed — 20 GA, hinged access for easier servicing
Easily assembled in the shop or on the job
Rain Trough under hinge to catch moisture that might seep through the hinge
WhisperKOOL® provides fasteners
Dimensions (W x H x D): 20” x 20” x 27”
Condenser Coil Coating
The Condenser Coil Coating is a protective coating applied to a WhisperKOOL wine cellar cooling system's condenser coil to protect it from salt air. This coating helps to extend the lifespan of the cooling unit, especially in areas near the coast or beach where salt air can be a problem.
Product Video
Installation and Application Tips
Read more to LEARN MORE! 📚
Welcome to our Special Section,
Here we've gathered all of the related articles in the hopes of assisting you in knowing the PERFECT MATCH for your Wine Cellar.
We understand that buying this unit is a significant investment, so we make sure you'll get the right unit for your wine room.
We have our Professional Team that is ready to assist you!
Furthermore, because YOUR SATISFACTION IS OUR TOP PRIORITY we offer ✨SURPRISING DISCOUNTS✨ that cannot be found anywhere else!
📚 Frequently Asked Questions (FAQs)

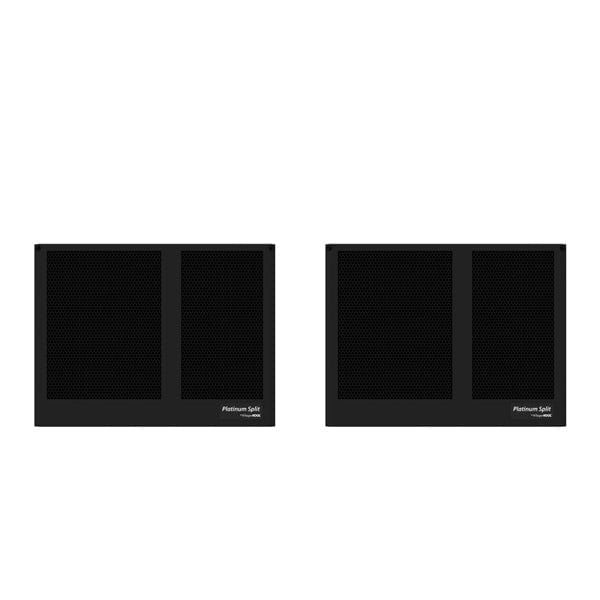

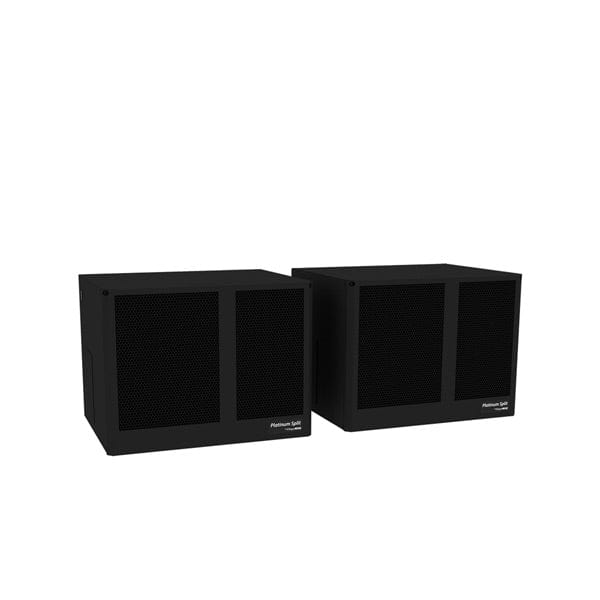

“Twin” refers to the use of two wall-mounted evaporator units. This setup provides balanced air distribution, which is especially beneficial for larger or irregularly shaped cellars.

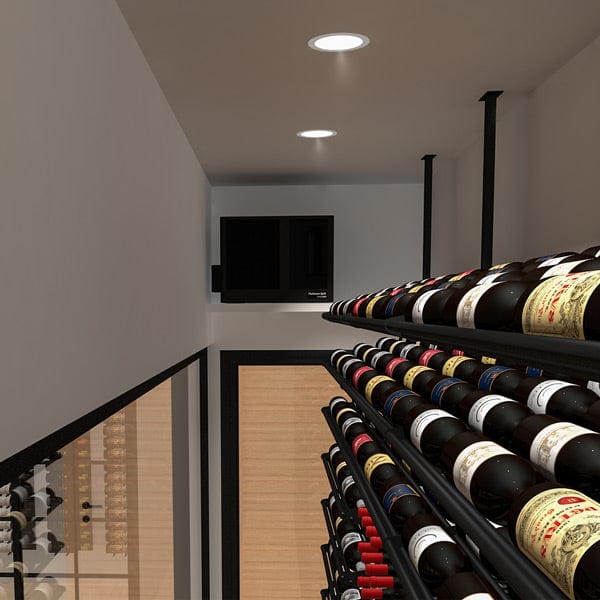

In a ductless split system, the evaporators are mounted directly inside the wine cellar, eliminating the need for ductwork. The condenser is still located outside the cellar, keeping heat and noise away from the wine environment.
Yes, installation must be performed by a licensed HVAC technician. Handling refrigerant lines and electrical connections requires expertise, and professional installation is necessary to activate the warranty.
Yes. The condenser can be placed outdoors using the optional exterior housing. It should be located in a weather-protected, well-ventilated area for optimal performance.
Yes, while the wall-mounted evaporators are inside the cellar, they are designed to operate very quietly. The louder condenser unit is located outside, so overall noise is minimal and unobtrusive.
The unit includes the KDT Digital Controller with Advanced System Protection. It allows you to monitor and adjust temperature and humidity, view system alerts, and access diagnostics for system health.
This system can efficiently cool wine cellars up to 3,000 cubic feet, assuming the space is well-insulated, properly sealed, and built to industry standards."]
FAST, FREE SHIPPING
Get your online orders fast at your door with free shipping.
I'm a huge fan of WhisperKool and been looking at the split type for a while now. Glad that I bought this one from your shop. Your website is very easy to use and support is very knowledgeable and answered all my questions.
A
Anonymous
Very quiet
It is very quiet which is great when I am admiring my collection. Also, I can't feel any vibrations unlike the previous one I used.
